Individually Addressable Programmable 12V LED Strip Lights CS8812F Pixel LED Similar to WS2812B

Model: DCFLS-RGB-12V-300 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $52.98 $44.9815% off
Qty Discounts Off Price
1-19
$44.98		 20-49
$44.08		 50-99
$43.18		 100+
$42.28
* Discounts may vary based on options below
Select Specifications:
Select PCB Width:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

This individually addressable LED pixel light using SPI control signal, if it is only powered on, the pixel LED lights will not light up, you need to connect an SPI LED controller to the LED lights, the pixel LED will operate according to the SPI command signal to show different color chasing lighting effects.

· Dream color

· Individually addressable(Built-in CS8812F IC packaged in the LED lamp beads)

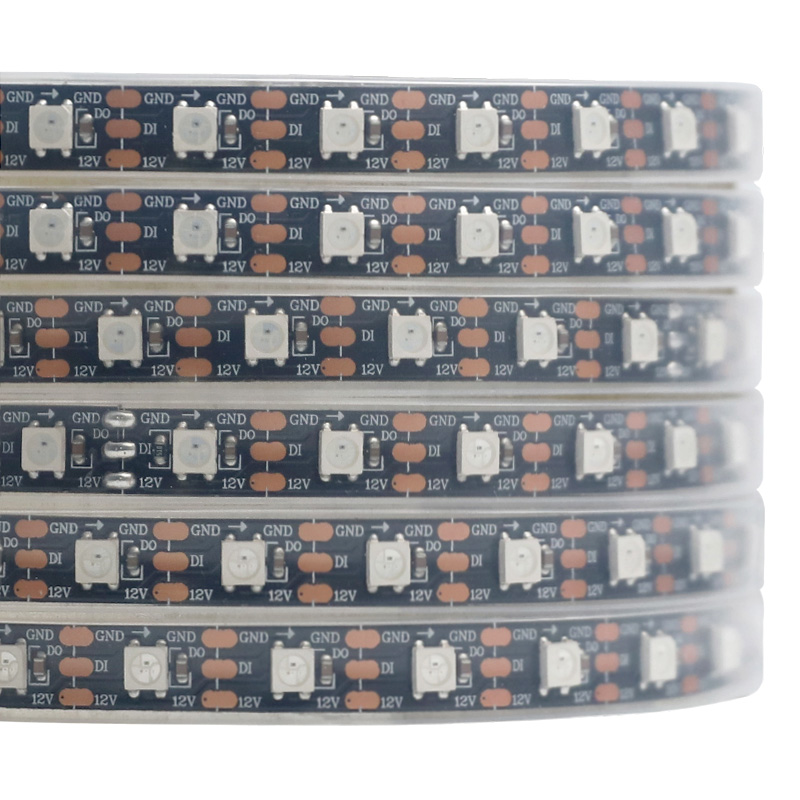

· 300 pixel LEDs per 16.4ft roll, 60 pixel LEDs per meter/3.28ft

· Programmable with a programmable controller and Arduino, Raspberry PI Like K-1000C, K-8000C, T-500K, H802RA Madrix version (Art-net). Suitable for DIY programmable LED lighting projects.

· Single data transmission (3 pin: V+/12V, V-/GND, DAT)

· Different waterproof level options, available to indoor and outdoor

· High-brightness LED lamp beads SMD5050, Greater brightness

· Requires DC12V SPI controller and 12V power supply to operate. We recommend 100W 12v transformer to drive this individually addressable LED pixel light.



Product Specification

DC12V CE FCC RoHS ISA SGS ISO LIFETIME warranty

LED Strip Type:  Individually Addressable LED Strip
LED Chip:  SMD5050
IC Type:  CS8812F (Similar to WS2812B)
Input Voltage:  DC12V
LED Color:  RGB
PCB Width:  10mm
LED Quantity:  60 LEDs/m (300LEDs/roll 16.4ft)
Pixel Quantity:  60 pixels/m (300 pixels/roll 16.4ft)

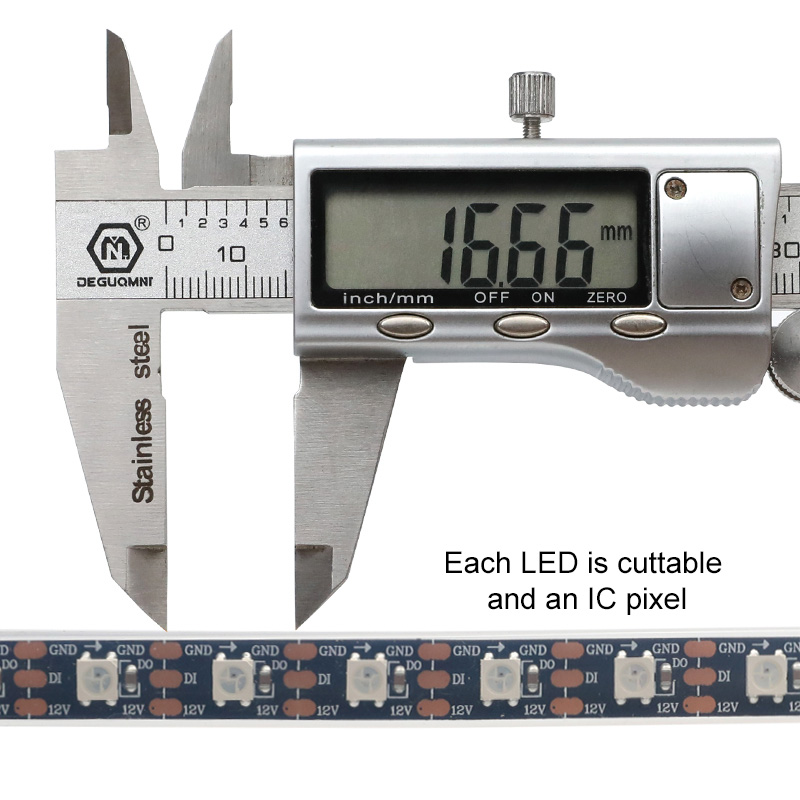

Cuttable:  1 LED (16.66mm)
Power:  14.4W/m, 72W/16.4ft
PCB Color:  White / Black
Lumen:  12 lm/LED, 3600lm/16.4ft
Beam Angle:  120°

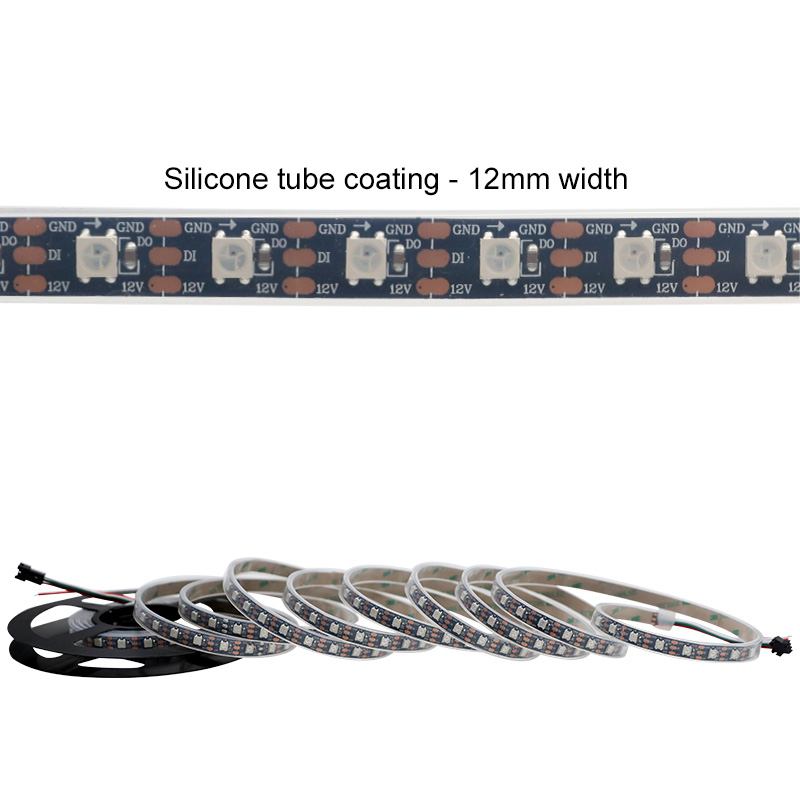

Waterproof Rating:  IP20 / IP65 / IP67 / IP68
Working Temperature:  -4°F (-20°C) ~ 122°F (50°C)



The following is the LED strip wiring diagram, more addressable LED knowledge is in: How to wire addressable led strips?

addressable led strip wiring diagram

Individually Addressable 12V LED Strip Lights CS8812F SK6813 Pixel LED Similar to WS2812B

Addressable led strip lights indoor

Addressable led strip lights outdoor

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for DCFLS-RGB-12V-300
PDFDCFLS-RGB-12V-300 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

Individually Addressable Programmable 12V LED Strip Lights CS8812F Pixel LED Similar to WS2812BIndividually Addressable Programmable 12V LED Strip Lights CS8812F Pixel LED Similar to WS2812BIndividually Addressable Programmable 12V LED Strip Lights CS8812F Pixel LED Similar to WS2812BIndividually Addressable Programmable 12V LED Strip Lights CS8812F Pixel LED Similar to WS2812B

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Which waterproof rating should I choose?
Available on this model: Underwater IP68 - Adhesive Back · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back · Outdoor Silicone Tube IP67 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Will it fit an aluminium profile, and how dense are the LEDs?
PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
