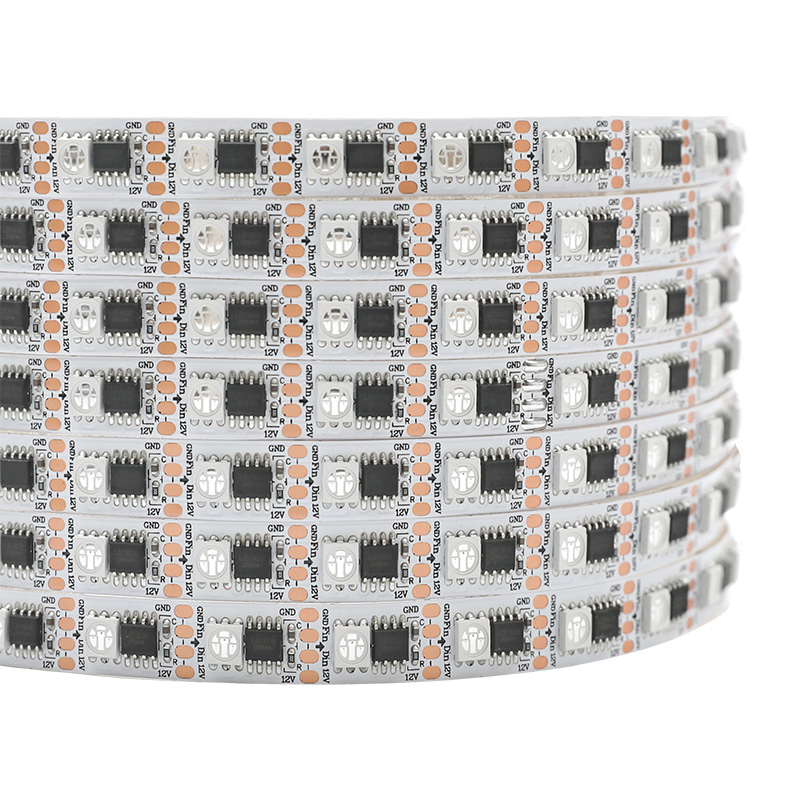

External LB1908 IC Individually Addressable 12V RGB LED Strip 60LEDs/m

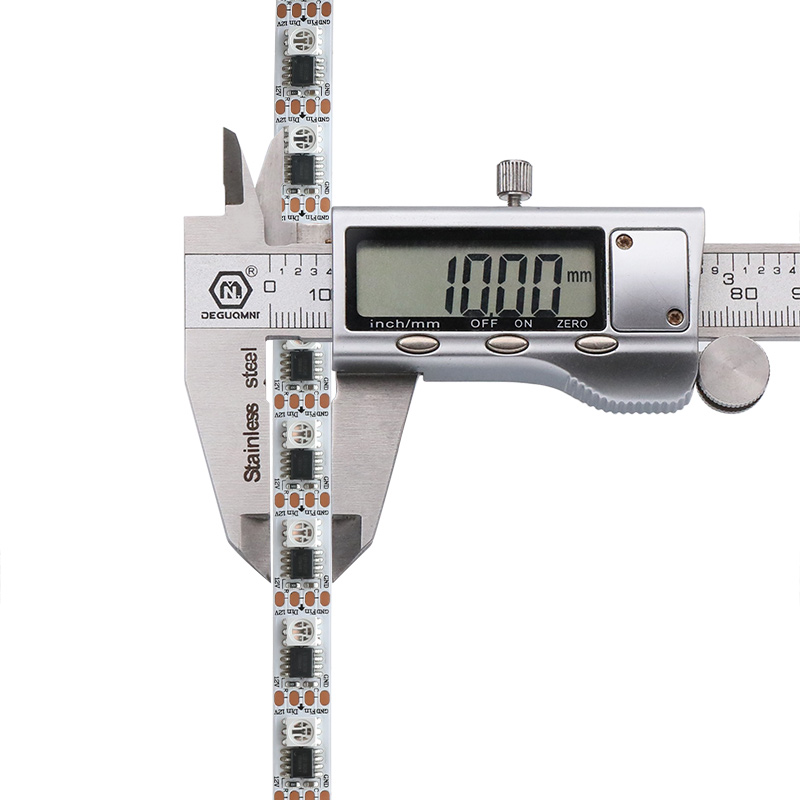

Check our external IC independently addressable RGB LB1908 LED strip with 60 SMD5050 per meter, 10mm/0.4in black PCB wide. This is a 3-wire 12V individually addressable led strip, the brightness and color of each 5050 RGB LED are controlled by an external LB1908 IC, so you can get rich colorful effects on the whole strip through an addressable Bluetooth controller CONFULL-SP638E.
Compare to WS2811 and UCS1903 5V external IC individual addressable strip lights, this LB1908 strip bumps the voltage up to 12V and is compatible with most dream color lighting projects.
Compared to breakpoint resume CS1908 and GS8208 12V external IC individual addressable strips, this LB1908 strip light simplifies wiring by using only one signal to transmit data, making it more universally applicable.

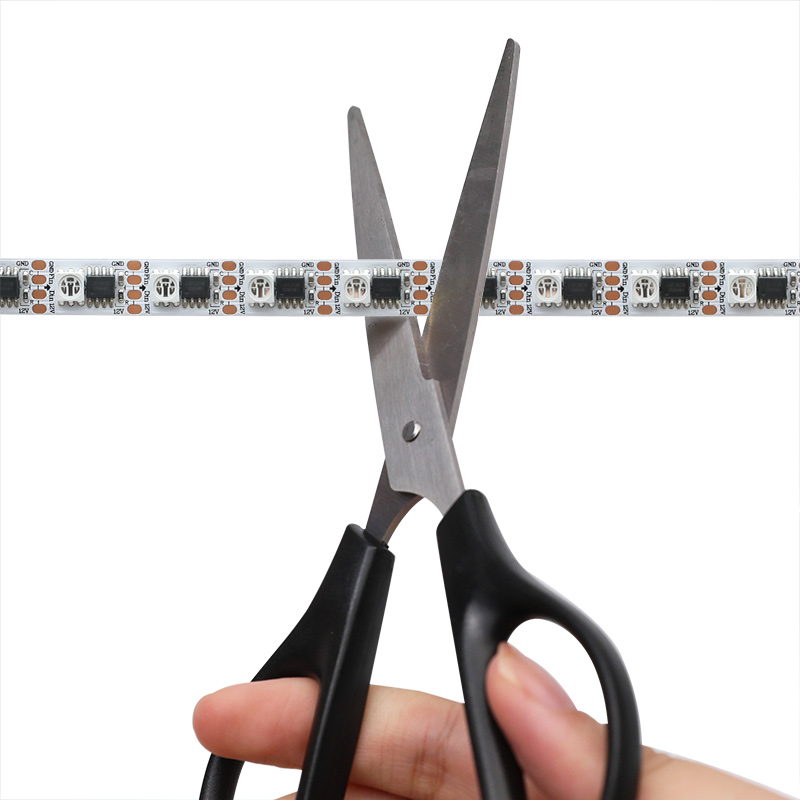

Compared to SK6812 12-24V wide voltage input and 24V to 5V built-in individual addressable led strips, this LB1908 light strip with every LED cuttable (16.66mm/0.65in cut length), with more accurate cutting precision.
|Item Type:||External LB1908 IC Individually Addressable 12V RGB LED Strip|
|LED Chip:||LB1908 + SMD5050|
|LED Color Temperature:||Addressable RGB|
|LED Quantity:||60LEDs/m, 300LEDs/Roll|
|Control Pixel:||60ICs/m, 300Ics/Roll|

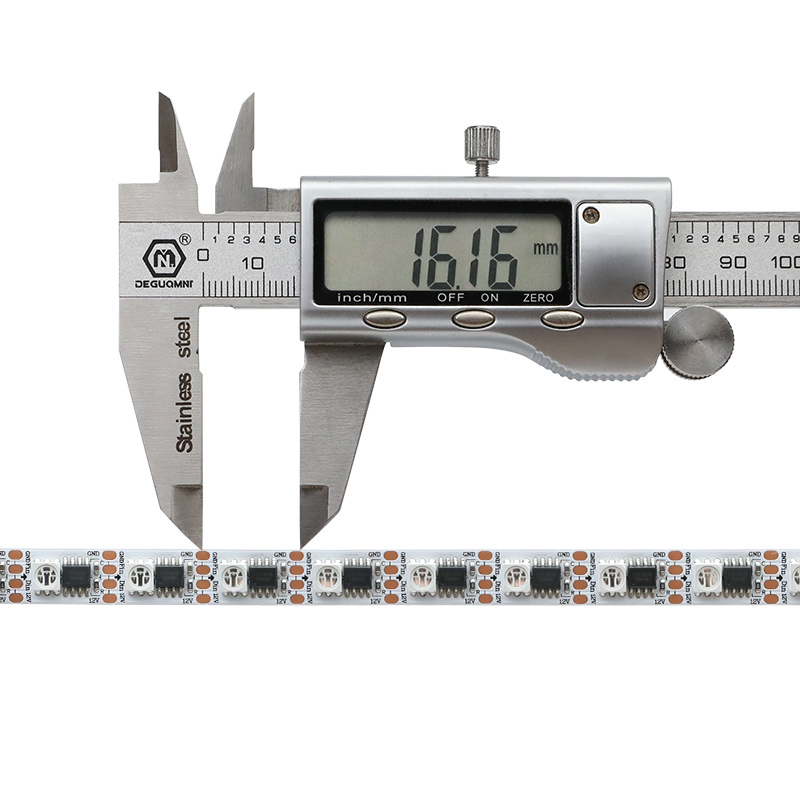

|Cut Segment:||1-LED (16.66mm/0.65in)|
|Waterproof Rating:||Non-waterproof IP20 / Waterproof IP65 IP67 IP68|
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
