DC12/24V, Internal 33 kinds mode Aluminum Wireless RF Touch Remote Touching LED Music Controller With 3.5MM Audio For Dream Color LED Strips
This LED-WiFi dream color music controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest wifi technical in the market.
Controlled by radio-frequency capacitive touch effective control distance up to 20M , With 3.5MM audio, non-interfered music mode works better , 14 classic modes changing follow your heart , 33 music modes make every moment rhythmical , Available for all sorts of constant voltage RGB lamp, such as RGB strip, soft strip, RGB panel lights, RGB light modules etc

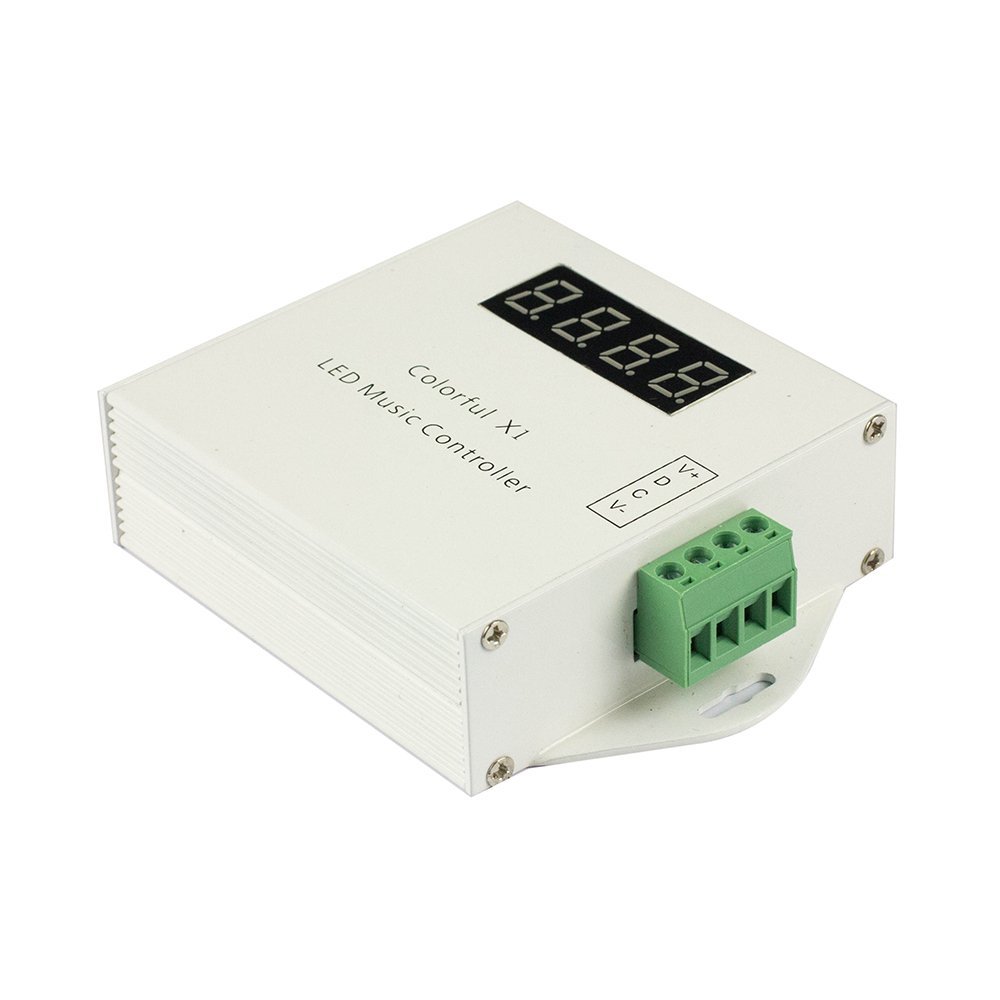

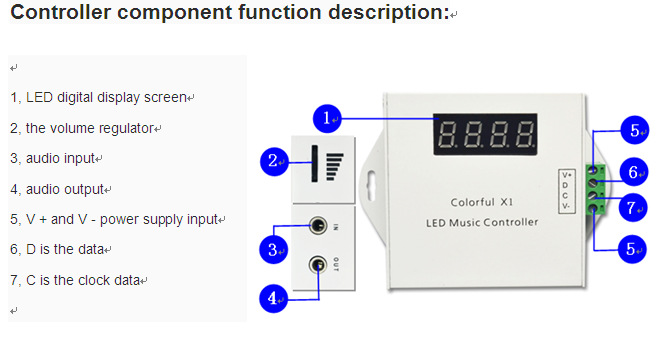

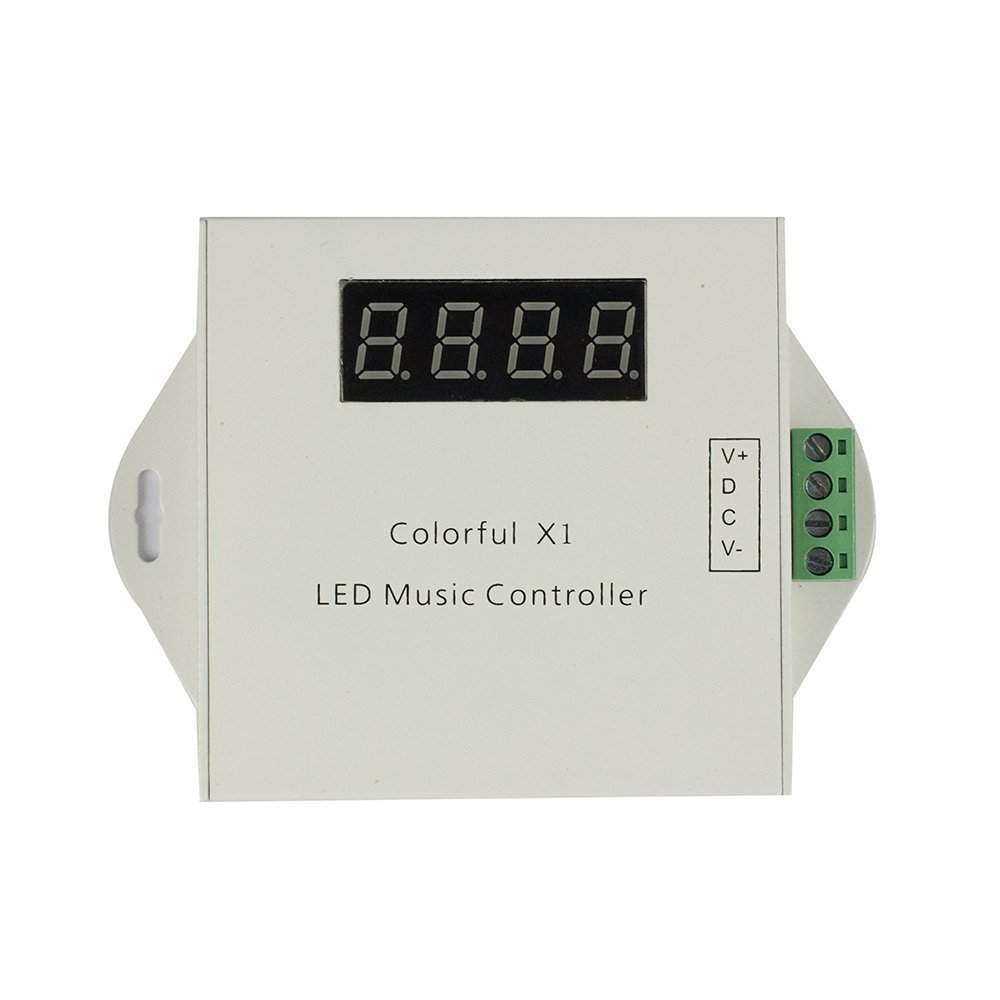

This connector with four interface one the left side GND（V-）,CLK,DATA, V+ is connect led equipment, the fifth interface is connect the anode V+ of power supply, the sixth interface is connect the cathode V- of power supply. This controller now can support 10 kinds of SPI strip in market, for LPD6803 TM1803 UCS1903 WS2811 TM1812 TM1809 WS2801 WS2812B TLS3001 TLS3008 P9813 IC dream color led strip lights or led dream color string module lights.
Item Type: Dream color 6803 music Controller
Input voltage: 12V DC
Volume Control: 70dB
Remote battery: AAA*2

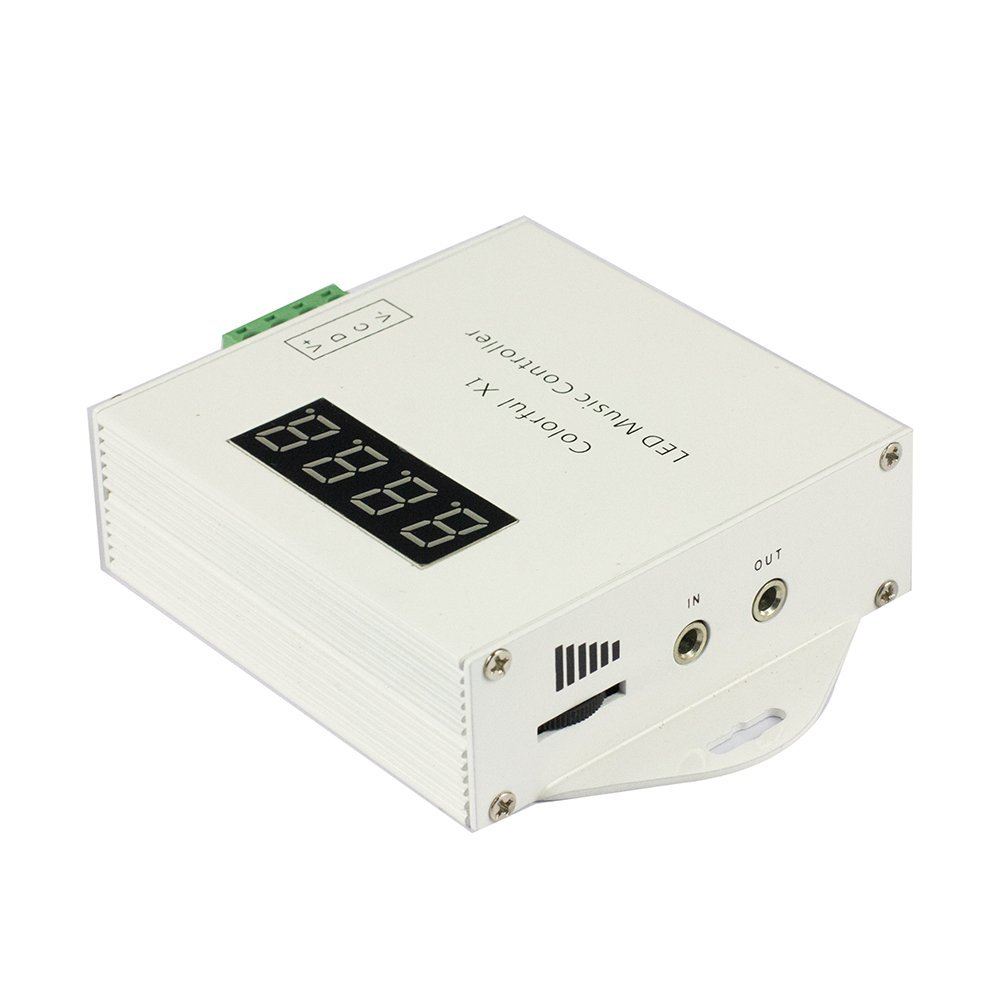

Audio connector: 3.5mm
Products size: 80x78x27mm
Audio cable length: 1.2M
Controller material: Aluminum
Remote standby power consumption: 0.08mW
Remote operating power consumption: 20mW

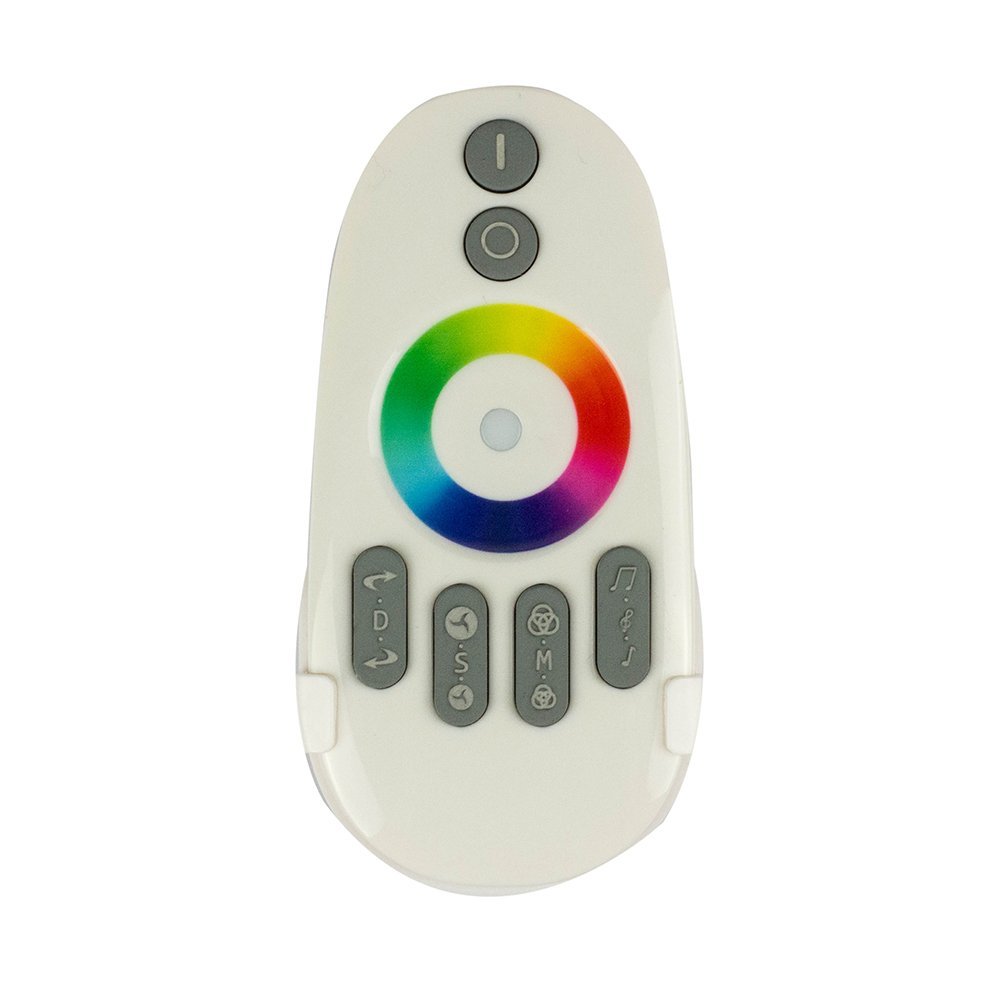

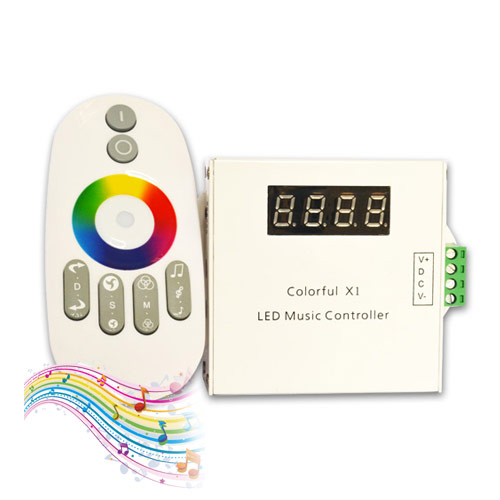

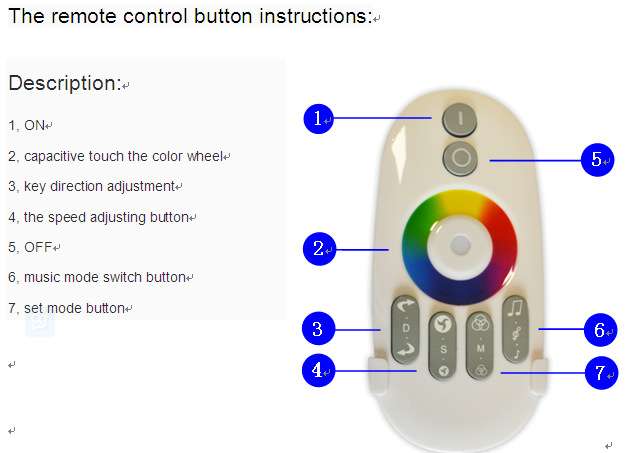

Remote and Controller

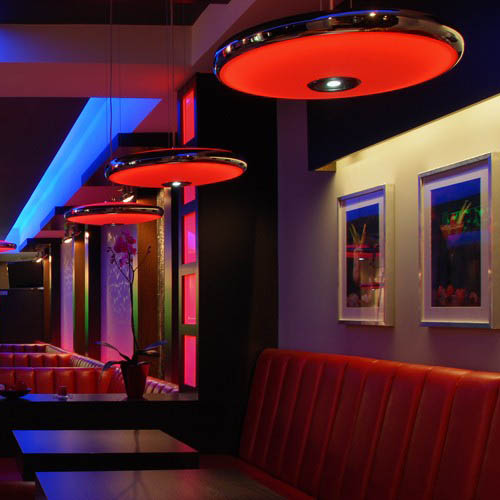

Interior Decoration: Club, bar, corridor, room, hotel, led aquarium lighting, museum, christmas, holiday, Retail LED lighting etc.
Exterior Decoration: Plaza, commercial buildings, parks, scenic spot, evening location, Sign illumination LEDs etc
Supply voltage of this product is 5/12 Volts DC, do not exceed.
Shorting output wires my cause damage to dimmer.
Always observe proper polarity when connecting power and load.
For indoor use only - this product is not waterproof or weatherproof.
QUICK and SLOW speed buttons will only work when unit is in one of the color changing (dynamic) modes.

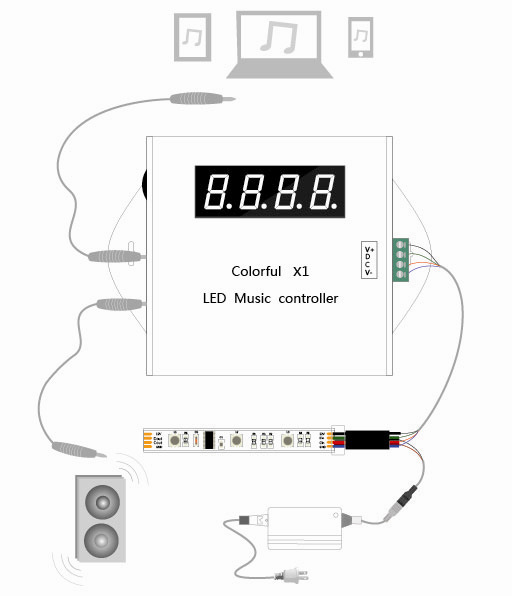

Connect according to the Wiring Schematic drawing.
Do not exceed 80% of Power Supply capacity when calculating Power Supply size to use in your system.
1x Music Controller
1x Audio Cable
1x RF Remote
1x Remote Seat
1x User Manual
