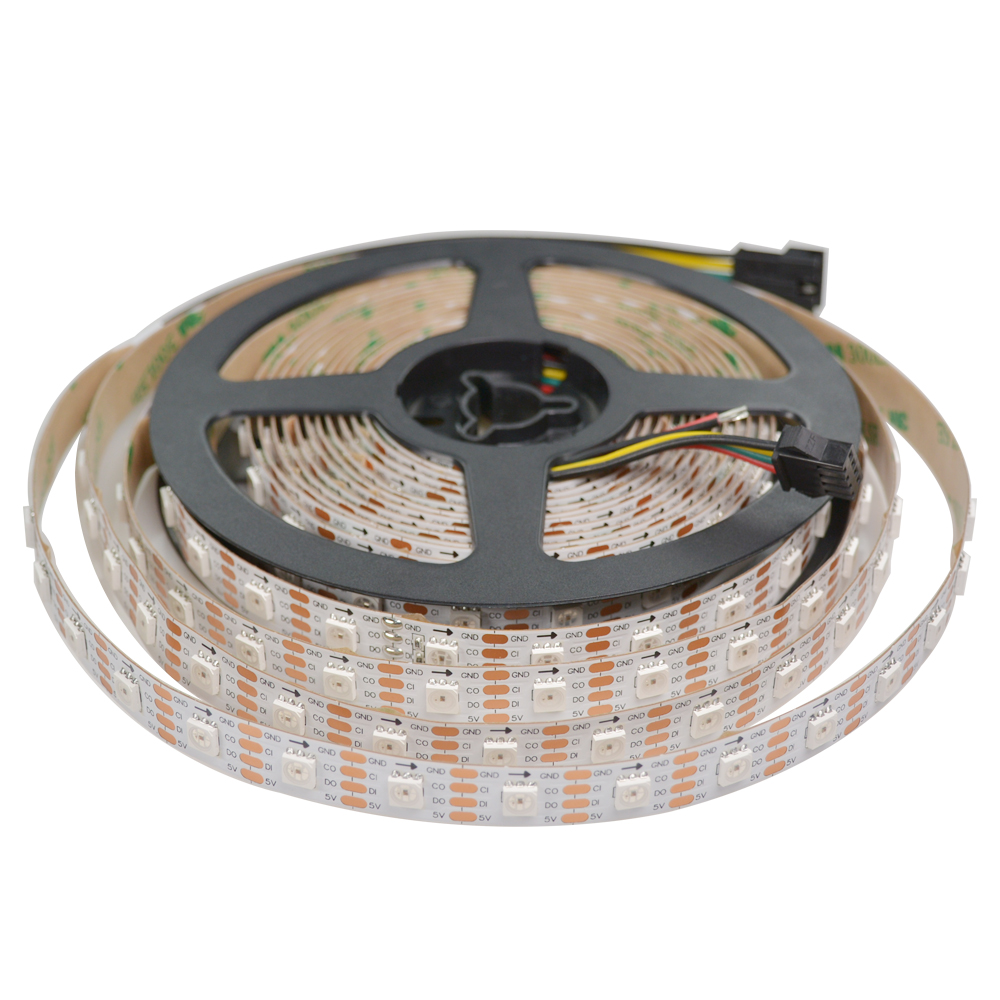

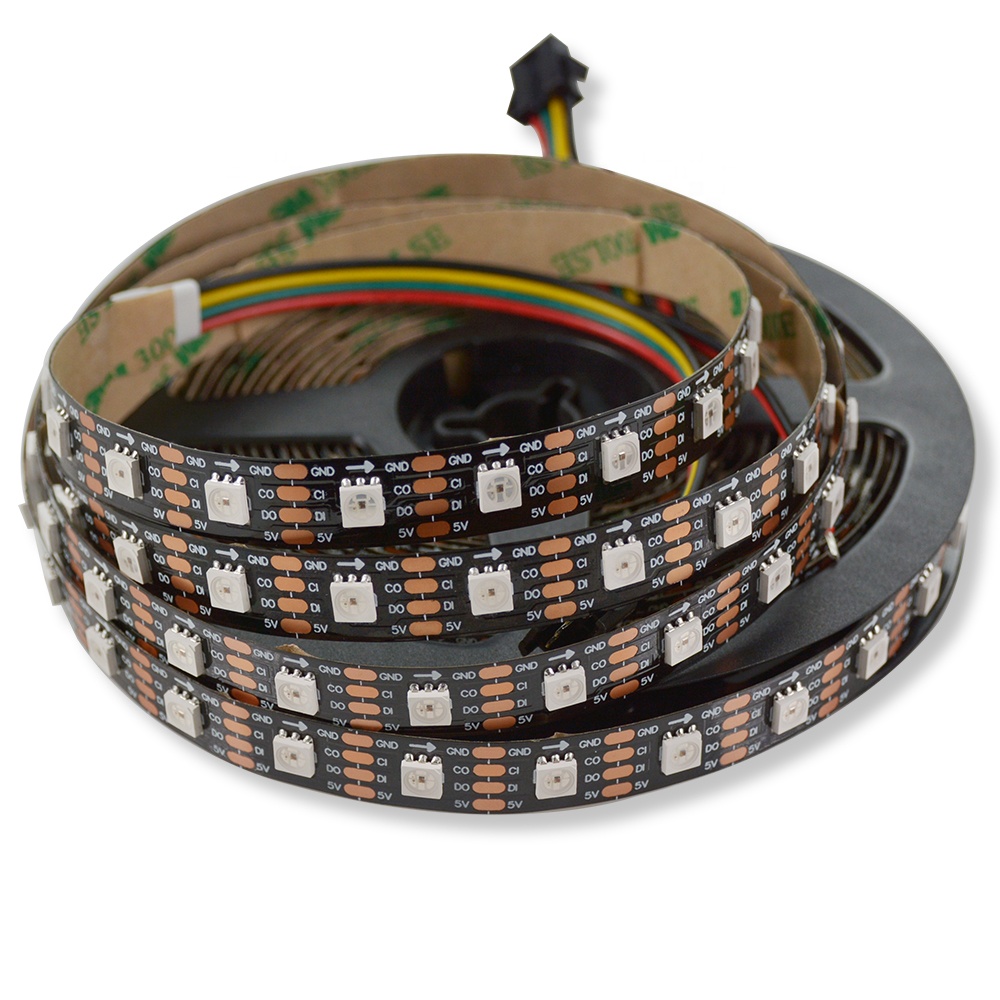

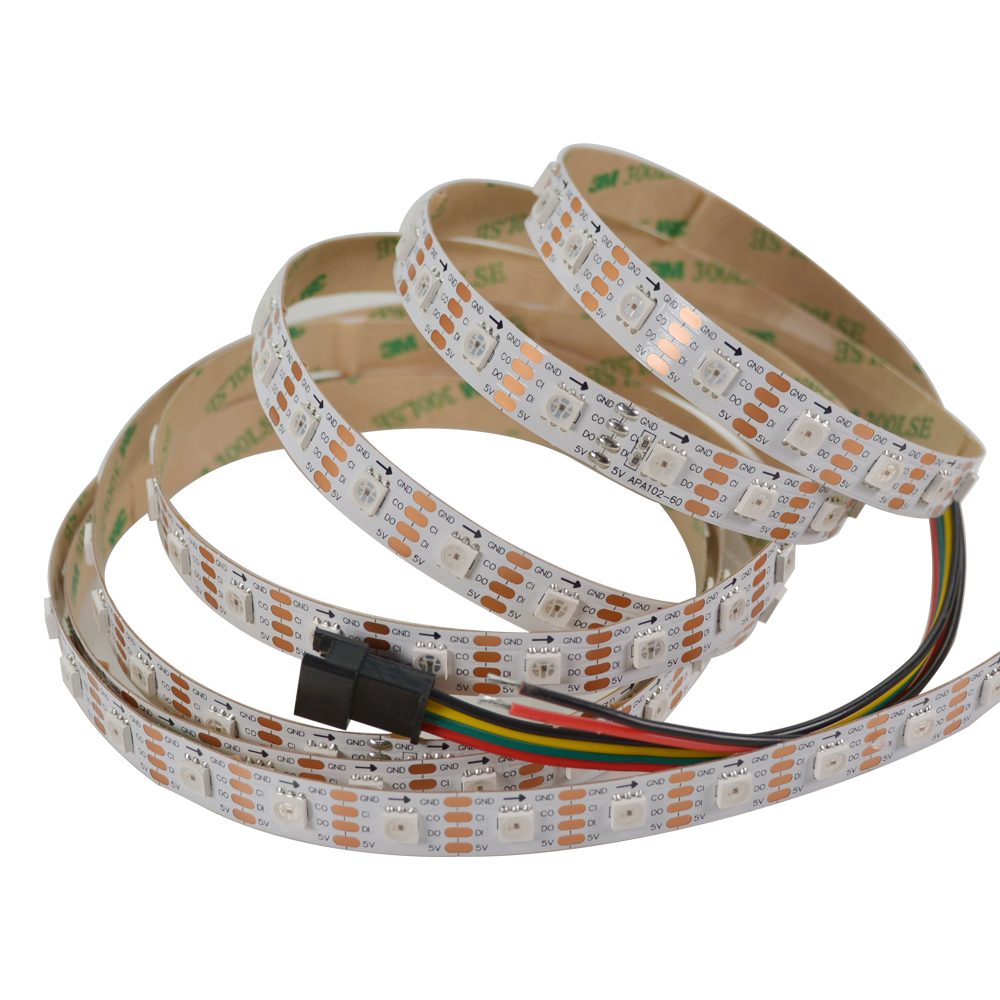

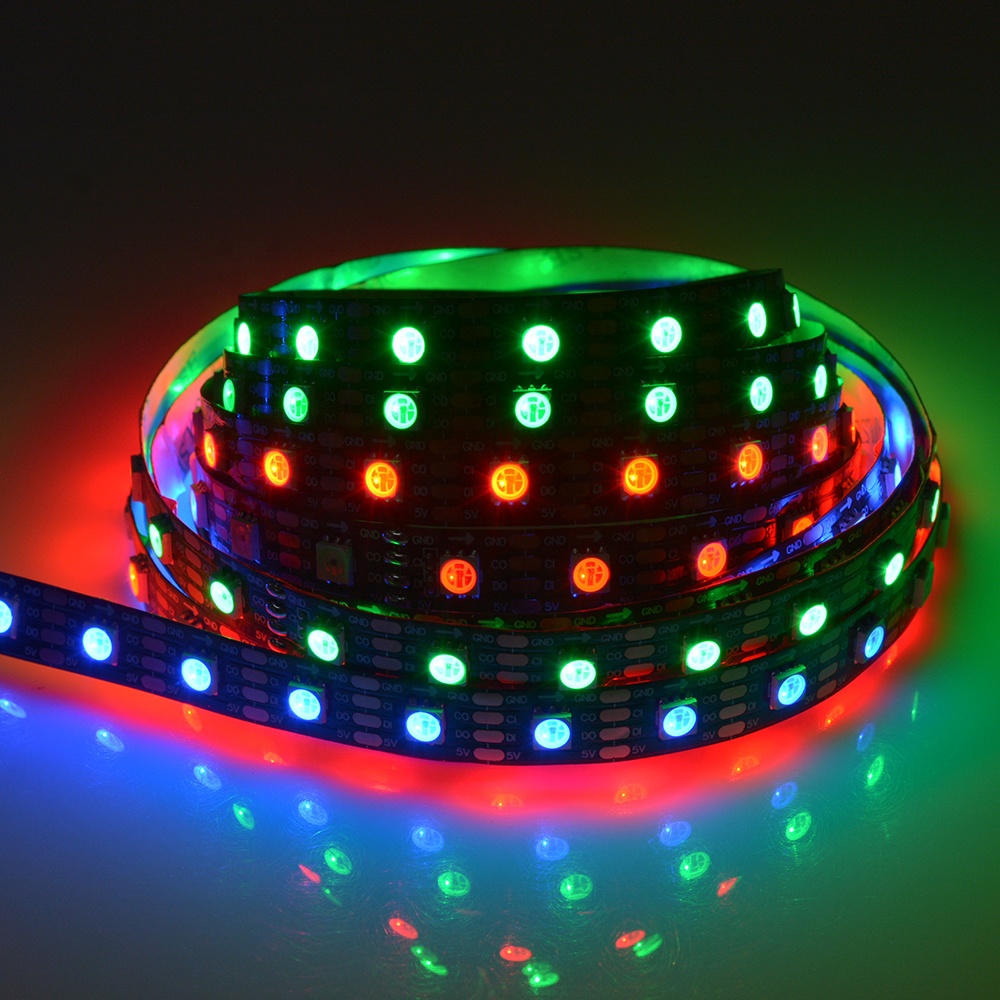

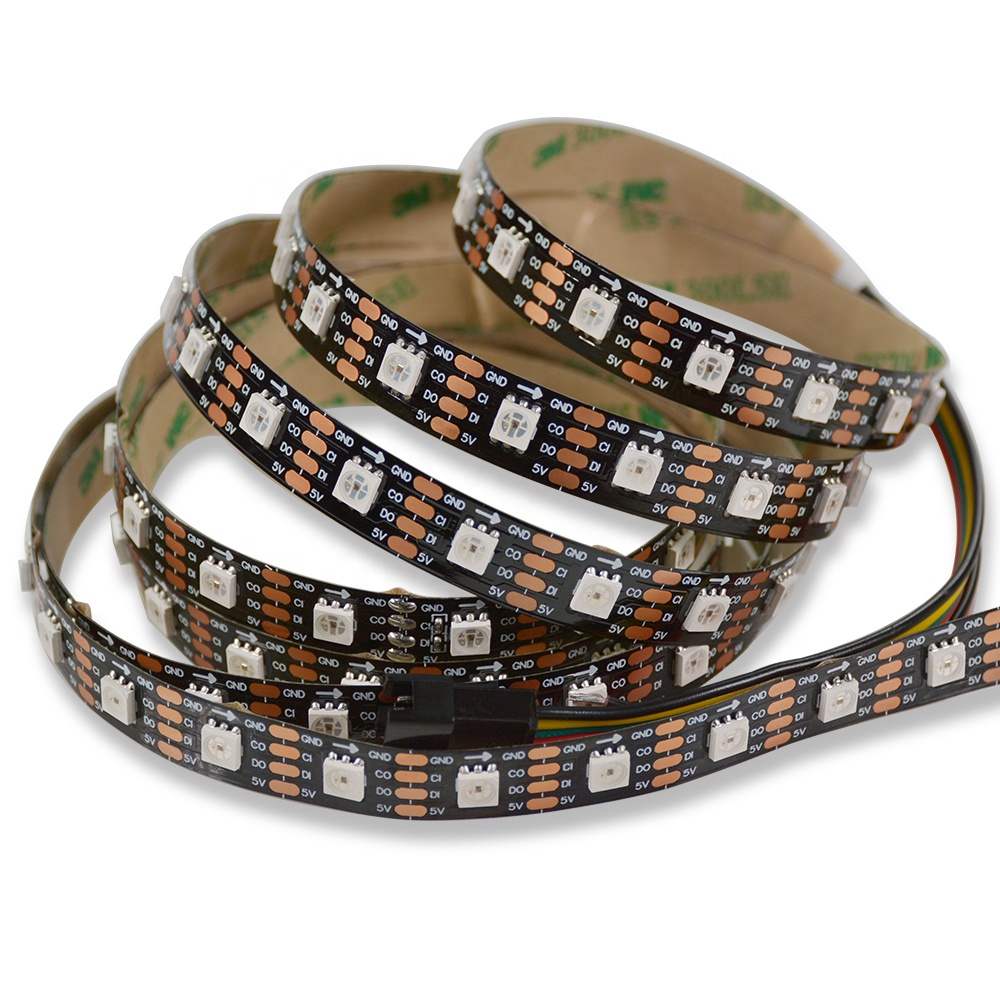

HD108 IC Individually Addressable LED RGB Full Color Changing Digital Flexible DC5V LED Strip Lights
What is HD108 digital addressable LED strip light?
HD108 digital RGB LED strip is the upgraded version of HD107s LED light strip, which integrates R/G/B IC, output 8 bit(256 level) lighting color set, 5bit(32 levels) brightness adjustment, 256 greyscale adjustments.
HD108 LED adopts CMOS process, positive or negative output 16 million color chasing lighting effect, DC5V low voltage input, low consumption, built-in constant current circuit, and RC oscillator; internal integrated current gain control module can also be REXT external resistor to adjust the required current, each output channel can output 16 (65536 level) gray adjustable linear current; using two-wire output, DATA data and synchronous CLK signal, suitable for LED bar lighting, KTV lighting.
Compared with APA102/SK9822 LED strip lights, with bigger beam angle, lower voltage drop, and higher bright output. The protocol of the HD108 LED strip is the same as the APA102 LED strip light.
Output two types of signals, data signal and clock signal; PWM refresh rate up to 27kH; max transmission speed up to 40M bps, HD108 digital LED strip lights have the fastest transmission speed and refresh speed in all of the addressable LED strip lights
The difference between APA102, APA107, HD107s, HD108, and SK9822?
APA102: 20+ kHz PWM, transmission rate 20MHZ
APA107: 9 kHz PWM, transmission rate 30MHZ
HD107s: 26+ kHz PWM (the upgrade of APA107), transmission rate 40MHZ
HD108: 27+ kHz PWM, transmission rate 40MHZ (fastest IC)
SK9822: 4.7 kHz PWM, transmission rate 15MHZ
LED Light Strip Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
►Everything you need to know before you buying led strip lights
►What you need to know about addressable led strips knowledge
Standards and Certifications
|LED Chip||HD108 IC|
|LED Color||Addressable Full Color RGB|
|Waterproof Rating||IP20 non-waterproof; IP65/IP67/IP68 waterproof|
|Cut Length||17.67mm (Individually addressable pixel LED)|
|Color Rendering Index||Ra＞80|
|PWM Refresh Rate||27KHz|
|Transmission Speed||40M bps|
If you choose the LED strip light kit, you will get the following addressable LED light controller and LED power supply, we will send you an extra AC Plug:
LED power supply
Please note: We will send you 5m addressable LED tape light by default, over 5m, we recommend that you need to power at two sides, you can learn the following how to wire addressable LED strip light.
For outdoor use, please choose the IP67 waterpoof LED fast connectors option.
How to Use Addressable Pixel LED Strip Lights?
You can cut the HD108 addressable pixel LED light strip every few inches(individually LED), allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.
The back of the addressable pixel LED strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights to anywhere.
IP67/IP68 waterproof LED type which will come with mounting brackets. And all the addressable LED strip lights can be installed with LED aluminum channel and LED neon tube to get an uniform, soft, and no light spot LED lighting effect.
►To better know how to use individually addressable LED strip lights:
Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*
LED Strip Lights Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting.
