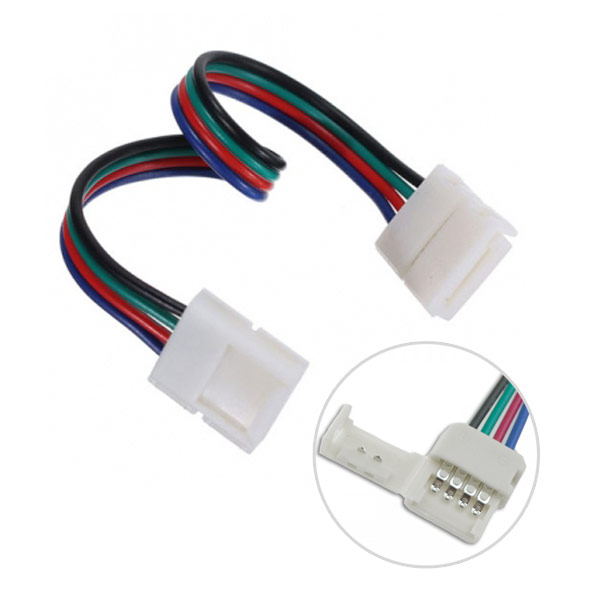

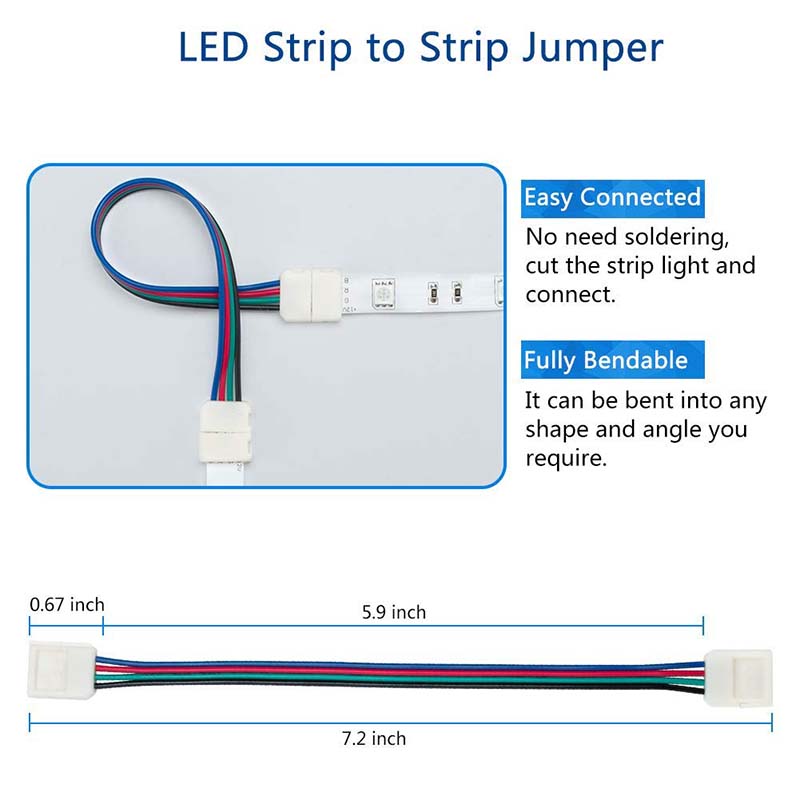

LED 5050 RGB Strip Light Connector 4 Conductor 10 mm Wide Strip to Strip Jumper
LED Strip Light 5050 RGB Strip Connector For Conductor 10mm Strip to Strip Jumper Led Strip Connector.

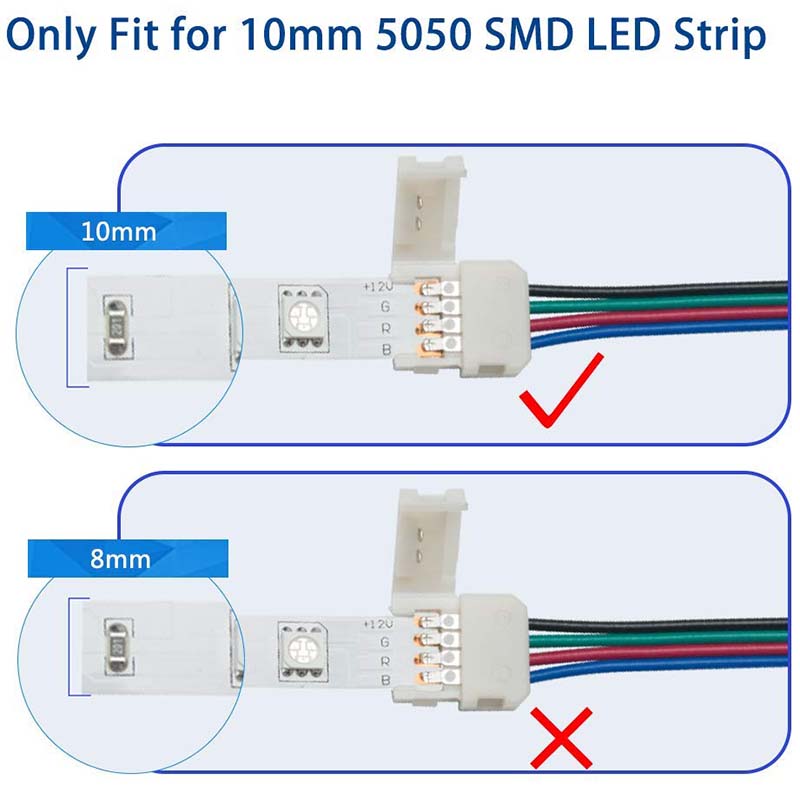

Fits 5050 LED Chips With 10mm 4Pin Wide Strip.

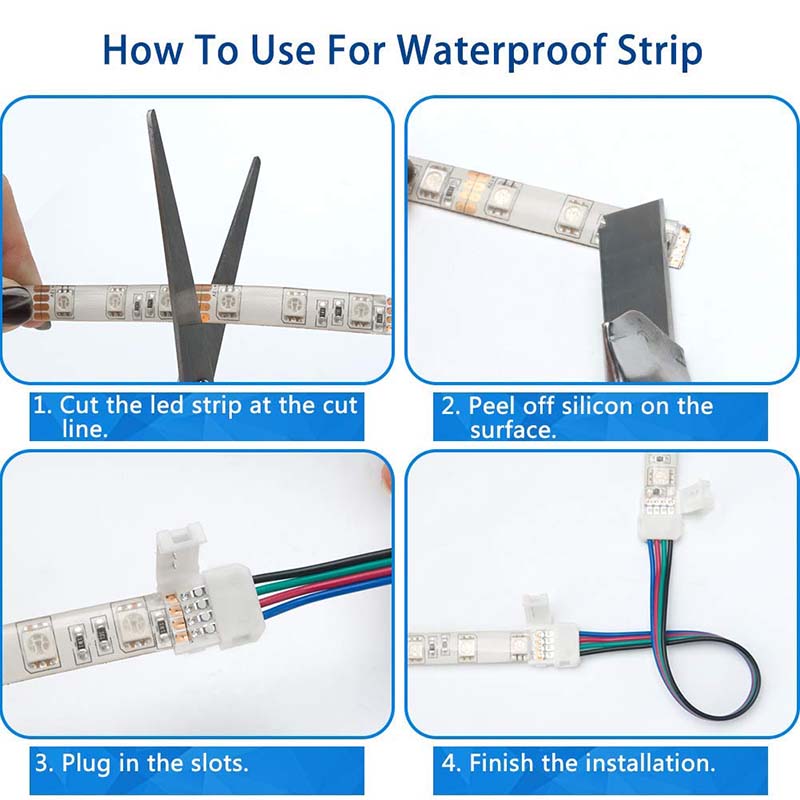

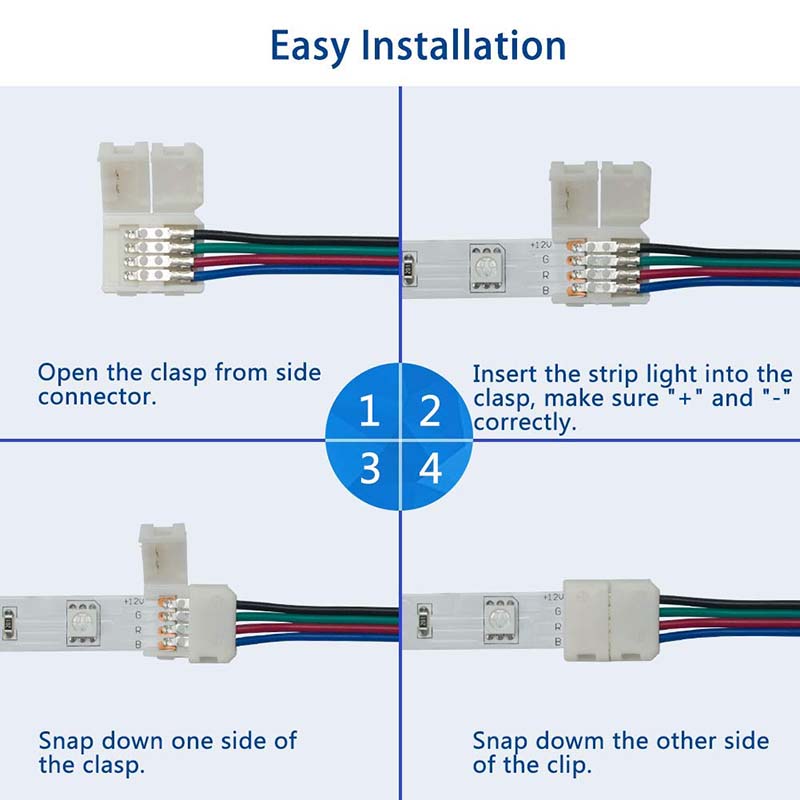

Cut The Strip On The Cut Line, Splice The Ribbon Electrically With This Jumper And Bend The Wires 90 Degrees (Or Whatever Angle You Require), And Keep Going With The LED Strip.
