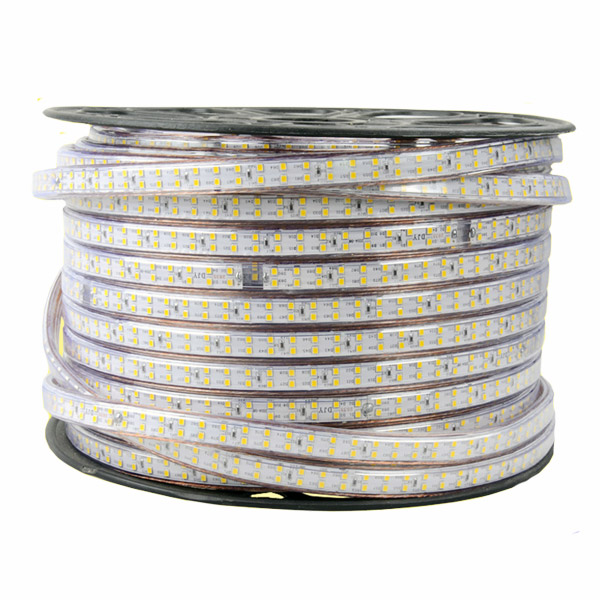

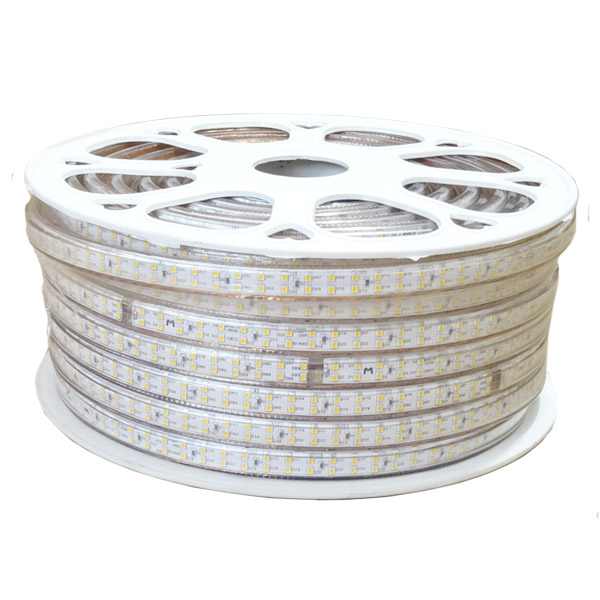

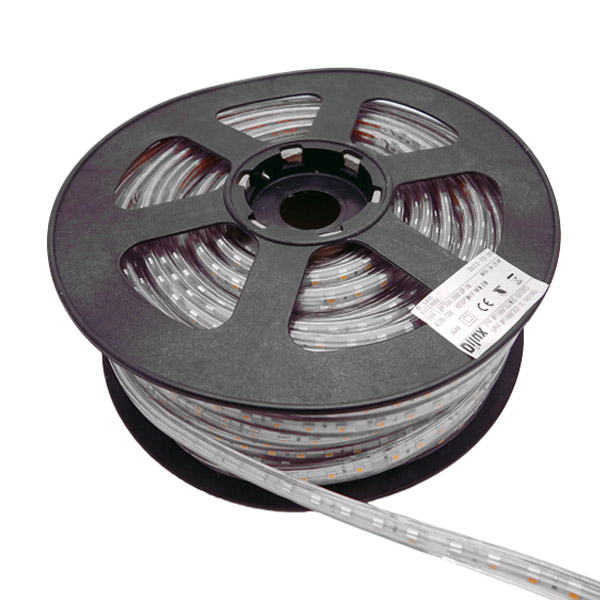

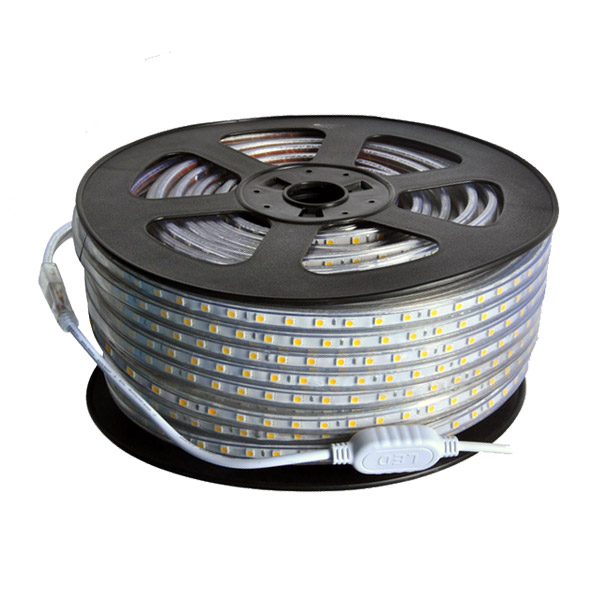

SMD5050 Dual Row High Voltage 110&220V Single Color LED Strips, Waterproof IP67, 120LEDs Per Meter, 50&100 Meter (164&328ft) Per Reel By Sale

Model: HVSCDR-110V-5050X120
SMD5050 Dual Row High Voltage 110&220V Single Color LED Strips, Waterproof IP67, 120LEDs Per Meter, 50&100 Meter (164&328ft) Per Reel By Sale

Select Specifications:

Select PCB Color :

Select Input Voltage:

Starting at: $378.98

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-4
$378.98
5-9
$371.40
10-14
$360.03
15+
$344.87
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    Universal single color dual row high voltage super bright Waterproof IP67 LED flexible light strip. 50/100 meters (164/328 inches) long with 6/12k 5050 SMD(SMD:Surface Mounted Devices) LEDs per unit, 164ft(50 meters) Per Reel By Sale.

    This is our newest and longest high voltage brightest super flexible LED strip, The Strips soft and easy bended for installation. The led strip has low light decline and long lifespan. The use of straight power plug with AC 100-120V or AC 220-240v leads to the easy and safe installation. The strip is cuttable nearly every meter or ~3 feet, to fit nearly any application. Perfect for outdoor lighting it has IP rating of 67. This waterproof strip is far more reliable and brighter than the old style rope light. This LED Light strip is perfect for retail shops, indoor home, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+82 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. Dimmable - Connect LED High Voltage Dimmers



    Standards and Certifications




    Product Specification

    LED Strip Type:   SMD 5050  dual row

    LED Chip:   Super bright Chip

    Working Temperature:   -4°F (-20°C) ~ 122°F (50°C)

    Storage Temperature:   -40°F (-40°C) ~ 176°F (80°C)

    Light Color:   Warm White, Daylight White,Cool White, RedGreen, BlueAmber (optional)

    Dimension:   164 or 328ft/reel, every 3.28ft can be cut

    LED Quantity:   6000 LEDs per 50meter (164 ft)     12000 LEDs per 100meter (328 ft)

    Lifespan:   50,000+hours

    Warantty:   3 years

    Dimensions:     L5000cm(1968 in ) x W2.0cm(0.78 in ) x H0.25cm(0.10 in )

    Input Voltage(V):   110/220V

    Working Power:   1440/164ft  Max

    Lamp Luminous Flux(lm):   24~26lm/LEDs    950lm/1feet

    Color Temperature CCT(White):  Warm White(3000-3800k), Daylight White(5500-6800k), Cool White(7800-12000k)

    Wavelength NM(RGBY):   Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)

    Beam Pattern:   120 degree

    Water Proof:   Waterproof IP67 (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);

    CRI (Ra>):  82



    Color Temperature



    Applications

    1. Back/task lighting

    2. Cove LED lighting

    3. Retail LED lighting

    4. Display case LED lighting

    5. Accent LED lights

    6. Under cabinet lighting

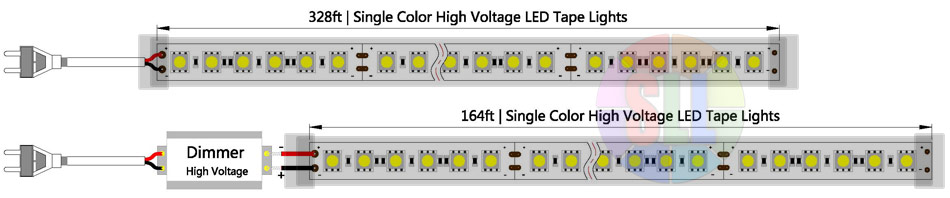

    Installation Instruction


    SMD5050 Dual Row High Voltage 110&220V Single Color LED Strips, Waterproof IP67, 120LEDs Per Meter, 50&100 Meter (164&328ft) Per Reel By Sale
