Looking for a high voltage driven white light color temperature adjustable LED strip? This 3pin CCT high-voltage light strip adopts double-row SMD5730 high-brightness LED chips, light brightness is fully upgraded. It has 120 LED lights per meter, warm white LEDs plus daylight LEDs, the color temperature can be adjusted by CCT LED dimmer in the range of 3000K-6500K to match your mood and atmosphere. Click here to know different color temperatures.
110V and 220V LED strip light options are available. This AC110V / 220V dimmable led strip is directly plugged into the AC outlet, simple installation, no need to buy an LED transformer, more cost-effective. The white LED lights is wrapped with waterproof material and can be used indoor and outdoors, suitable for outdoor LED projects such as architectural lighting, landscape lighting, etc.

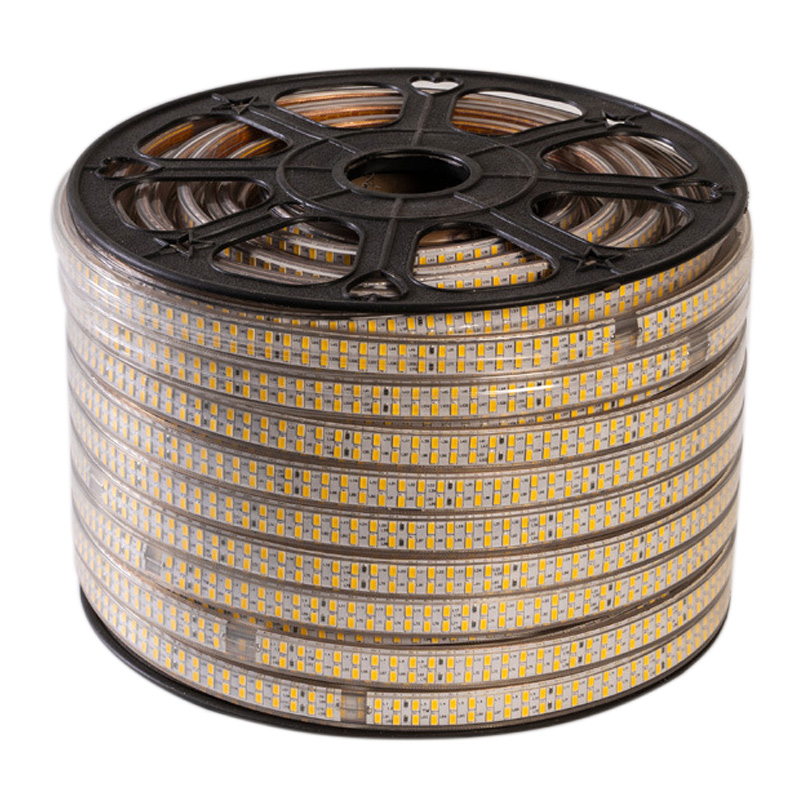

Double-row 5730 high-brightness chips, high-efficiency light
6mm ultra-wide pure copper PCB board
The resistors are arranged horizontally and are not easily damaged
PVC environmental protection insulation soft rubber sleeve
Note: When using high voltage led strip lights, be careful not to leak electricity. After cutting the CCT light strip, use adhesive to seal the joints to avoid water ingress.
Standards and Certifications
|LED Strip Type:||3 Pin High Voltage CCT LED Strip Lights|
|LED Chip:||SMD 5730|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||Warm White 3000K-3800K, Natural White 4000K-4500K, Daylight White 5500K-6800K|
|Lamp Luminous Flux(lm):||22~25 lm/LEDs 808.5 LM/Ft|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|
|Dimensions:||5m ~ 100m, every 1.64ft can be cut, 17*7mm size|
|Input Voltage(V):||110VAC / 220VAC|
|Working Power:||16W /Meter, 4.88 Watt/Ft|
|Beam Pattern:||120 degree|
|Waterproof:||Waterproof IP67 (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor)|

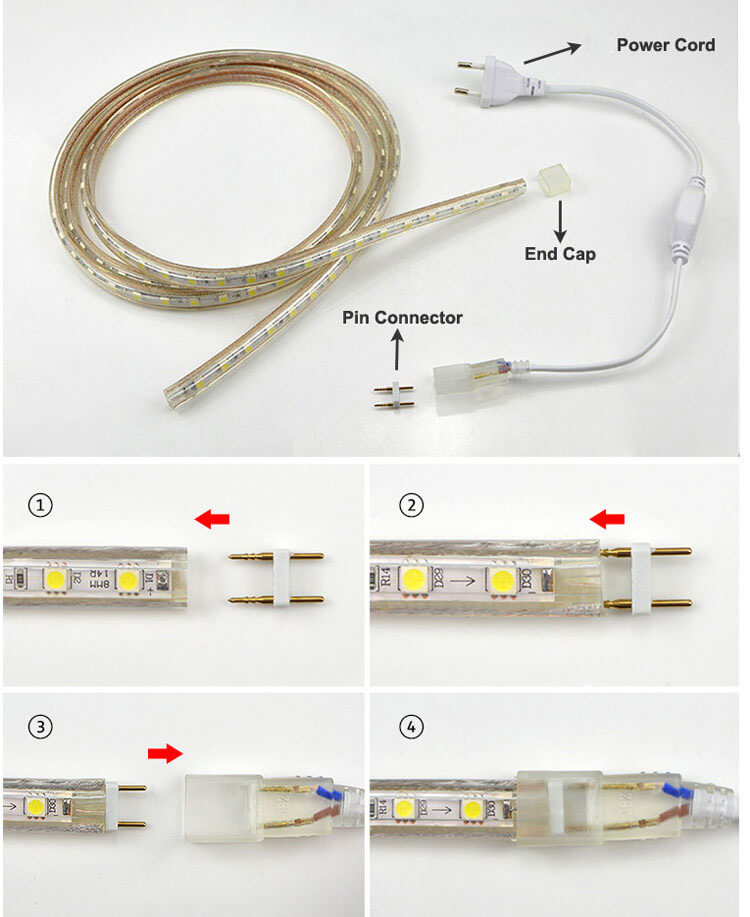

Connect high voltage LED strip lights:
Cove LED lighting
Retail LED lighting
Display case LED lighting
