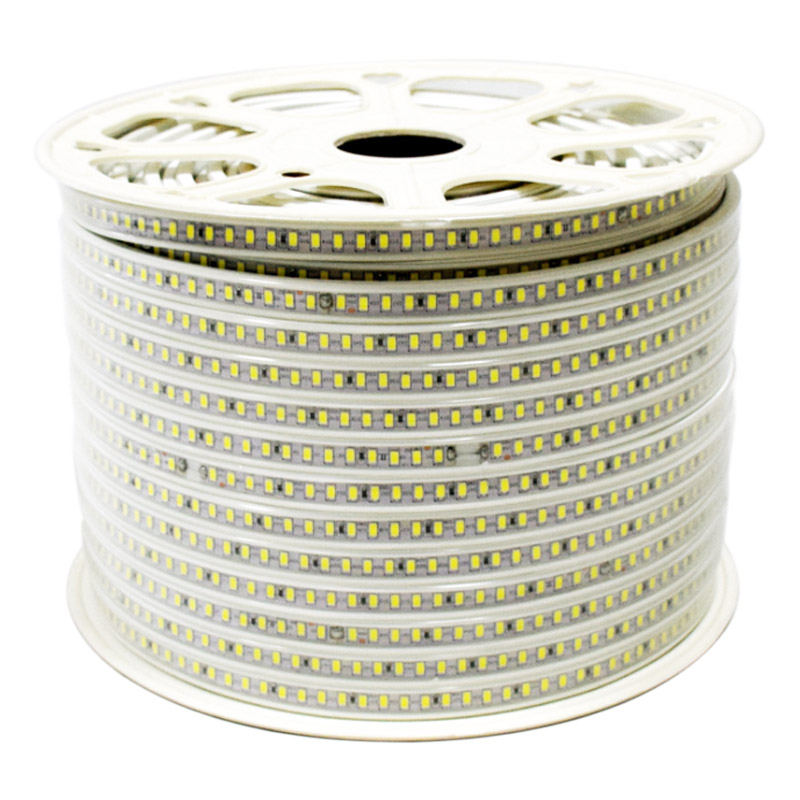

SMD5050 High Voltage 110&220V Single Color LED Strips, Waterproof IP67, 60LEDs Per Meter, 50&100 Meter (164&328ft) Per Reel By Sale
Universal single color high voltage super bright Waterproof IP67 LED flexible light strip. 50/100 meters (164/328 inches) long with 3/6k 5050 SMD(SMD:Surface Mounted Devices) LEDs per unit, 164ft(50 meters) Per Reel By Sale.
This is our newest and longest high voltage brightest super flexible LED strip, The Strips soft and easy bended for installation. The led strip has low light decline and long lifespan. The use of straight power plug with AC 100-120V or AC 220-240v leads to the easy and safe installation. The strip is cuttable nearly every meter or ~3 feet, to fit nearly any application. Perfect for outdoor lighting it has IP rating of 67. This waterproof strip is far more reliable and brighter than the old style rope light. This LED Light strip is perfect for retail shops, indoor home, supermarkets, museums, galleries, photography or any indoor applications where presentation, appearance and depth of color are critical, Suitable for the average home lighting as well as lighting professionals. High color rendering index (+82 CRI) enhances vibrant colors more than traditional LEDs nearly matching the color quality of incandescents. Dimmable - Connect LED High Voltage Dimmers.
Standards and Certifications
LED Strip Type: SMD 5050
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White, Daylight White,Cool White, Red, Green, Blue, Amber (optional)
Dimension: 164 or 328ft/reel, every 3.28ft can be cut
LED Quantity: 3000 LEDs per 50meter (164 ft) 6000 LEDs per 100meter (328 ft)
Warantty: 3 years
Dimensions: L5000cm(1968 in ) x W1.2cm(0.43 in ) x H0.7cm(0.26 in )
Input Voltage(V): 110/220V
Working Power: 720W /164ft Max
Lamp Luminous Flux(lm): 24~26lm/LEDs 78000lm/164ft
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k), Cool White(7500-10000k)
Wavelength NM(RGBY): Red(620-630nm), Green(515-525nm), Blue(465-475nm), Yellow(585-595nm)
Beam Pattern: 120 degree
Water Proof: Waterproof IP67 (Silicon sleeve waterproof,PCB is encapsulated with silicon tube, with plastic fastener, better waterproof, For Outdoor);
CRI (Ra>): 82
Cove LED lighting
Retail LED lighting
Display case LED lighting
Accent LED lights
Under cabinet lighting
