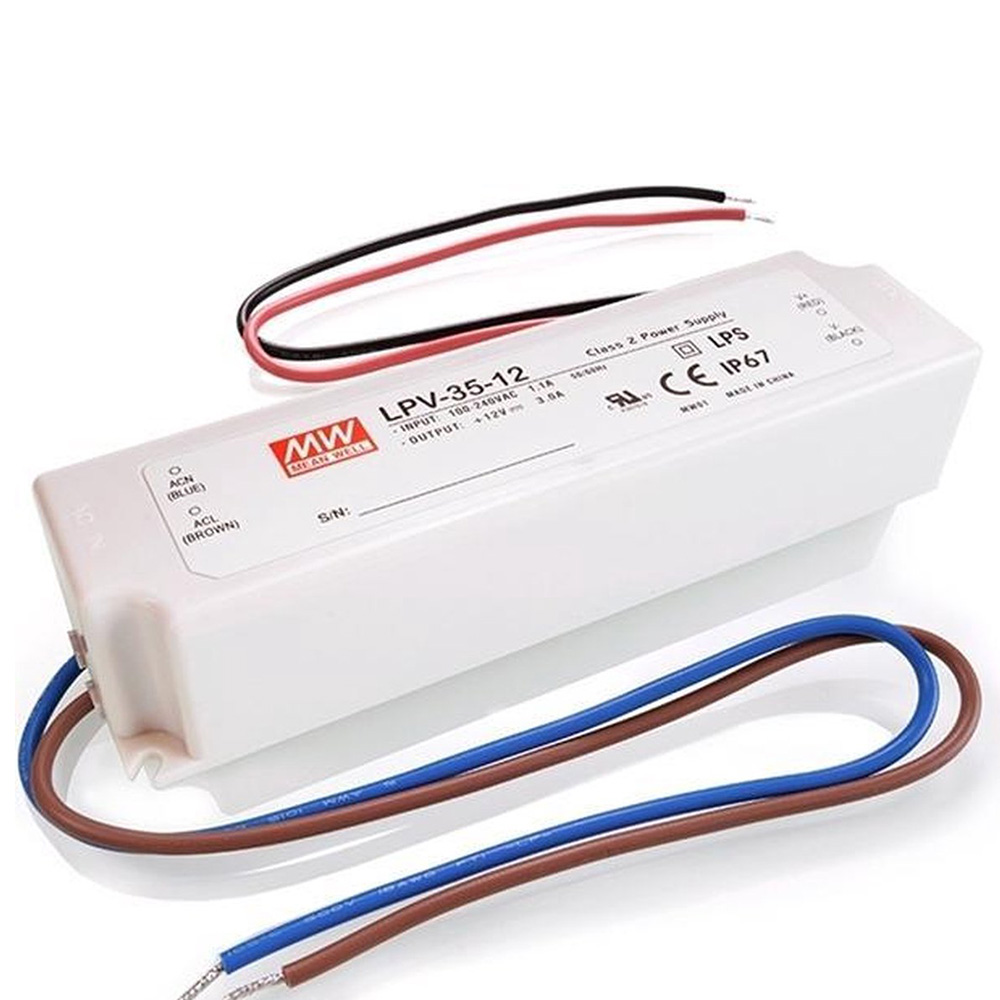

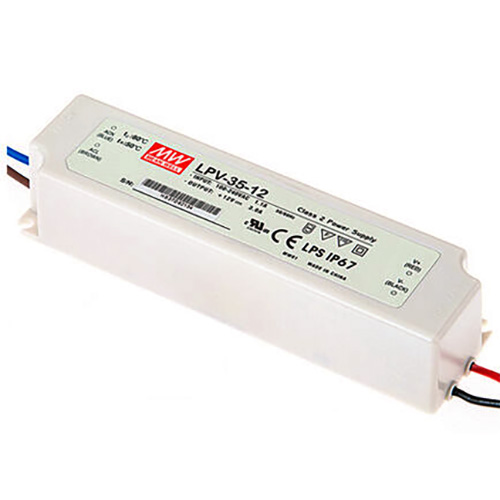

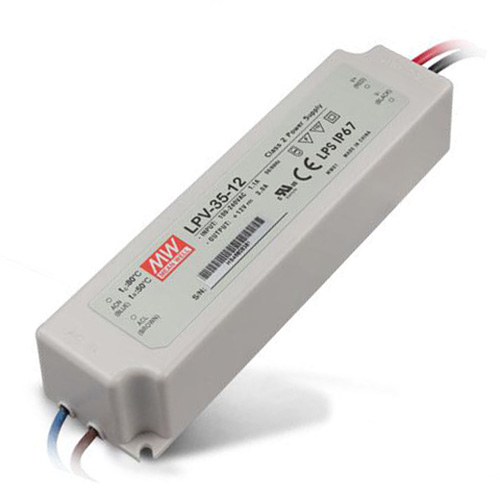

LPV-35-12 36Watt AC90～264V Input Mean Well High-efficacy Waterproof DC12V UL-Listed LED Display Lighting Power Supply
The biggest difference between LPV-35-12 and LPV-35-24 is the voltage, so their rated current is also different. The rated current of 12V is 3A, but the rated current of 24V is 1.5A. At the same time, the power supply efficiency of 24V is higher than that of 12V, and the heat dissipation capacity is stronger.

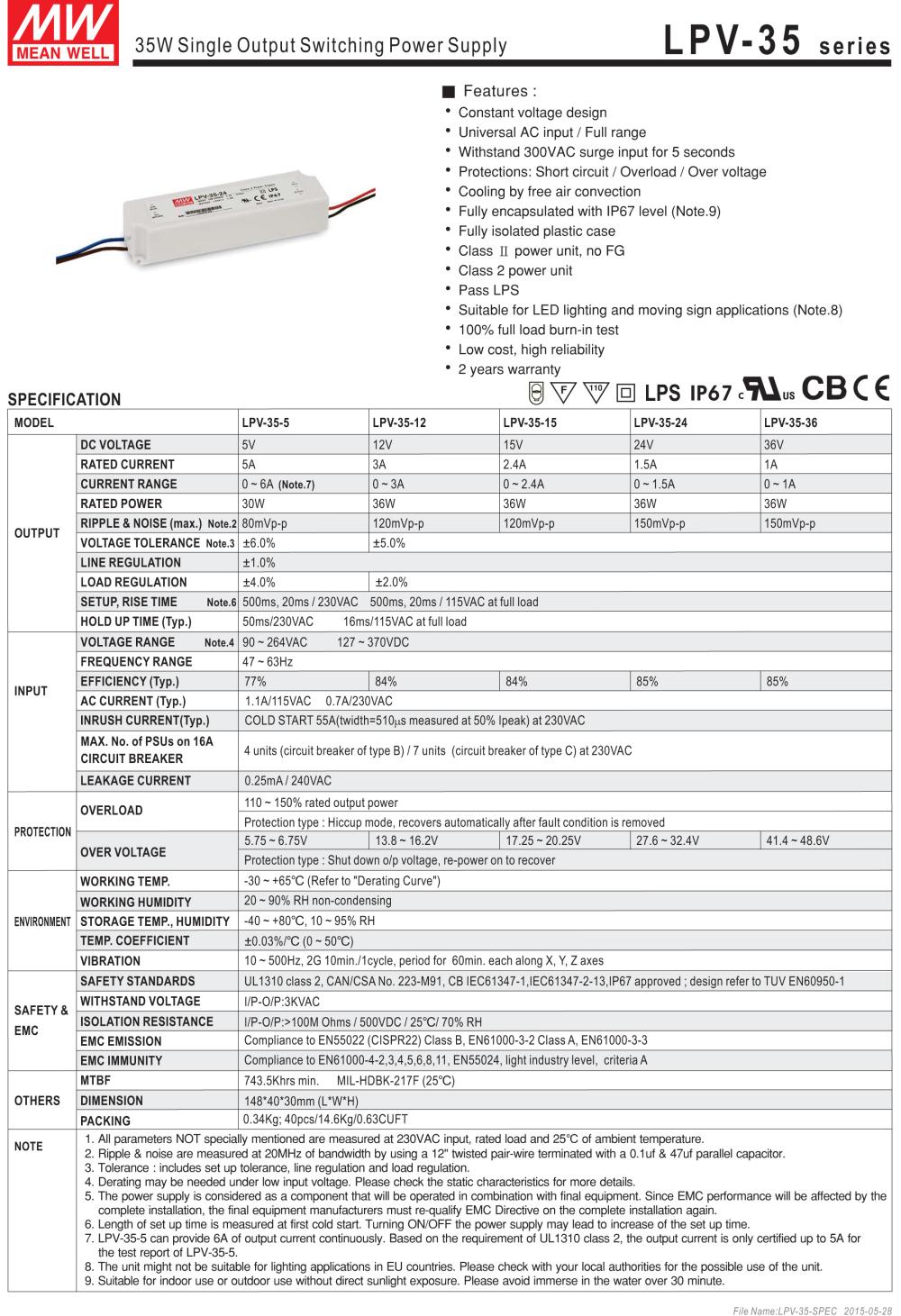

Constant voltage design
Universal AC input/ Full range
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit/Overload/Over voltage
Cooling by free air convection
Fully encapsulated with IP67 level
Fully isolated plastic case
Suitable for LED lighting and moving sign applications
100% full load burn-in test
Low cost, high reliability
2 years warranty
DC voltage: DC12V
Rated current: 3A
Current range: 0-3A
Rated power: 36W
Output voltage accuracy ±5%
Input voltage range 90～264VAC/127～370VDC
Input surge current Cold start,1.1A/115VAC 0.7A/230VAC
Leakage current <0.25mA / 240VAC
Overload protection The over current point is 110%～150%, automatic detection, automatic recovery
