Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll

Model: FSLCOB-12V-480X8
Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll
  • Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll
  • Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll
  • Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll
  • Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll
  • Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll
  • Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll
  • Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll
  • Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll
  • Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll
  • Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll

Select Specifications:

Starting at: $16.00 $9.9838% off

Free worldwide shipping on orders over $199

Various options in stock
Qty Discounts Off Price
1-79
$9.98
80-199
$9.78
200-499
$9.48
500+
$8.98
* Discounts may vary based on options above
Qty: -+

DHL, UPS and USPS are delivered to your door, any needs please note at checkout.

Accept the project customization, please contact us for commercial offers and technical support.

Related Products

  • Product Information
  • Reviews
  • Accessories
  • Images
  • LED Strip Lights Guide

    1. High-quality LED Chips, adopt a high bright LED chip.

    2. The COB Dotless led strip light is 312Chips/m, with the advantages of high brightness, no light spot, low light decay, longer lifespan, high CRI, and so on.

    3. Flexible FPC board, with double-side FPC board as the basement, pure gold pure copper wire design, high Oxidation resistance, and high-temperature resistance.

    4. Soft silicone cover, strong light transmission, offering better lights, and high color consistency.

    5. DC12/24V safe voltage, lower power consumption, save energy, environment friendly.

    6. 8mm/0.31in width led strip light optional, suitable for narrow space

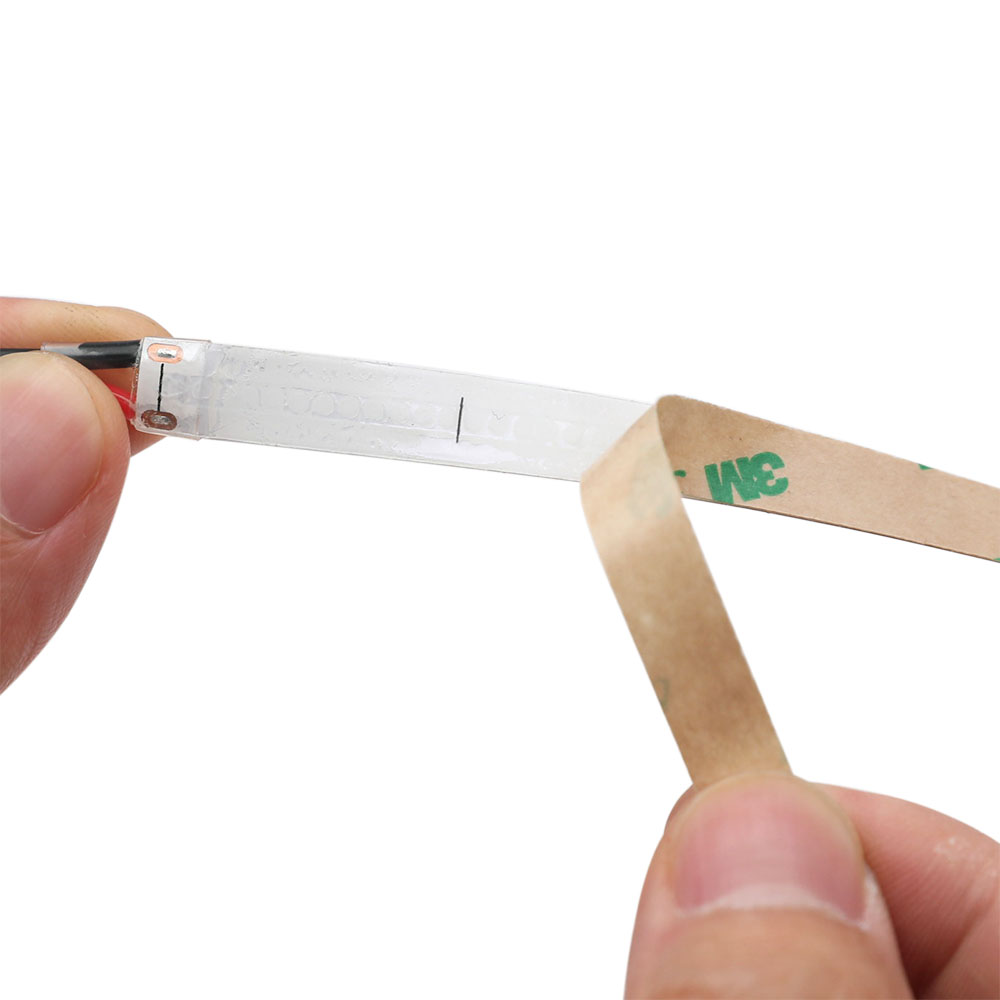

    7. Non-waterproof IP20 LED strips for indoor use, with adhesive 3M backing tapes

    8. Waterproof IP67 LED lights can use for outdoor LED lighting.



    312LEDs/m cob light strip is only available with 2850K to 3300K Warm White.

    480LEDs/m cob led strip is available with all the color options (purple cob led tape only has 8mm 384LEDs/m type)





    Product Feature:

        ►312Chips/m super density

        ►8mm/0.31in wide optional

        ►Non-Waterproof IP20; Waterproof IP67 optional

        ►Warm white/natural white/cool white three colors optional

        ►90 CRI restore the original color



    Standards and Certifications

    DC12/24V CE FCC UL RoHS ISA SGS ISO LIFETIME warranty led factory

    Product Specification

    LED Strip Type COB LED (COB Flexible dotless led strip light specification PDF)
    LED Chip Epistar Chip
    Input Voltage DC12/24V(8mm)

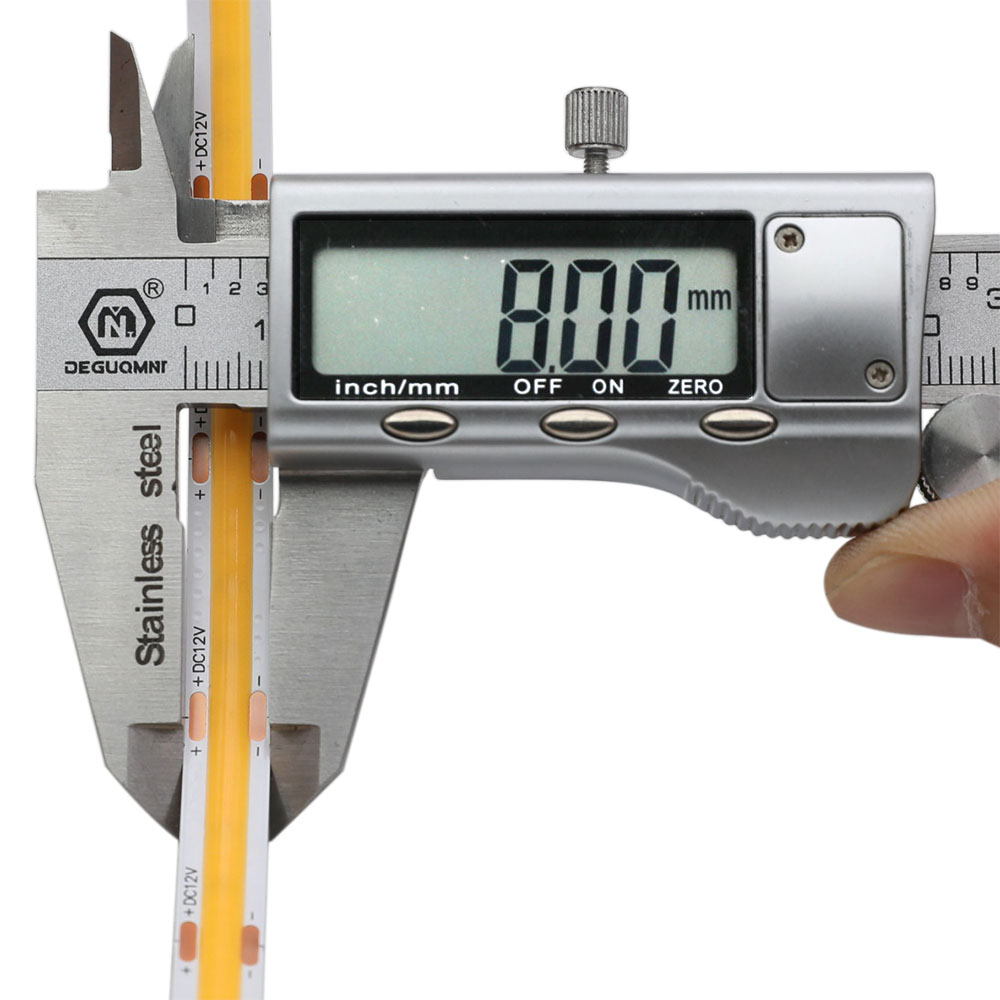

    PCB Width 8mm/0.31 in
    Working Temperature -20℃~+45℃
    Storage Temperature -20℃~+60℃
    Power 12W/m; 60W/Roll
    Length 5m/16.4Ft
    LED Quantity 312Chips/M
    White Color Warm white(3000k), Nature whtie(4000K), Daylight White(6000K)

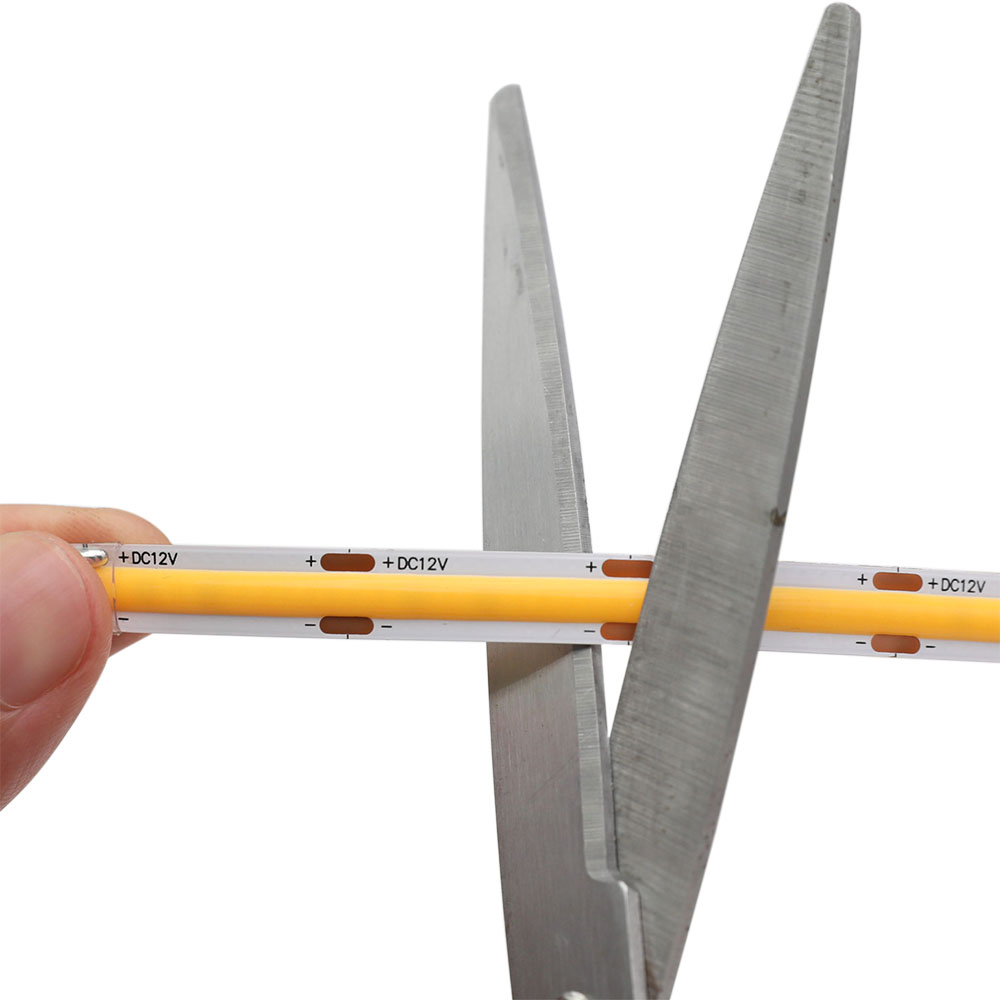

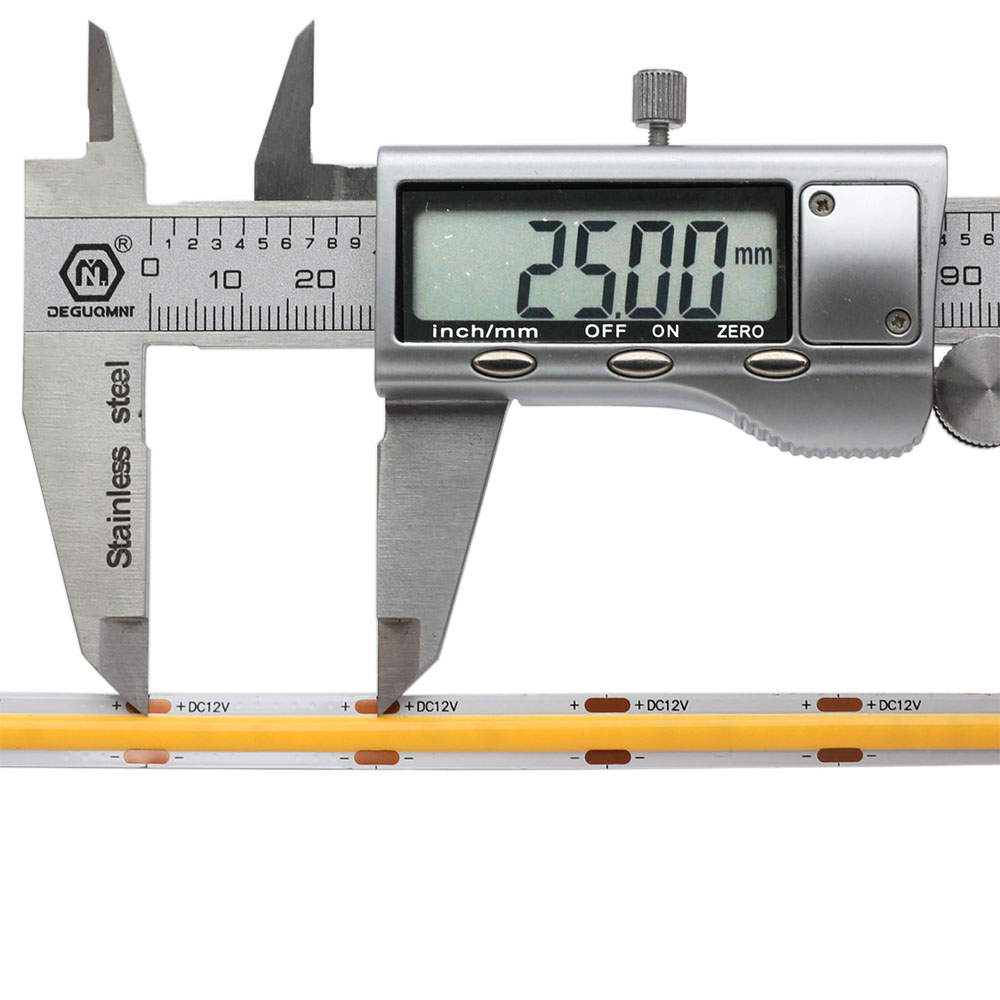

    Cut Length 25mm(0.98in) for DC12V, 50mm(1.96in) for DC24V
    PCB color White
    CRI 90+
    Beam Angle 180°
    Lumen 936lm /m
    Waterproof Rating

    IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

    IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);



    How to choose LED strip lights kit?

    You can choose the controller or power supply or controller plus power option for this COB LED strip. Of course, only the COB LED light is also completely possible. The difference is whether you need to control the LED brightness change of the COB strip and whether you can supply power to the light strip.

    In the following table, we list for you which products you will get if you choose the kit. If you have other needs, please check our product categories.

    LED Strip

    Power Voltage Kit
    5m/16.4Ft COB Strip 60W / Roll DC12V

    Controller: V1 + RT1

    Power supply: 12V 72W power supply adapter

    DC24V

    Controller: V1 + RT1

    Power supply: 24V 72W power supply adapter

    if you have any requirements for other types of the LED Controller, you can visit our Single Color Dimmer Series.



    Color Temperature and CRI

    Choosing the correct color temperature lights for your project is very important, and as important as the brightness you choose. Consider the look and feel you want your project to have.

    •  Warm white 3000K LED light is similar to the color of sunset, giving people a warm and comfortable feeling, suitable for installation in the living room, bedroom and other places.

    •  Natural white 4000K LED light is suitable for task lighting like kitchens or offices and is closer to white than 3000K. Requires more precision for lighting objects, 4000K light strips are more suitable for you than 3000K.

    •  Daylight white 6000K LED light shows more details and create a clear and transparent environment, suitable for working and task lighting.

    CRI (Color Rendering Index) is a measure of how well a particular light source renders vivid, natural color. Lamps, led tubes, or led bulbs with an index of greater than 90 are generally considered High CRI light sources, and will make food, jewels, or any other product come alive with bright, natural color.

    LED strip color temperature value

    CRI led strip



    Don't know how to wire? please read the following articleHow to wire the single color LED strip light

    single color led strip light wiring diagram

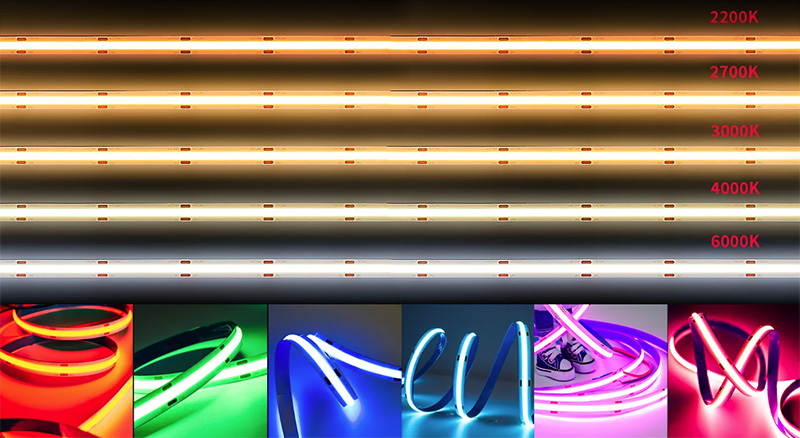

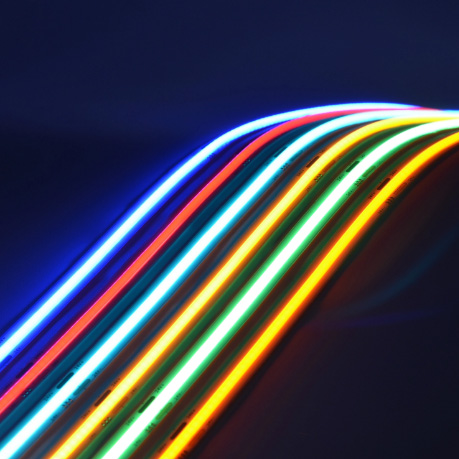

    Multicolor COB LED Strips Display

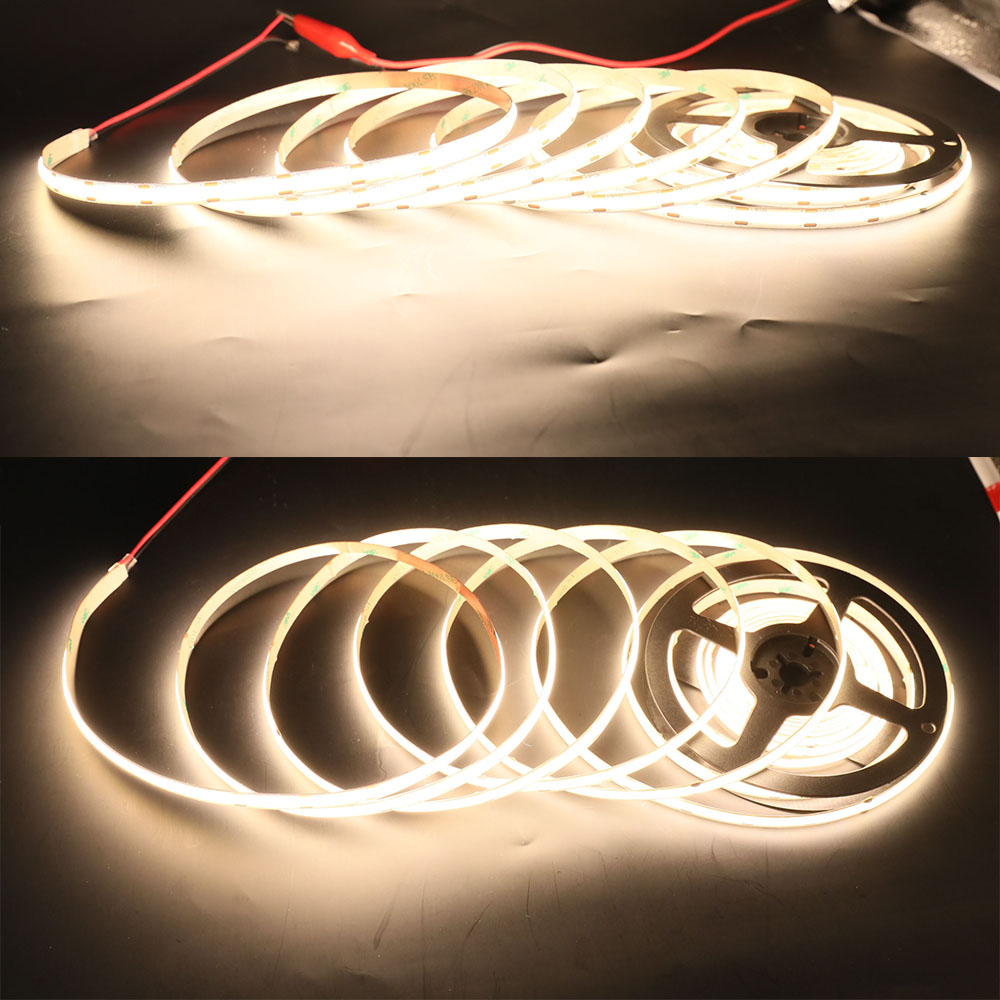

    Special Hot Sale Ra90 Flexible COB LED Strip Lights 16.4Ft Roll

    These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
