The DMXRGB-TM512-5050X84 is a direct-drive 24V DMX512 addressable RGB LED strip light engineered for stage, architectural, and dynamic chasing lighting projects. Equipped with the external TM512BC IC, this LED strip decodes native DMX512 differential signals directly without requiring intermediate DMX decoders on each run.
Each TM512BC driver IC manages 6 SMD5050 LEDs across 3 DMX channels (Red, Green, Blue), establishing 14 addressable pixel segments per meter with an exact 71.42mm cut interval. Operating at DC 24V with an electrical consumption of 20W/m (200W per continuous 10-meter reel), it resolves typical low-voltage drop limitations across lengthy installations.
Connect directly to an ArtNet DMX controller for frame-accurate timeline synchronization, map dynamic matrix effects, or match it inside a silicone neon diffuser to create dot-free architectural linear runs. Pairs cleanly with a dedicated Mean Well 24V power supply to safeguard against ripple noise and transient spikes on the digital signal line.
Key Features
Native DMX512 Differential Bus
Utilizes onboard TM512BC driver ICs to read standard DMX512 signals directly via balanced differential data lines, eliminating external signal converters.
24V Extended 10-Meter Reel
Engineered as a 10-meter continuous reel running on DC 24V, minimizing voltage drop issues found in conventional 5V or 12V addressable pixel installations.
Precise Pixel Resolution

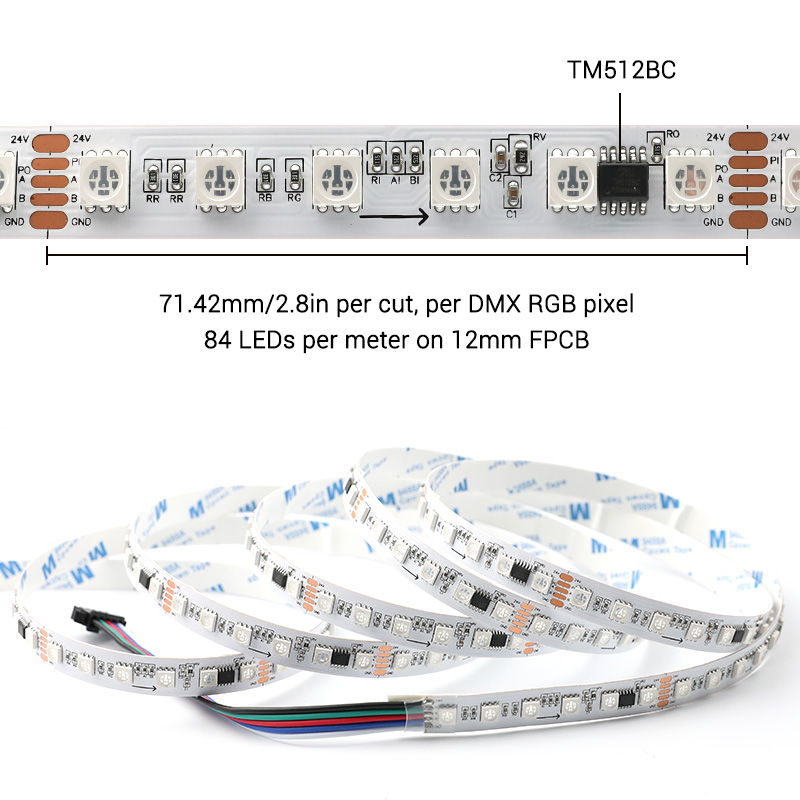

Features 84 SMD5050 RGB LEDs per meter grouped into 14 independently addressable pixels per meter (6 LEDs per pixel) with cut points every 71.42mm.
Versatile Connector Terminations
Standard termination comes with 5-pin JST-SM connectors (DC+, PI/Write, Data+, Data-, GND), with optional factory-soldered waterproof IP67 connectors or bare wires.
Standard DMX Console Integration
Compatible with standard DMX consoles, stage lighting desks, and software controllers when paired with our catalog of RGB DMX LED tape drivers.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model / SKU | DMXRGB-TM512-5050X84 |
| Operating Voltage | DC 24V |
| Power Consumption | 20W per meter (200W per 10m reel) |
| Current Draw | 0.83A per meter (8.33A per 10m reel) |
| LED Type | SMD5050 3-in-1 RGB |
| LED Density | 84 LEDs per meter (840 LEDs per reel) |
| Control IC Type | External TM512BC DMX512 Driver IC |
| Pixel Resolution | 14 pixels per meter (1 pixel = 6 LEDs) |
| DMX Channel Usage | 3 channels per pixel (Red, Green, Blue) = 42 channels/m |
| Cut Interval | 71.42mm (2.81 inches) between cut lines |
| Signal Standard | Standard DMX512 / 1990 protocol |
| Reel Length | 10 meters (32.8 feet) |
| PCB Width | 12mm (0.47 inches) |
| Default Termination | 5-pin JST-SM connectors |
| Ingress Protection | IP20 non-waterproof (IP67 silicone extrusion optional) |
| Optional Terminations | IP67 5-pin waterproof connector or bare pre-tinned wires |
Application Scenarios
How to Install & Use This LED Strip
- Inspect the full 10m LED strip reel before installation. Connect the 5-pin input connector to your DC 24V power supply and DMX source to verify color output across all 140 pixel segments.
- Measure the exact mounting span. If cut-to-length is needed, cut only across the indicated copper pad markings spaced precisely at 71.42mm intervals. Never cut through diodes or IC chips.

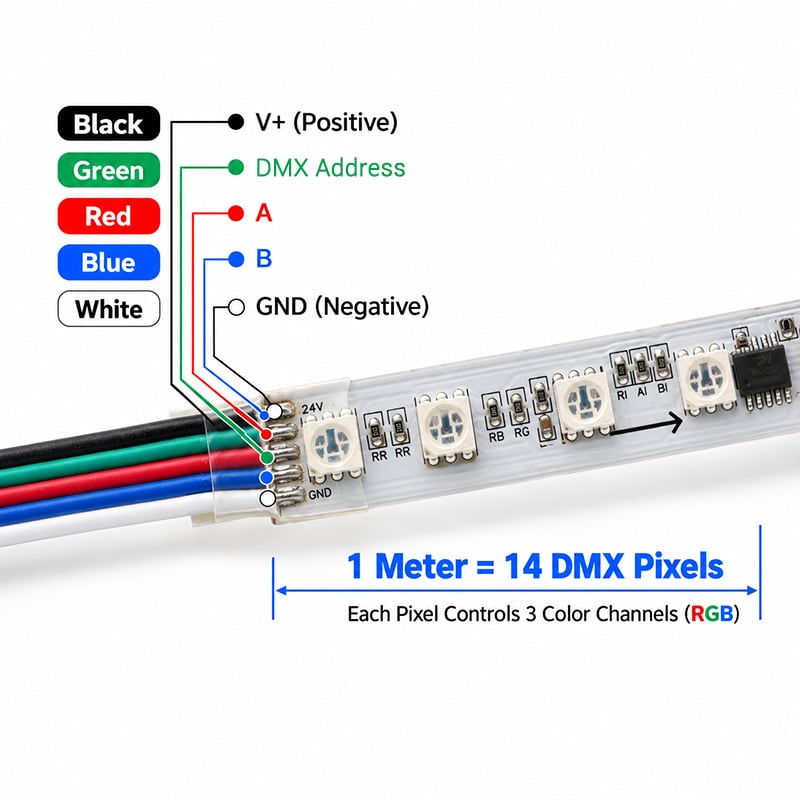

- Wire the 5-pin leads correctly: DC 24V (Black), PI/Address Write (Green), Data+ (Red), Data- (Blue), and GND (White). Connect Data+ and Data- to the corresponding DMX output terminals.
- Use a dedicated DMX address coder to write start addresses via the PI line if custom universe indexing is required, then connect power from the 24V driver to run your dynamic programming.
⚠ Precautions
- Power injection: While 24V allows a full 10-meter run without severe color shift, inject 24V DC power at both ends of the 10m LED strip if all diodes will run at 100% full-white brightness continuously.
- IP rating verification: The standard variant is IP20 rated for dry indoor installations only. Use IP67-rated waterproof versions or sealed silicone tubing for damp or outdoor locations.
What's in the Box
- ✓1 x 10-Meter Reel of 24V DMX512 Addressable RGB LED Strip Light (DMXRGB-TM512-5050X84)
Frequently Asked Questions
Q: how to control rgb led strip with DMX
A: This LED strip contains TM512BC chips that receive direct DMX512 protocol. Connect the Data+ and Data- lines directly to the output ports of any standard DMX512 console, stage lighting desk, or ArtNet-to-DMX node without needing intermediary SPI decoders.
Q: how to control rgb led colors accurately
A: Colors are controlled by adjusting the 0-255 DMX value across the 3 consecutive channels (Red, Green, Blue) assigned to each 71.42mm pixel segment using DMX lighting software such as Madrix, Resolume, or physical lighting consoles.
Q: What power supply do I need for this 10-meter reel?
A: At 20W per meter, a full 10-meter continuous reel consumes 200W at full output. Accounting for an electrical safety margin of 20%, we recommend pairing this reel with a 24V power supply rated at 240W or higher.
