Special Price: $9.99
This aluminum profile concentrates the LED light and distributes it at a 60-degree angle, perfect for wall-grazing lighting and accent lighting appalications, with 13mm/0.51in inner width, suitable for DC12V/DC24V 5050 led strip lights. LED aluminum channels as a linear lighting fixture play a role in the led light distribution, led heat management, and led strip protection. The aluminum led strip channel length can be cut into any length to meet your needs.
This led diffuser channel comes with end caps, mounting clips, and optional swivel brackets, can be mounted in walls, furniture, or other indoor led linear lighting projects. Endcap without hole to protect the led tape light from dust and external damage. End cap with wire hole to let the led lighting strip connect the led dc power supply or the led controller to power or control the led strip lighting.
Accessories: swivel breakets are available.
Note:
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required.
The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
Product Specification
Material | 6063-T5 Aluminum Alloy |

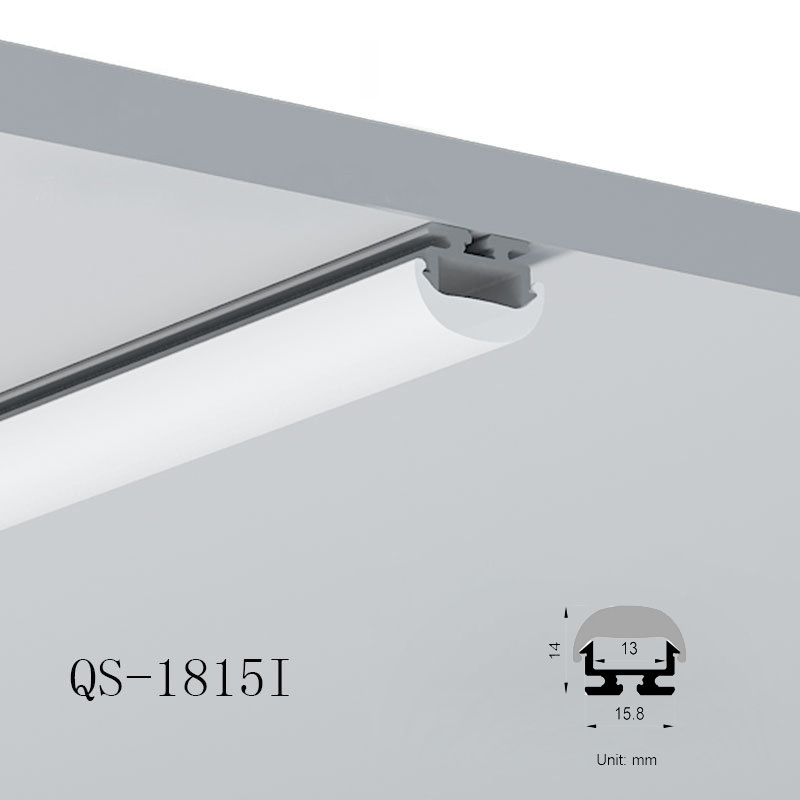

Model | QSG-1815I |

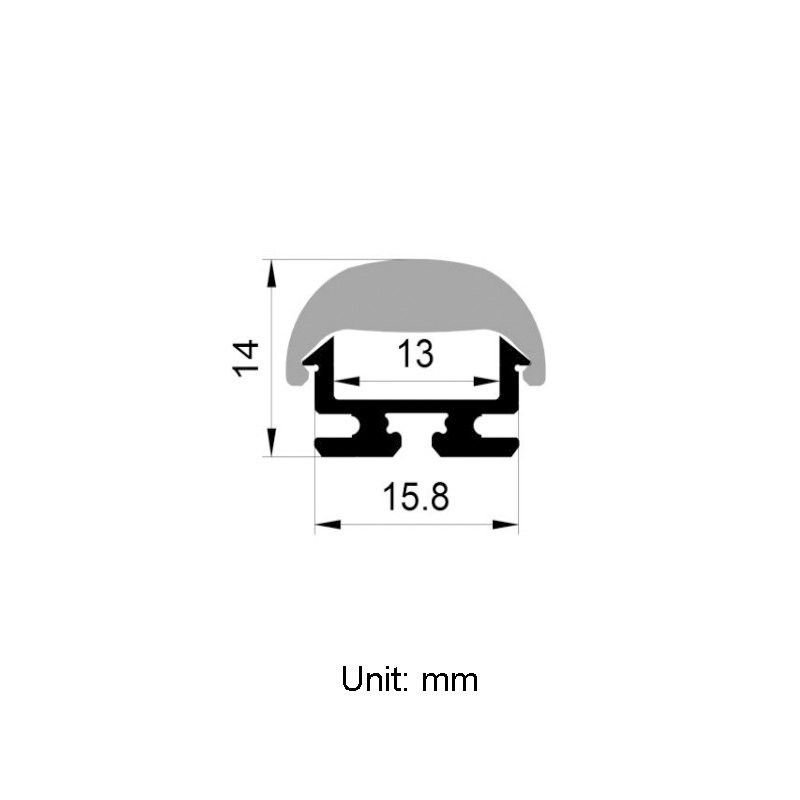

Channel Size | W15.8mm(0.62in)*H14mm(0.55in) |
Inner Width | 13mm(0.51in) |
Aluminum Color | Silver |
LED Diffuser | PC opal diffuser |
Length | 1m(3.28ft) /2m(6.56ft) |

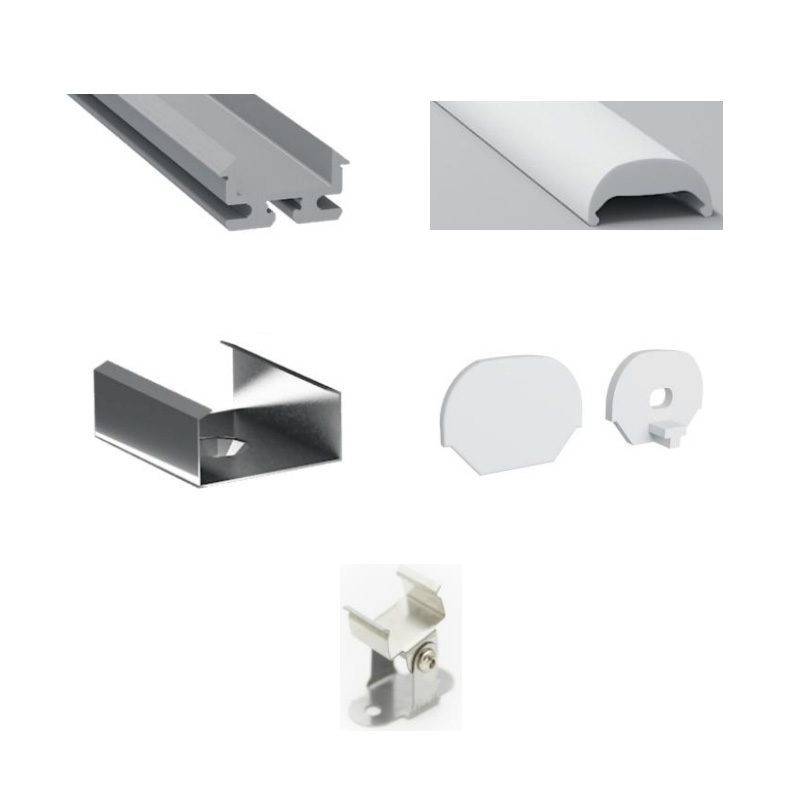

Accessory | End cap without hole, end cap with wire hole, mounting clips, swivel brackets(optional) |
Waterproof | Non-waterproof(Indoor use) |
Apply to | 8mm/10mm/12mm 5050/2216/2110/5630/5730/COB/CCT flexible led strip lights |
Installation | Surface Mounted |
