Product Information

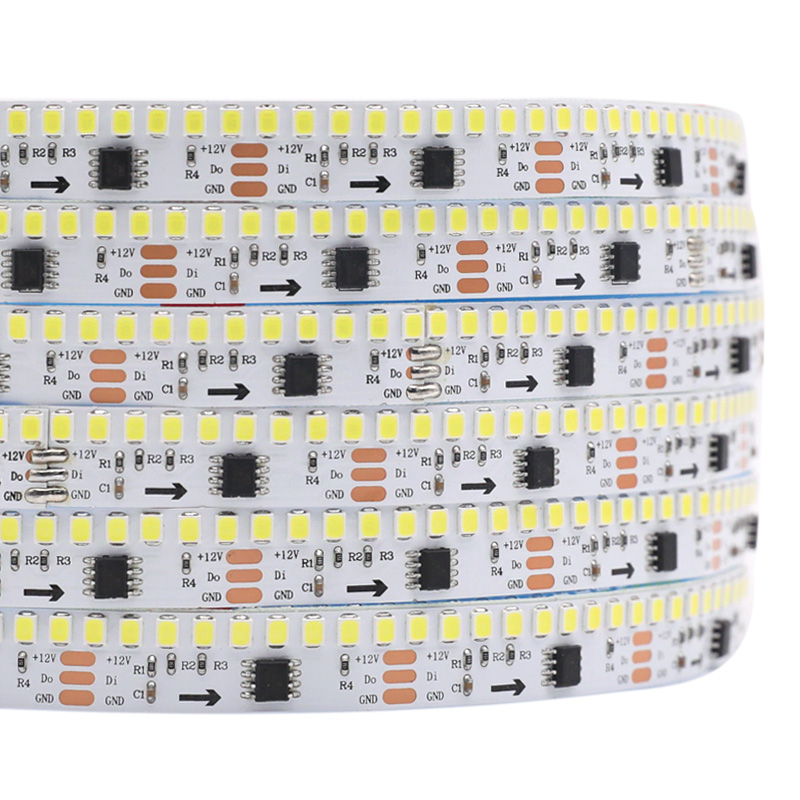

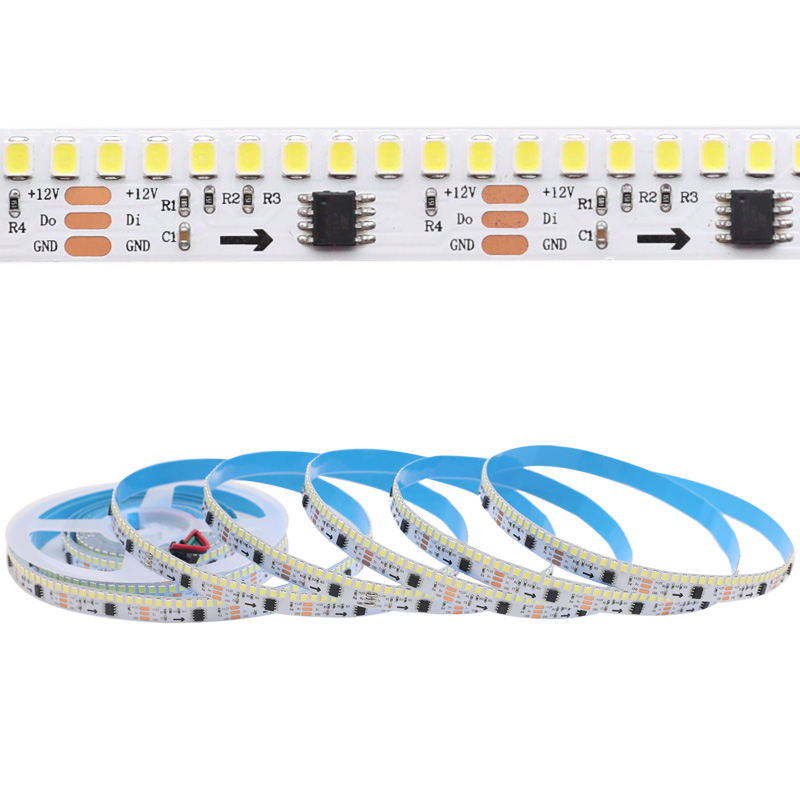

A 234 LEDs/m highest density TM1903 IC controlled brightest white digital led strip. TM1903 is similar to WS2811, with 12V+, DAT, and GND 3 pin wires. The programmable white led strip is 12mm wide, with 1170 LEDs evenly distributed over the 5-meter strip length, providing an extremely uniform lighting effect.
A TM1903 IC controls 9 SMD2835 white LEDs, with one IC control area every 38.4 mm (1.5"). 26 pixels per meter, 130 pixels per roll. Through the built-in program of the running water led controller or self-programming, the white led pixel tape can present various dynamic effects, such as flowing, breathing, bouncing, and so on.

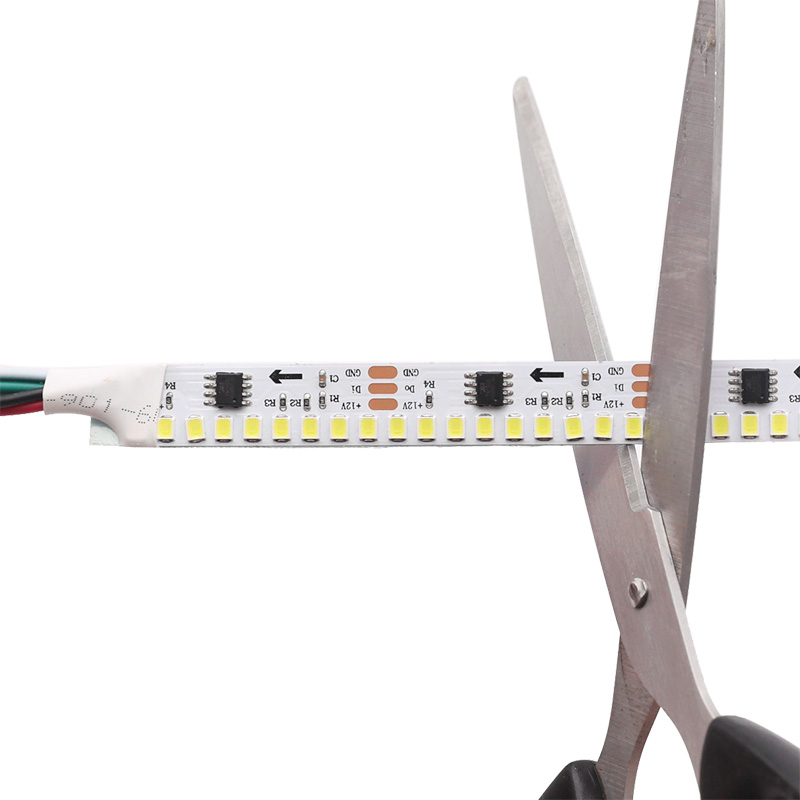

No connector available. Soldering is recommended to connect the cut led white strip.
Kit: addressable white led controller CONFULL-SP636E.
Product Specifications
| Item Type: | Highest Density Digital White Light LED Strip |
| LED Chip: | External TM1903 IC + SMD2835 LED |
| Input Voltage: | DC12V |
| Power: | 23.4W/m max, 117W/Roll |
| Working Temperature: | -20℃~+45℃ |
| Storage Temperature: | -20℃~+60℃ |
| LED Color Temperature: | Addressable daylight 6000K |

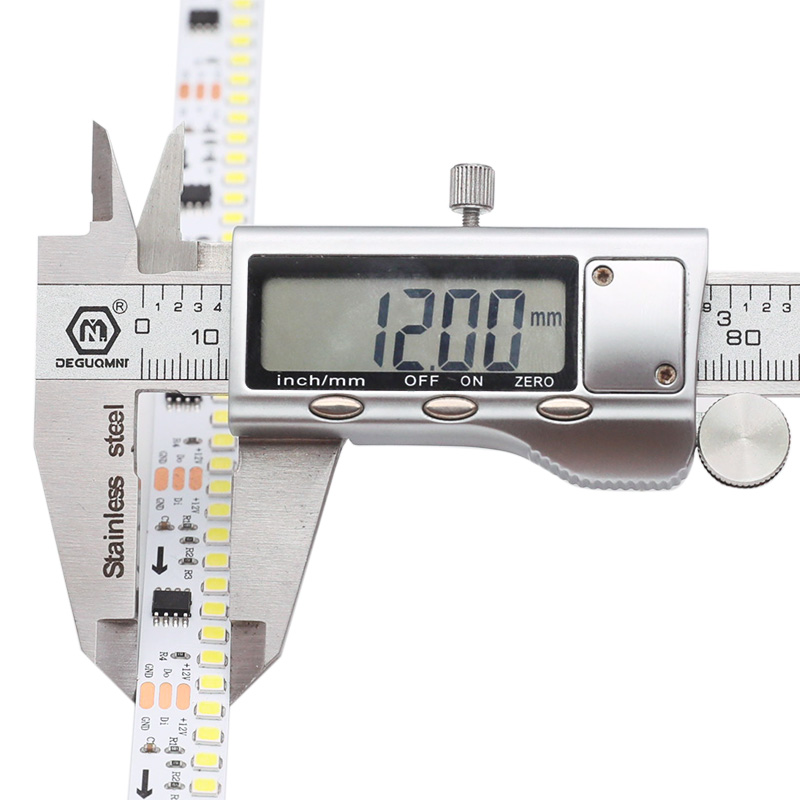

| Dimension: | L5000mm*W12mm*H2mm |
| LED Quantity: | 234 LEDs/m, 71/ft |

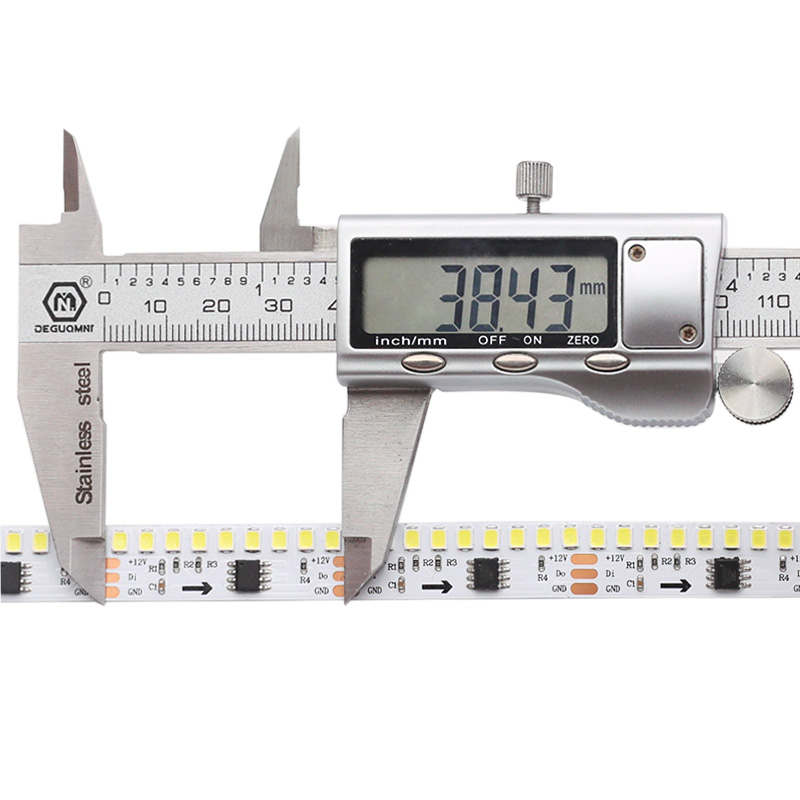

| Cut Segment: | 9 LEDs (38.4mm/1.5in) |
| IC Pixel: | 26 ICs/m, 130 ICs/Roll |
| Waterproof Rating: | Non-waterproof IP20 / Waterproof IP67 |
| Beam Angle: | 120° |
3 Pin Addressable LED White Strip Wiring Diagram:
