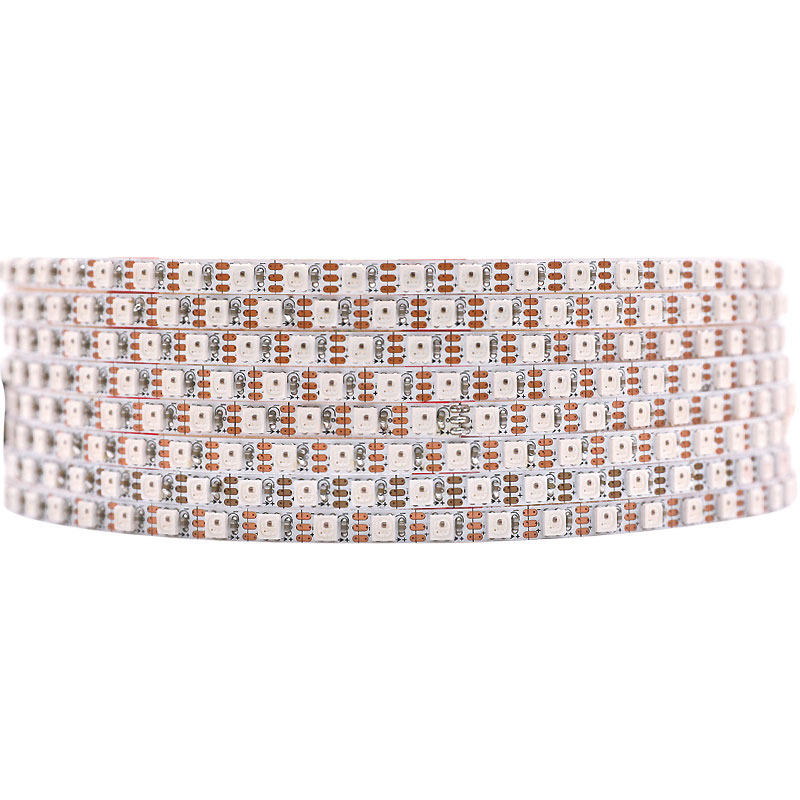

120LEDs/m 5V 12V WS2811 5mm Thin Addressable LED Strip

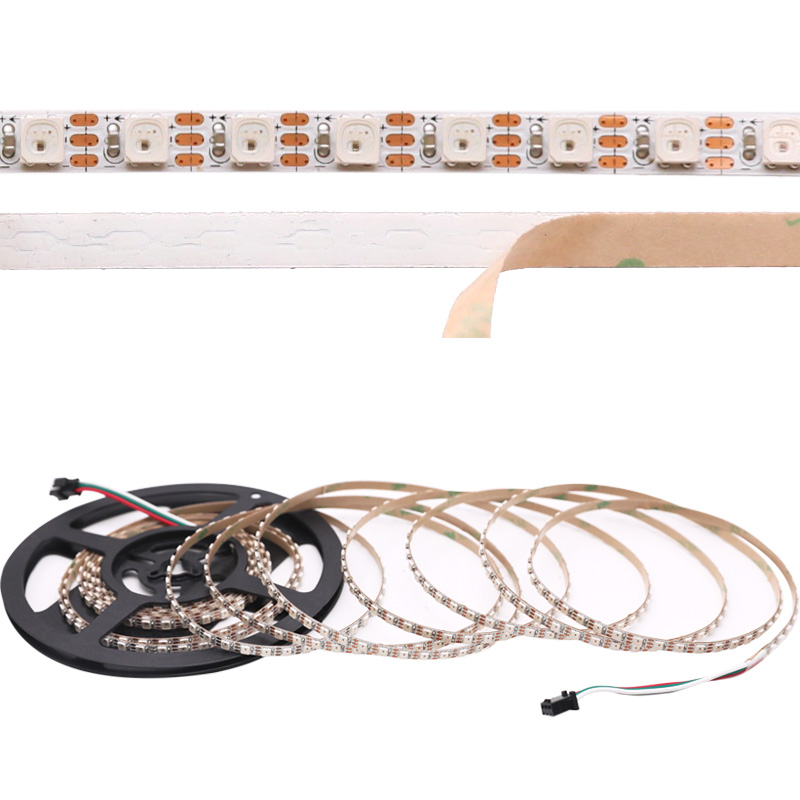

5mm Narrow 3535SMD 120LEDs/m Higher Density 5V 12V Built-in Individually Addressable RGB WS2811 LED Strips. The 120LEDs/m 5mm WS2811 5V LED strip and the 120LEDs/m 5mm WS2811 12V LED strip are all individually addressable, single LED cuttable, and each LED is a pixel.
These digital RGB LED strips are controlled by WS2811 IC which is built in small-size 3535 SMD LEDs, has an aesthetically pleasing strip light appearance. The 5mm WS2811 strip with 120 LEDs per meter, higher brightness and more even light, perfect to be installed at narrpw places and easy to be hidden.
How to choose WS2811 5V or 12V strip?
5V WS2811 Strip: Individually addressable; High amps; Shorter running length; Larger voltage drop.
WS2811 12V Strip: Individually addressable; Low amps; Longer running length; Smaller voltage drop.
Standards and Certifications
|Light Strip Type:||120LEDs/m WS2811 5mm Thin Individually Addressable LED Strip|
|LED Chip:||SMD3535 + Built-in WS2811 IC|
|LED Color:||RGB Dream Color|
|LED Quantity:||120 LEDs/m, 600 LEDs per roll|
120 ICs/m, 600 ICs per roll

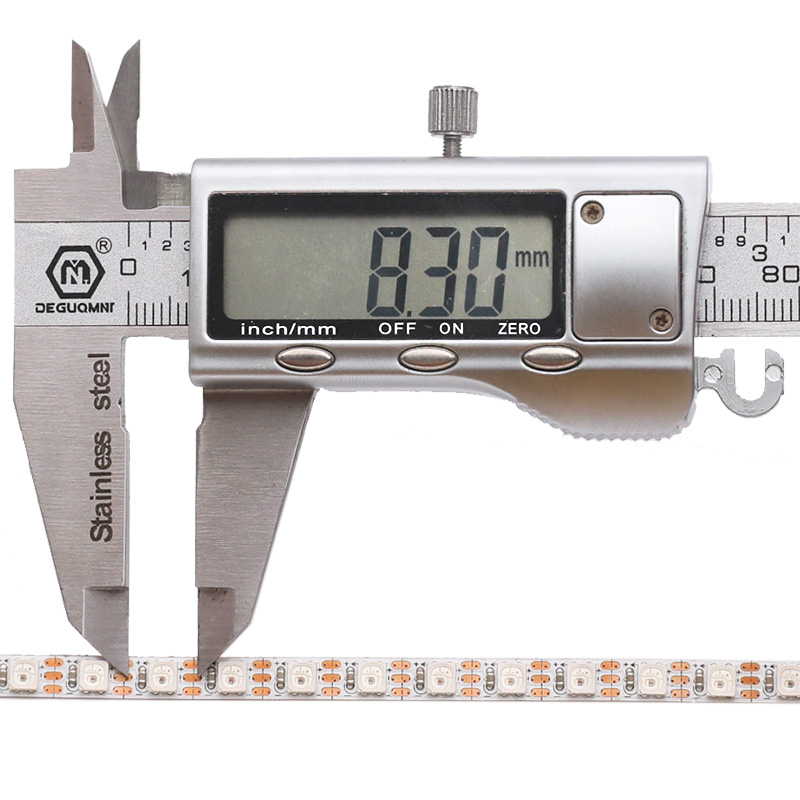

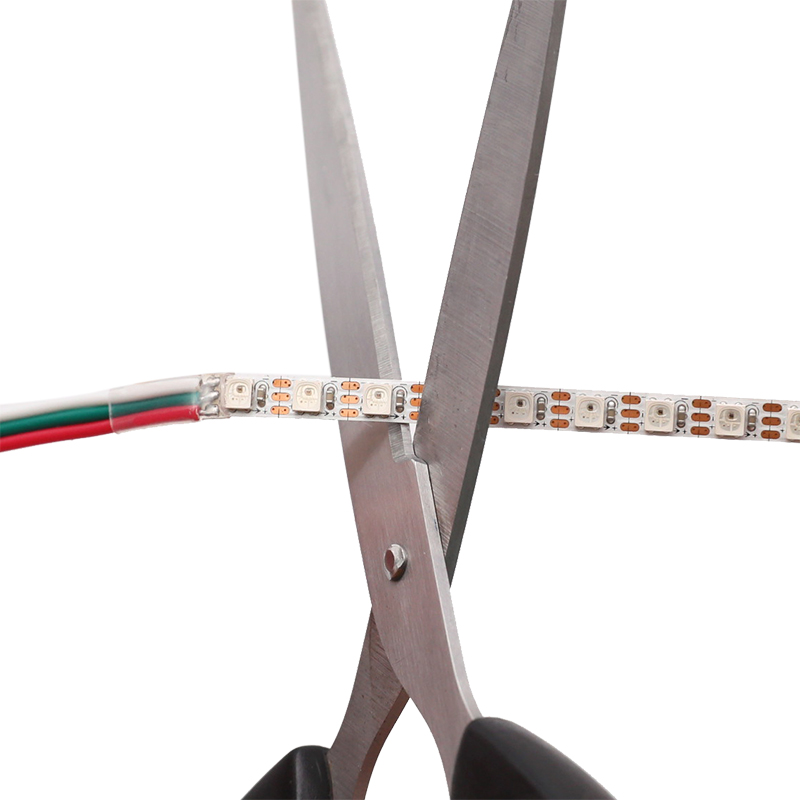

1 LED can be cut (8.33mm)
|Waterproof Rating:||Non-waterproof IP20, Outdoor Waterproof IP67|
How To Wire WS2811 LED Strips?
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
