WS2811 Ultra Bright Addressable White LED Triple Row Strip

Name: WS2811 Ultra Bright Addressable White LED Triple Row Strip
Brand: SuperLightingLED
SKU: WS2811-TRLED-2835WX360
Price: 50.98 GBP
Availability: InStock

Model: WS2811-TRLED-2835WX360 Review stars

0.0 (0 Reviews) Various options in stock

Starting at: £50.07 £38.6823% off

Qty Discounts Off Price
1-9 £38.68	10-19 £38.10	20-49 £37.72	50+ £37.33
* Discounts may vary based on options below

Select Specifications:

Select Kit:

Select PCB Width:

20mm (0.79in)

Select LED Color:

Select Input Voltage:

Select Length:

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

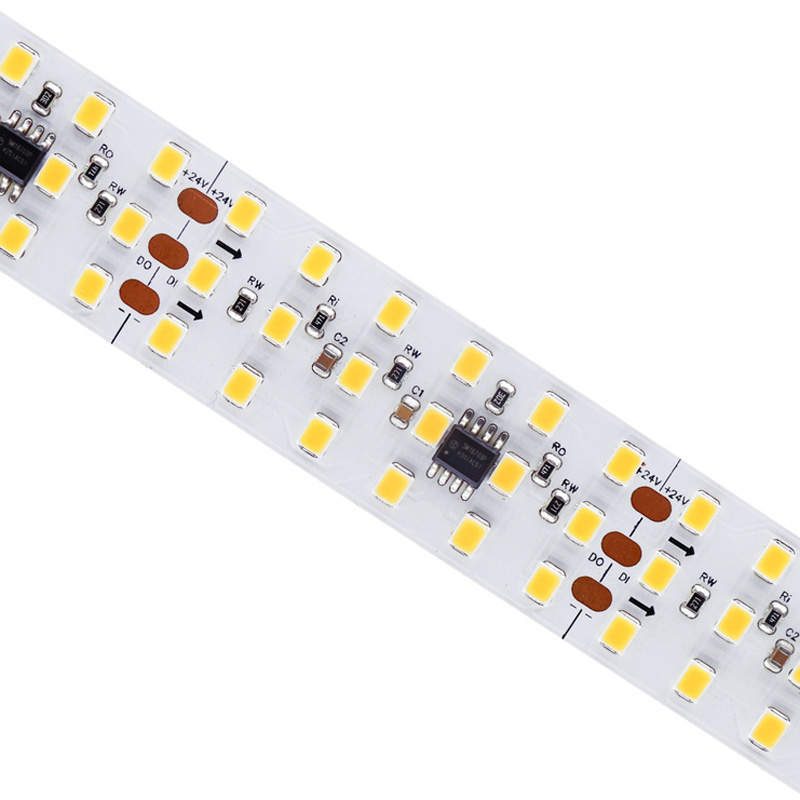

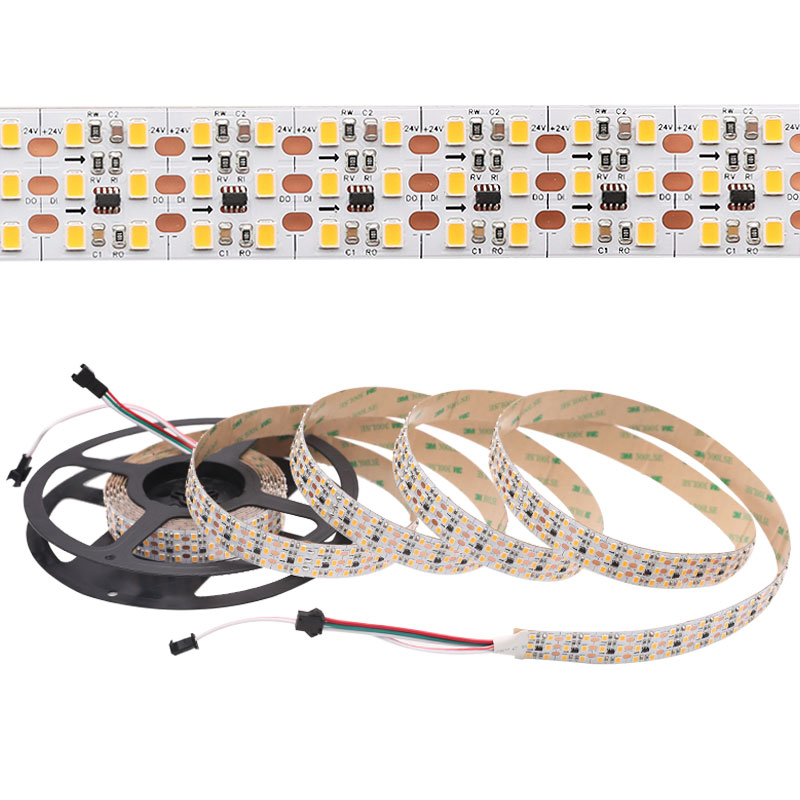

A 16.4ft or 20ft long WS2811/SM16703P pixel-control 2835 white led triple row strip light, 360 LEDs per meter, 20mm wide, compatible with 3000K warm white, 4000K natural white, and 6000K daylight white led lights.

This WS2811 led white addressable strip takes three rows of high efficiency 2835 white LEDs to bring you brighter illumination. And you can realize multiple dynamic white led light effects with a running water led controller such as the kit included SP636E model or other programmer compatible with WS2811 protocol.

With the WS2811 3-row white led pixel tape, you can set different brightness levels for each group of LEDs to meet both basic and ambient lighting needs, flexible lighting design.

Two types are avilable in this 24V WS2811 Ultra Bright Addressable White LED Triple Row Strip:

1) 16.66mm/0.65" cut segment, one IC controls 6 LEDs, 60 pixels per meter;

2) 50mm/2" cut segment, one IC controls 18 LEDs, 20 pixels per meter;

WS2811 Ultra Bright Addressable White LED Triple Row Strip

If you don't need pixel control, please check our CRI-80 or CRI-95 normal version.

Product Specification

Product Type:	Ultra Bright Addressable White LED Triple Row Strip
IC Chip:	WS2811 / SM16703P (need pixel led controller)
Input Voltage:	DC24V
Power:	22W/m
Cut Segment:	16.66mm (0.65"), 50mm (2")
PCB Width:	20mm/0.78"
LED Quantity:	360 LEDs per meter, 110 per foot
IC Pixels:	60/20 per meter
Waterproof Rating:	Indoor IP20 IP65, outdoor IP67 IP68
Beam Angle:	120°
Strip Length:	5m/16.4ft, 6m/19.7ft

WS2811 Digital Bright White LED Light Strip Wiring Diagram

addressable led strip wiring diagram

Package Include

1 x Digital WS2811 triple led white strip light

1 x SP636E Bluetooth digital led controller (choose in the kit)

1 x LRS-150-24 MeanWell led power supply (choose in the kit)

WS2811 Ultra Bright Addressable White LED Triple Row Strip

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for WS2811-TRLED-2835WX360

PDFWS2811-TRLED-2835WX360 product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

This model runs on DC24V - 18LED/Pixel · DC24V - 6LED/Pixel. 5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

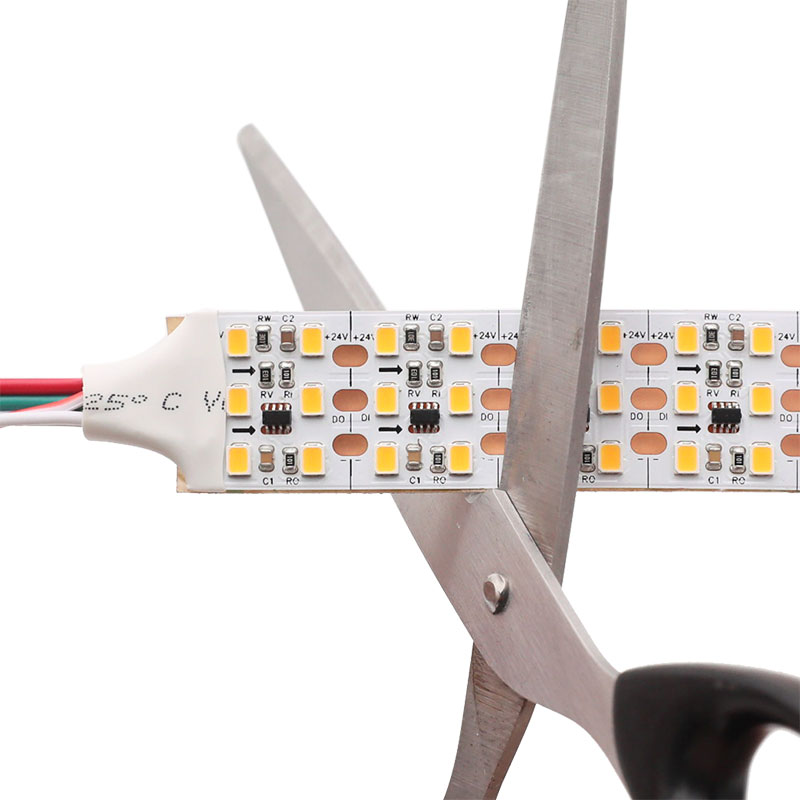

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

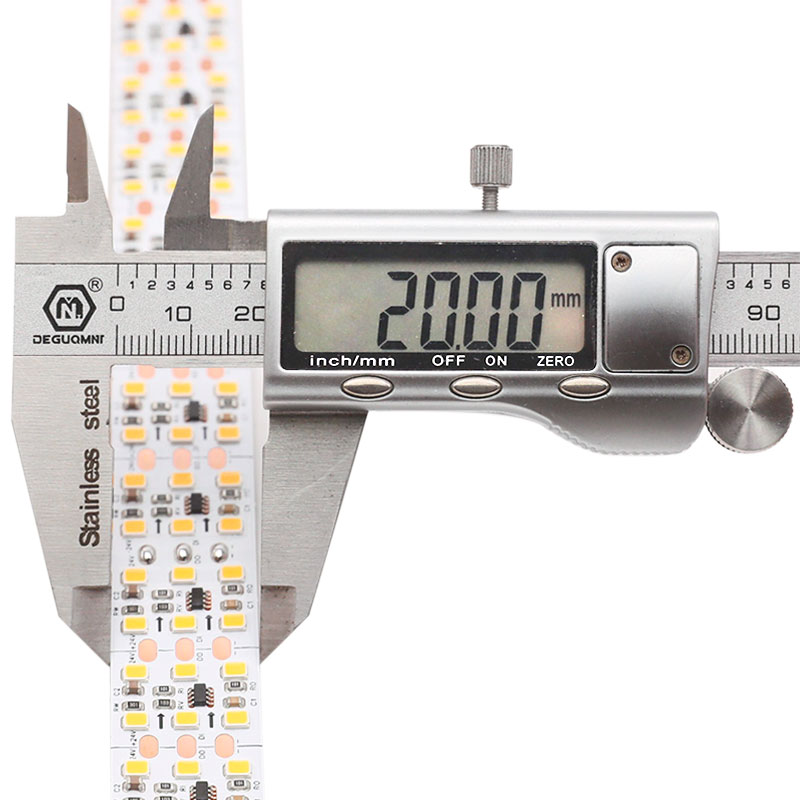

PCB width 20mm (0.79in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
