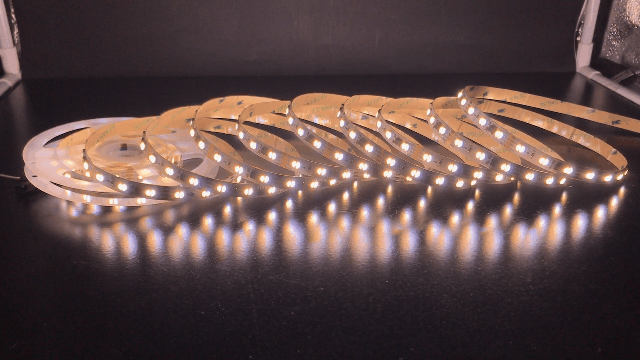

3000K 4500K 6000K 3in1 White Addressable 12V LED Light Strip

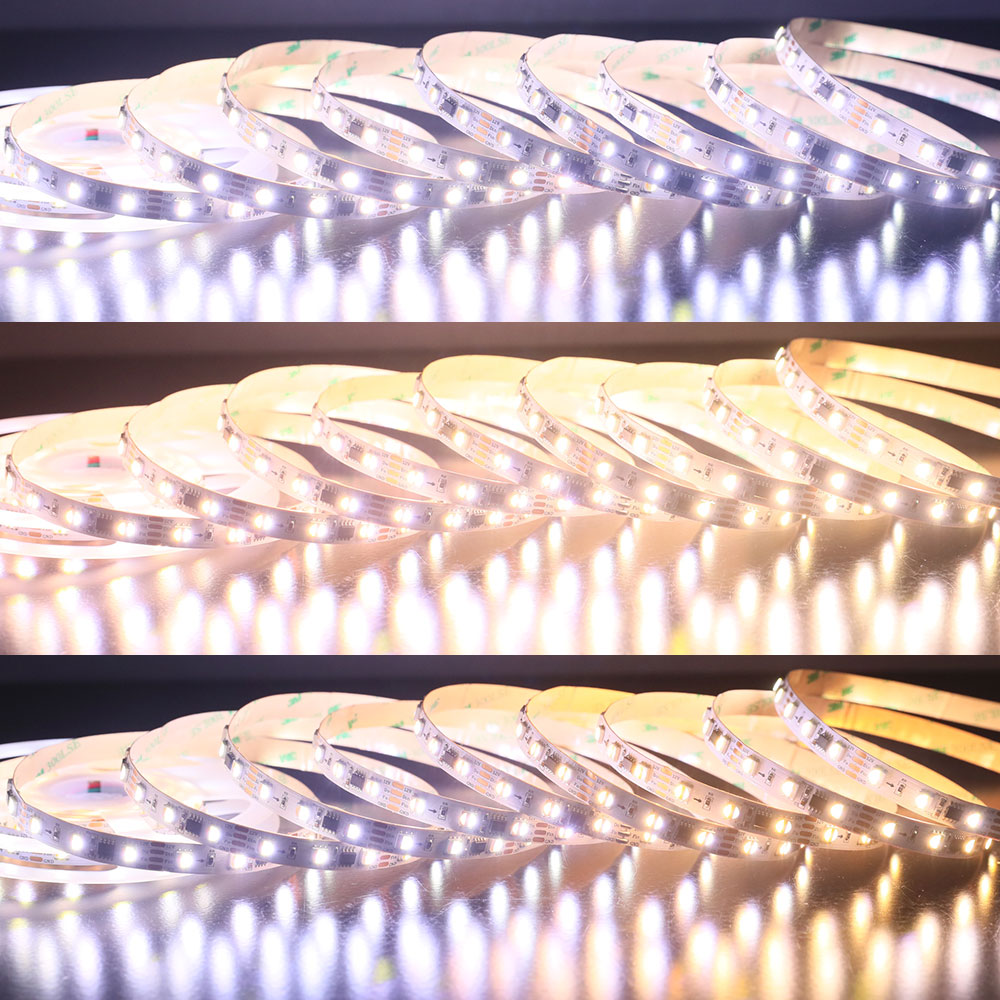

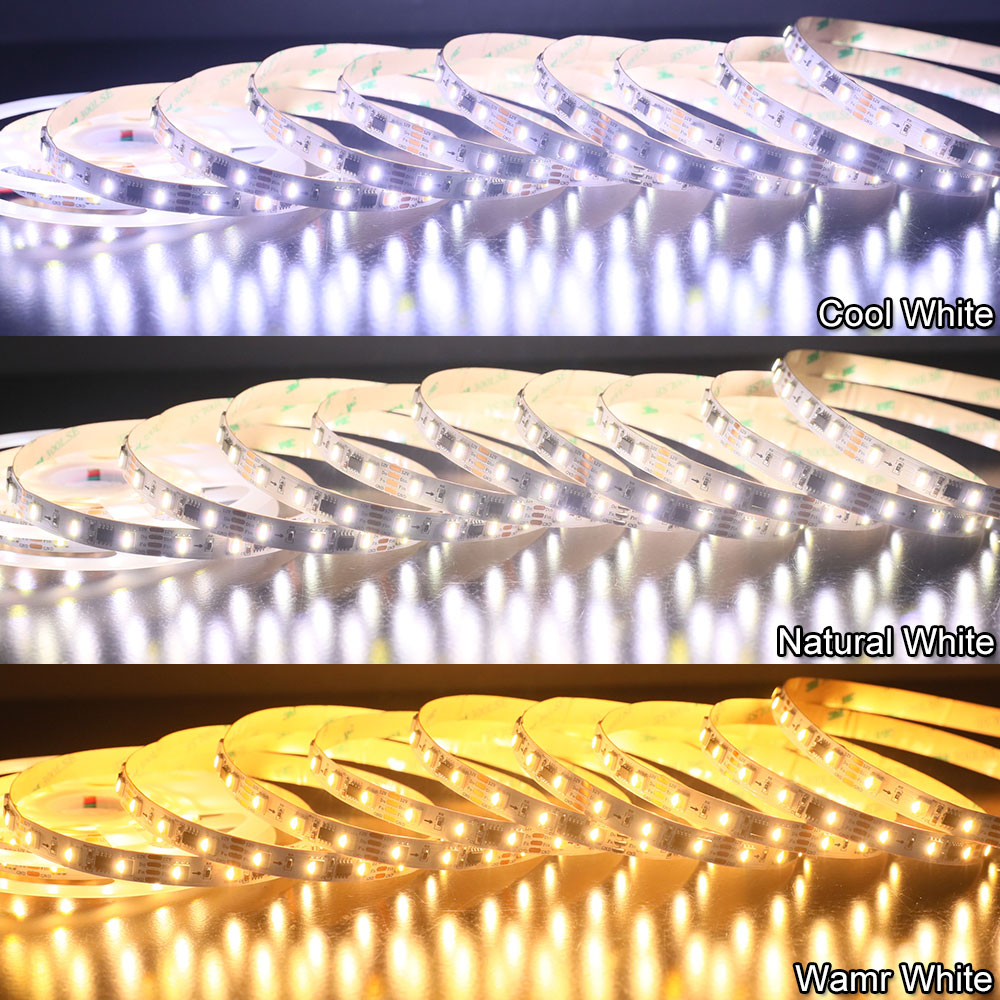

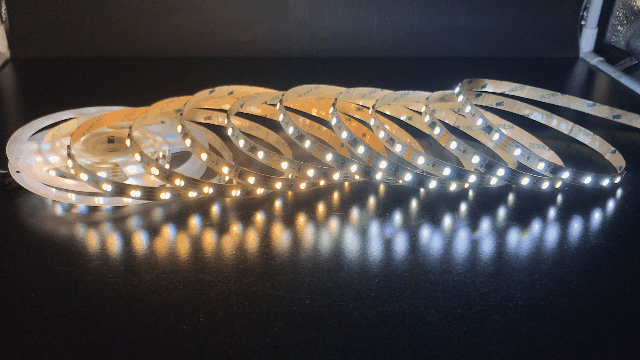

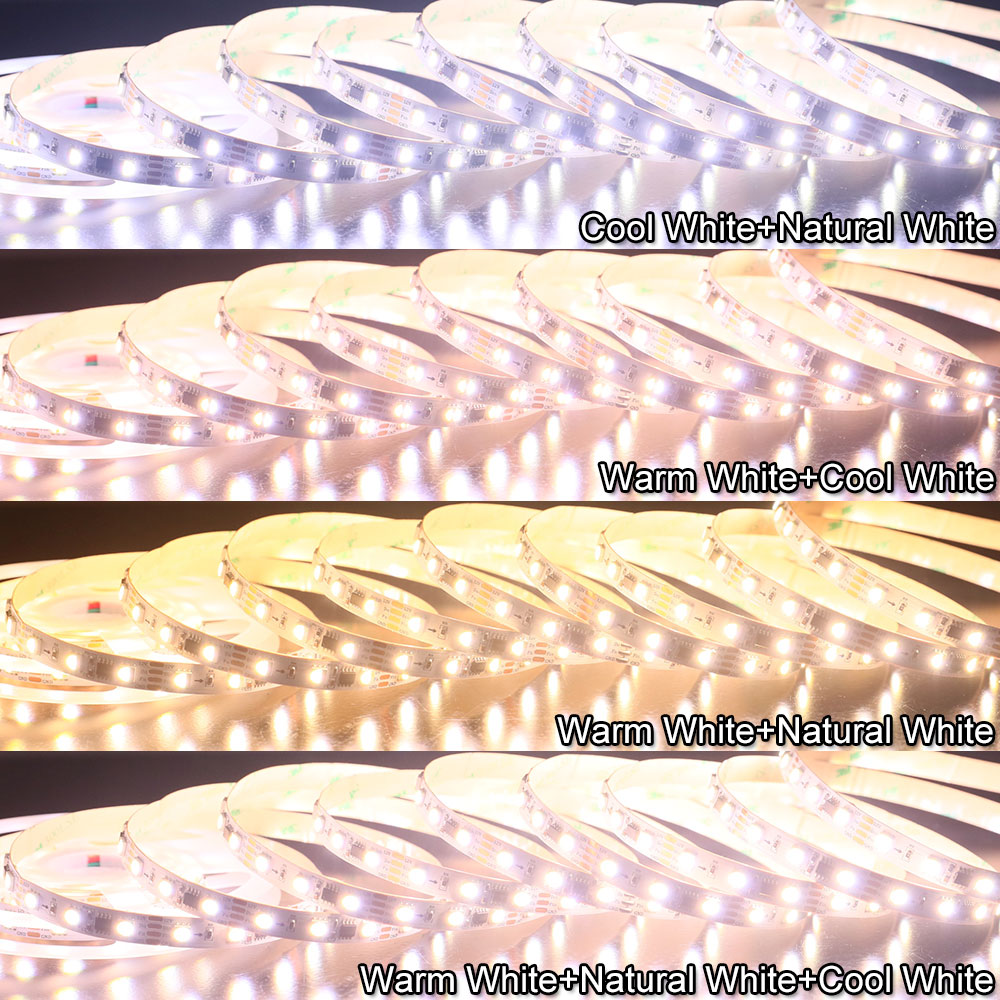

Special new 3-in-1 white addressable light strip. There are three color temperatures on each LED, 2700K-3200K warm white, 4000K-4500K neutral white, and 6000K-6500K cool white. Display a variety of dynamic modes of white light color temperatures (flowing water, color chasing, etc.).

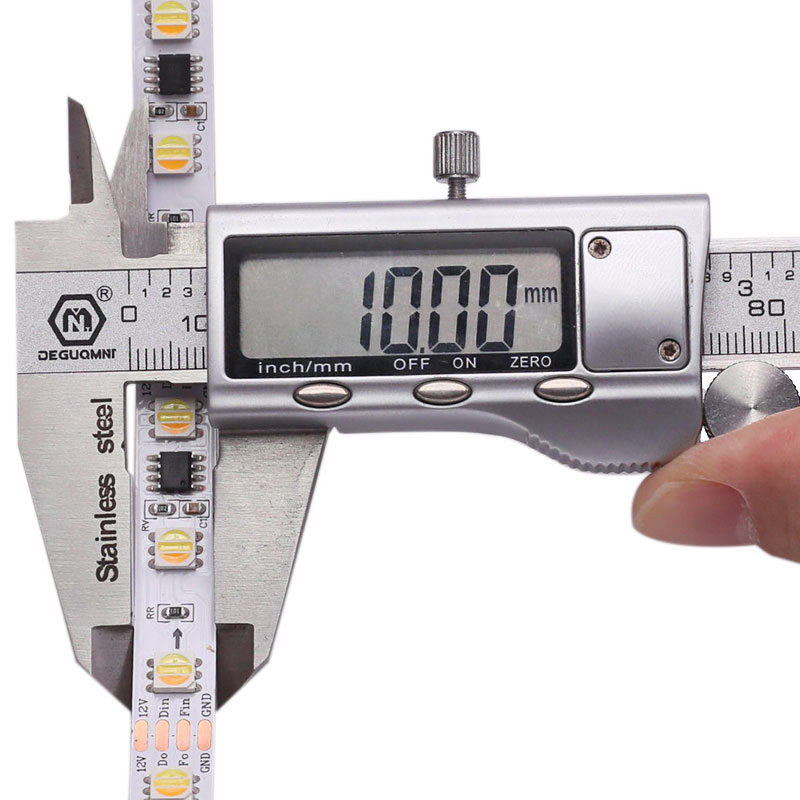

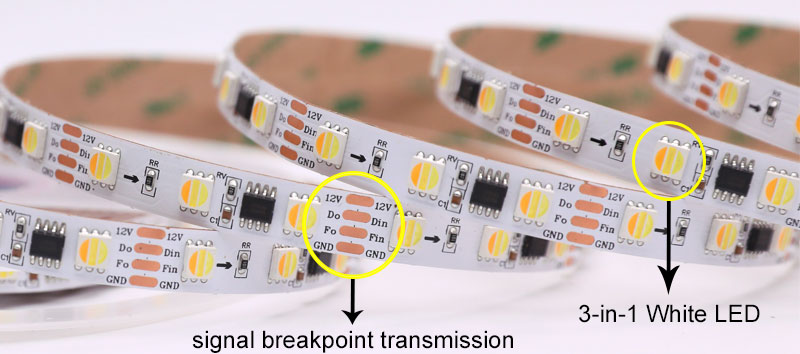

This 10mm wide WWA led strip is breakpoint resume, if one LED lose work, others still work. Comes with 3pin JST signal connector and 2pin power wire at each end, allowing quick connection. This 16.4ft white light addressable led strip is powered by 12V DC and consumes 11W per meter. It requires a 12V SPI controller and a 12V power adapter or a 12V switching power supply (minimum 66W capacity) to drive.
With 85+ high CRI, it can restore the color of objects under natural light to the greatest extent, and the human eyes can perceive more colors, suitable for under cabinet lighting, kicthen lighting, bedroom lighting, etc. IP20 non-wateproof is suitable for home & residential installations. IP67 waterproof can be used in outdoor environments.
5050 3in1 color temperature lamp beads, high color rendering, high brightness, and low energy consumption.
Using high-quality diodes, uniform luminous without dark areas.

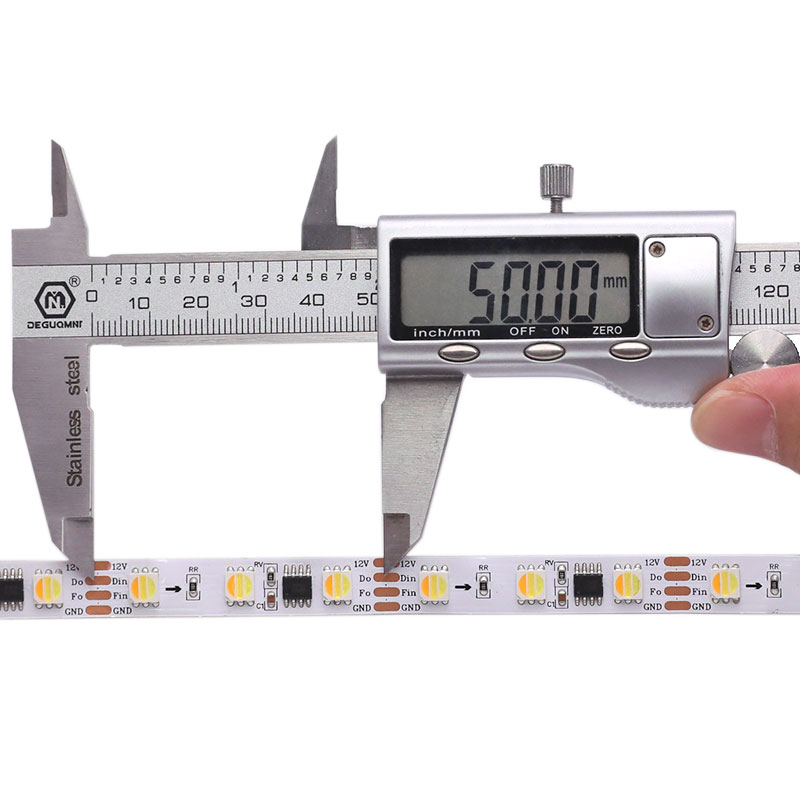

3 lights can be cut, easy to get the length you want.

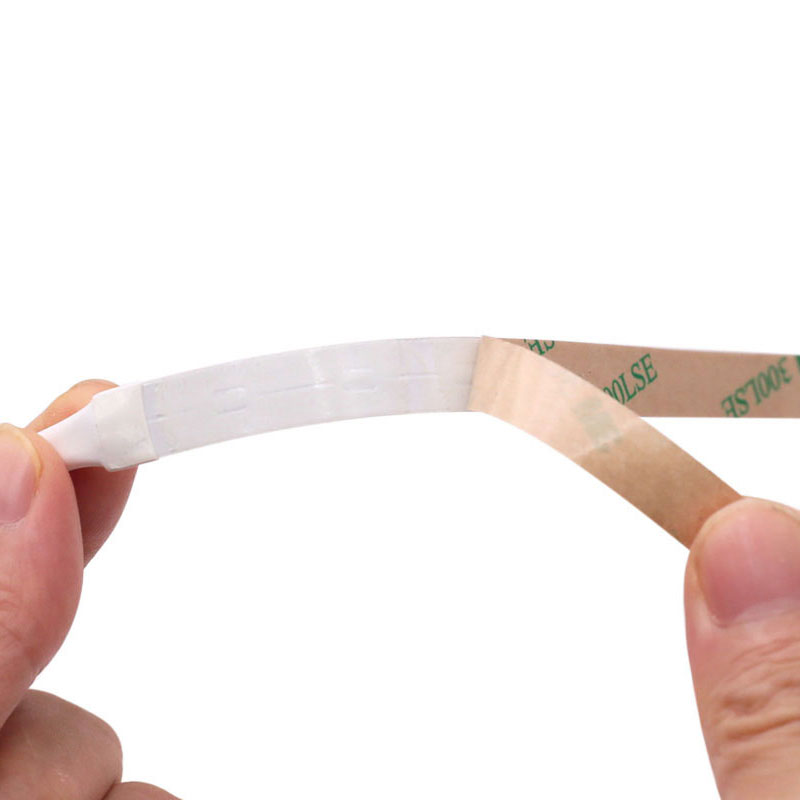

Flexible FPCB board, stable and foldable, easy to design modeling.
Standards and Certifications
|LED Strip Type:||3000K+4500K+6000K 3in1 White Addressable LED Strip|
|LED Chip:||LB1934A Breakpoint Resume|
|LED Color Temperature:||Addressable 6000K Daylight White + 4000K Natural White + 2700K Warm White|
|LED Quantity:||60 LEDs/m|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68|
|Color Rendering Index:||Ra＞85|
4-pin Breakpoint Resume Addressable LED Strip Light Wiring Diagram:
Available LED Strip Lighting Fixture:
Silicone LED diffuser is flexible and waterproof, there are different internal structures, allowing you to change the light-emitting angle and luminous type. Aluminum LED channel is low profile and has different PC diffuser covers. And they all evenly diffuse LED lighting.
