24V 2835 White Light Addressable Running Water LED Strip 120 High Density
This light strip with the use of addressable controller can achieve a dynamic effect of a certain white light color temperature. Total three LED color temperatures to choose from, 2700K~3200K warm white, 4000K~4500K neutral white, or 6000K~6500K daylight white.
Adopt high quality 2835 LEDs, with power factor of 0.2W per LED, low energy consumption, friendly to your home lighting and commercial lighting.

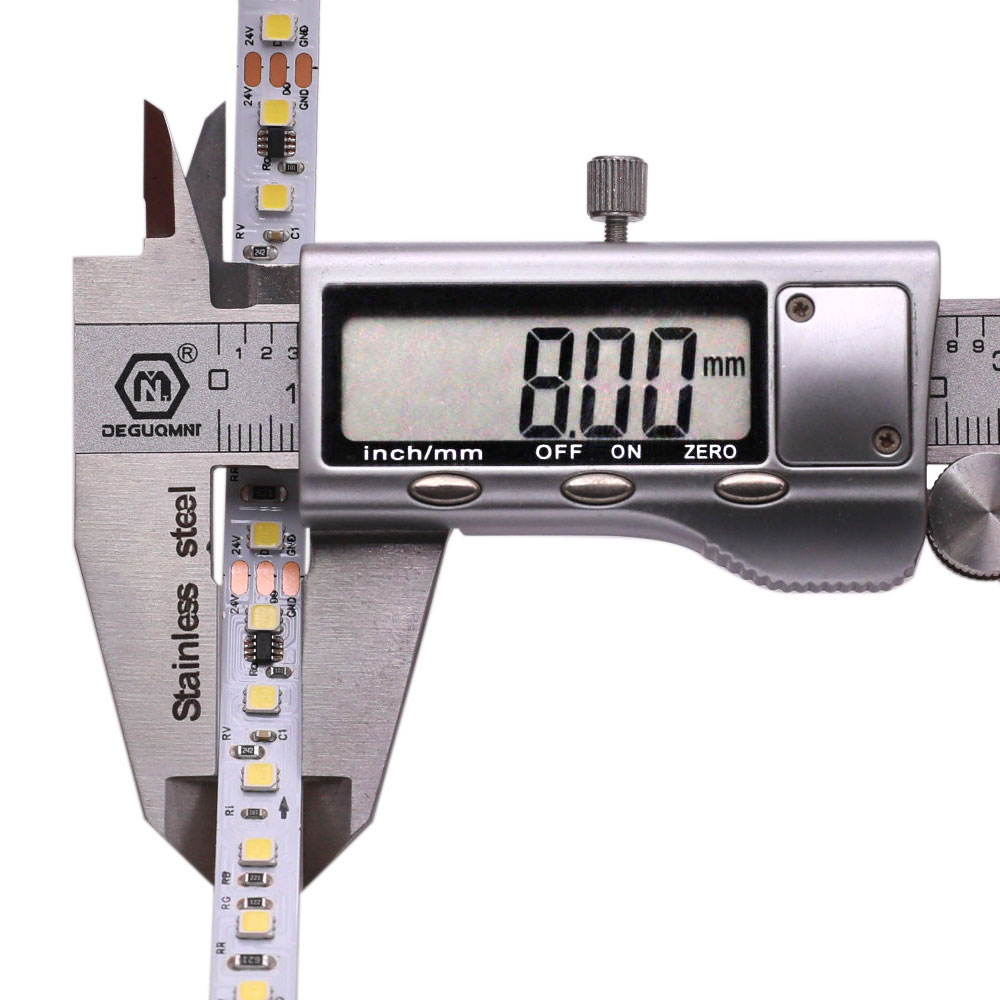

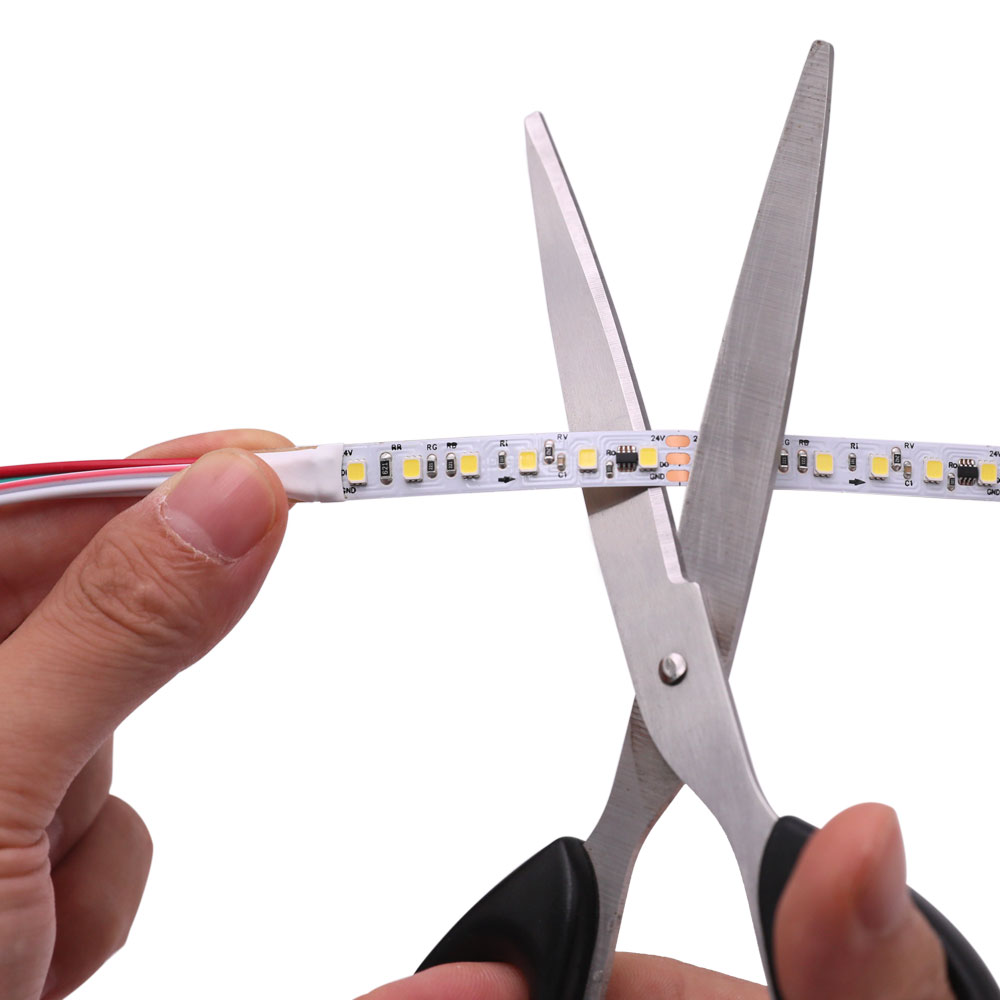

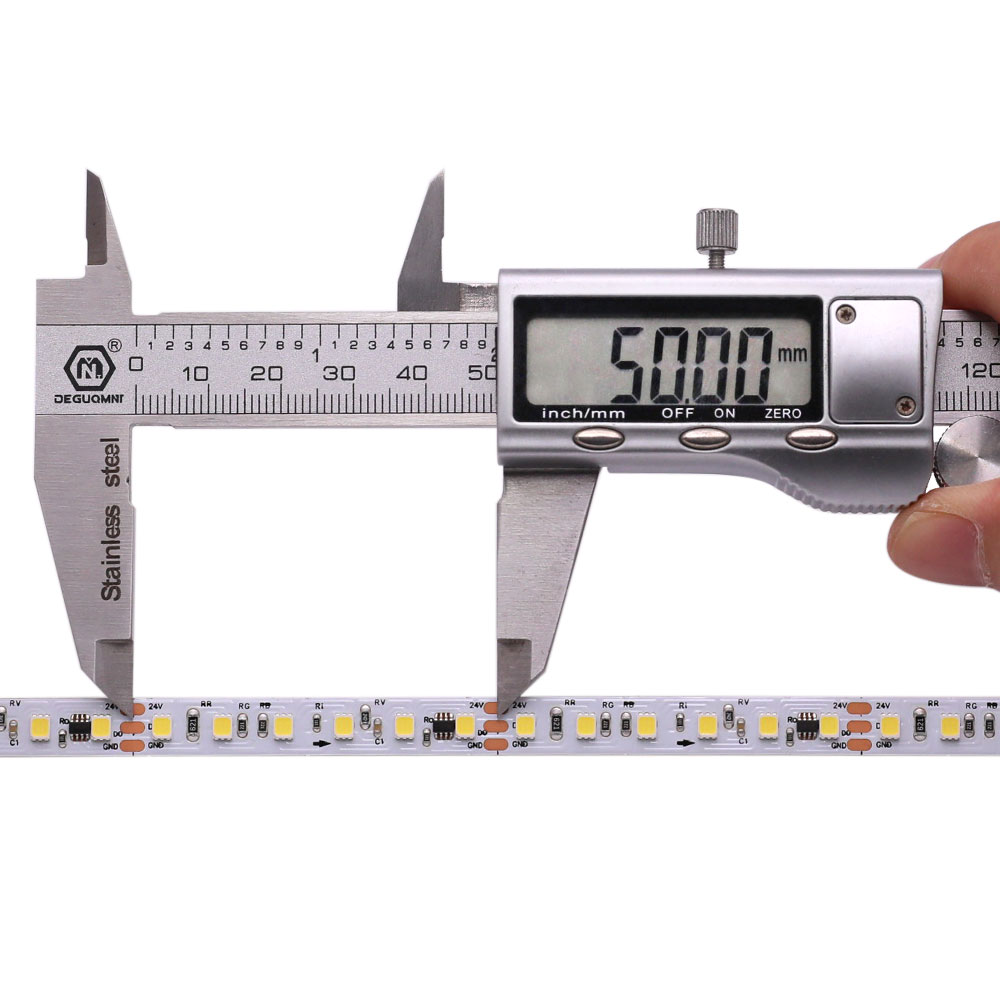

120 or 144 white lights per meter, high brightness. 6 or 18 LED lights per cut, 50mm or 125mm cut length, you can easily get the exact length according to your specific installation.
With 85+ high CRI, it can restore the color of objects under natural light to the greatest extent, meet the needs of the human eyes for color perception.
Different wateproof ratings are for home & residential installations or outdoor environments.
Related LED Lighting Knowledge Sources:
Standards and Certifications
|LED Strip Type:||3-Pin Addressable White LED Light Strip|
|LED Chip:||2835 SMD + FW1934A IC|
120LEDs/m - 22.7W/m, 113.5W/16.4ft
144LEDs/m - 8.2W/m, 41W/16.4ft
|LED Color Temperature:||Addressable 6000K Daylight White / 4000K Natural White / 3000K Warm White|

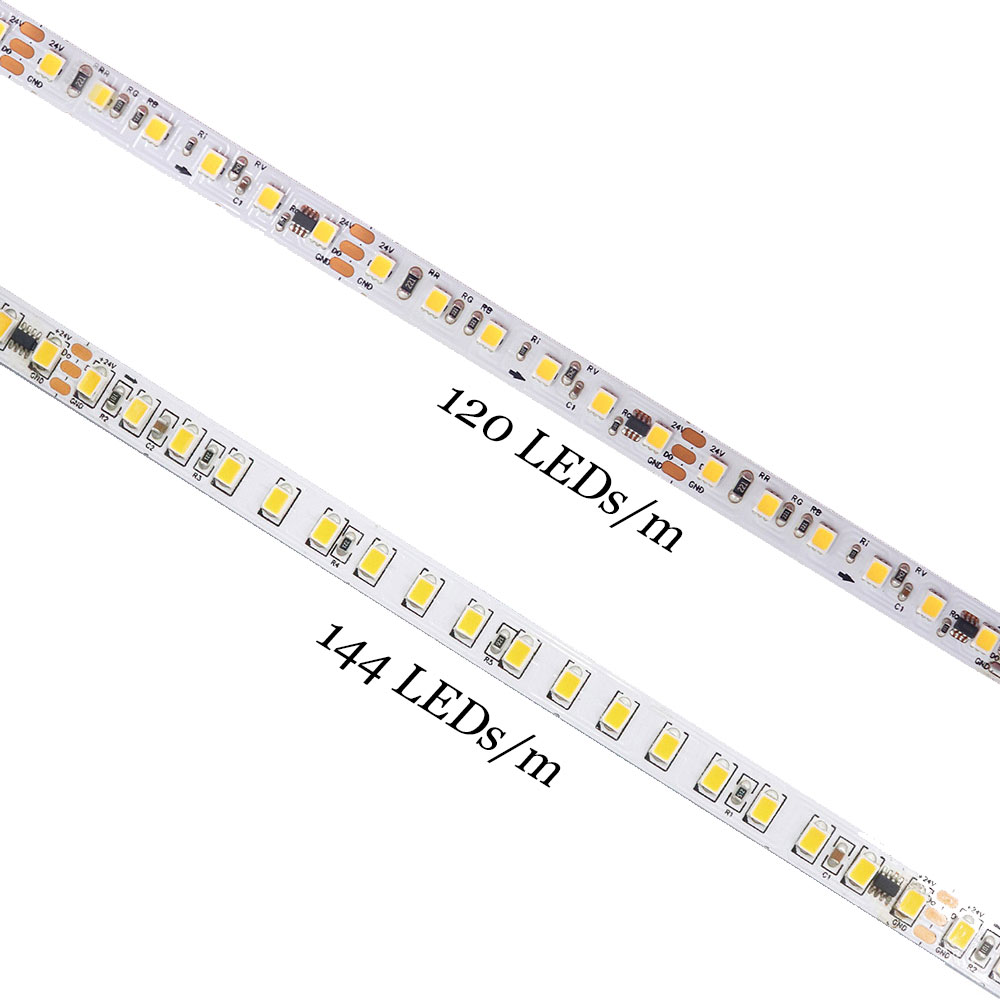

|LED Quantity:||120/144 LEDs/m|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68|
|Color Rendering Index:||Ra＞85|
3-Pin Single Signal Addressable LED Strip Light Wiring Diagram:
Available LED Lighting Fixtures:
Silicone LED diffuser is flexible and waterproof, there are different internal structures, allowing you to change the light-emitting angle and luminous type.
Aluminum LED channel also has multiple types to create your linear lighting, surface mount, recessed mount, or suspended mount, etc. And they all evenly diffuse the LED strip lighting and protect the strip lights.
