Product Information
Unlock endless possibilities in tunable white lighting with our Addressable 2-in-1 2835 CCT LED Strip. At the heart of its appeal is the generous 10-meter continuous length, which transforms complex installations by eliminating the hassle of multiple short strips: say goodbye to mismatched segments, voltage inconsistencies, and tedious splicing.
Instead, enjoy seamless, one-roll coverage for expansive setups like under-cabinet kitchen runs, architectural cove lighting, or full-room ambient systems, ensuring uniform color gradients from cozy 3000K warm white to crisp 6500K daylight white without visible drop-offs or hotspots.
This extended run empowers designers and DIY enthusiasts to create fluid, flowing effects across vast distances – think dynamic white light mood shifts in home theaters or synchronized circadian rhythm lighting in offices – all powered reliably from one end via 24V low-voltage input, minimizing power injection points and setup complexity.
• Slim 8mm-wide flexible strip boasts high-density 108 LEDs per meter
• 2-in-1 2835 SMD chips, delivering 16W/m of efficient
• Integrated FW1903 IC architecture – two chips every 166.66mm for pixel-perfect addressability
• Enabling individual IC control via SPI-compatible controllers like Arduino or WLED or use the kit included SP637E addressable CCT led controller which can be wirelessly remote controlled
• Robust data transmission over the full 10m
• Dial in granular CCT tuning, chase patterns, or scene transitions with ease
• Compatibility with standard 24V power supply like the MeanWell LRS-200-24 in the kit
Product Specifications
| Item Type: | Long Thin Addressable 2-in-1 2835 CCT LED Strip |
| IC Chip: | FW1903 (similar to WS2811) |
| Input Voltage: | DC24V |
| PCB Width: | 8mm/0.3in |
| LED Density: | 108 LEDs/m, 1080 LEDs/roll |

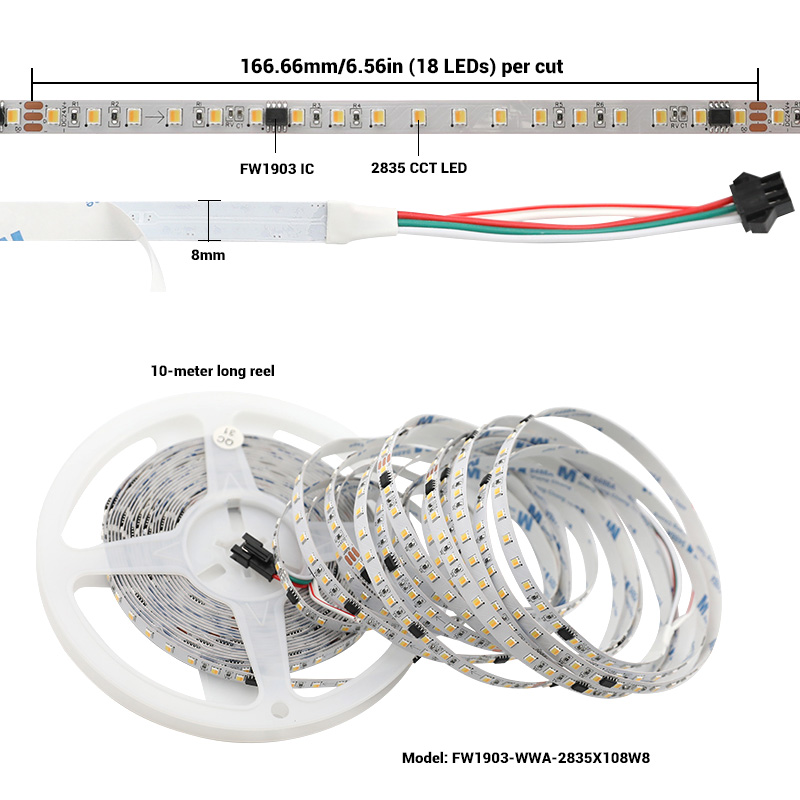

| Cut Unit: | 18 LEDs, 166.66mm/6.56in |
| IC Pixel: | 12 ICs/m, 120 ICs/roll |
|
Power:
|
16W/m, 4.88W/ft, 160W/roll
|

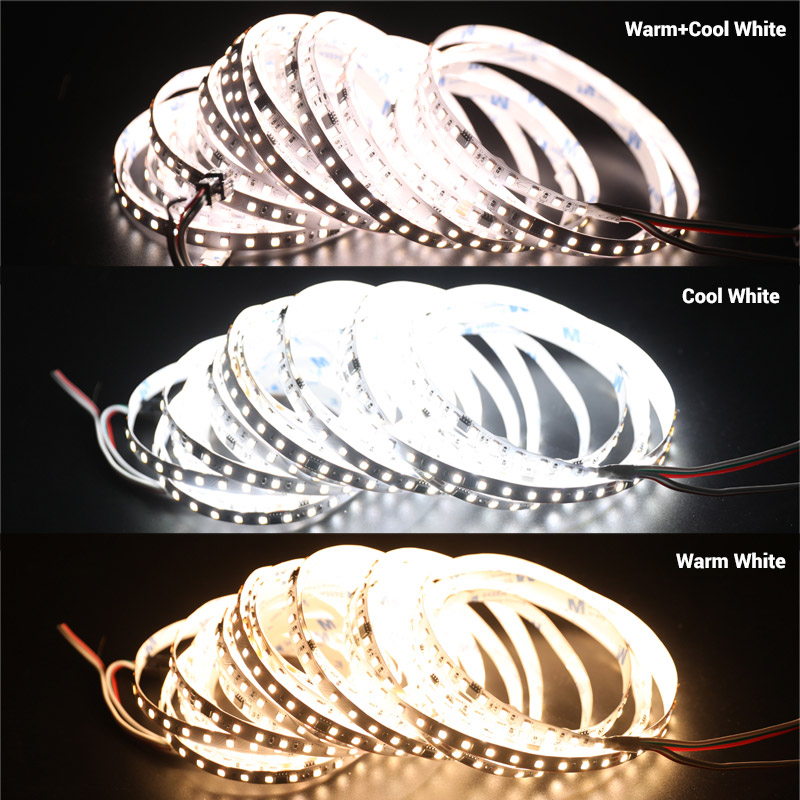

| LED Color: | 3000K-6500K WWA |
| Waterproof Rating: | Non-waterproof IP20 / Outdoor Waterproof IP67 |
| Cable Outlet: | 3-pin JST SM connectors |
| Beam Angle: | 120° |
| Length: | 10m/32.8ft reel |
Product Package:
1* FW1903 IC addressable CCT led strip light (DC24V 10m reel)
1* SP637E Bluetooth & RF & Music addressable CCT led controller (optional)
1* RF handheld remote control + 1* RF wall panel (optional)
1* LRS-200-24 led power supply (optional)
