The standout features of this SK6812 RGBW led strip are 24V individually addressable and support any DC voltage input from 12 volts to 24 volts.
Most individually addressable led strips are DC5V or DC12V input, which has a running length limit in large projects, and you need additional power input to solve this problem. With higher voltage up to DC24V, this SK6812 RGBW led strip helps in this aspect.
Different from other individual addressable led strips, this strip with six 5050 LEDs per circuit, cut off 100mm/4in per time. It adopts constant current design and runs 10 meters (32.8ft) without voltage drop. 20 meters with both sides of the power supply, which is ideal for commercial lighting projects.
Please choose an addressable RGBW controller compatible with SK6812 protocol to control this ARGBW strip.
Built-in SK6812 RGBW led strip
Individually addressable RGBW led strip
DC12V-DC24V voltage range
300LEDs per roll, each LED is a pixel

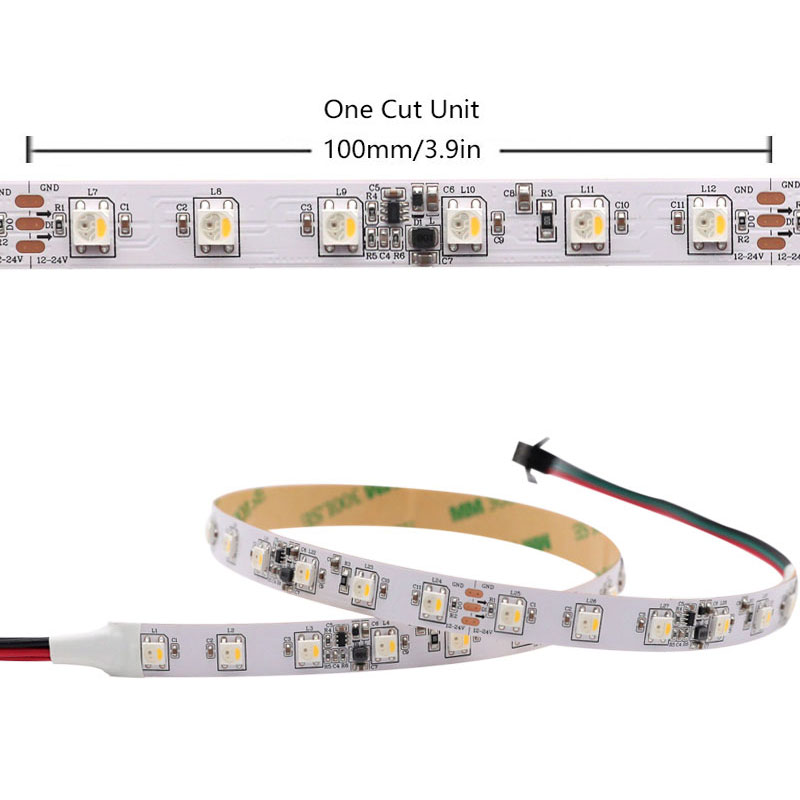

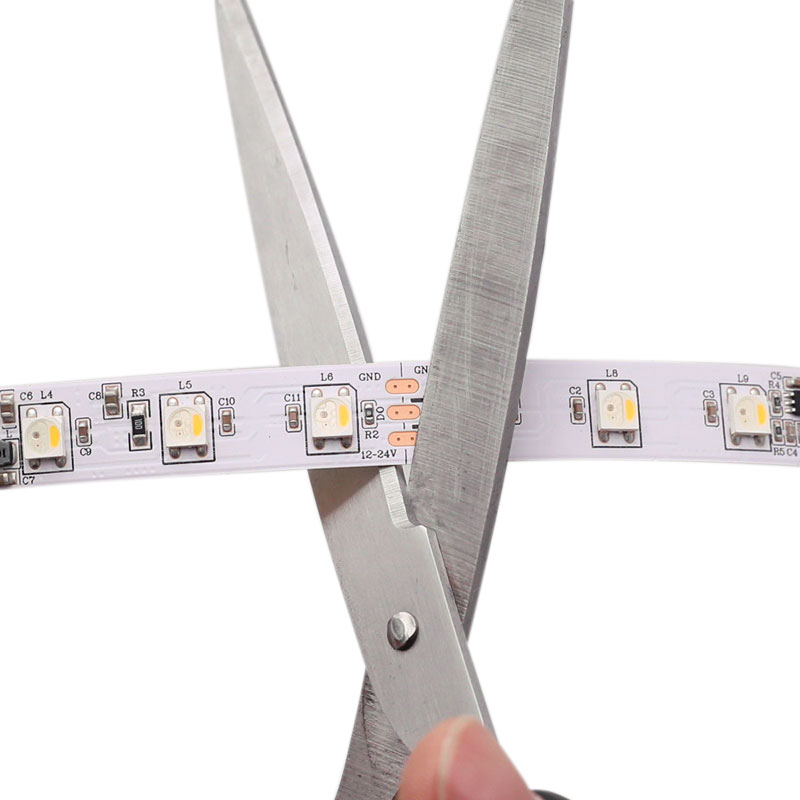

6 LEDs (100mm/4in) can be cut
10m/32.8ft long running length without voltage drop
Priority for engineering projects
Since there is no spot stock for RGB+Natural White, Daylight, Warm White, Natural White, and WWA type, a minimum quantity of 100 meters / 328ft is required for production.
Standards and Certifications
|LED Strip Type:||12-24V Wide Voltage Input Individually Addressable SK6812 RGBW LED Strip|
|LED Chip:||SK6812 built-in IC + 5050SMD|
|LED Quantity:||60LEDs/m, 300LEDs 16.4ft|
|IC Quantity:||300 ICs/roll (1 IC drives 1 LED)|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 / Outdoor Waterproof IP68|
SK6812 3-Wire Wiring Diagram:
