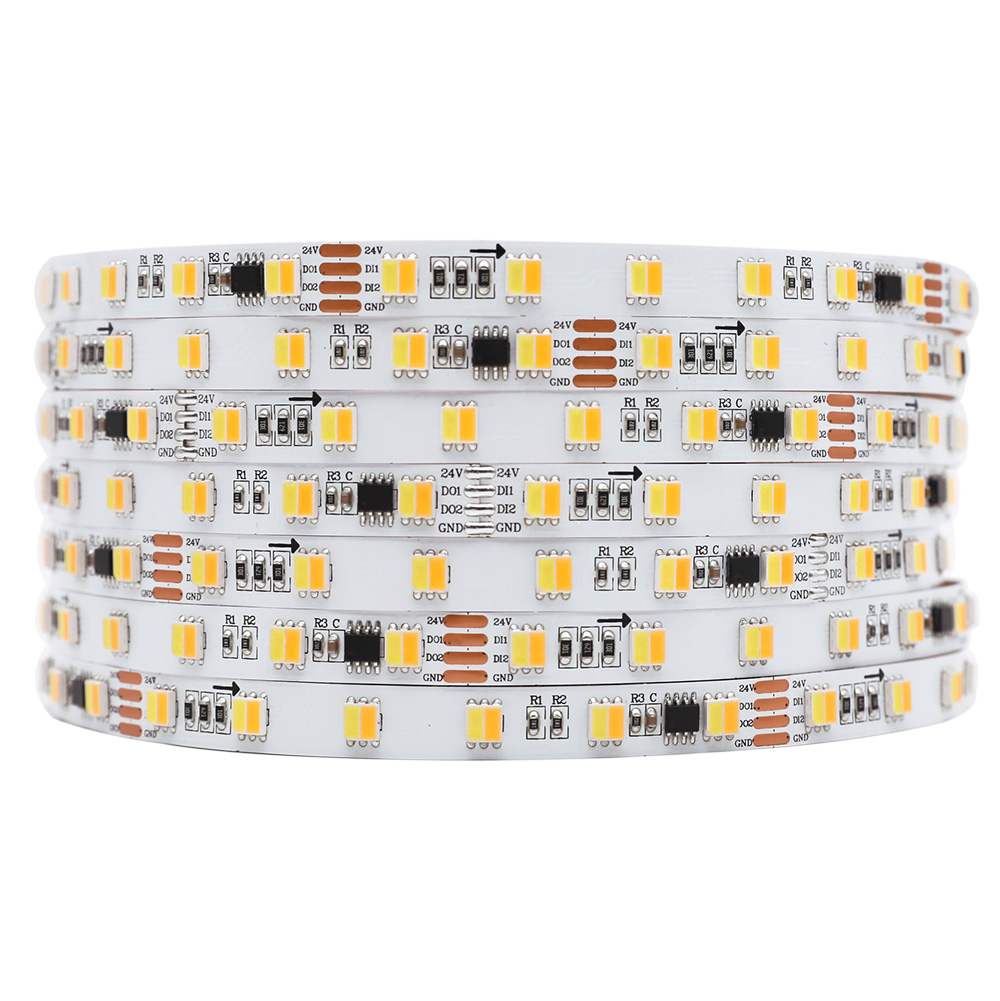

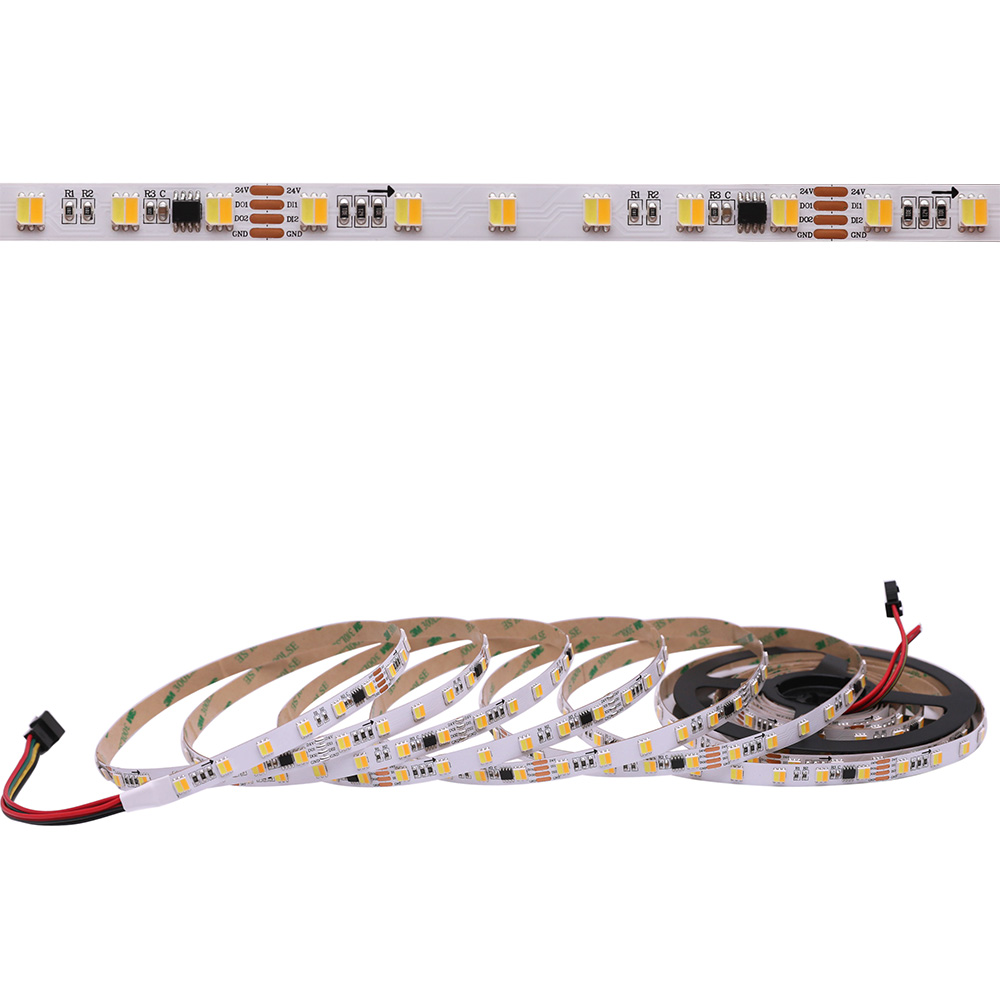

DC12/24V TM1934 5050SMD Breakpoint-Resume 16.4Ft 300LEDs Dream Color Addressable CCT LED Strip Lights
What is the TM1934 Addressable CCT LED strip?

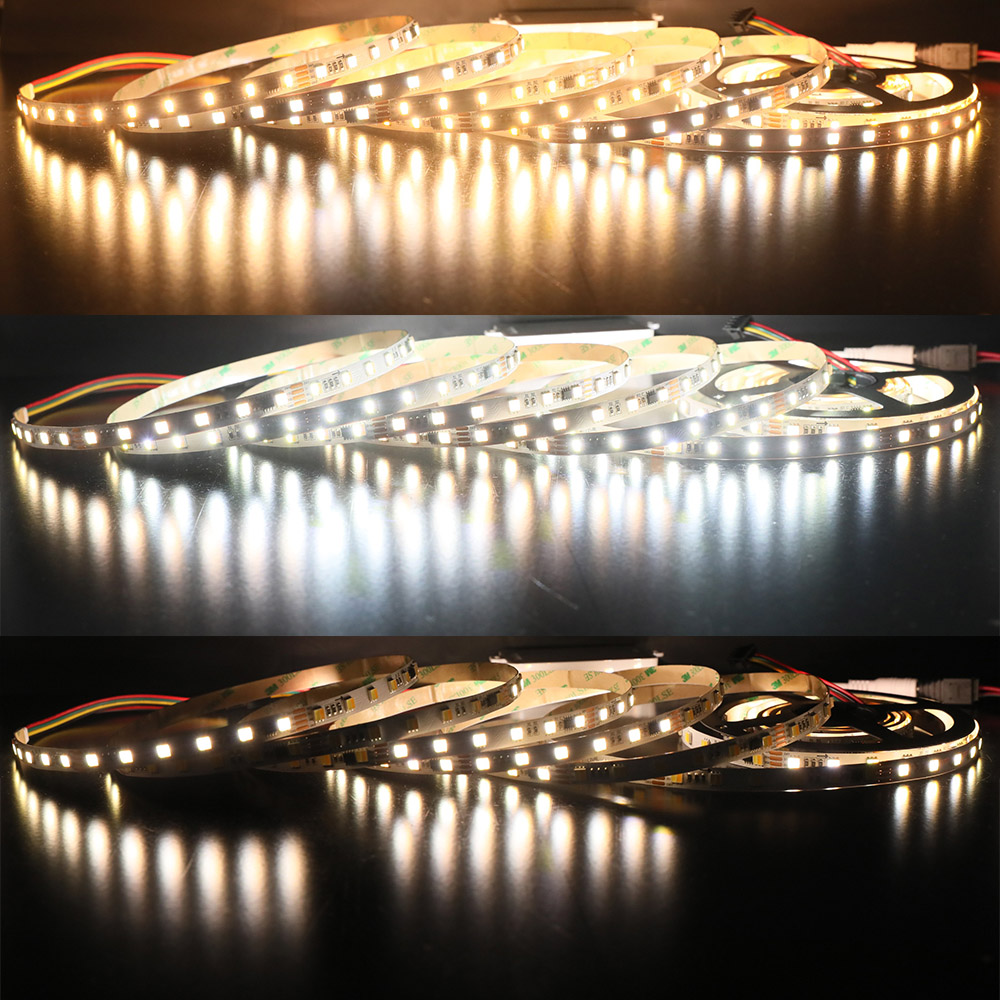

TM1934 addressable LED strip integrates warm white and daylight white 2in1 LED, controlling by external IC, which is 3-channel(OUTR/OUTG/OUTB) breakpoint resume; and the color temperature of addressable CCT LED is dimmable, the adjustment range is 2800-6500K; DC12V every 3LEDs is a whole circuit, DC24V every 6LEDs is a circuit, working with the dream color LED controller or Arduino development board can control any loop LED to light up and display different lighting effects.
1. This is our newest addressable CCT TM1934 LED strip, you can adjust the brightness and color temperature of the LED strip light by RF/Smartphone APP controlling, suitable for indoor home lighting.
2. LED density is 18LEDs/Ft high density; external IC, adopts SMD5050 high brightness LED, LED wide is 10mm/0.39in, CRI up to 90+
3. Support DC12/24V low voltage input, for DC12V LED strip light, every 3LEDs cuttable, 5-7m without voltage drop; for DC24V LED strip light, every 6LEDs cuttable, 8-10m without voltage drop.
4. Breakpoint resume programmable LED strip, a single-pixel failure will not affect the signal transmission unless two consecutive adjacent pixels fail.
Addressable WW+DW LED strip
2800-6500K adjustment range
CRI up to 90+
Adopt high voltage power CMOS process
Output port with 12/24V voltage resistance
Built-in 5V regulator in VDD
Single-wire dual-channel serial cascade interface
Built-in RC oscillation
Built-in power-on reset circuit
Data transmission rate up to 800KHz
TN1934 IC dual-channel breakpoint resume
18LEDs/Ft high brightness
IP20/65/67/68 waterproof selectable
Single IC control 3/6 LEDs, 3/6LEDs cuttable

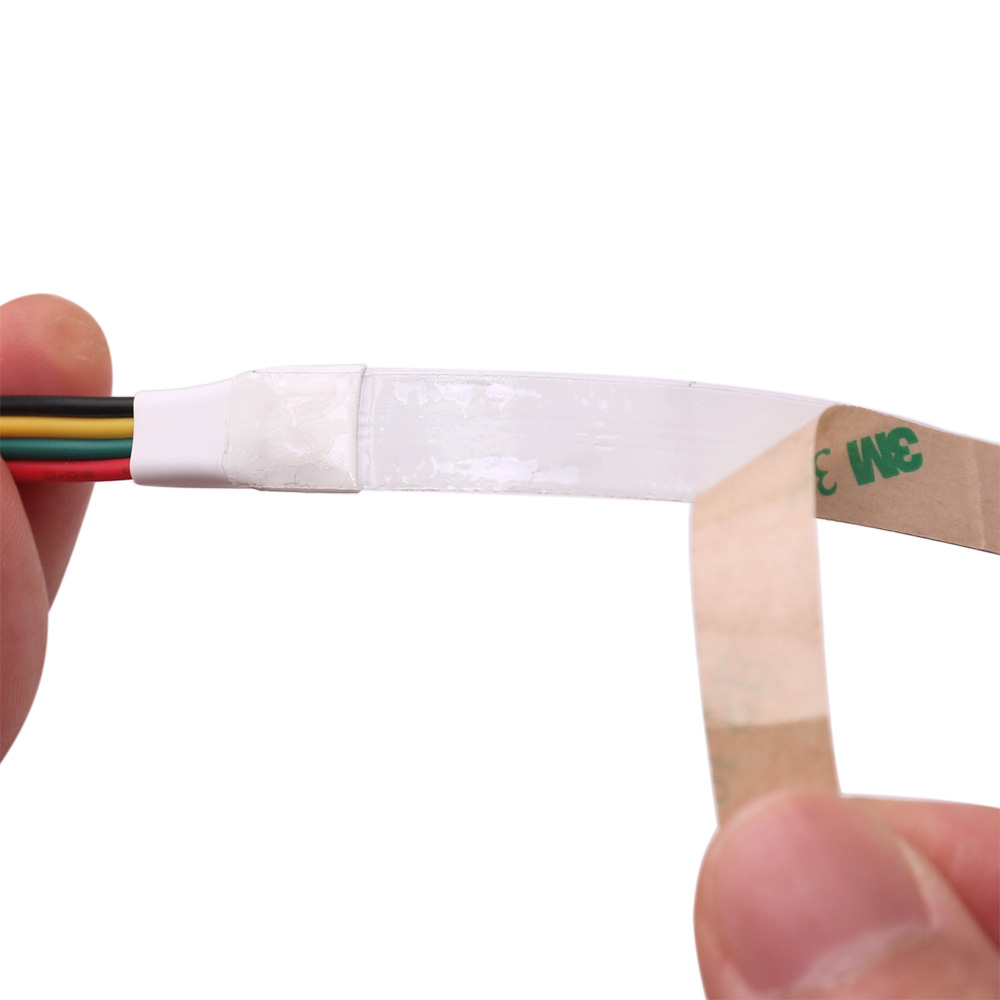

3M tape, easy to install
Standards and Certifications
Product Name: 5050 TM1934 External IC addressable RGB LED strip light

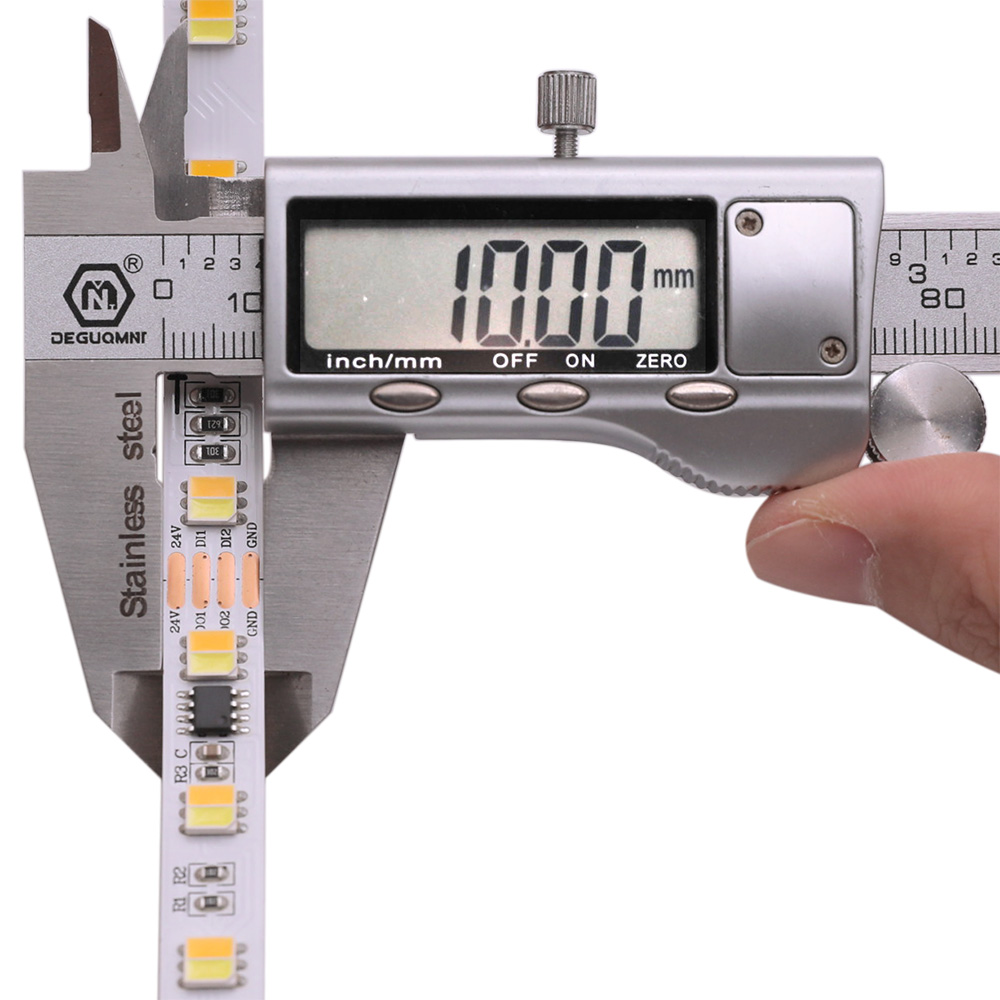

PCB Width: 10mm/0.39in
Input Voltage: DC12/24V
LED Chip Model: TM1934 IC
LED Resource: SMD 5050 RGB
PCB Color: White/Black
Colors: Full-color RGB, dream color changing;
Greyscale: 256 levels
Average Life (hrs): 50000Hours+
Beam Angle: 120 degrees
Color Rendering Index(CRI): 90RA
Circuit Board: Double-sided FPC electrolytic copper circuit board
LED Circuit: 3/6 LEDs one circuit(DC12V: 3LEDs; DC24V: 6LEDs)
LED Quantities: 18LEDs/Ft, 60 LEDs/m
Rated Power: 4.4W/Ft, 14.4W/m, 70W/Roll
Waterproof Rating: IP20(non-waterproof) IP65/67/68(waterproof)
Cutable: 3 LEDs cutable(DC12V)/6 LEDs cutable(DC24V)
IC Quantities: 20 IC/m(DC12V); 10 IC/m(DC12V)

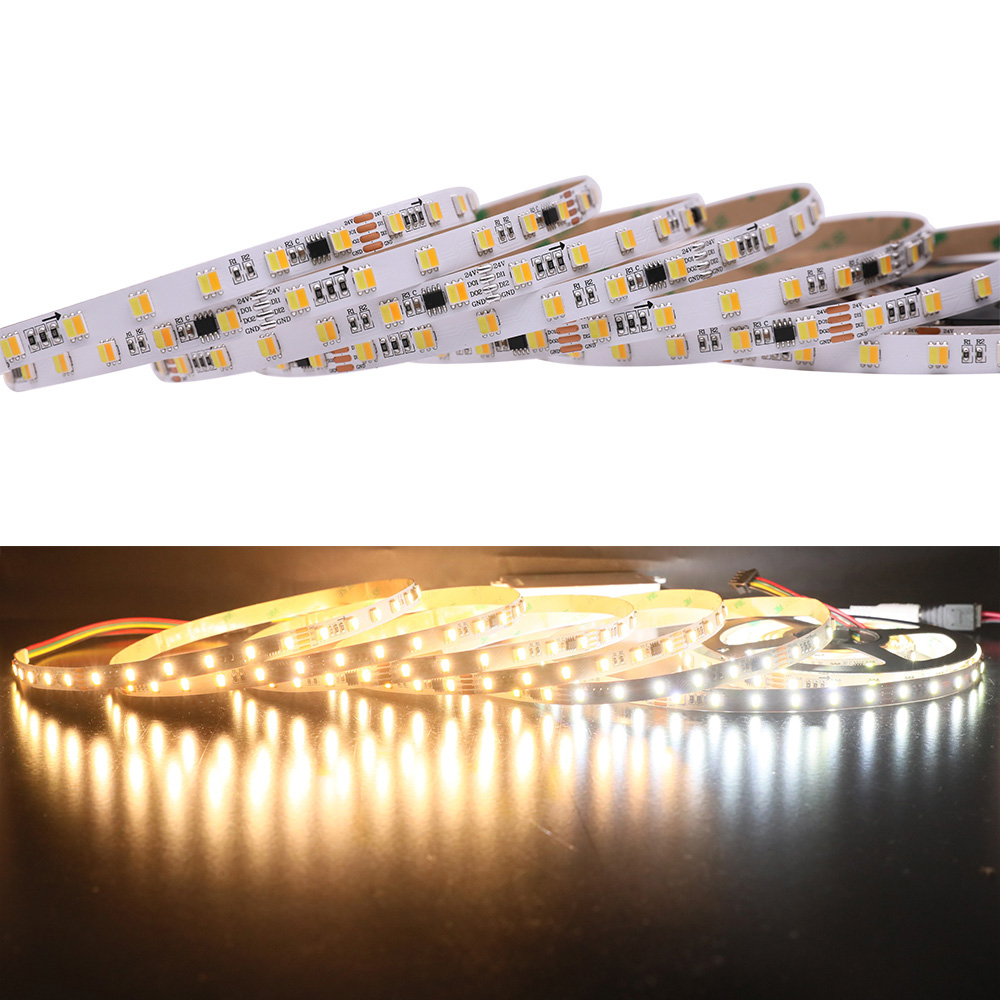

Color Temperature: Warm White(3000K)+Daylight White(6000K)
1* TM1934 16.4Ft 300LEDs addressable LED strip light
For indoor environment, if you choose the LED controller in the LED strip light kit, we will send you CONFULL-SP107E LED controller.
For LED power supply optionals, we will send you the following LED power supply, we will also send you an AC plug.

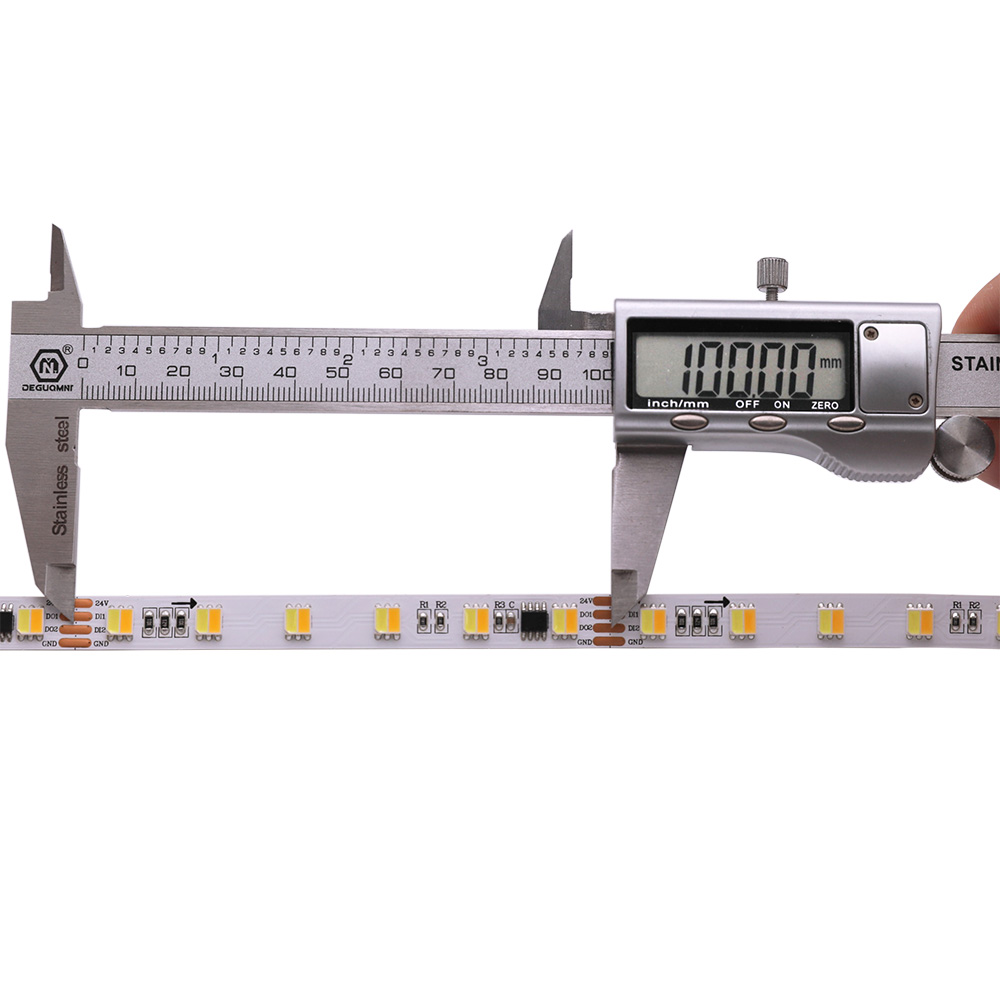

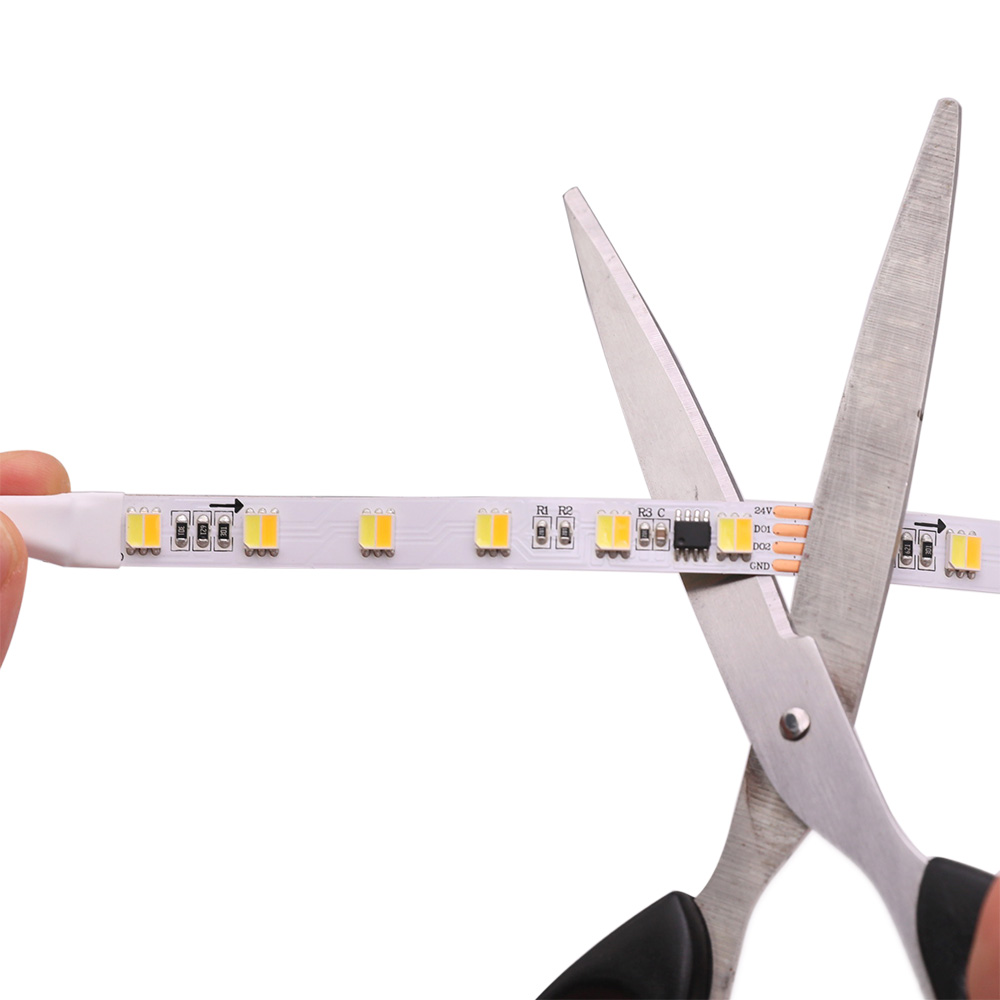

We can customize the length and waterproof rating for you, every 3/6 LEDs cuttable, the min cut size is 50mm/1.97in.
If you need to customize the length of LED strip light, you can add the soldering service, for one roll long LED strip light is made into five rolls short LED strip light, you can add five soldering service.
IP65/67/68 waterproof level optional, you can choose the options, we will customize for you.
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
Less than 32.8ft(<10 meter) led strip lights connection diagram
50ft ~ 164ft(15~50 meter) led strip lights connection diagram
T-1000S programmable controller connection diagram
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
