Product Information
Integrate sophisticated, reliable control into your professional lighting projects with the EDT4 DALI Wall Mount RGBW Touch Panel. Designed for commercial, architectural, and high-end residential applications, this sleek panel provides a centralized, hard-wired interface for managing complex RGBW LED lighting systems. It operates on the international DALI standard, ensuring seamless interoperability and robust performance that wireless systems cannot match. The EDT4 draws power directly from the DALI bus, simplifying installation by eliminating the need for a separate power supply. Its intuitive touch interface allows for effortless control over light switching, dimming, color mixing, and zone management, making it an essential component for any modern DALI lighting system.
Key Features
DALI Standard Compliant
Adheres to DALI protocols IEC62386-102, 207, and 209 for guaranteed compatibility in professional lighting networks.
Comprehensive RGBW Control
Offers full 4-channel control including on/off switching, precise dimming, and seamless color adjustments for RGBW fixtures.
Advanced Scene & Group Control
Supports scene recall, group addressing, unicast, and broadcast modes to manage multiple fixtures with precision.
DALI Bus Powered
Draws power directly from the DALI bus, eliminating the need for an additional power supply and simplifying wiring.
Elegant Wall-Mount Design
Features a standard 86x86mm form factor with a clean, modern touch interface that blends into any professional environment.
Simplified Addressing
Designed for straightforward address assignment during system commissioning with a DALI master controller.
Product Specifications
| Parameter | Details |
|---|---|
| Model | EDT4 |
| Power Supply | DALI Bus |
| Control Signal | DALI |
| DALI Standard | IEC62386-102, IEC62386-207, IEC62386-209 |
| Control Mode | RGBW (4-Channel) |
| Supported Functions | Switch, Dimming, Color Adjustment, Zone Control |
| Addressing Modes | Scene, Group, Unicast, Broadcast |
| Operating Temperature | -30°C ~ 55°C |

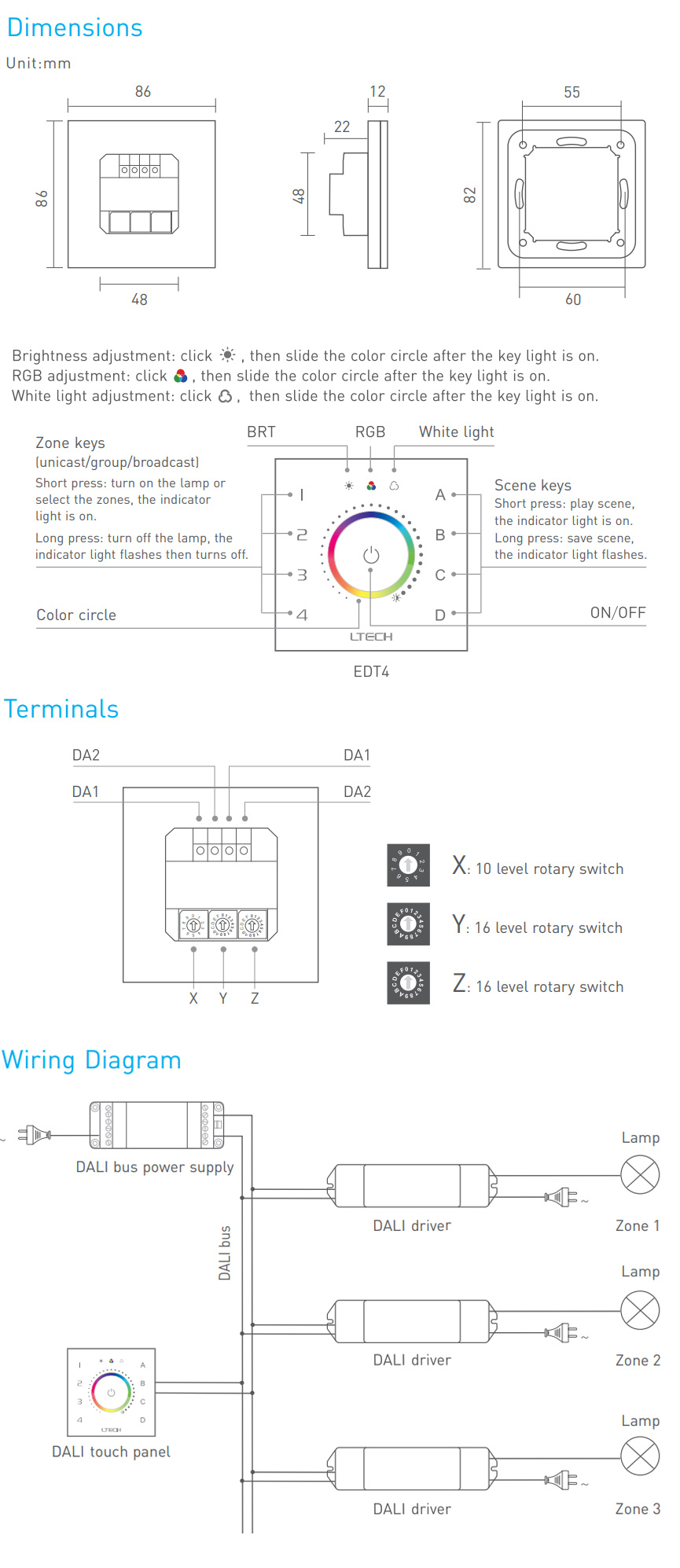

| Dimensions (L×W×H) | 86 × 86 × 37 mm |
| Package Size (L×W×H) | 113 × 112 × 50 mm |
| Gross Weight | 240g |
Application Scenarios
How to Install & Configure This DALI Controller
- Ensure all power is disconnected from the DALI bus before installation.
- Mount the controller securely into a standard 86-type electrical wall box.
- Connect the two DALI bus wires to the 'DA' terminals on the back of the panel. Polarity is not critical for DALI connections.
- Restore power to the DALI system. The touch panel will power on.
- Using a DALI master controller or DALI commissioning software, assign a unique short address to the EDT4 panel.
- Configure the panel to control specific groups, broadcast addresses, or scenes according to your lighting design.
- Test the panel's functionality by controlling the connected RGBW DALI drivers and fixtures to ensure proper operation.
- This product is designed for use within a DALI lighting system and requires a DALI bus power supply and a DALI master for configuration.
- Installation should be performed by a qualified electrician or technician familiar with DALI protocols and wiring.
- Do not connect AC mains power directly to this device; it is powered exclusively by the low-voltage DALI bus.
What's in the Box
- ✓1 x EDT4 DALI Wall Mount RGBW Touch Panel
- ✓1 x User Manual
⇩ Downloads & Documents
PDFEDT4
Frequently Asked Questions
Q: What is DALI and why should I choose it over RF or WiFi?
A:DALI (Digital Addressable Lighting Interface) is a robust, two-way wired communication protocol for professional lighting. It offers superior reliability, scalability, and interoperability compared to consumer-grade wireless systems, making it the standard for commercial and architectural projects.
Q: Does this DALI wall mount panel need its own power adapter?
A:No, the EDT4 is powered directly by the DALI bus itself. This simplifies installation as no separate power wiring is required for the control panel.
Q: Can I control multiple zones of lights independently with one panel?
A:Yes. Through DALI programming, you can assign this panel to control specific groups of lights, allowing for independent zone control from a single interface.
Q: Is this panel compatible with any RGBW LED strip?
A:This panel controls DALI-enabled devices. It must be paired with DALI-compatible RGBW LED drivers, which in turn control the RGBW LED strip lights. It does not connect directly to the LED strip.
Q: How do I set the address of this controller?
A:The address is set electronically during system commissioning using a separate DALI master controller or specialized DALI software. This is a standard procedure for all DALI devices.
Q: Can this panel be used to create and save custom color scenes?
A:The panel is used to recall scenes that are pre-programmed and stored in the DALI drivers or ballasts themselves. Scene creation is typically done with a DALI master controller.
