Product Information
Seamlessly bridge gaps, navigate corners, and bypass obstacles in your lighting projects with this versatile 4 pin RGB led light strip connector. Designed for a quick, solder-free installation, this connector features a flexible 15cm (5.9-inch) wire that joins two segments of non-waterproof RGB LED strip lights. Its transparent, low-profile housing ensures a clean look without casting shadows, making it ideal for intricate under-cabinet, cove, or custom accent lighting. Available in sizes to fit both 8mm and 10mm wide IP20 LED strips, this jumper provides a reliable and secure connection for maintaining consistent color and power throughout your entire lighting run.
Key Features
Solderless Snap-Down Design
Enables fast, tool-free connections, simply open the clasp, insert the strip, and snap it shut for a secure grip.

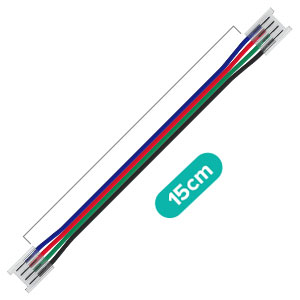

Flexible 15cm Jumper Wire
Provides the perfect length to navigate around corners, jump over obstacles, or bridge gaps between surfaces.
Dual PCB Width Compatibility
Available in two sizes to perfectly fit standard 8mm or 10mm wide 4-pin RGB LED strip lights.
Transparent Housing
Maintains a clean, professional aesthetic with a low-profile design that won't block light or create shadows.
Reliable 4-Pin Connection
Ensures a stable and secure connection for all four channels (Red, Green, Blue, and +V) for consistent performance.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | RGB-SMD-15CMSTS |
| Connector Type | Strip-to-Strip Jumper |
| Pins | 4-Pin |
| Wire Length | 15cm / 5.9 inches |
| Housing Material | Transparent Polycarbonate |
| Installation | Solderless, Snap-On |

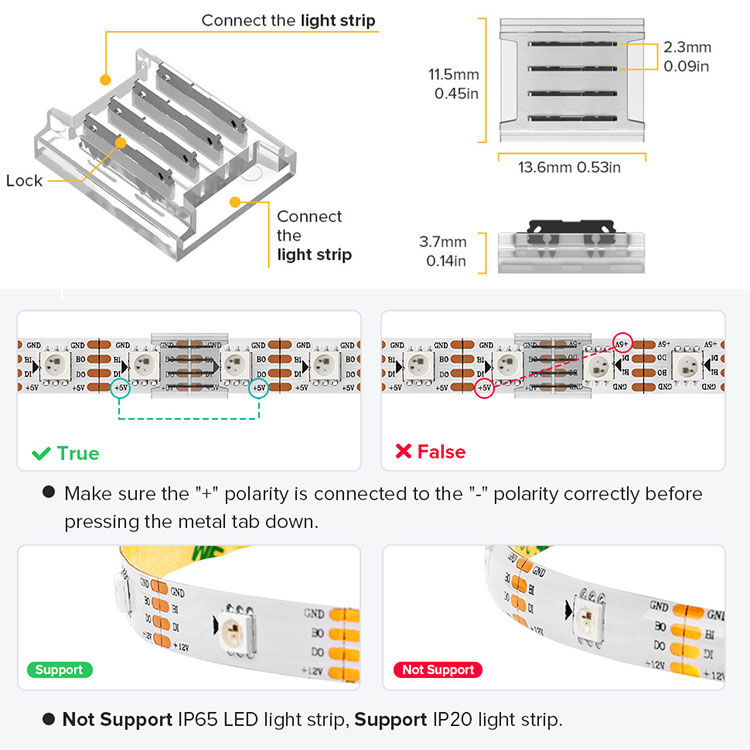

| Compatible PCB Width | 8mm (0.31in) or 10mm (0.39in) |
| Compatible Strip Type | IP20 Non-Waterproof SMD RGB LED Strips |
Ideal for Complex Lighting Layouts

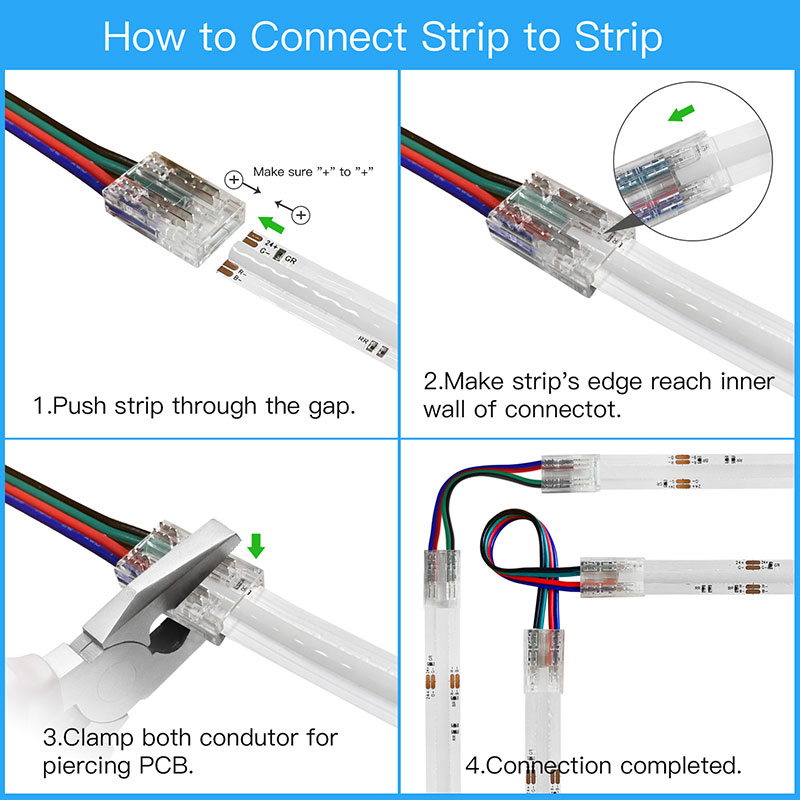

How to Use This Connector
- Ensure the main power to your LED strips is disconnected.
- Select the connector size (8mm or 10mm) that matches the PCB width of your LED strips.
- Gently pry open the transparent clasp on one end of the connector.
- Cut your LED strip along the designated cut line. Slide the end of the strip into the connector, ensuring it goes underneath the metal contact prongs.
- Verify that the copper pads on the strip align with the prongs inside the connector. Pay close attention to polarity markings (+, G, R, B).
- Firmly snap the transparent clasp closed. You should feel a distinct click.
- Repeat steps 3-6 for the second LED strip segment on the other end of the connector.
- Reconnect power and test the connection to ensure all colors display correctly.
- This connector is designed exclusively for IP20 non-waterproof (bare PCB) LED strips. It will not work with strips that have a silicone or epoxy coating.
- Always double-check the polarity alignment (+ to +, G to G, etc.) before closing the clasps to prevent damage to your strips.
- Do not apply excessive force to the wire or connector. Ensure the clasps are fully closed to maintain a secure connection.
What's in the Box
- ✓1 x 4-Pin RGB Strip-to-Strip Jumper Connector (15cm)
Frequently Asked Questions
Q: Will this connector work with waterproof or silicone-coated LED strips?
A:No, this model is specifically designed for IP20 non-waterproof LED strips with an exposed PCB. The prongs cannot pierce waterproof coatings.
Q: Can I use this 4 pin led strip connector for single-color or RGBW strips?
A:No, this is a 4-pin connector designed for the specific pinout of standard RGB LED strips. For other strip types, you will need a connector with the corresponding number of pins (e.g., 2-pin for single color, 5-pin for RGBW).
Q: The lights are flickering or showing the wrong colors after installation. What should I do?
A:This usually indicates a poor connection or incorrect polarity. Power off the strips, reopen the clasps, and ensure the strip is pushed all the way in and that the copper pads are clean and aligned correctly with the prongs.
Q: What's the difference between this jumper and a rigid L-shape corner connector?
A:This jumper's flexible 15cm wire allows you to create turns of any angle and bridge gaps, while a rigid L-connector is only for making a sharp 90-degree turn at a corner.
Q: Is any soldering required for this connector?
A:No, this is a completely solderless connector. The snap-down mechanism creates a secure mechanical and electrical connection.
Q: Can I connect an 8mm strip to a 10mm strip with this?
A:No, you must use the same width strip on both ends. Be sure to order the connector size that matches your LED strip's PCB width (either 8mm or 10mm).
