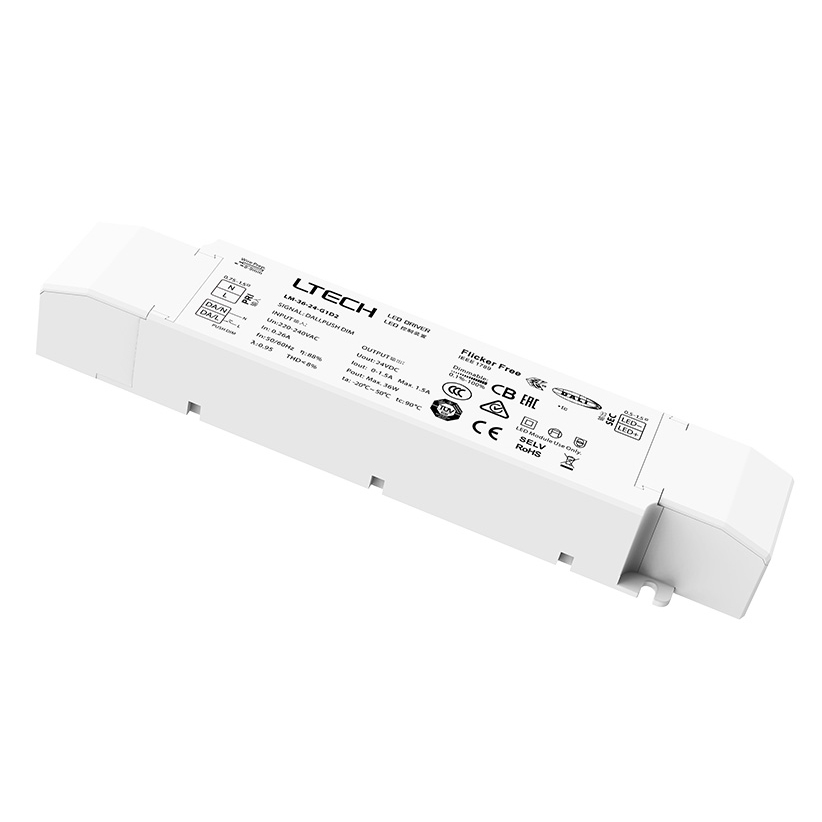

36w 24vdc cv dali-2 driver LM-36-24-G1D2
1. Small size and light weight. Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings.
2. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
3. Dimming interfaces: DALI-2, Push DIM.
4. Dimming range: 0~100%, dimming down to 0.1%
5. Flicker-free with high frequency exemption level in 0~100% dimming process.
6. High-performance drivers: Effeciency 88%, PF>0.95, THD<8%.
7. Comply with the EU’s ErP Directive, stand-by power consumption＜0.5W.
8. The secure and reliable design for signal isolation.
9. Innovative thermal management technology intelligently protects the lifetime the driver.
10. Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
11. DALI bus standard IEC62386-101,102,207.
12. Suitable for lamp applications of indoor Ⅰ/Ⅱ/Ⅲ types.
13. Up to 50000-hour life time.
14. 5 year warranty (Rubycon Capacitor).
Dimming interface: DALI/PUSH DIM
Dimming range: 0-100%
Input voltage: 200-240Vac ±10%
Output voltage: 24Vdc
Output power Max.: 36W
Output current Max.: 1.5A
Working temperature: -20℃～50℃
Weight (G.W): 210g±10g
