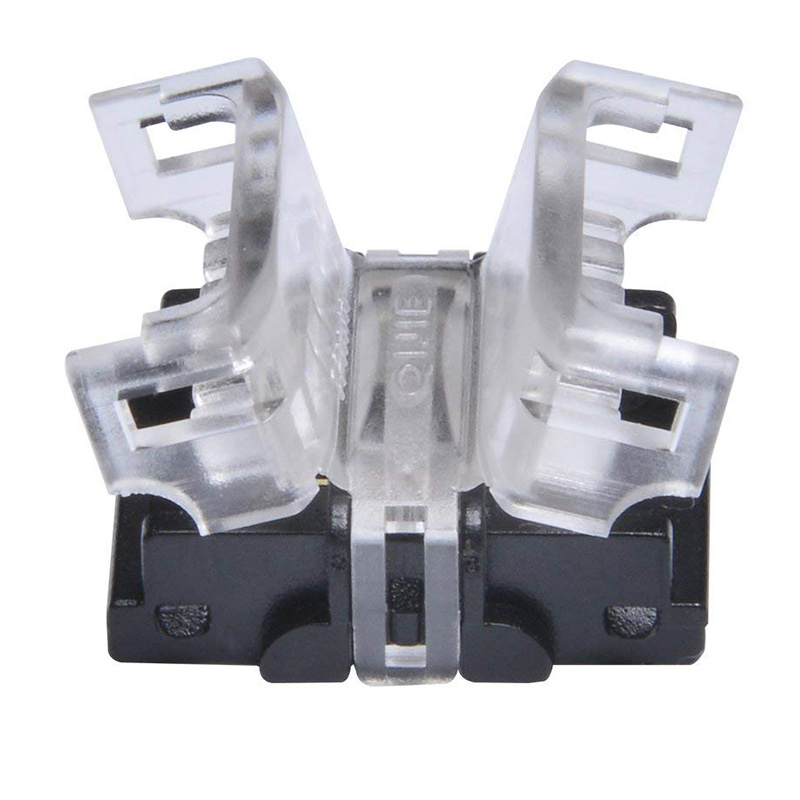

RGBW LED Strip Connector Terminal 5 Pin 12mm Board to Board for Non-Waterproof Tape Light Splice Between 2 Segment Strip
Applicable to non-waterproof 5050 RGBW LED strip light that is 12mm wide

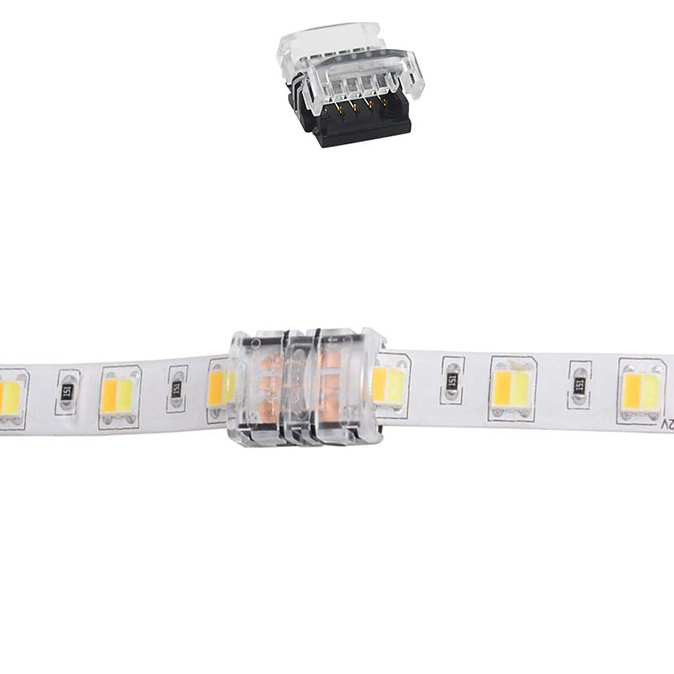

As a middle connector between 2 segments of LED tape light extending your tape light longer running

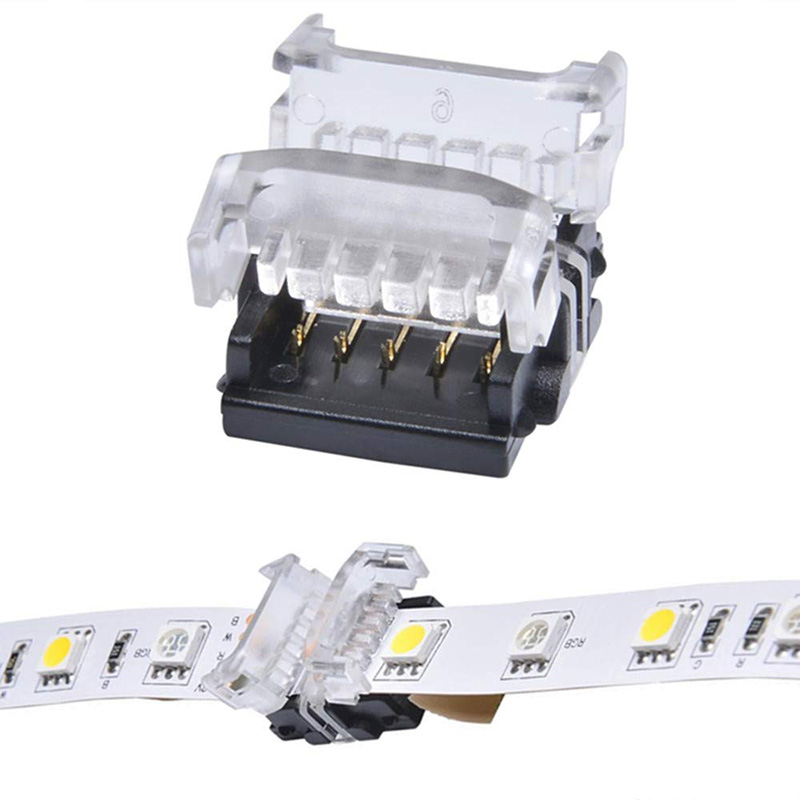

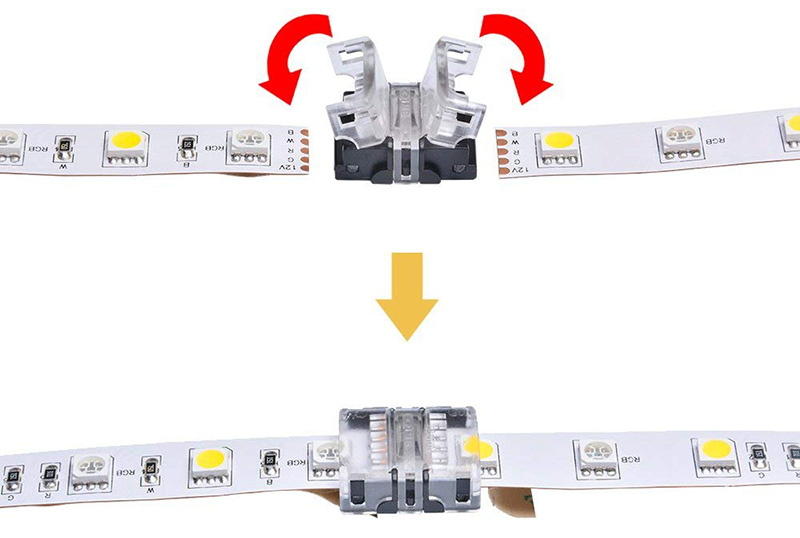

Simply place strip light above pin and press cap down, the connection is made instantly
Powerful with as much as total 5A current supported, allowing you to connect longer LED strip by one connector, reducing cost and connection work (R, G, B, White 4 channel in total )
Fixing strip light unbelievably well without worry of it getting out of connector even workable to tape light with VHB red foam adhesive tape
Working Voltage: 3V, 5V,12V,24V
Max Current of Pin: 5A
Pin Quantity: 5 pin
Workable PCB Thickness: 0.2~0.35 mm
Workable SMD NO. per Meter: below 60 LEDs
Working Ambient TEMP.: -20~50℃
Outer Dimension(closed): 19.55*14.6*7.7mm (L*W*H)
