96LEDs/m 12V WS2811 6.5mm Small Addressable LED Strip

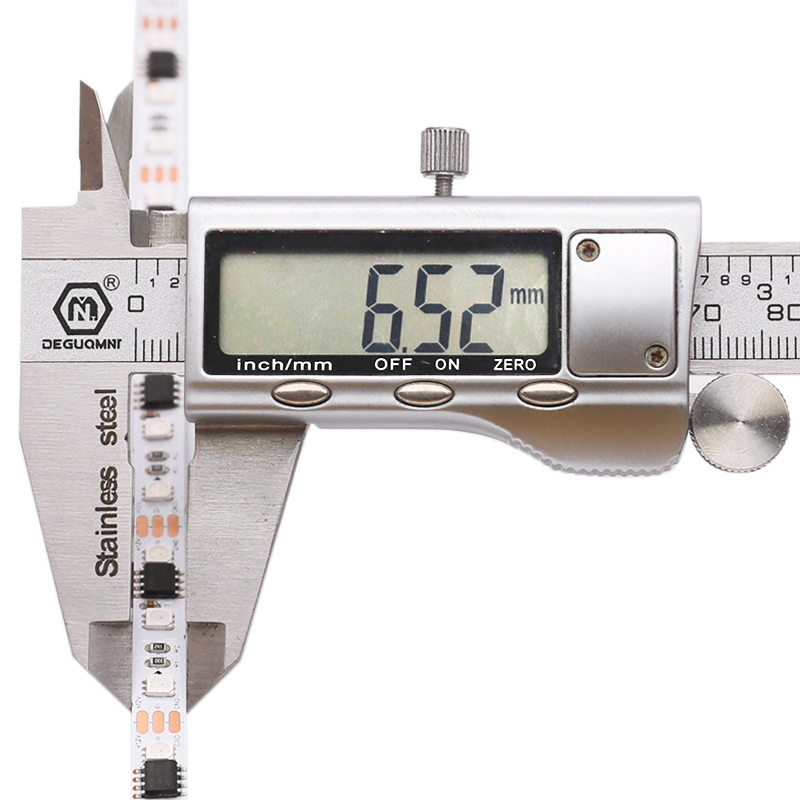

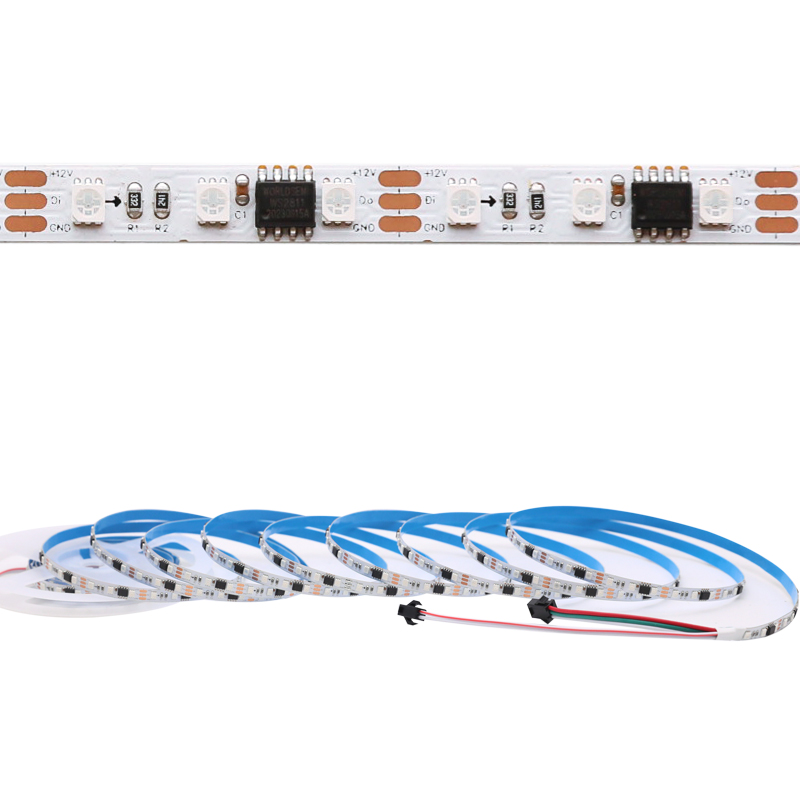

6.5mm Narrow 2835SMD 96LEDs/m High Density 12V External WS2811 Digital RGB LED Strip. Every three lights of a segment are controlled by an external WS2811 IC chip, allowing the LEDs on different segments to be different colors. This LED strip WS2811 12V features an ultra-narrow PCB width 6.5mm/0.26in and high LED density 96LEDs/m to bring high brightness in small place dream color lighting projects. 12V WS2811 pixel strip has a very wide application range and appropriate run length, is the voltage of choice for most lighting projects.
12V 96LEDs/m 6.5mm type: SMD2835 RGB, 32 pixels per meter, 3-LED/31mm cuttable
24V 96LEDs/m 6.5mm/8mm type: SMD2835 RGB, 16 pixes per meter, 6-LED/62.5mm cuttable
24V 120LEDs/m 8mm type: SMD2835 RGB, 10 pixels per meter, 6-LED/100mm cuttable
24V 120LEDs/m 10mm type: SMD2835 RGB, 20 pixels per meter, 6-LED/50mm cuttable
|Light Strip Type:||96LEDs/m 12V WS2811 6.5mm Small Addressable LED Strip|
|LED Chip:||SMD2835 + External WS2811 IC|
|LED Color:||RGB Dream Color|
|LED Quantity:||96 LEDs/m, 480 LEDs per roll|
32 ICs/m, 160 ICs per roll

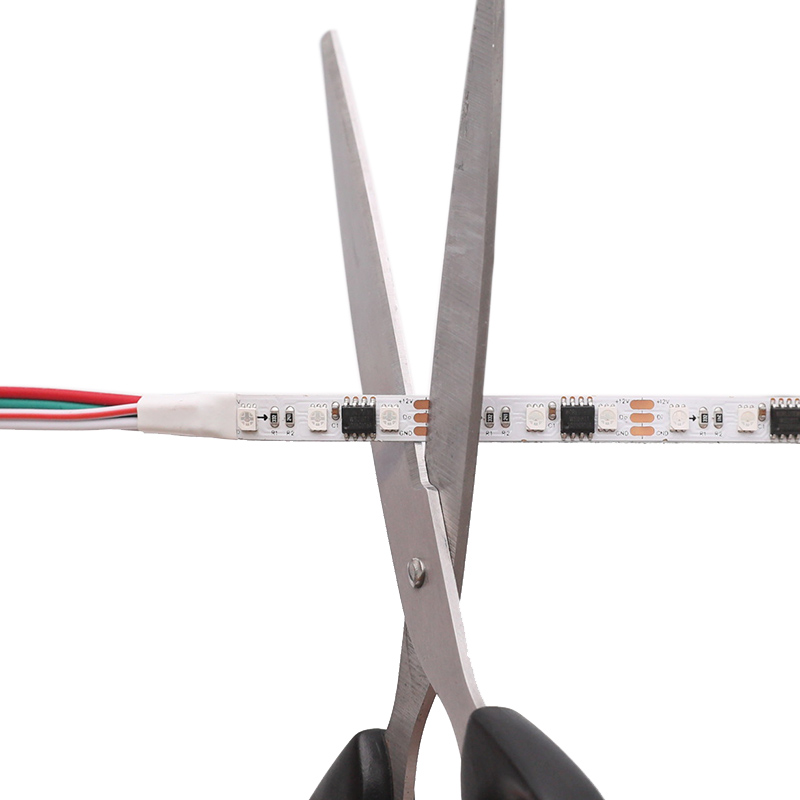

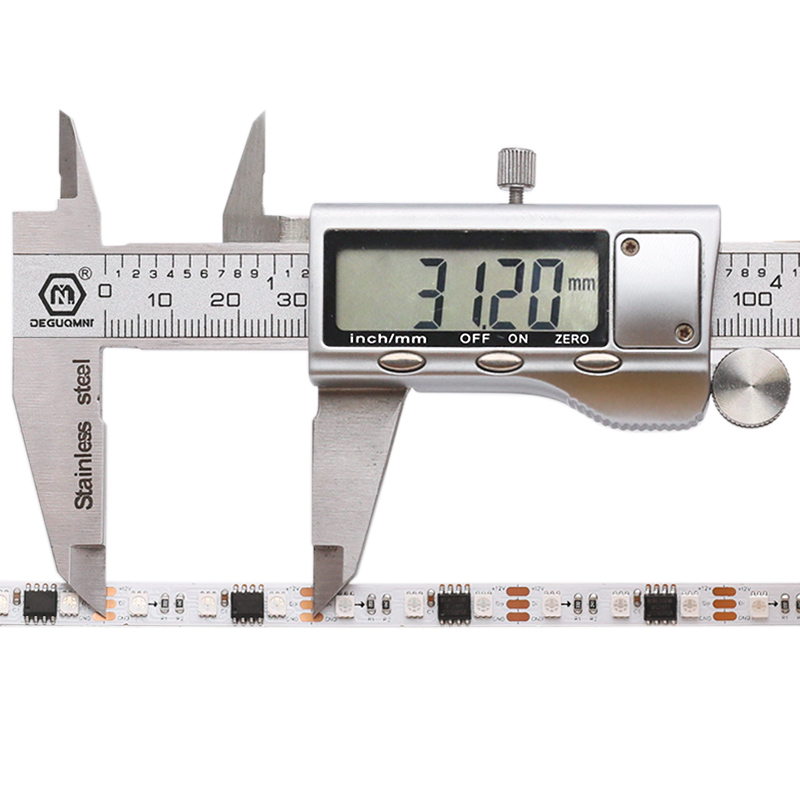

3 LEDs can be cut (31.24mm)
|Waterproof Rating:||Non-waterproof IP20, Outdoor Waterproof IP67|
How To Wire 2835 RGB WS2811 LED Strip?
