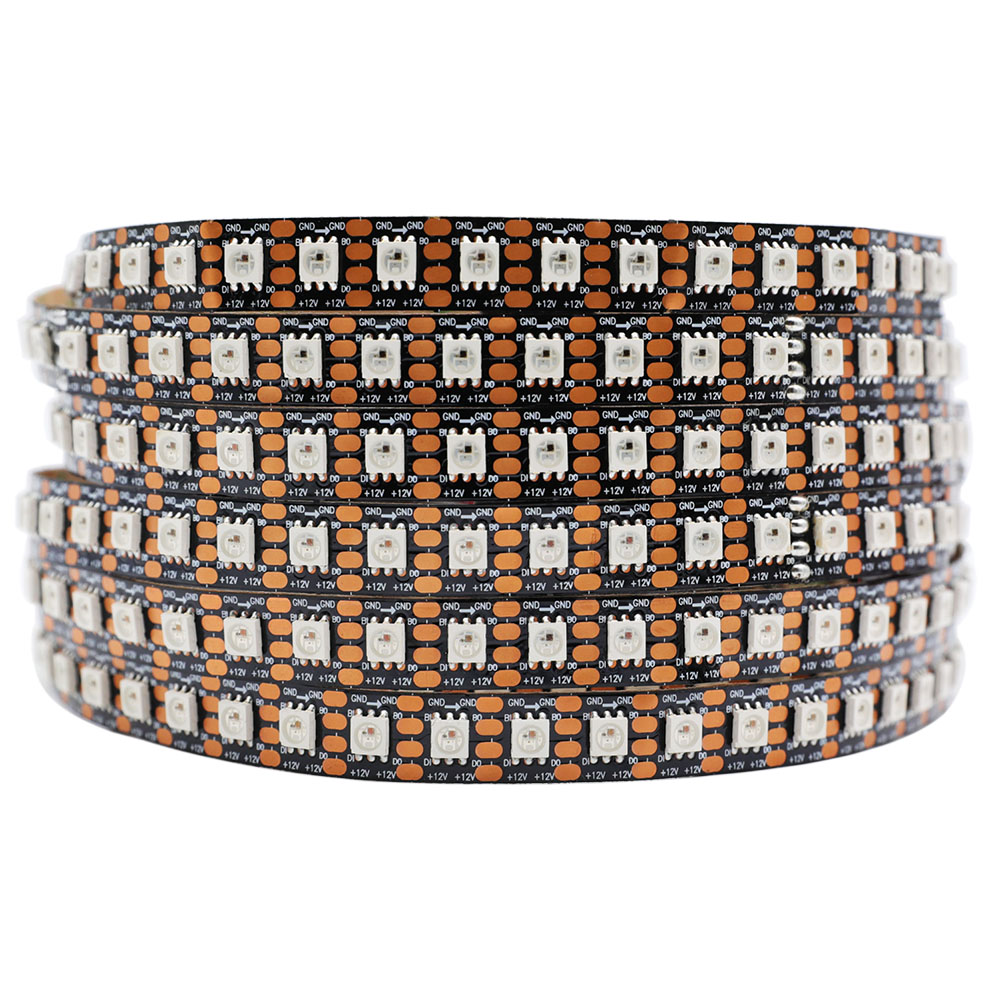

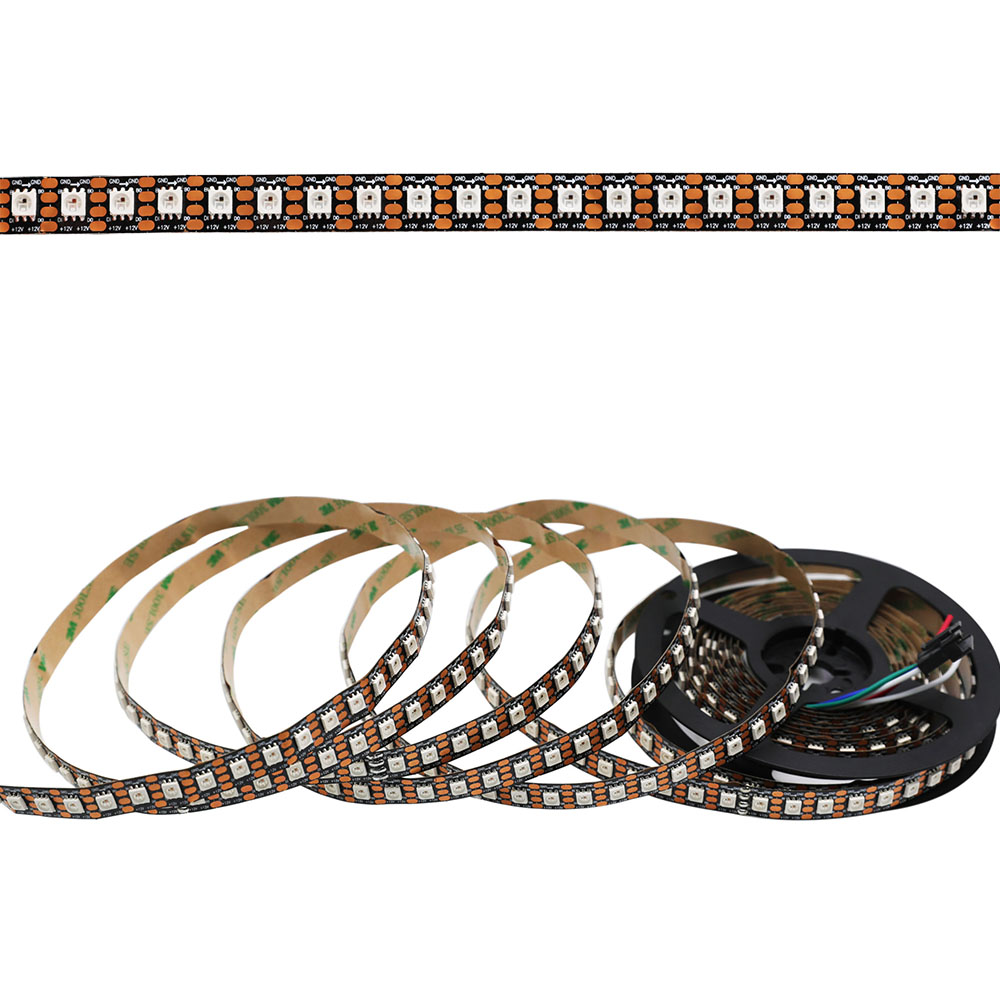

DC12V WS2815 (Upgraded WS2812B) 5M 480 LEDs Individually Addressable Digital Strip Lights (Dual Signal Wires), Waterproof Dream Color Programmable 5050 RGB Flexible LED Ribbon Light
This is an engineering type WS2815 LED strip, with resistance in the SMD5050 RGB LED chip, which does not flicker under the extra long running length and weak SPI signal. Support MCU control board, compatible with all SPI controllers on the market, WS2811, SK6812, WS2812B, SM16703 protocol, and compatible with MK2 long-range isolated pixel driver board controller. Suitable for commercial lighting and large projects.
1. Dual-signal wires version, signal break-point continuous transmission. If one led is damaged, it will not affect the other LEDs working.

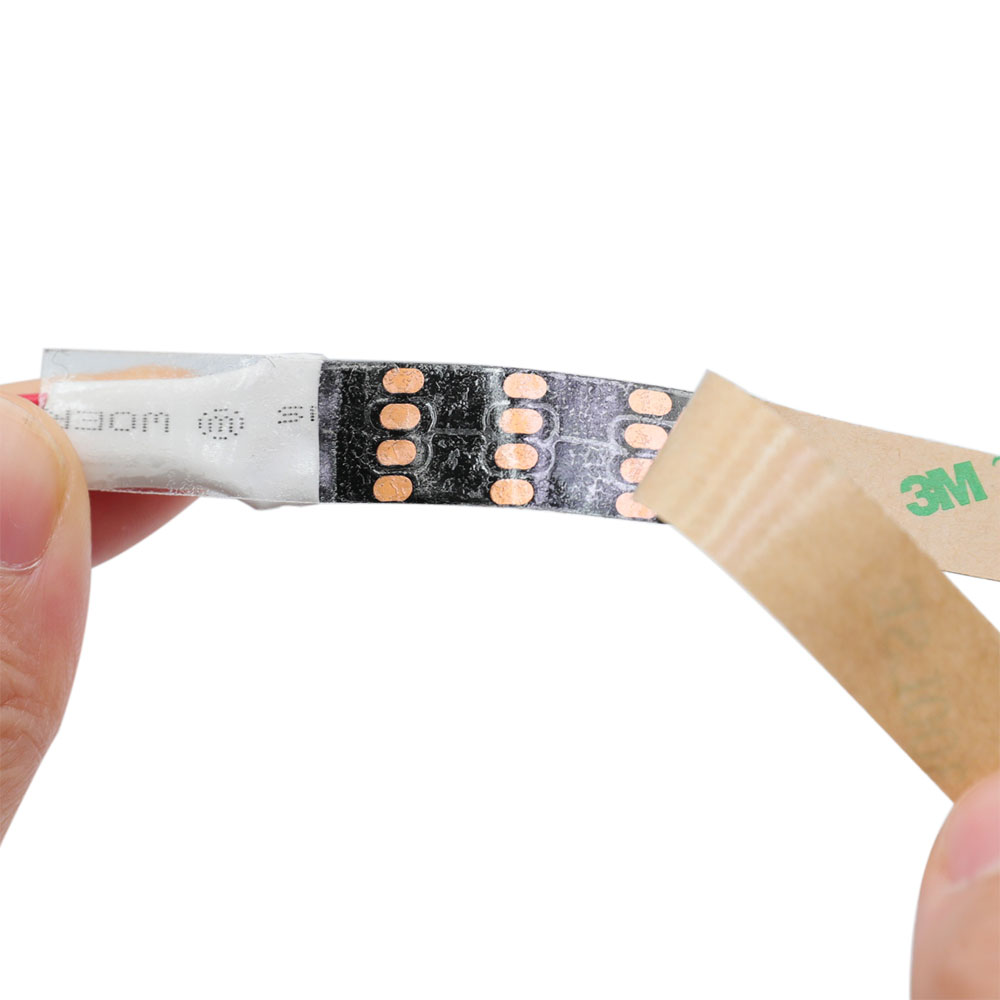

2. With 4-pins male connector and separated power/ground wire at both ends for easy interconnection and power connection.
3. Waterproof IP67: the ribbon light is covered with silicone protective sleeve, which can protect it well and makes it easy to clean.

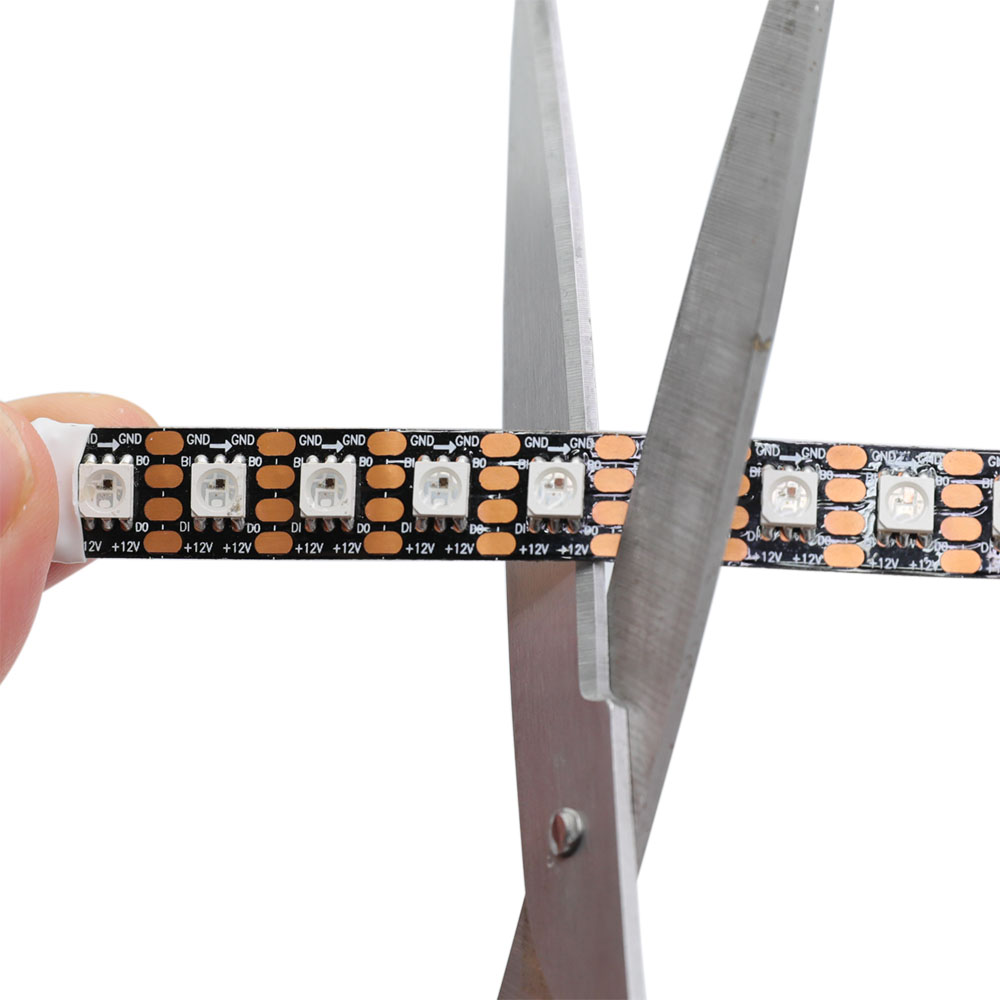

4. Individually addressable: Every 1 IC control 1 LEDs, every LED can be individually addressable and show any color you want. The strip can be cut off between every one LED without damaging the rest strip if you want it to shorten or lengthen, also can be re-connect by provided connectors.
5. The digital LED WS2815 fully color integrates all electronic components into a single 5050 luminaire, without the need for any other peripheral electronic components to assist in forming a complete internal control pixel.in the meanwhile，the WS2815 LED strip reduces resistance caused by inverting the product during installation.
6. Wide compatibility. Works great with LED screnn, LED wall, advertising board, and widely apply for KTV, hotel, bars, clubs, wedding party lighting, etc.
Standards and Certifications
|LED Strip Type:||Individually Addressable RGB LED Strip Lights|
|LED Chip:||WS2815 Breakpoint Resume + SMD5050|
|Power:||18W/m max, 90W/roll|
|LED Color Temperature:||Addressable RGB|
|LED Quantity:||96 LEDs/m, 480LEDs per roll|
|IC Quantity:||96 IC/meter (1 IC drives 1 led chip)|

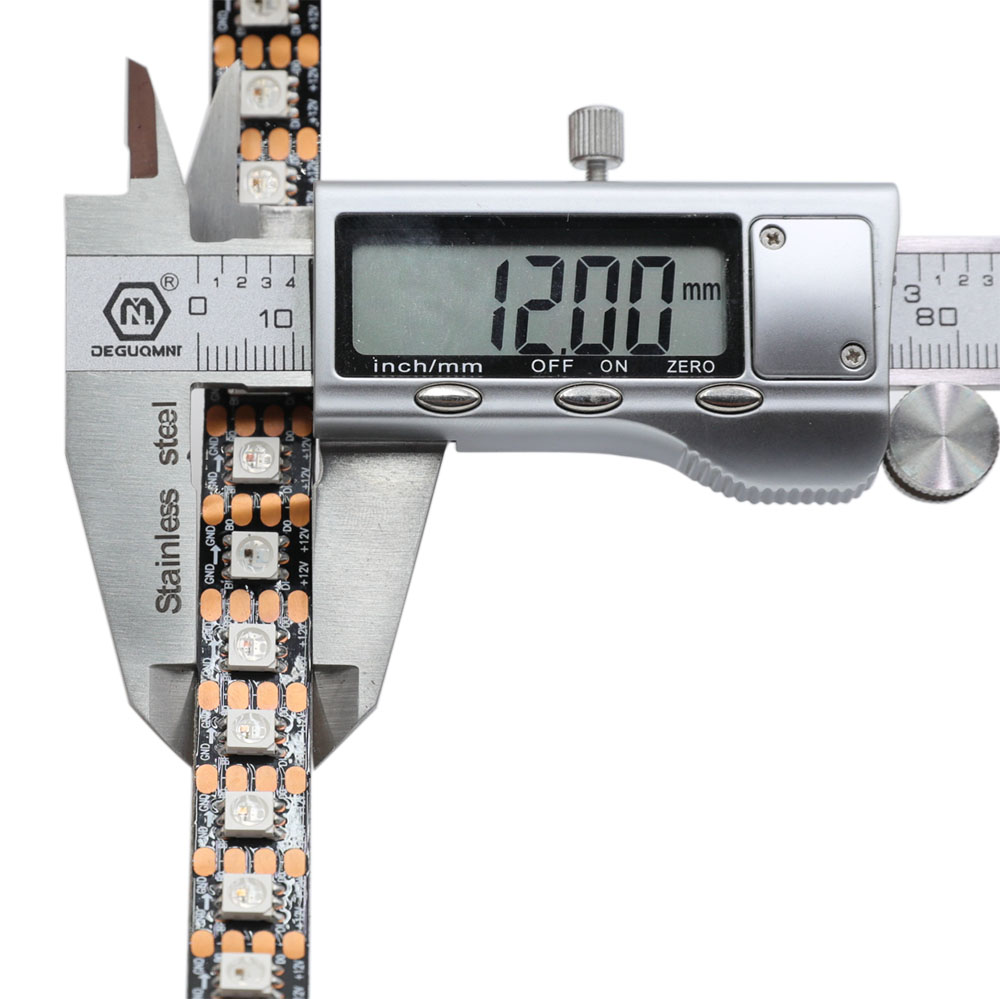

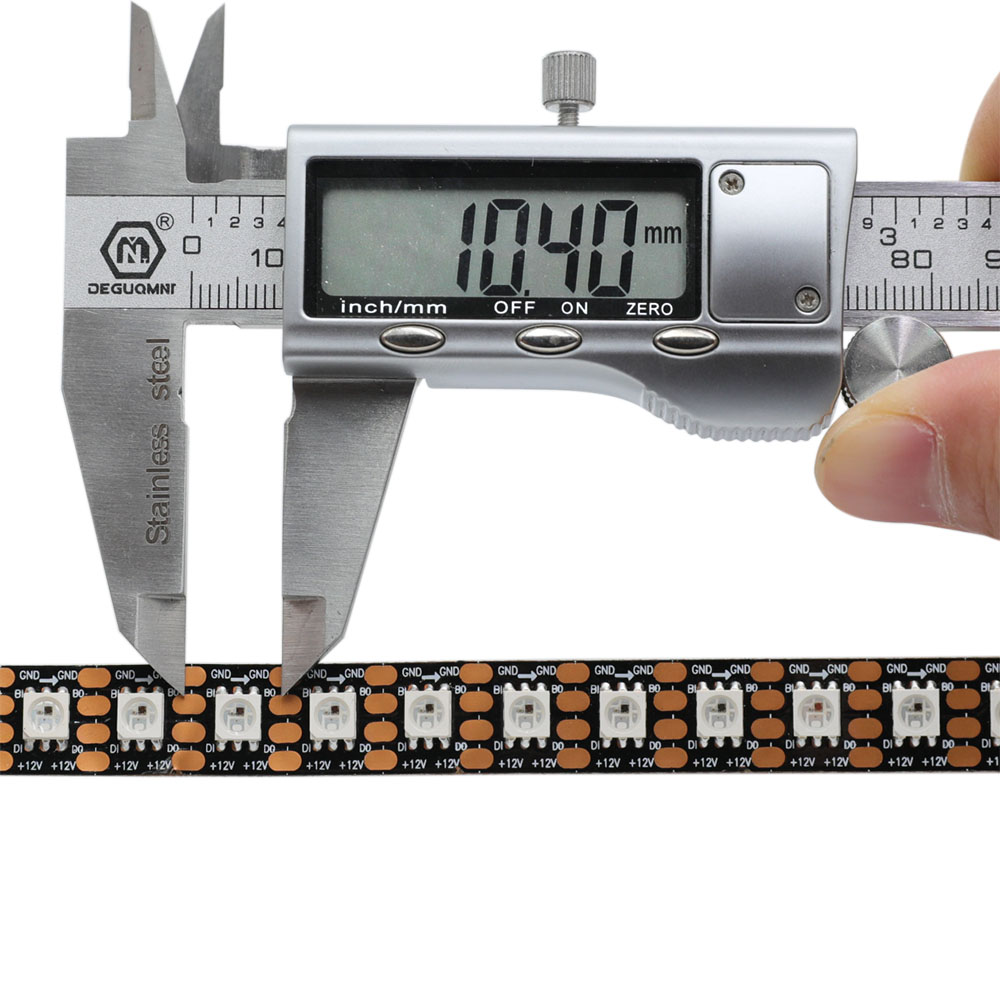

|Dimensions:||L500cm(196.8 in ) x W1.2cm(0.47 in ) x H0.25cm(0.10 in )|
|Waterproof Rating:||Non-waterproof IP20 / Indoor waterproof IP65 / Outdoor Waterproof IP67 IP68|
|Lumen:||20-22 lm/LED, 10560lm Max /16.4ft|

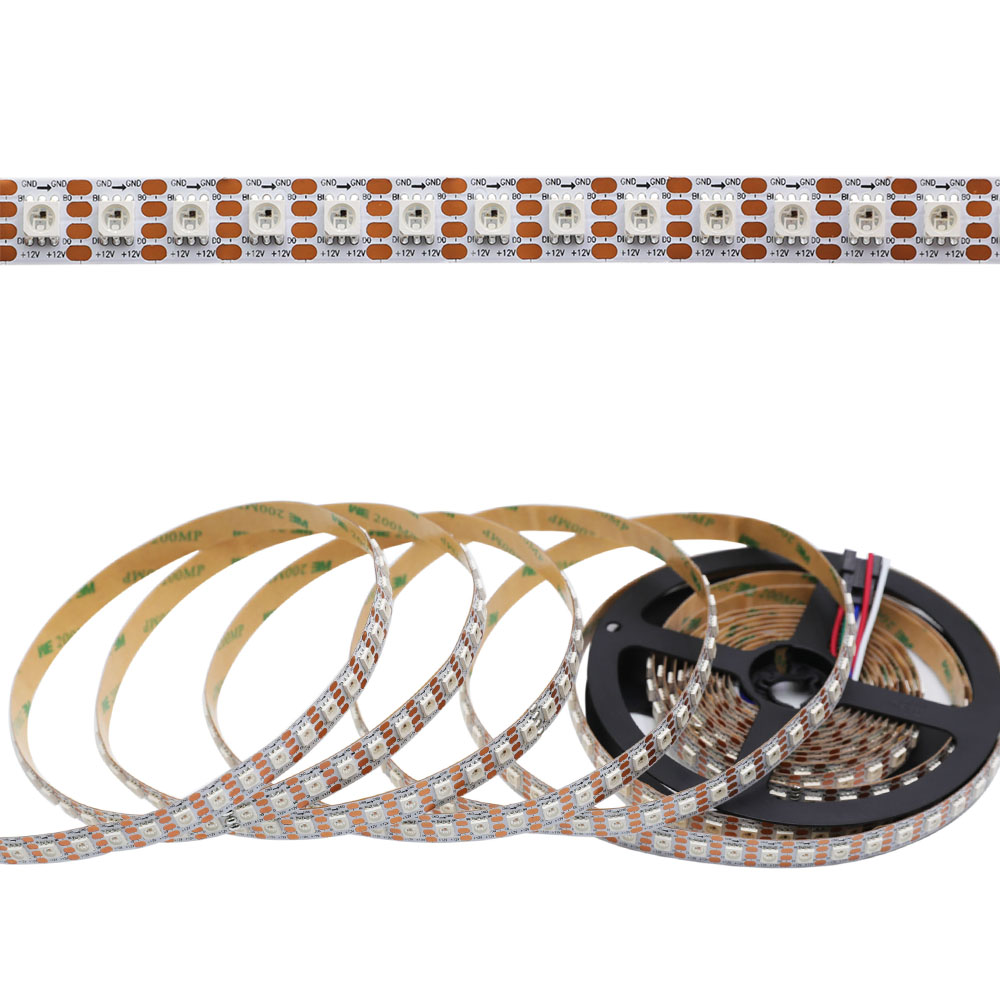

|PCB Color:||White / Black|
WS2815 Technical Features
The control circuit and RGB chip are integrated into 5050 components, to form an external control pixel
Using the built-in signal reshaping circuit to achieve the signal waveform shaping, and no distortion of the waveform of the signal takes place.
Refresh Frequency updates to 2 KHz. It supports the lower frequency and inexpensive MCU.
Any two points the distance less than 3m transmission signal without any increase circuit
The data transfer protocol uses a single NZR communication mode. Every pixel adopts auto-reshaping transmit technology, making the pixel cascade numbers are not limited to the signal transmission, only relate to the speed of signal transmission.
The BIN receives the data signal, which ensures that any the IC's damage does not affect the signal cascade transmission and make the BIN in the state of receiving signal until the restart after power-off.
DO: Control data signal output
DI: Control data signal input
BO: Backup control data signal output
BI: a Backup control data signal input
GND: Data &Power Grounding
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
