WS2811 DC12V 150LEDs Programmable LED Strip Lights, Addressable Digital Full Color Chasing Flexible LED Strips, Outdoor Waterproof Optional, 5m/16.4ft Per Reel By Sale

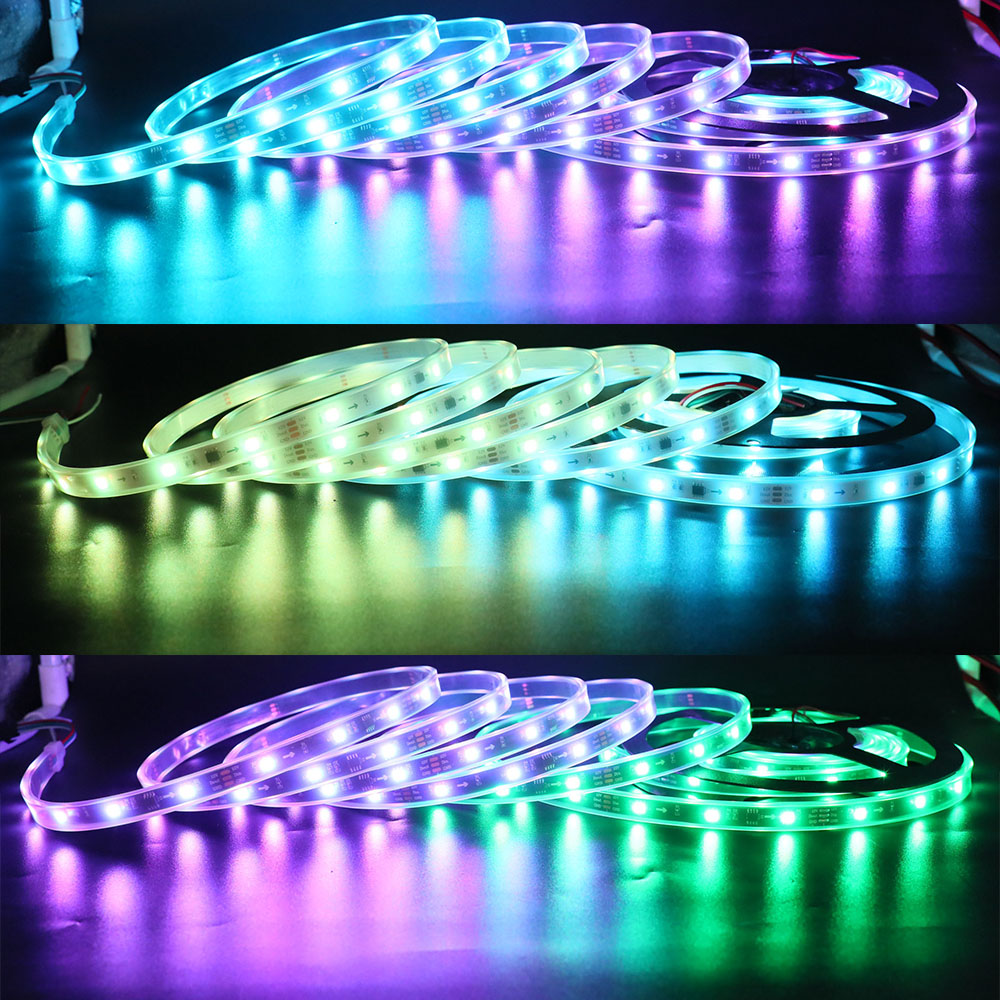

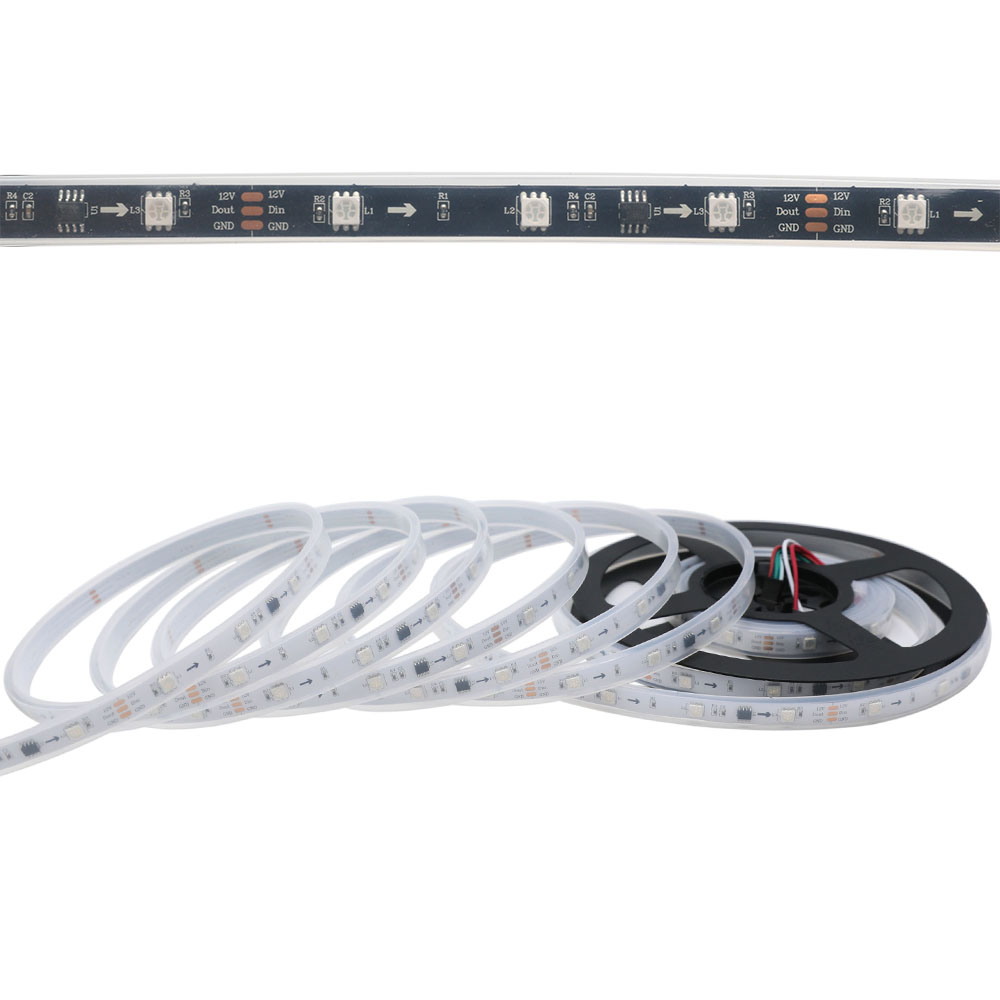

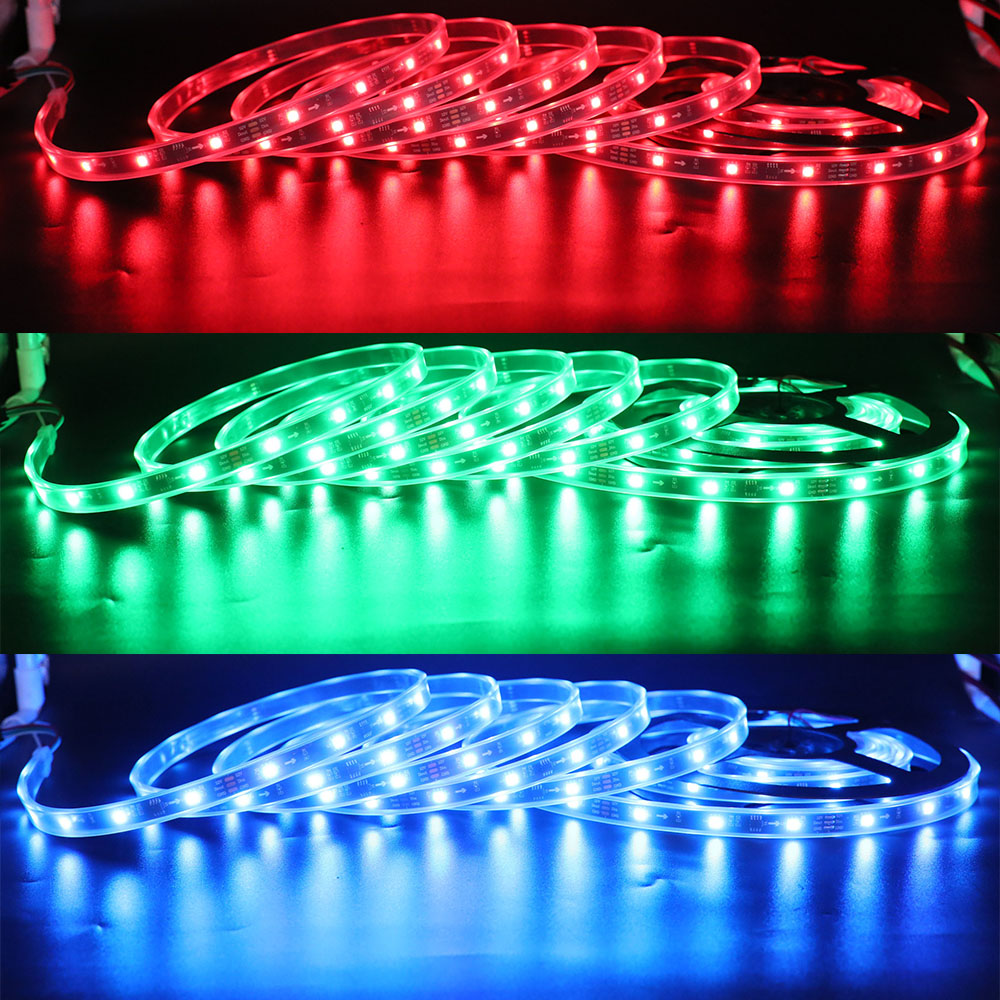

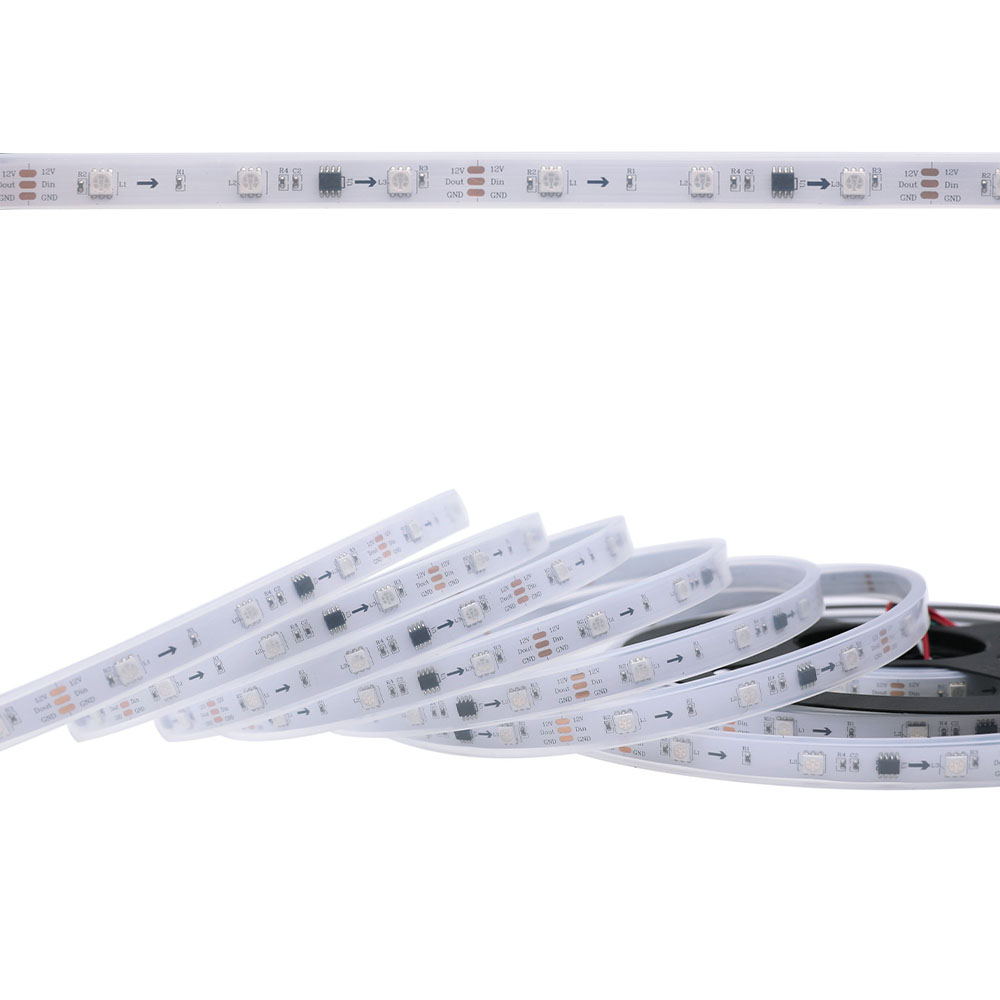

1. Universal WS2811 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. Addressable LEDs allow for sequencing modes. Silicone Encased waterproof flexible LED light strip with 150 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2811 IC chip control, 5meter(16.4ft) Per Reel By Sale.

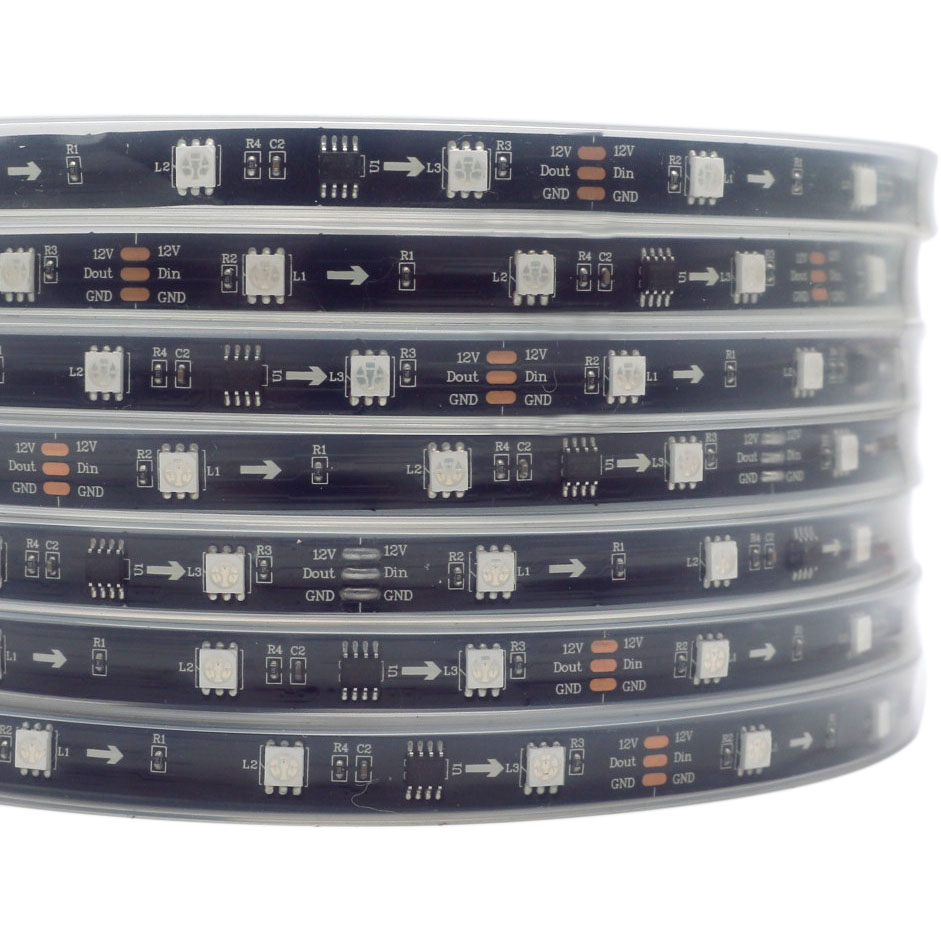

2. This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
3. This strips soft and easy bent for installation. Available in 5 meters (196.8 in) Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67/IP68 type which will come with mounting brackets). can be cut into 3-LED segments, so you could cut a different length for your project and request.
4. The led strip has low light decline and long lifespan，LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.
5. The 12VDC operation, Low carbon, no radiation, no flicker, and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable.
Standards and Certifications

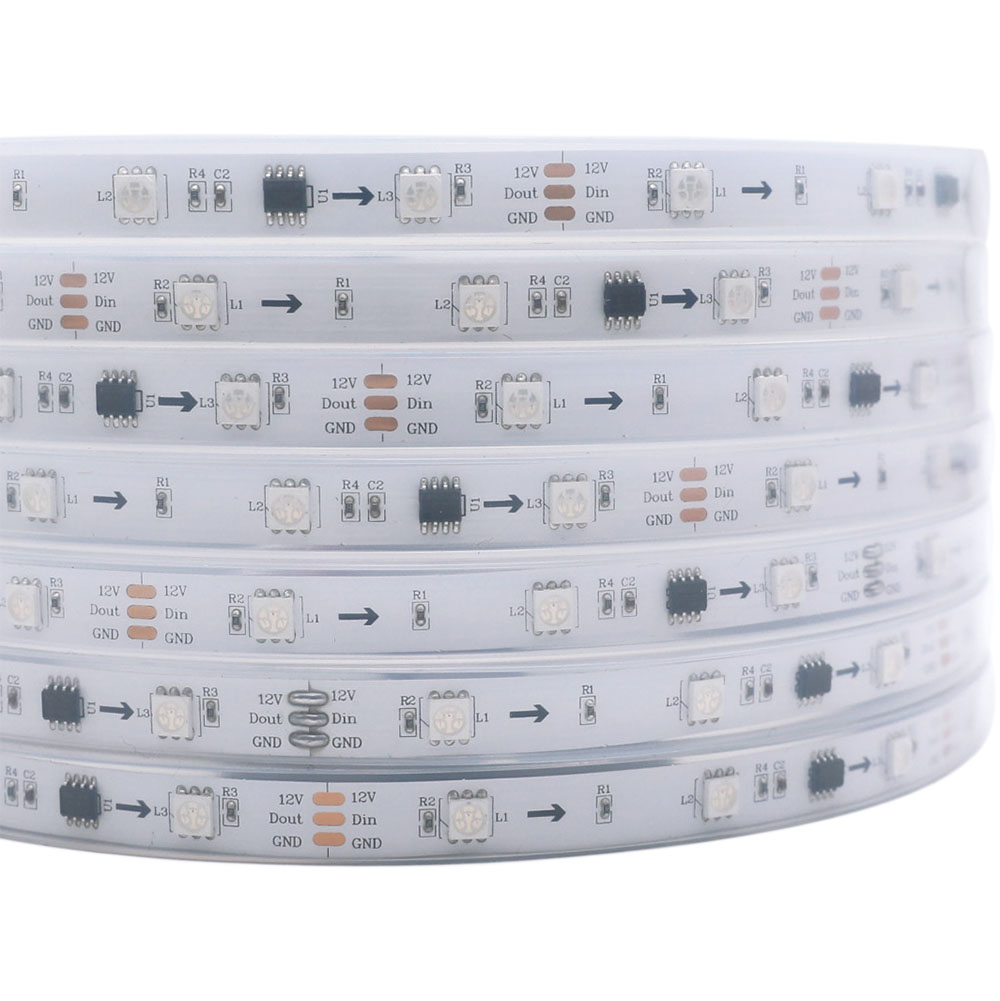

LED Strip Type: SMD 5050 DreamColor 150LEDs/16.4ft
LED Chip: WS2811 IC super brights Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

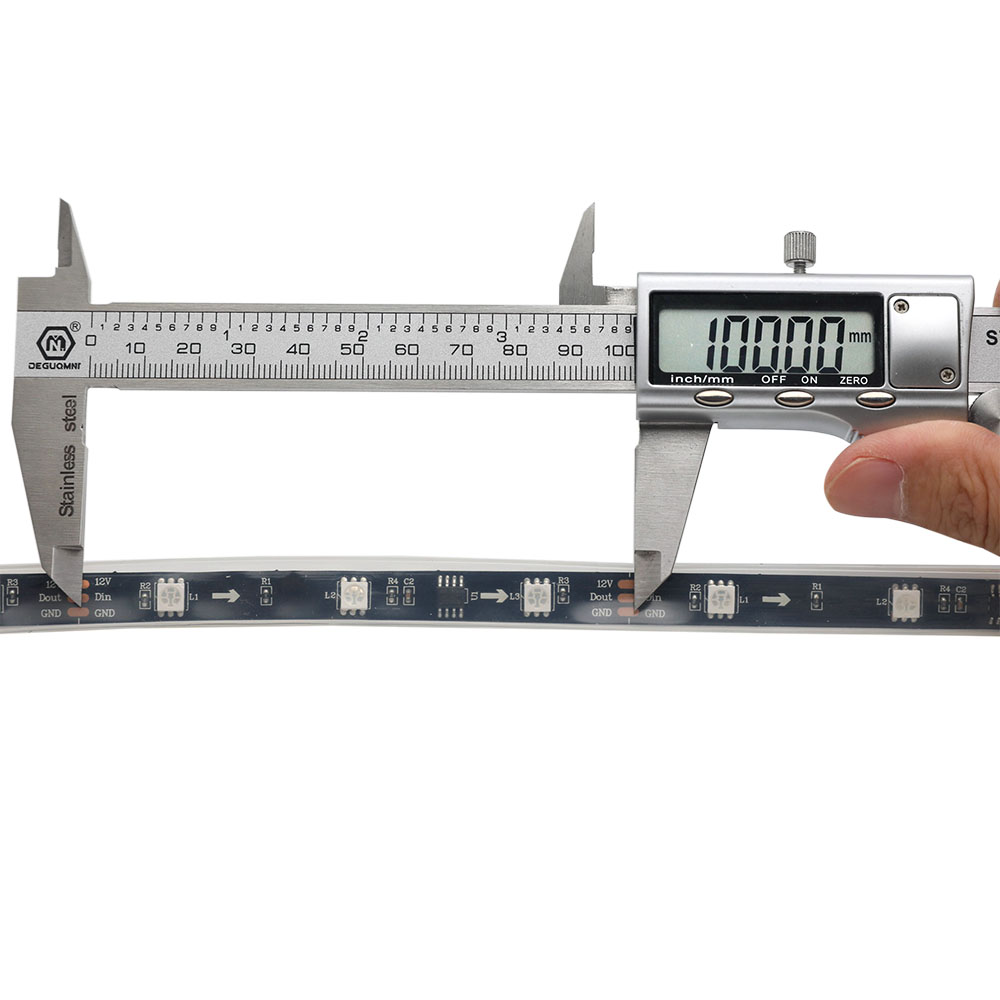

Dimension: 16.4ft/roll, every 3 PCS LED can be cut
LED Quantity: 30 LEDs per 1meter (3.28 ft)

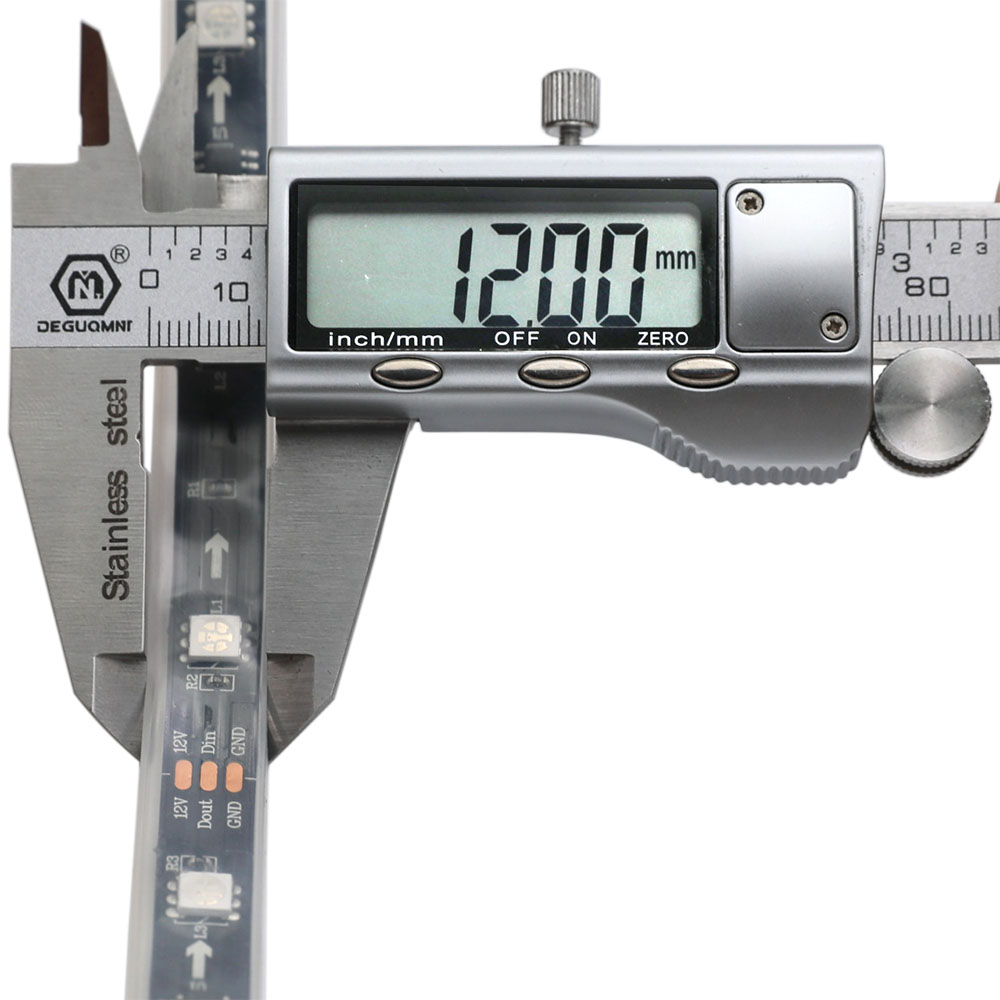

Dimensions: L500cm(196.8 in ) x W1.4cm(0.55 in ) x H0.4cm(0.15 in )
Input Voltage(V): 12VDC
Working Power: 45W/16.4ft Max
Lumen Per LED: 20~22Lumen 3300lm Max /16.4ft
Wavelength NM(RGBY): 2000-2500mcd
Beam Pattern: 120 degree
WaterProof: Waterproof IP65/IP67/IP68
Warantty: 3 years
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

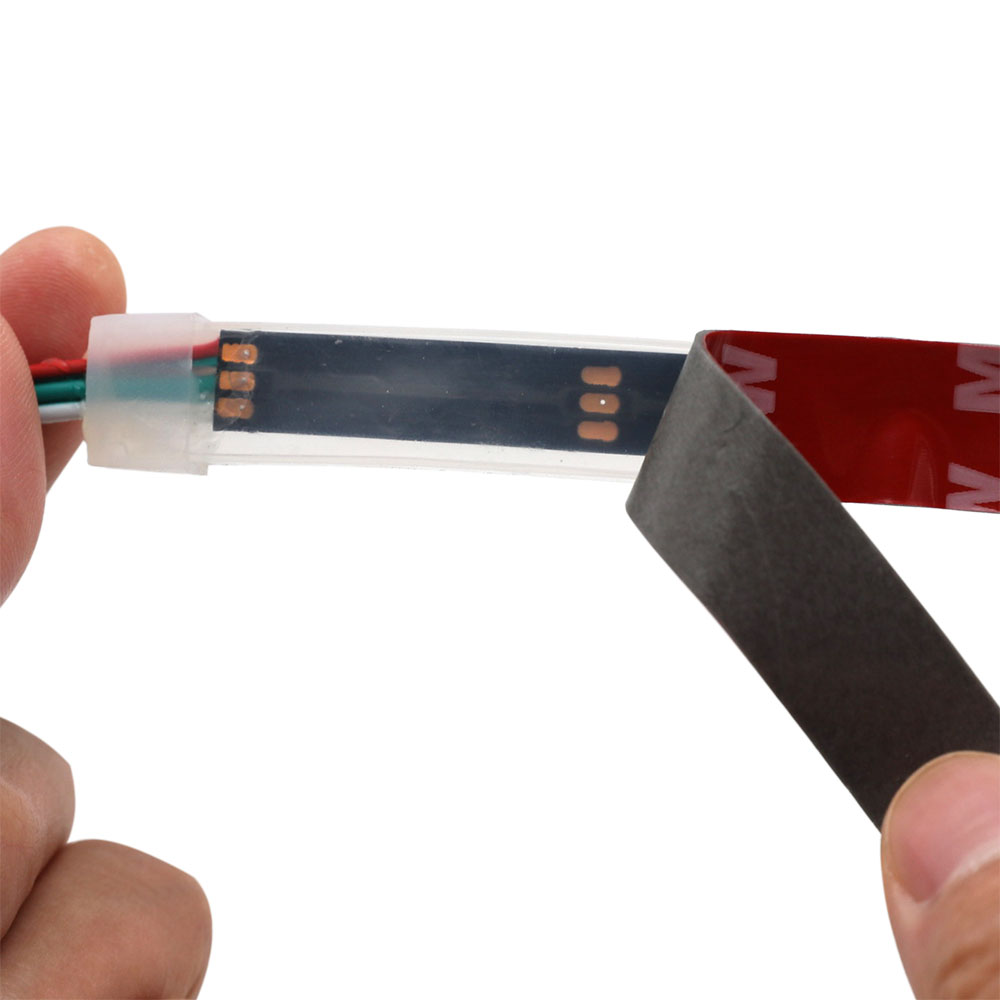

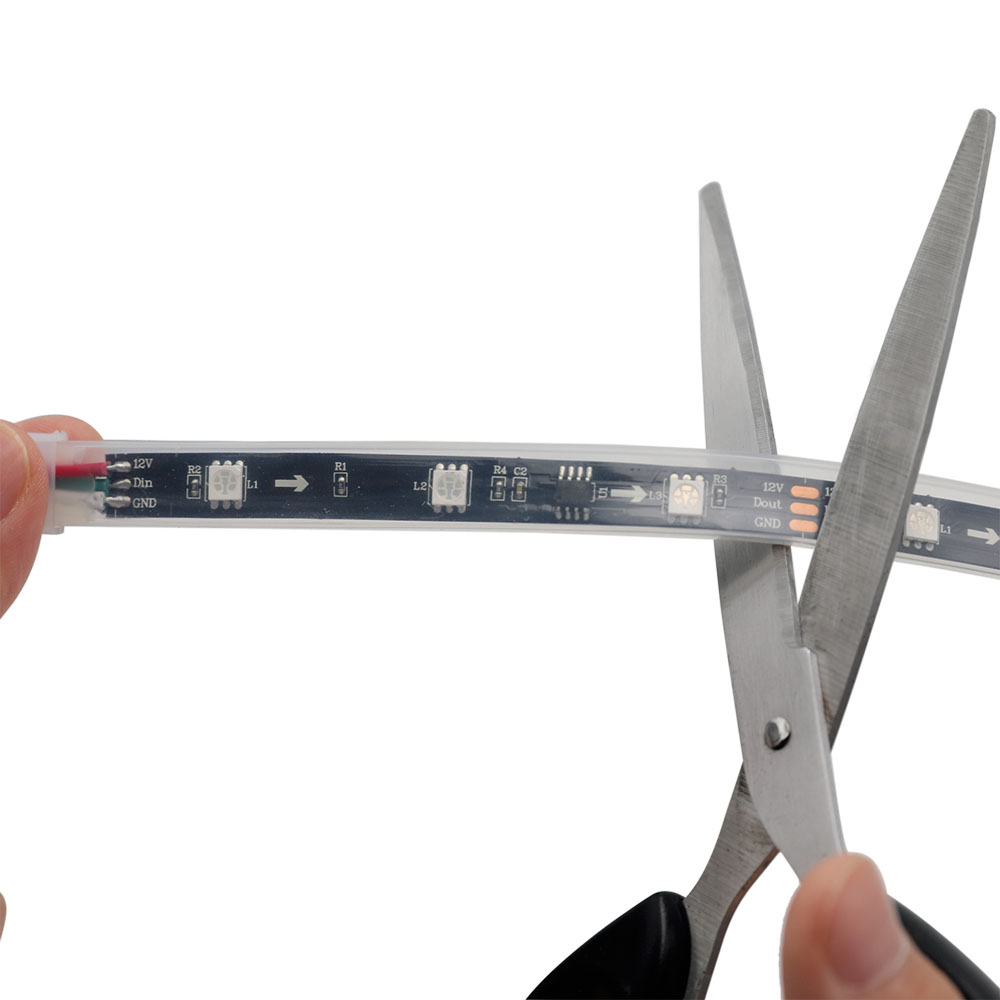

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which will come with
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
