Wireless Addressable LED Mini Controller Panel, Single Color, CCT, RGB Optional
The RF remote control panel allows you to easily wire the electric circuit. No wires are required between the controller and the panel. The mini controller comes with a JST comnnetor at the end to connect addressable led strips.
1. Single color running water controller panel: 26 modes, can control 3200 pixels. with key lock function. Press and hold the "100%" button for 3 seconds to lock/unlock when the light is off. After locking, only the on/off key can be used, other keys do not work, to prevent being messed up.

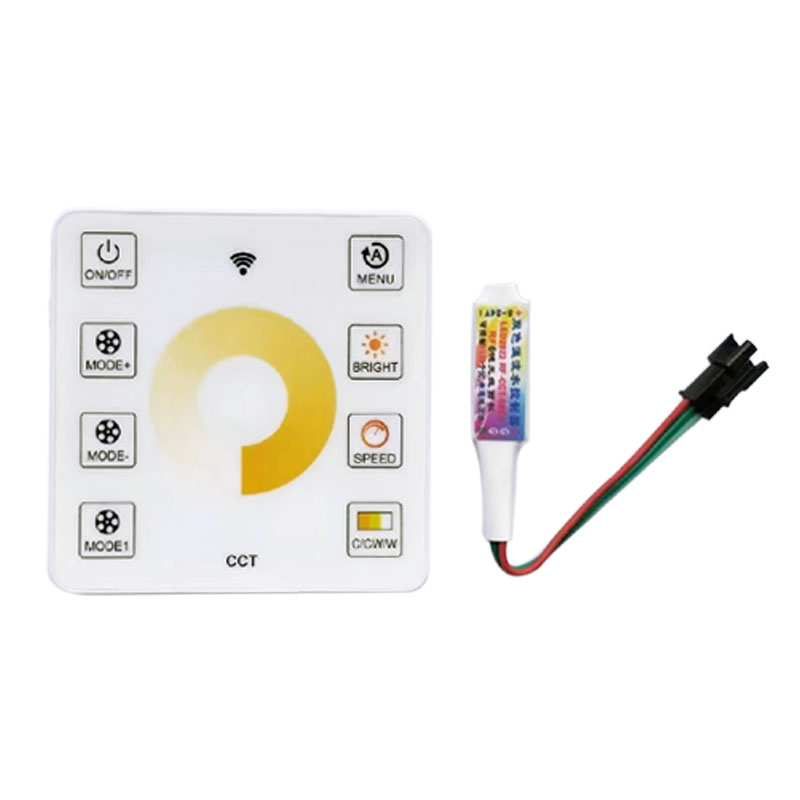

2. Color temperature controller panel: 26 modes. Can quickly switch between three color temperatures, warm white, neutral white, and cool white. Touch the color ring to adjust LED color temperature, 32 levels, ranging from 2700K to 6500K. Maximum control 2131 ICs. With reset function, auto play function, and key lock function.
3. Addressable RGB controller panel: 376 modes. Max control 2048 pixels. With pause function, press "MENU" key to pause, after pause, it is static colorful ambient light. With auto-play function, press the color ring first, then press "MENU" for auto-play function. With key lock function, long press the "MODE" key for 3 seconds to lock the key when the light is off. After locking only the on/off key can be used.
Input Voltage: DC5-24V
Apply to: Addressable led strip
Controller Type: Single color controller, CCT controller, RGB controller
Control Method: Touch control
Control Signal: RF wireless control
Max Control Distance: 30m
Max Control: 3200 pixel for dimming controller panel; 2131 pixel for CCT controller panel; 2048 pixels for RGB controller panel
