65ft/20m WS2811 Multi Color Chasing IP67 Waterproof LED Light Strips
✅ This is just a led strip roll and does not contain any other controllers, power supplies or accessories
✅ If you need a 20m led strip light kit, or need to match other controllers, please purchase a kit through our website,
✅ Universal WS2811 dynamic color chasing, sequencing, changing, and also static color modes available on the Full-Color Controller and dream color Strip. Addressable LEDs allow for sequencing modes. Flexible LED light strip with 720 LEDs high power 5050SMD(Surface Mounted Devices) RGB LEDs programmable for chasing patterns. WS2811 IC chip control, 10 meter(16.4ft) or 20m(65.6ft) Per Reel By Sale.
✅ This programmable led strip is an intelligent control LED light source that the control circuit and RGB chip are integrated into a package of 5050 components. It internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a DC24V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
✅ This strips soft and easy bent for installation. Available in 20 meters (788inch) Waterproof flexible light strips with adhesive backing and can be stuck just about anywhere (except IP67 type which will come with mounting brackets). Every 6 LEDs can be cut, so you could cut a different length for your project and request.
✅ The led strip has low light decline and long lifespan，LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life, and other advantages. The control chip integrated into LED above becoming more simple circuit, small volume, convenient installation.
✅ One IC controls 6 LEDs to form a circuit (a group). The controller controls the circuit in the FPCB by controlling IC, so as to control the different effects of LED strip lights.
✅ The 24VDC operation, Low carbon, no radiation, no flicker, no voltage drop and no pollution to human and environment, Safe and stable. Used in advertising signs, LED digital screen display, backlighting decoration. Color Program Controllable.
If you want to complete a custom project and choose the waterproof power supply and waterproof connector, you can also add our reels and other accessories and create a new kit list, if you are not sure whether it is correct, please contact us,

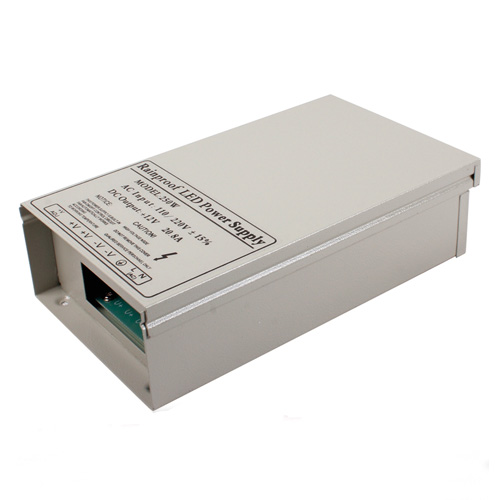

If you have a Linear Project for outdoor, We recommend using two 24V 100W waterproof power supplies at each end for every 1 roll / 20 meters,
If you have a Circle Project for indoor, we recommend using a 24V 200W IP20 power supplies at one end for every 1 roll / 20 meters, (We will send a DC 1 to 2 connector)
If you need a power plug, please buy it separately.
Please note that every 10 meters require 100W, for example, if your project is 40 meters, you need two 100W at both ends, one 200W in the middle，
If your project is 60 meters, you need 2 100W at both ends and 2 200W in the middle, and so on.

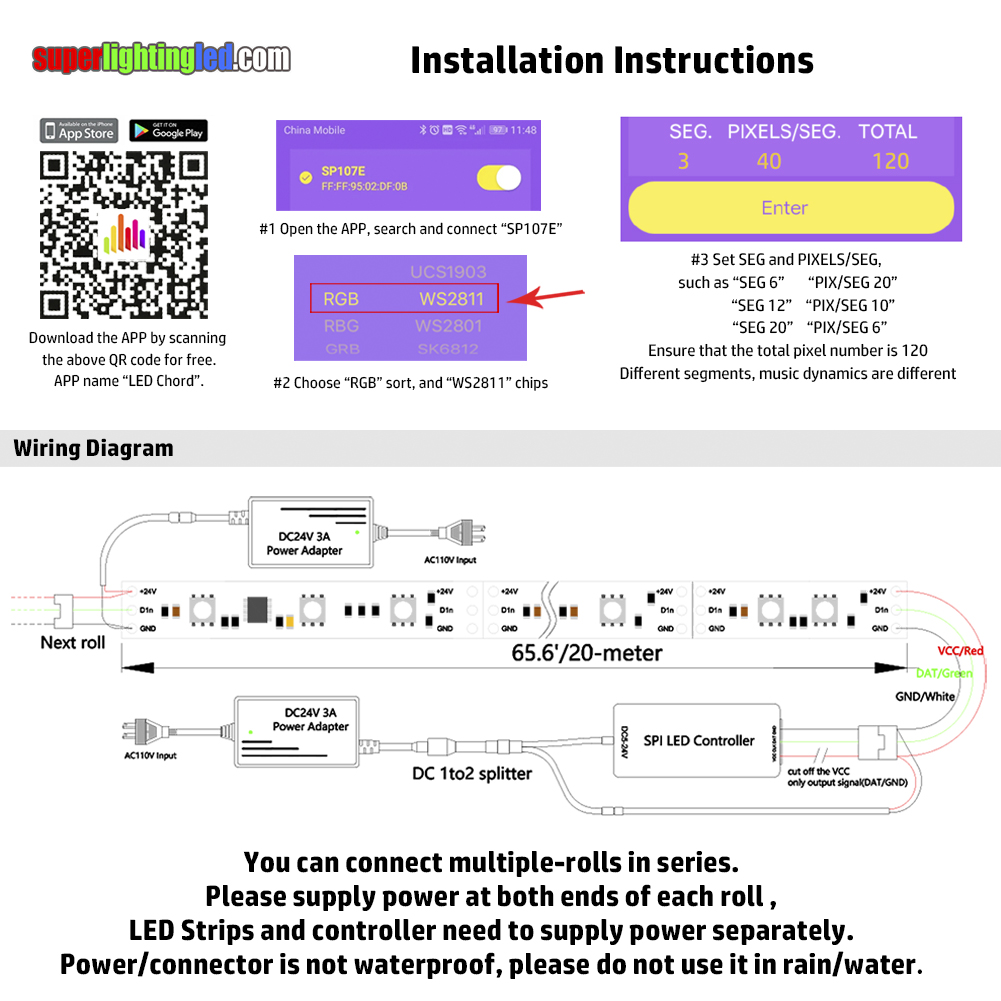

The 60-meter connection sequence is:
100W power supply - SPI controller - 20 meter strips - 200W power supply - 20 meter strips - 200W power supply - 20 meter strips - 100W power supply (APP sets 360 pixels)
This is SP107E, LED DMX, SP501E test video, how to connect 2 rolls (131ft) in series.
This is SP108E Test video:

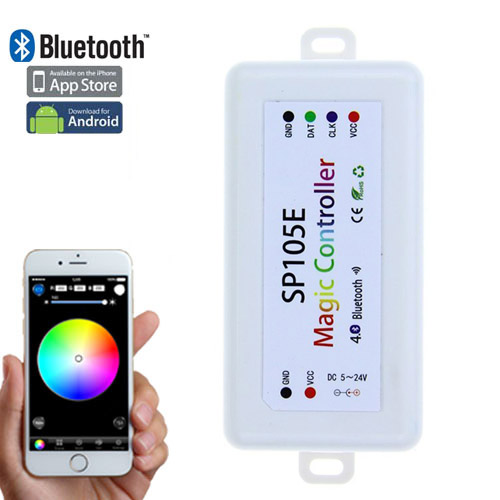

Our strips support 98% of the SPI controllers on the market, contains SP107E, SP108E, SP501E, SP105E, SP110E, etc, this is our SPI controller series:
Standards and Certifications
1 *20m WS2811 led strip lights

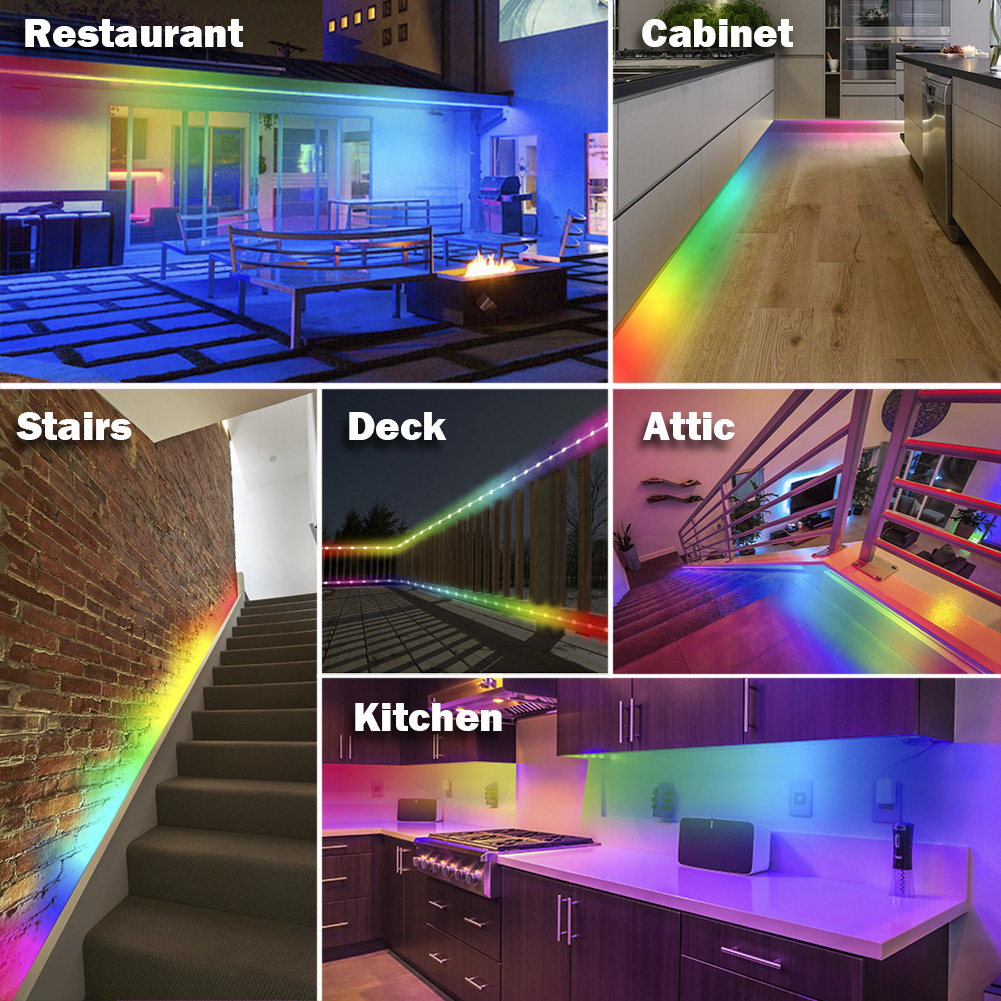

LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which needs the
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
More videos please pay attention YOUTUBE SuperLightingLED Channel
|By : Abraham Cassab Date Added: 04/27/2020|
|This is just a strip roll, does not contain the controller and power supply,|
