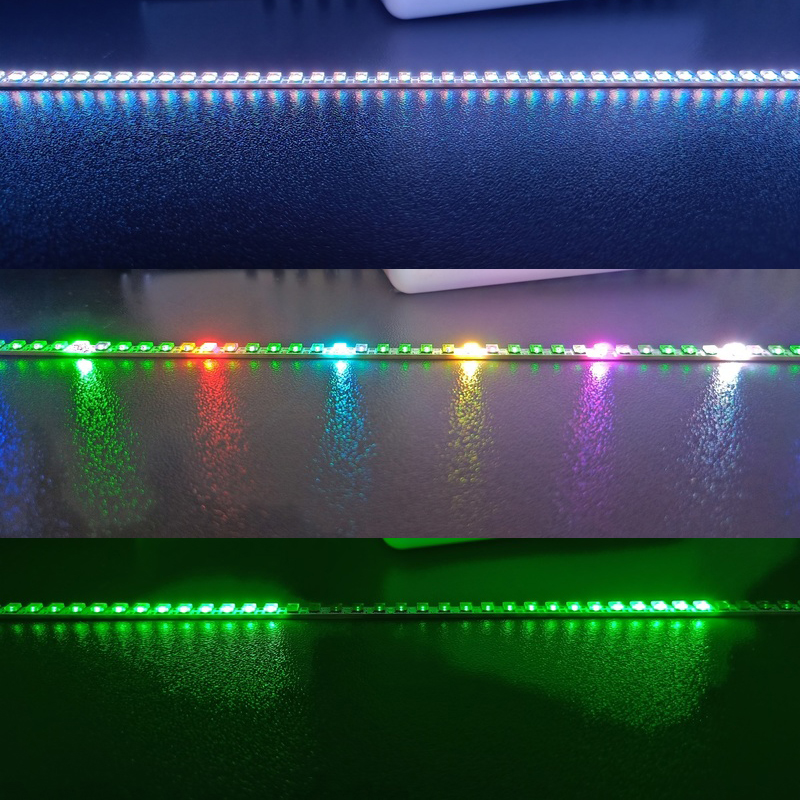

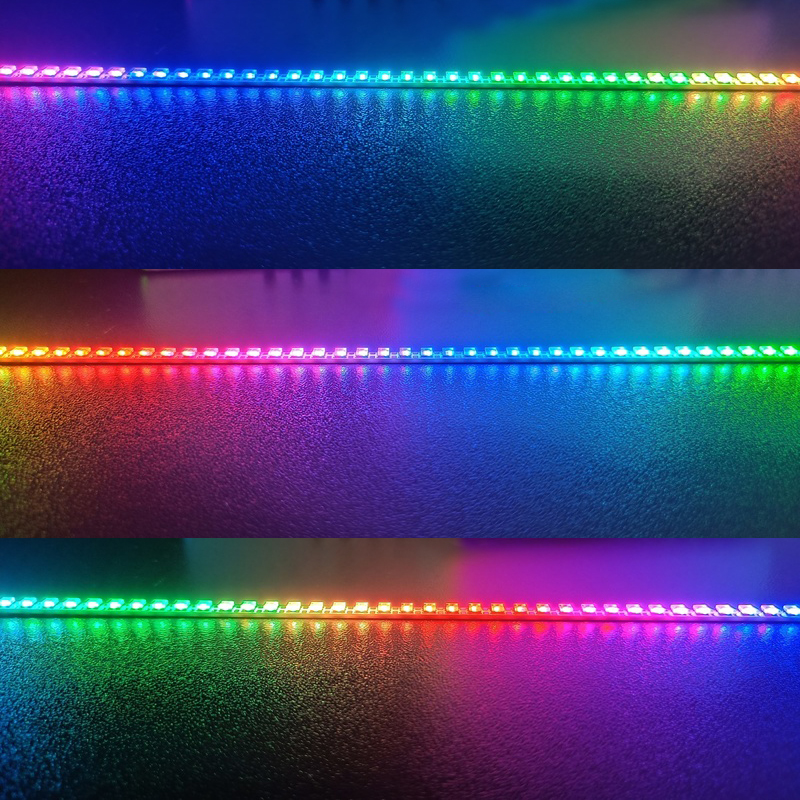

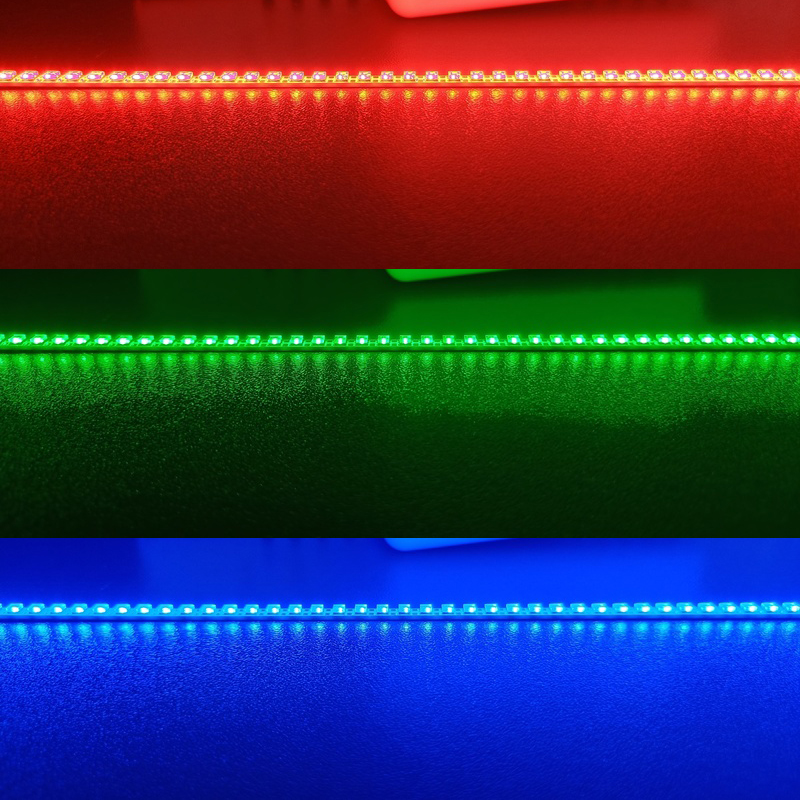

APA102 SMD2020 Narrowest 3mm/0.12in 250LEDs/M DC5V Individually Addressable RGB LED Strip Lights - 0.5m/1.64ft
1. Smallest size 2020SMD LED chips, with Built-in APA102 addressable LED intelligent IC, making the Super narrowest 3mm individually programmable Dream color LED strip lights.
2. Low voltage DC5V, safe and less power consumption, friendly to the environment.
3. High density of 250LEDs per meter, every LED can be cut, easy to get the length you want for your LED lighting projects.
4. Popular applies for under cabinet led lighting, backing lighting, narrow place LED lighting, and other indoor LED lights.
Please note: Our APA102 3mm 250LEDs/m addressable LED strips are not flexible, not soft, only non-waterproof IP20 version.
APA102-2020-256-8-V2 LED Chip Description:
1) APA102-2020 SMD LED is a new type of APA102 integrated led for three channels RGB color emitting.
2) It has very little size with 2.0mm*2.0*0.75mm, which has much more advantage for the smaller than 5050 led with 5.0*5.0mm. many new applications will be available for the tiny size.
3) APA102 2020 also uses the APA102 as the driver IC to control color dimming, Also high brightness too.
4) It can be widely used in apa102 2020 digital RGB led strips, apa102 2020 dotstar, apa102 led pixels, and full color led display.
5) Good thermal dissipation & optical uniformity
6) RoHS2.0 Compliant
7) Preconditioning: accelerate to JEDEC level 3
8) Serial data transmission signal by (DATA CLK) two-line
9) ESD level 2kV(HBM)
Standards and Certifications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Villa model lighting
