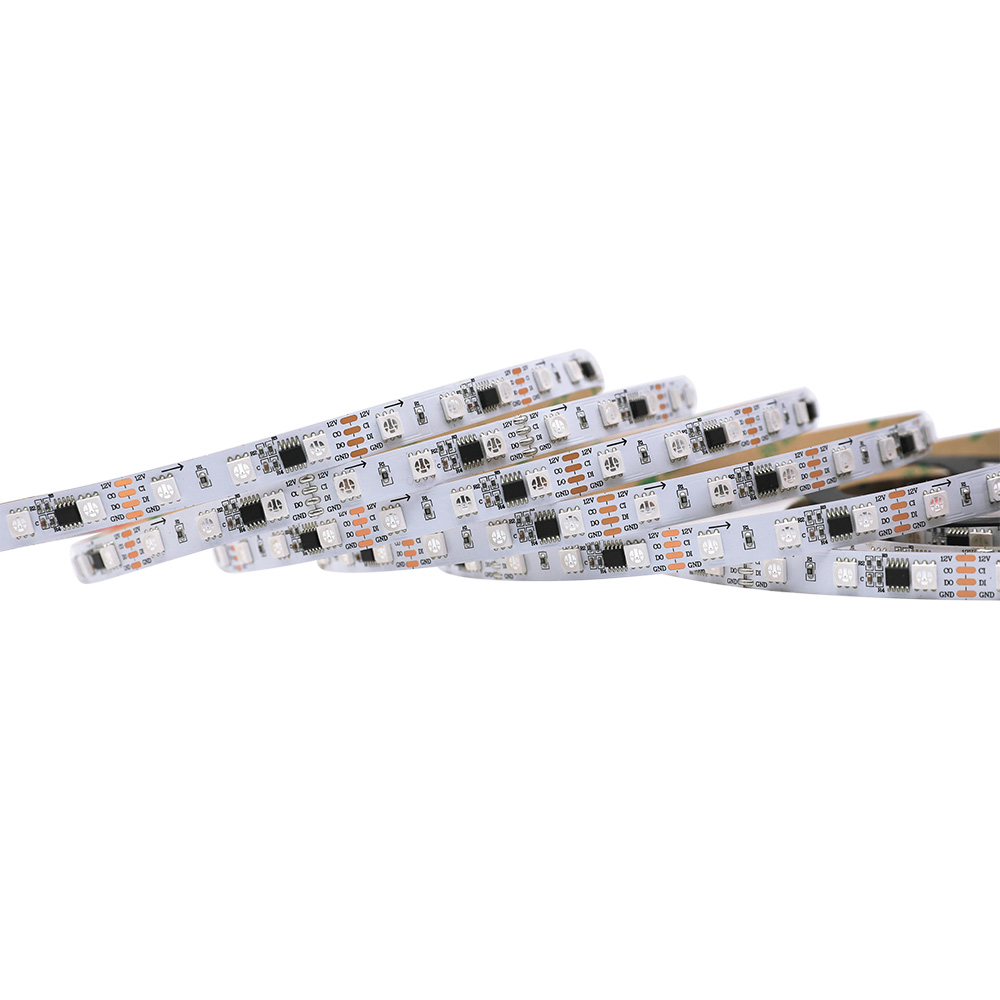

APA102 Multi-Color LED Strip Light 60LEDs/m, 12V 5050 RGB LED

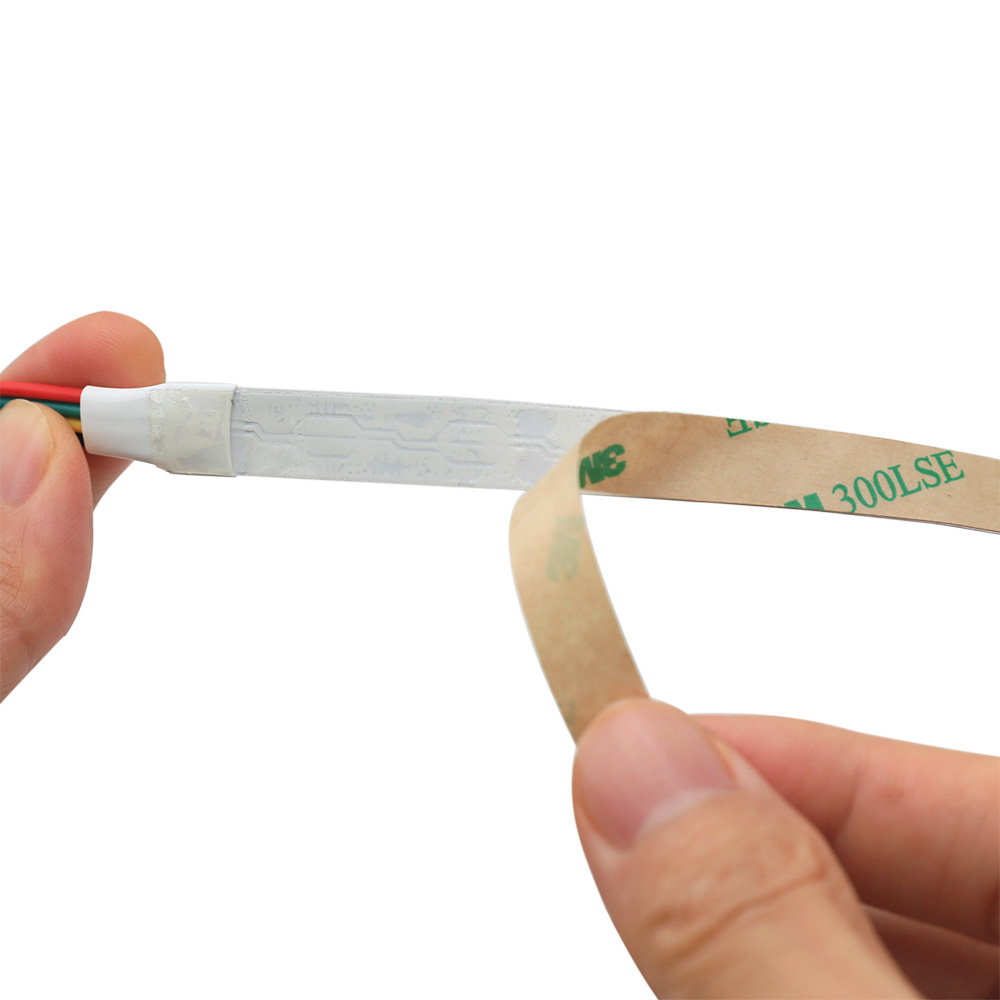

1. Adopt flexible FPC as a substrate, has good electrical conductivity, better heat dissipation, and bend resistance.
2. With DC12V voltage, less voltage drop than 5V LED strips. Safer working voltage, lower power consumption, friendly to the environment, save energy.

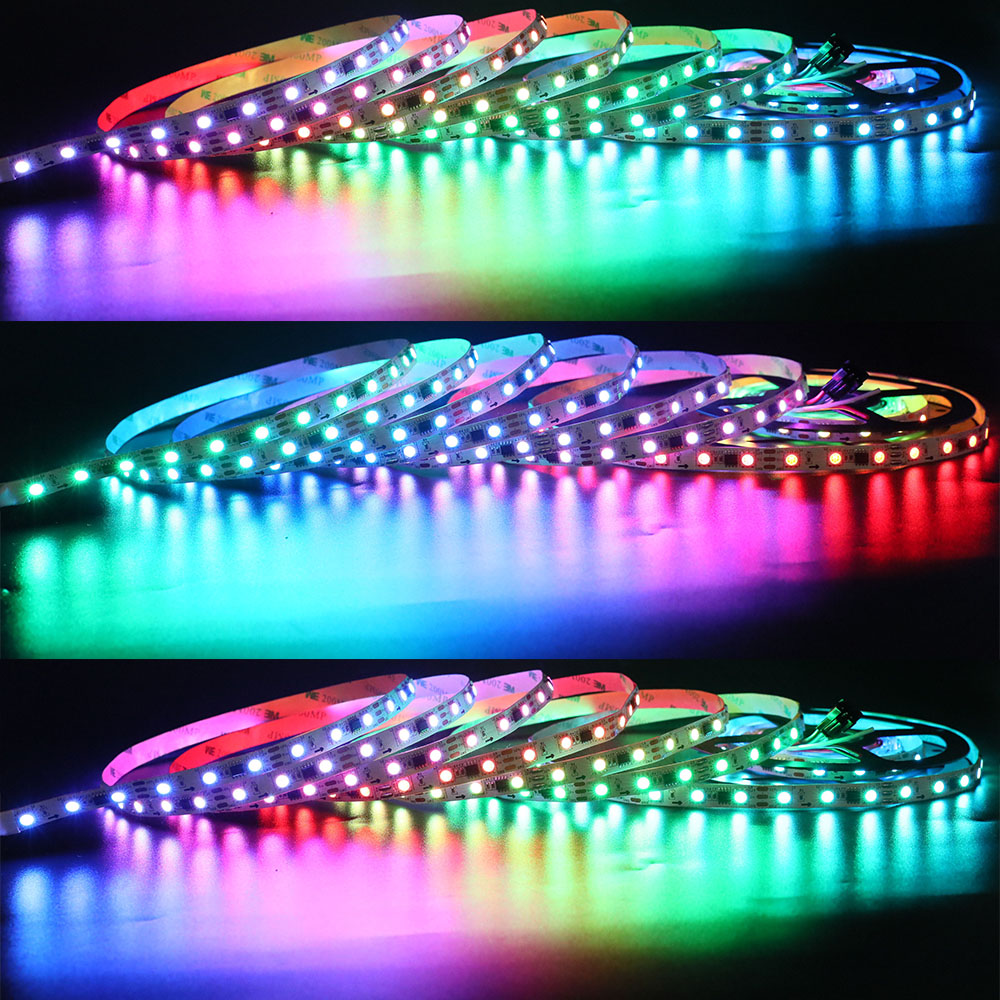

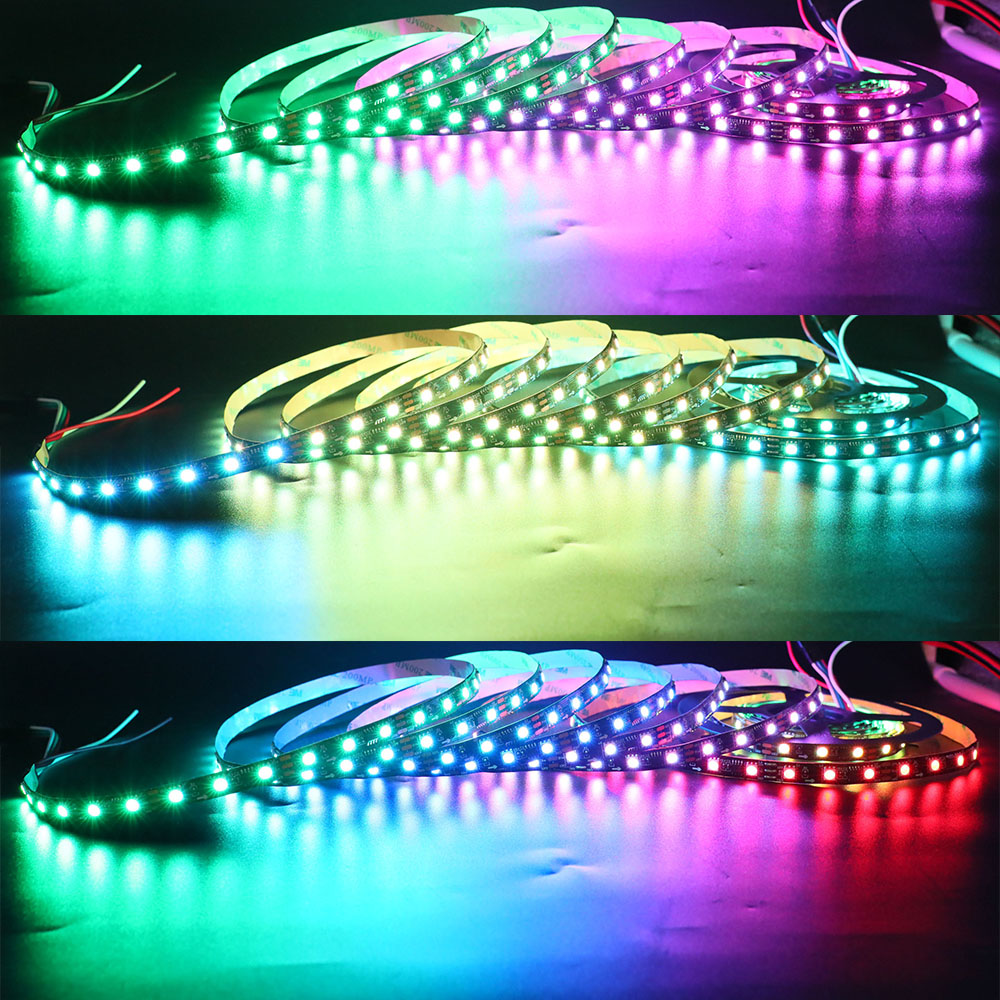

3. Using APA102 external IC, more stable than built-in IC, you can program via addressable LED controllers, to create various color chasing effects you want.
4. High bright and high quality 5050 SMD LED chips, have the waterproof rating options of IP20, IP65, IP67 and IP68, suitable for indoor and outdoor LED lighting projects.
About APA102 RGB IC:
Built-in fixed drive current 18mA
256 levels of adjustable grayscale
Built-in ring oscillator (5.1MHZ) supports uninterrupted FREE-RUN modulation output to maintain screen still function
PWM refresh speed up to 20KHz, maximum serial input data clock frequency 30MHZ
Data signal phase lock regeneration, 1MHZ data transmission speed cascade point source up to 1000
Adopt special global clock locking method, so that the screen has higher consistency
Standards and Certifications
|LED Strip Type:||APA102 RGB LED Strip 300LEDs/16.4ft|
|LED Chip:||SMD5050 Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|

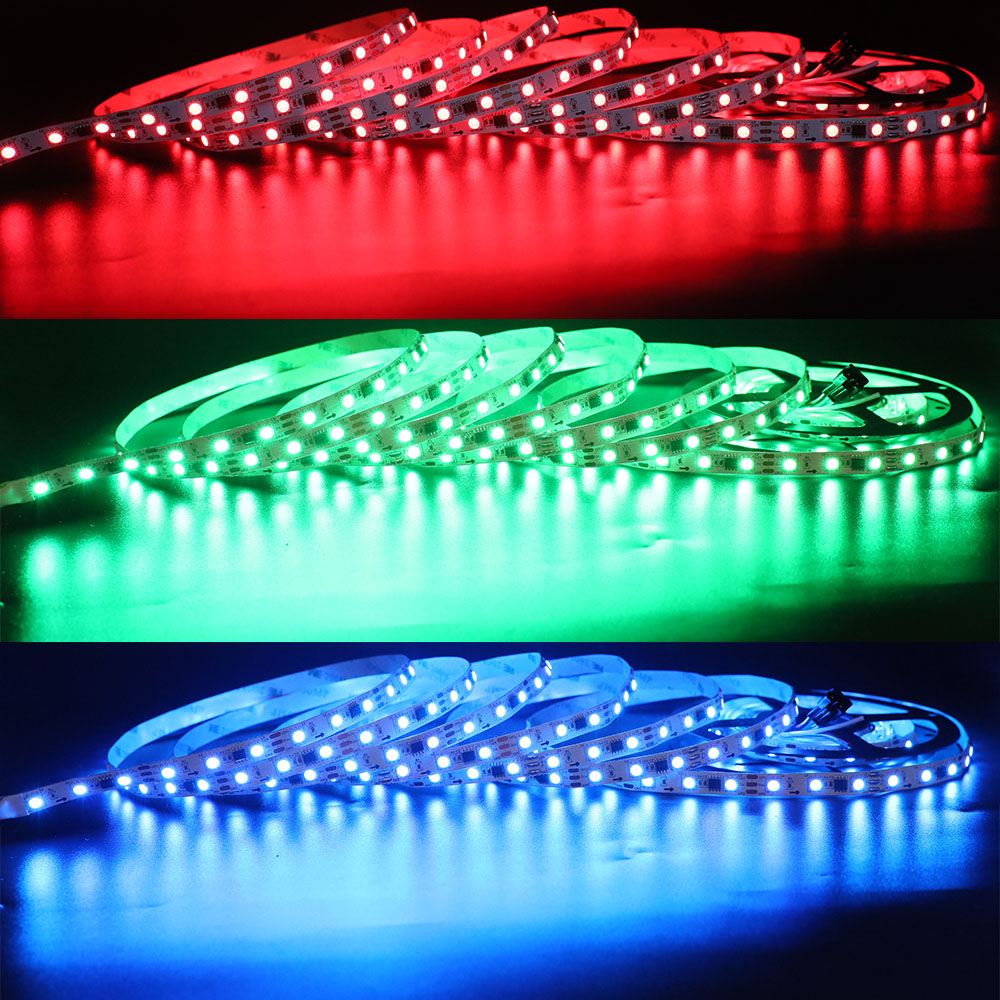

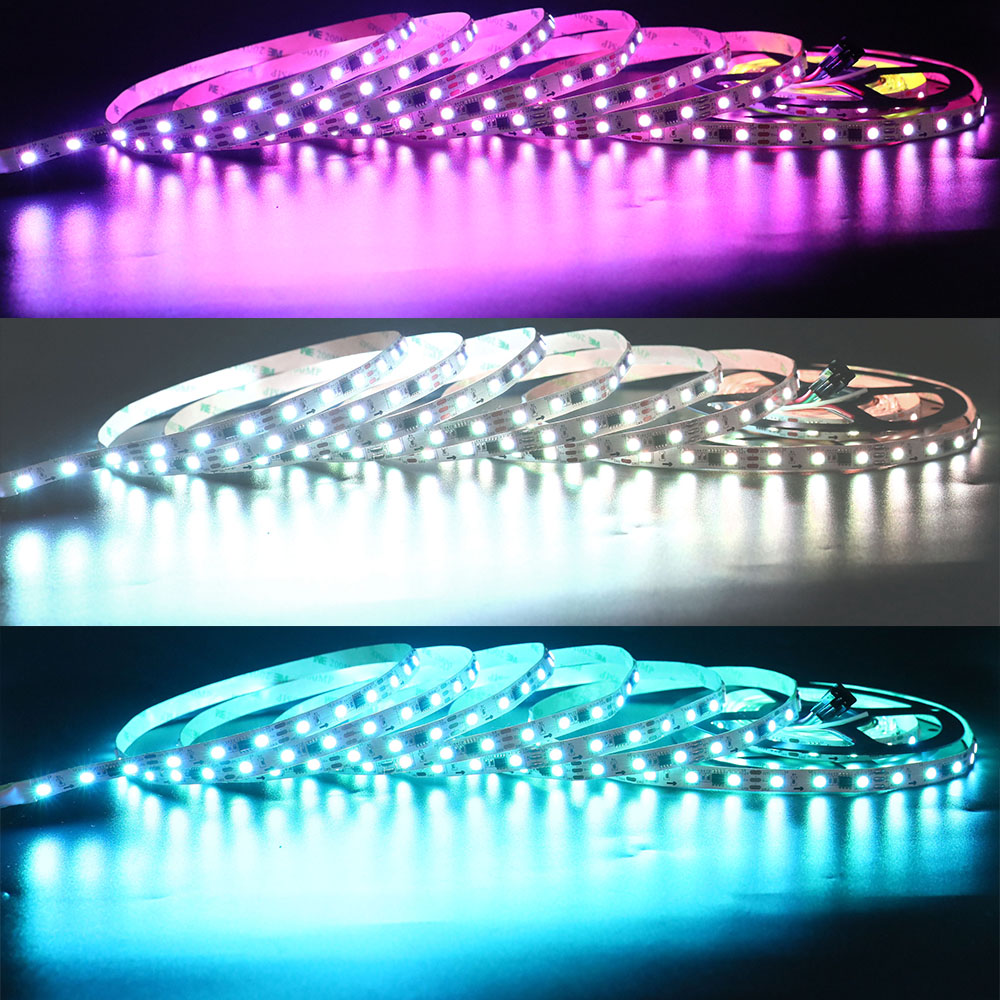

|Light Color:||Addressable RGB color|

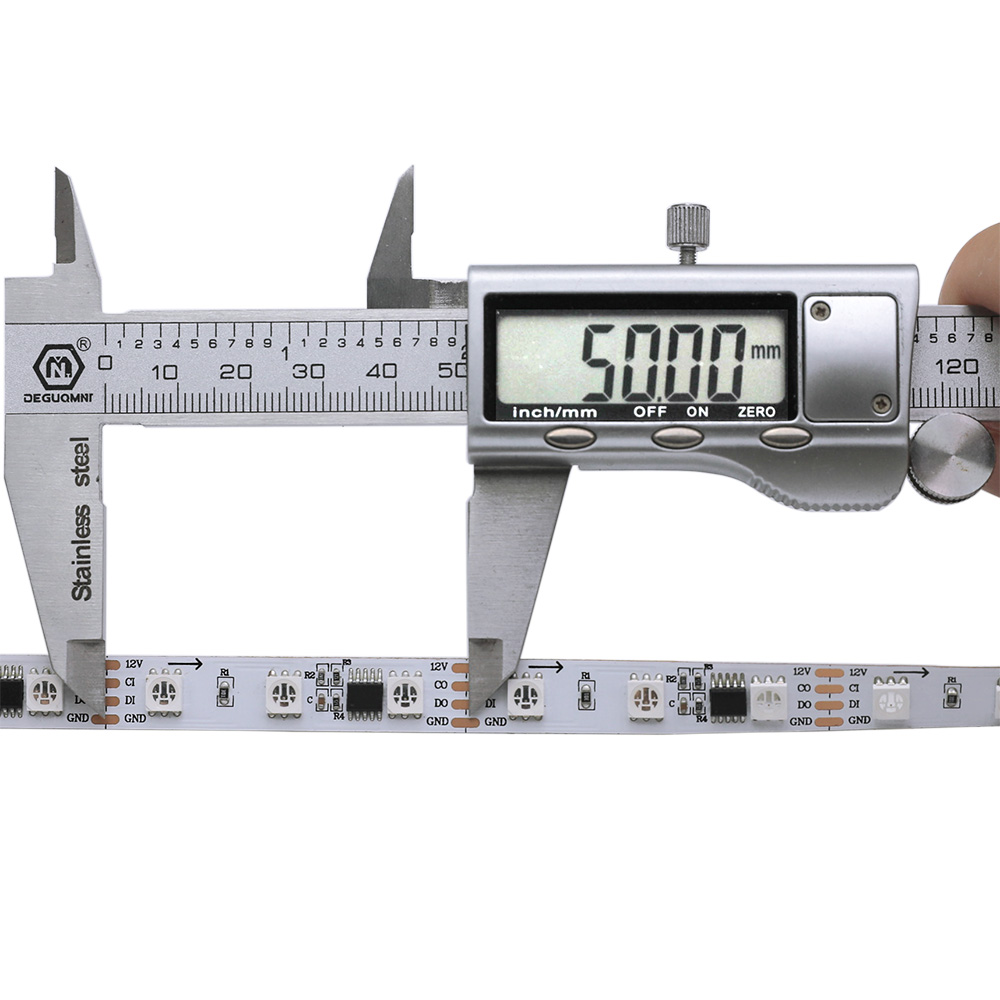

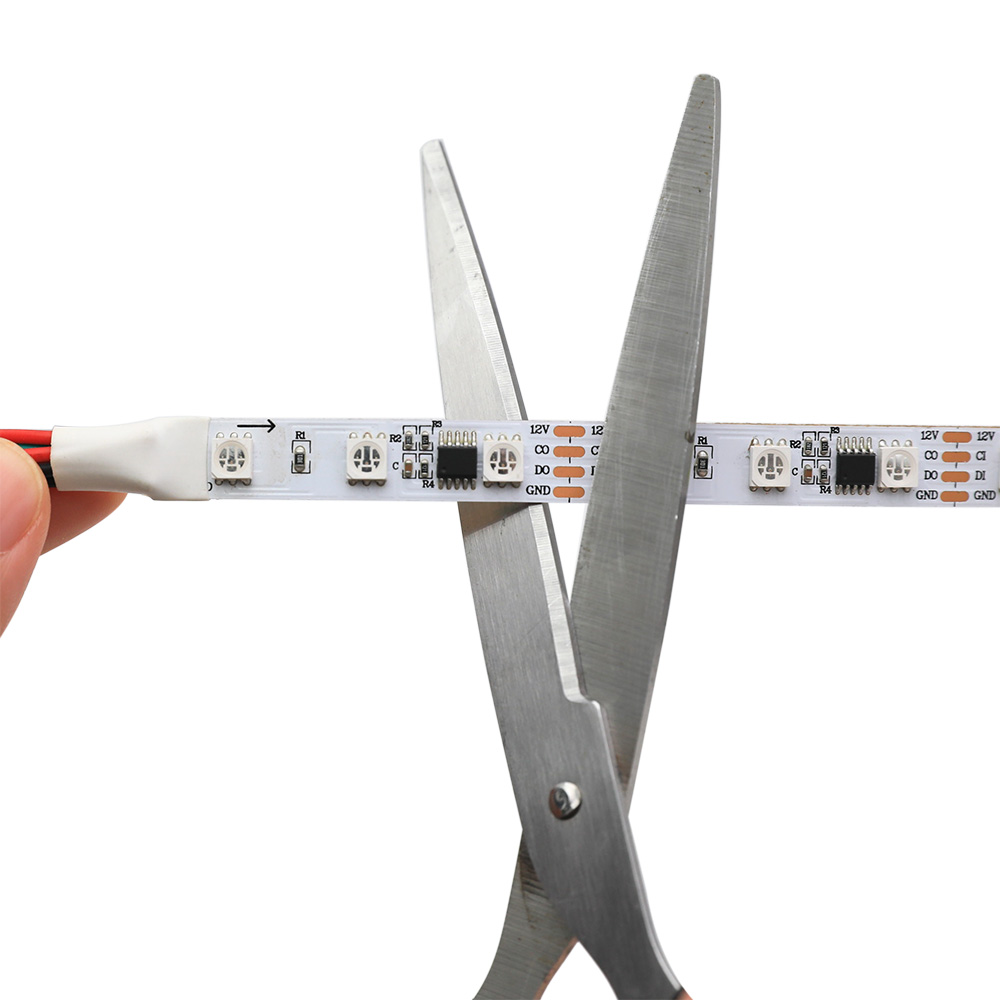

|Dimension:||16.4ft/roll, every 3 PCS LED can be cut|
|LED Quantity:||96 LEDs per meter (3.28 ft)|
|Q'ty of IC:||20 pixels per meter (1 IC drives 3 led chip)|
|Grey Scale:||256, 8-bits/color|

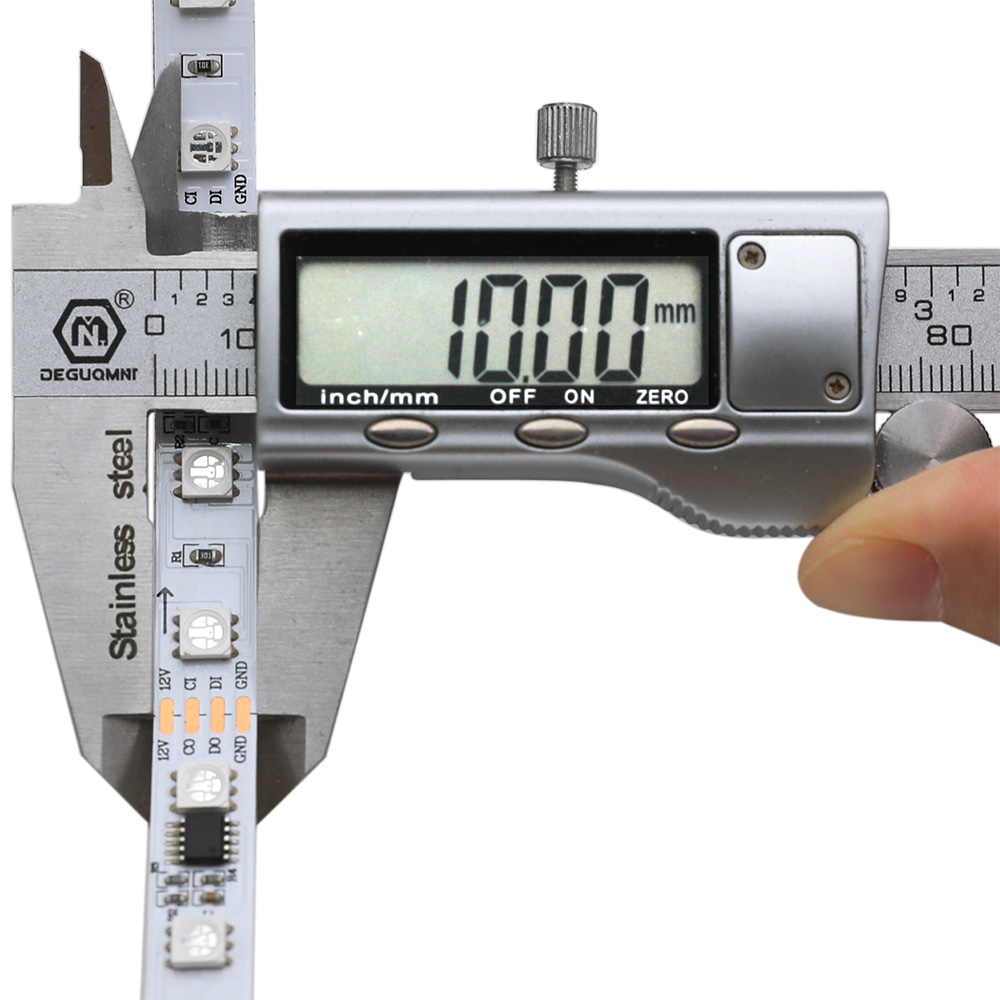

|Dimensions:||L100cm(39.37 in ) x W1.0cm(0.39 in ) x H0.2cm(0.08 in )|
|Input Voltage(V):||12 VDC|
|Working Power:||14.4W/m, 72W/16.4ft Max|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP65, IP67, IP68|
3-Pin Single Signal APA102 RGB Addressable LED Strip Wiring Diagram:
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Villa model lighting
