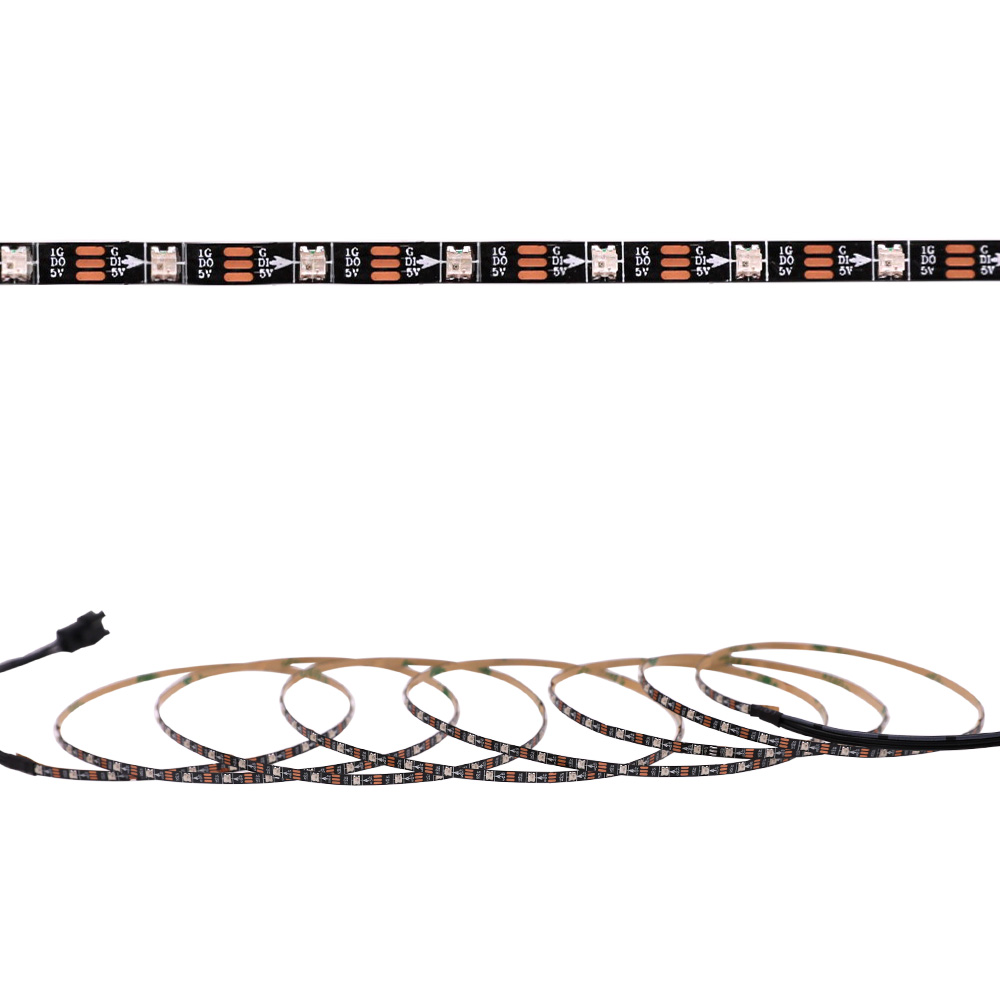

Narrowest 3mm SK6812 DC5V 2020SMD Individually Addressable RGB LED Strip - 96LEDs/m
3.28ft / 6.56ft 3-Pin DC5V SK6812 3mm 96LEDs/m Black PCB RGB LED Strip Light.
1. Smallest size 2020SMD LED chips, with Built-in SK6812 addressable LED intelligent IC, making the Super narrowest 3mm individually programmable Dream color LED strip lights.
2. Low voltage DC5V, safe and less power consumption, friendly to the environment.
3. High density of 96LEDs per meter, every 1 LEDs can be cut, easy to get the length you want for your LED lighting projects.
4. Popular applies for under cabinet led lighting, backing lighting, narrow place LED lighting, and other indoor LED lights.
Standards and Certifications
Input voltage: DC5V
LED Chip Model: SMD2020
IC Type: SK6812 IC (1 IC drives 1 led chip)
Q'ty of LED: 96 leds/Meter Available
Q'ty of IC: 96 pixel /Meter

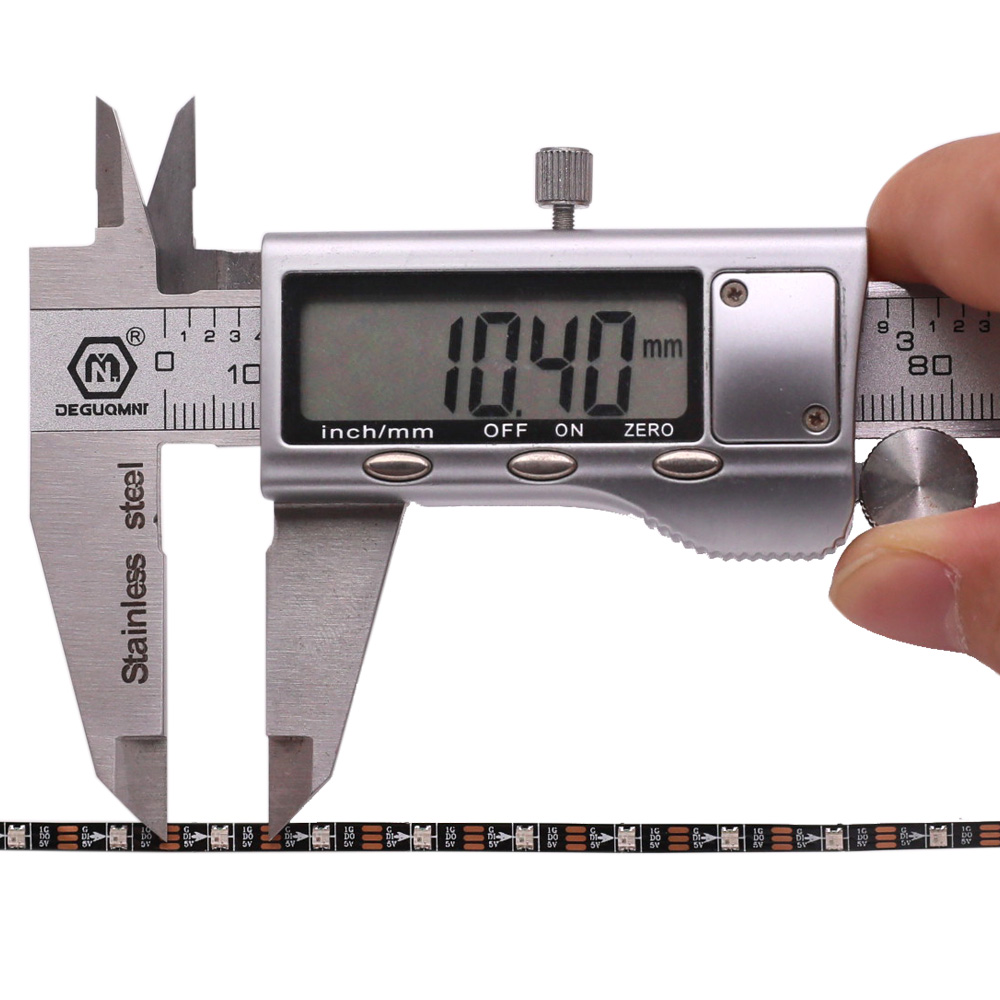

Cuttable: every 1 LEDs are cuttable / 10.4mm

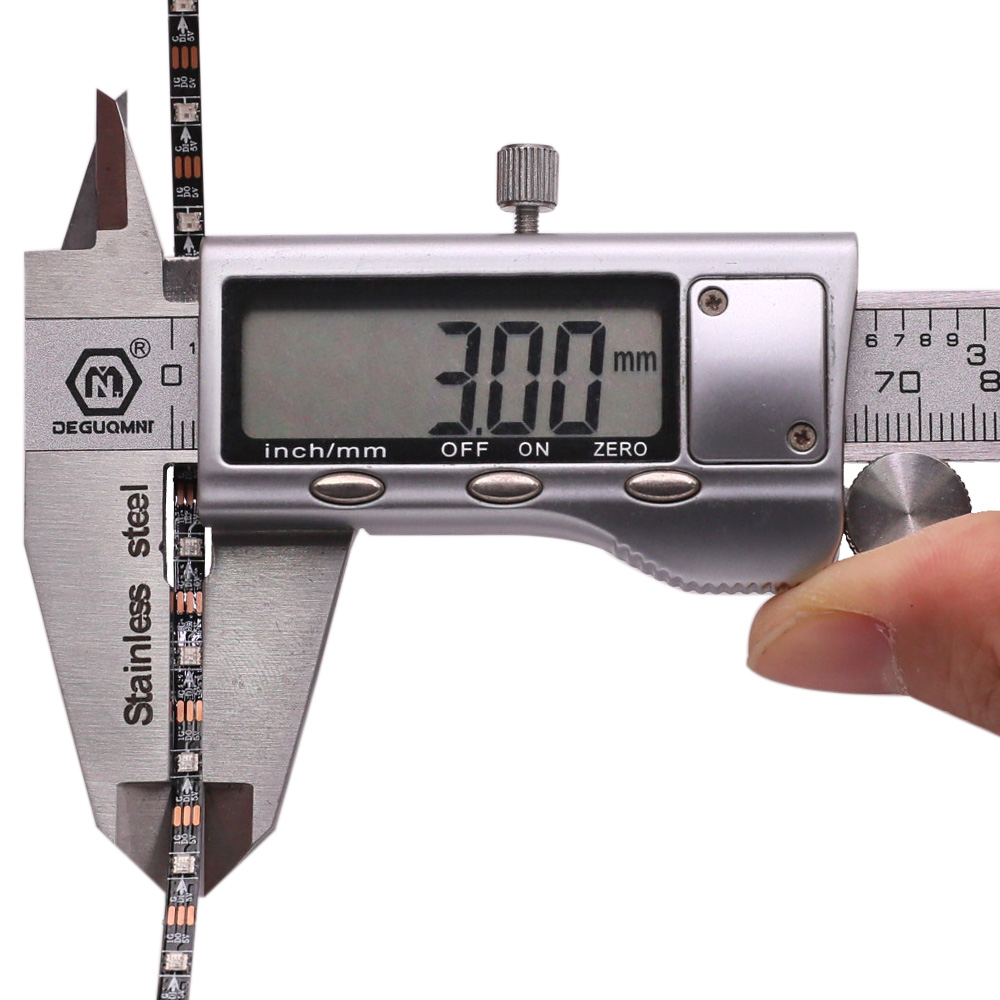

Dimensions: L100cm(39.37 in ) x W0.3cm(0.12 in ) x H0.1cm(0.04 in )
PCB color: BLACK Available
Protection rate: Non-waterproof IP20, Waterproof IP67

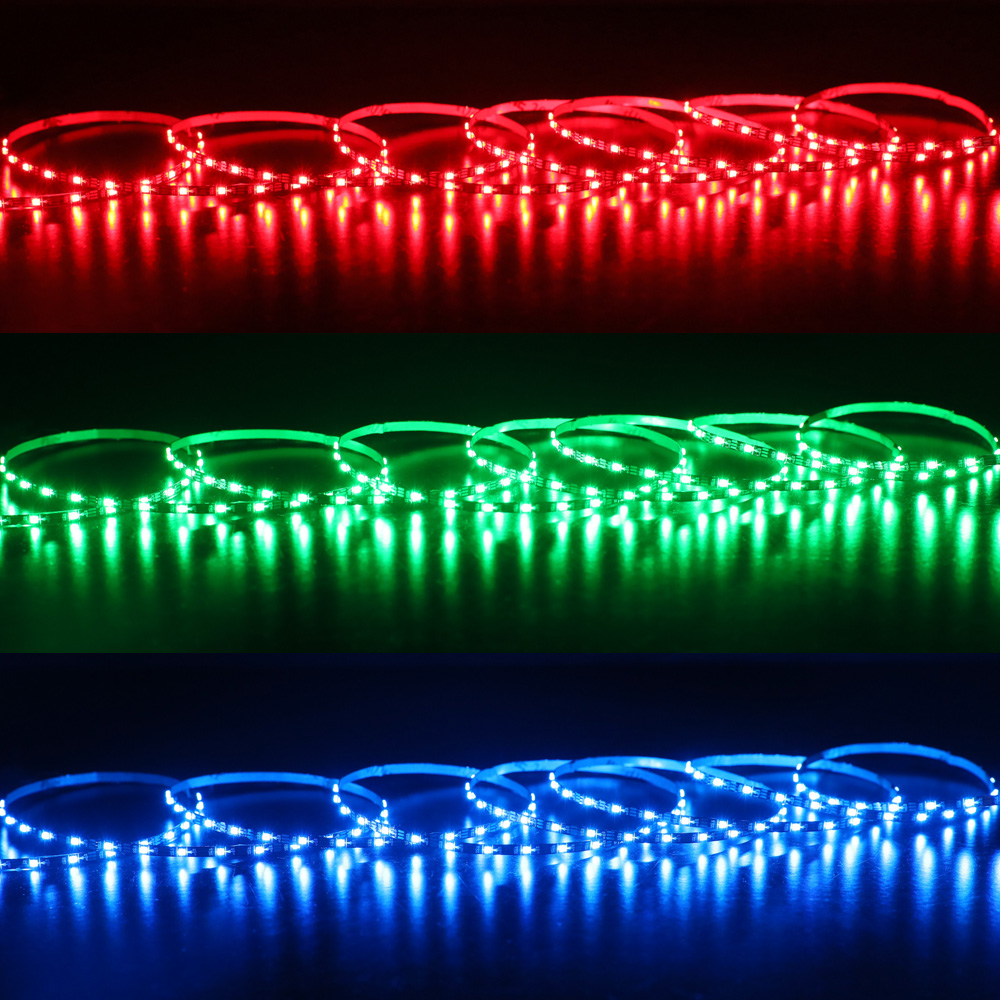

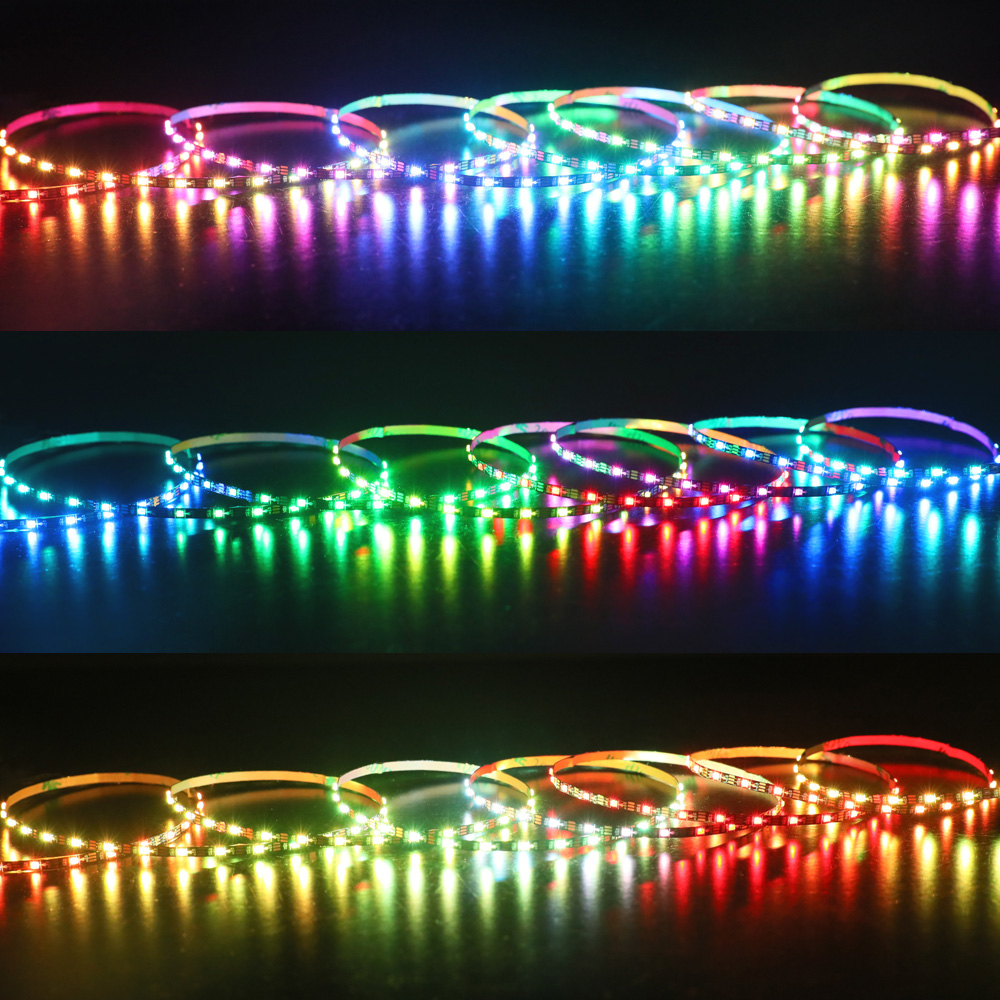

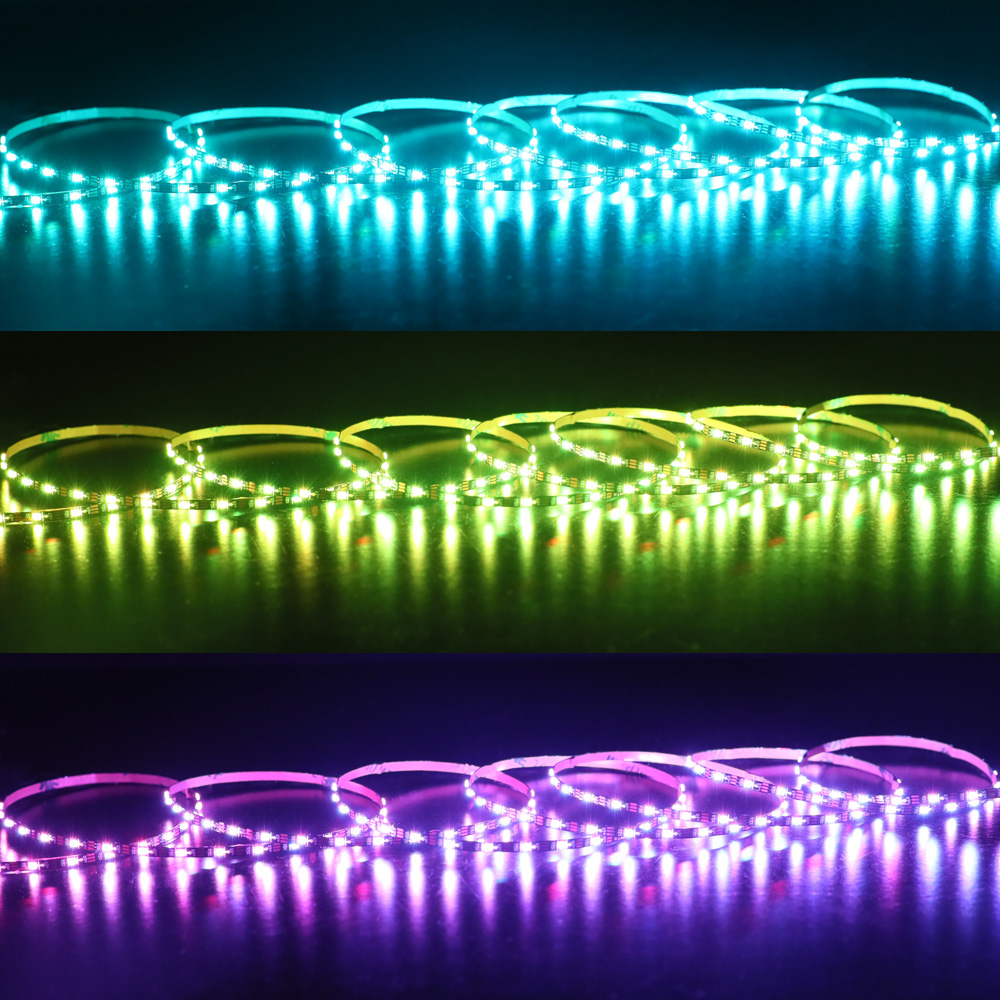

Colors: Full color RGB, dream color changing;
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
LED wavelengths: 630nm/530nm/475nm
Average Life (hrs): 50000Hours+

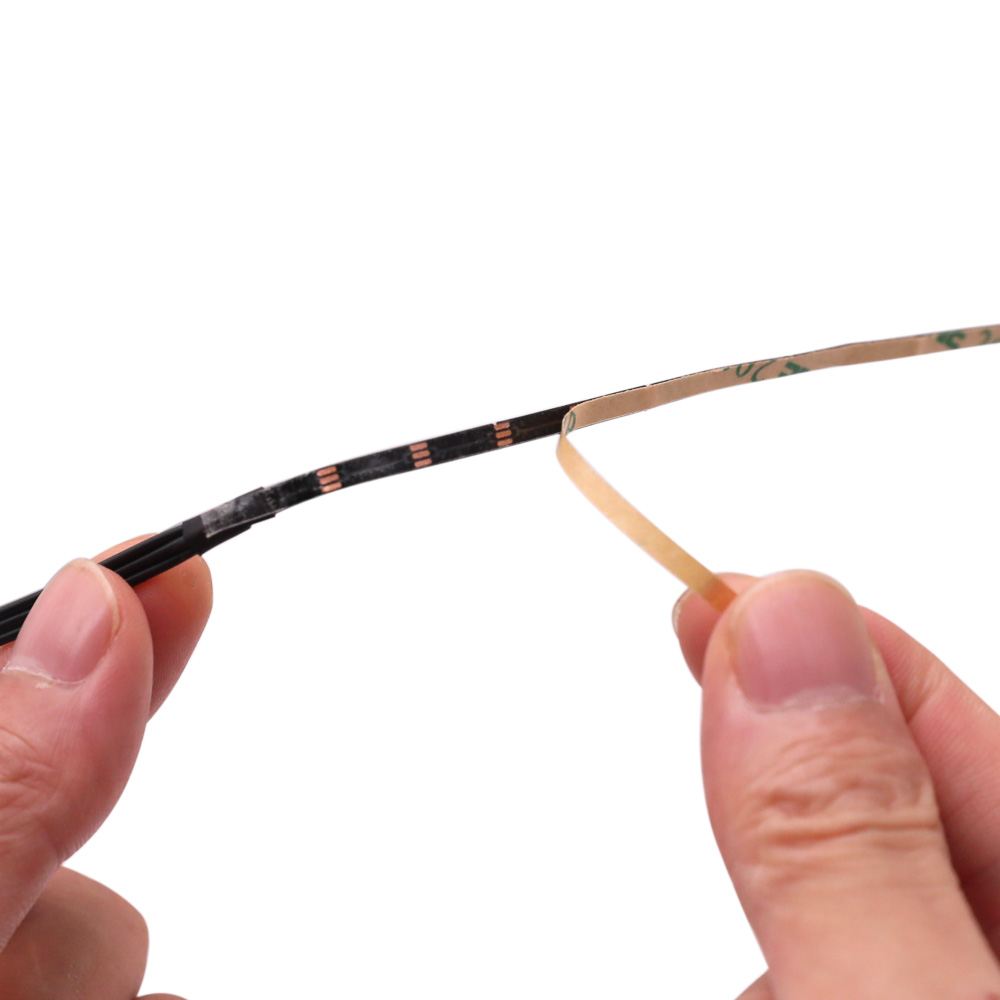

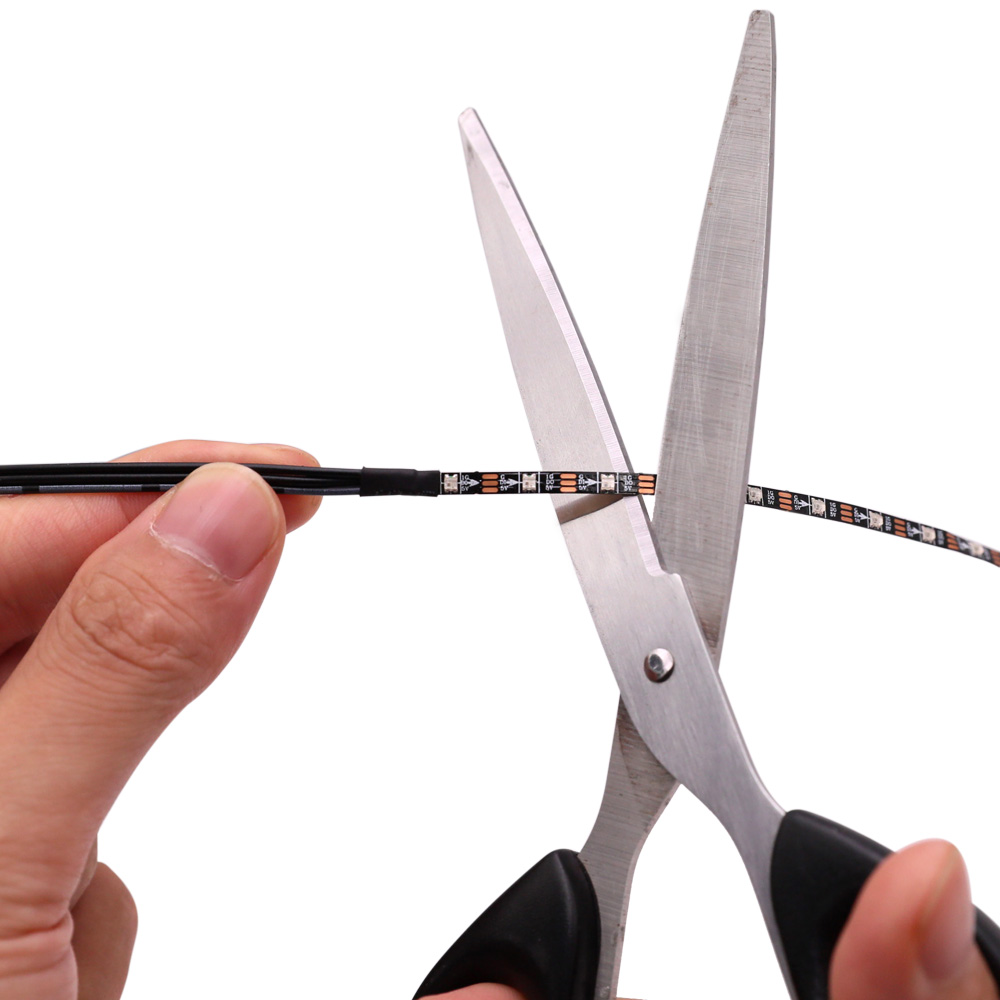

|You can cut the strip every few inches, allowing you to freely design your project without worrying about space requirements to many different surfaces.||The back of the light strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67 waterproof led strip type needs to be fixed by mounting brackets.|
These Digital Addressable LED Strips are applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Villa model lighting
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
