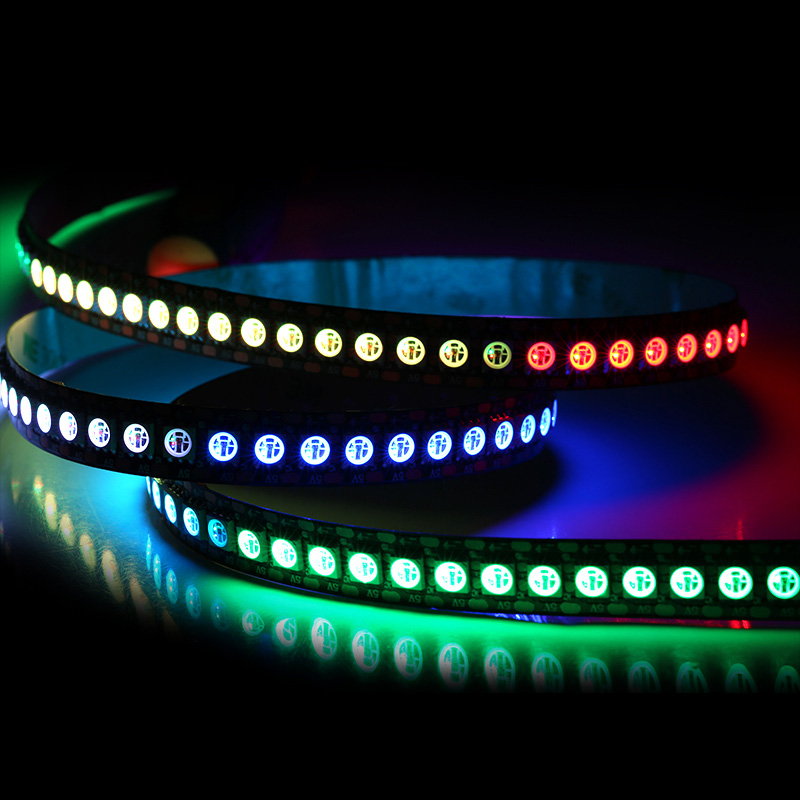

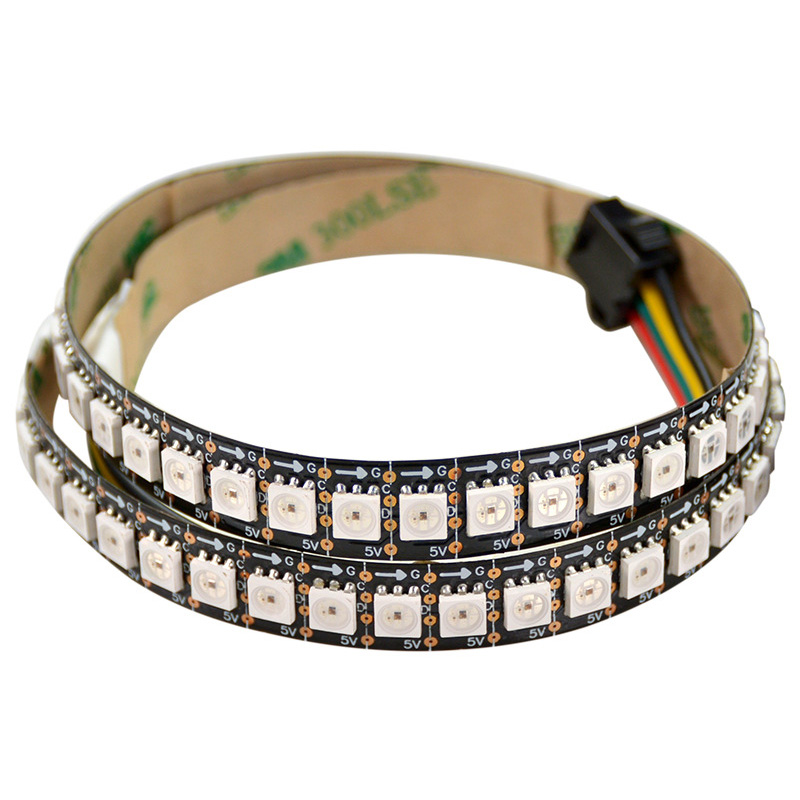

High Density 144LEDs/m DC5V Fastest APA107/HD107S Flexible Individually addressable RGB LED Strip Light - 3.28Ft/Roll
1. Adopt high quality 5050SMD LED chips, higher brightness, bigger beam angle, be excellent at the color consistency, stable performance.
2. The APA107/HD107S IC is the fastest IC on the market now, the upgraded version of the APA102 IC, Synchronization of two-lane, the LED strips can be the fastest to transmit and refresh the signal.
3. Individually addressable, every IC controls one LED, so every LED can be cut, you can get the length you need by cut the strips at the cutting place, and this won't damage other LEDs.
4. Adopt self-detection signal built-in, support for continuous oscillation PWM output, able to maintain static screen.
5. Small size, multi-color, no radiation, high shock resistance, is a new generation of green environmental protection high-tech products.
6. CMOS process, DC5V safe voltage, save energy, super bright, low consumption, low working temperature, environment friendly, and so on.
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
The difference between APA102, APA107, HD107s, and SK9822?
APA102: 20+ kHz PWM, transmission rate 20MHZ
APA107: 9 kHz PWM, transmission rate 30MHZ
HD107s: 26+ kHz PWM (the upgrade of APA107), transmission rate 40MHZ
SK9822: 4.7 kHz PWM, transmission rate 15MHZ
In conclusion, APA107/HD107s is one real product that can replace APA102.
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
Waterproof Level Description
