Product Information

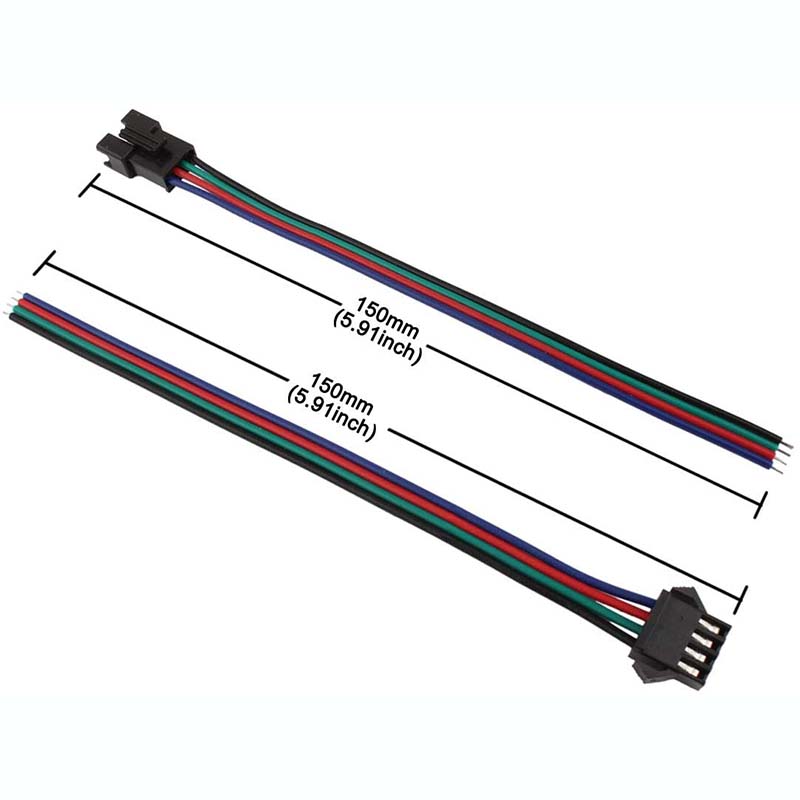

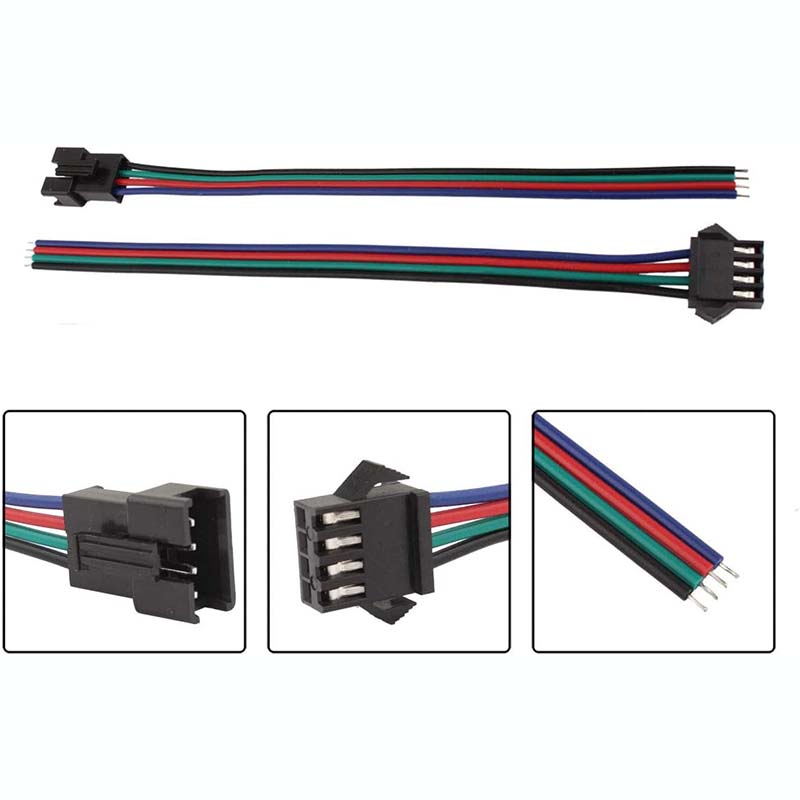

Bridge gaps in your lighting project effortlessly with the JST SM Connector Extension Cable. This male-to-female led strip extension cable is the perfect solderless solution for increasing the distance between LED strips or connecting them to a controller that's placed further away. Engineered for reliability, it features high-conductivity 22 AWG pure copper wire housed in a flexible silicone jacket, ensuring a stable and secure connection.
What makes this cable exceptionally versatile is its availability in multiple configurations: choose from 2, 3, 4, 5, or 6-pin versions in four different lengths from 0.5m (1.64ft) to 5m (16.4ft). Whether you're working with simple single color LED strip lights or complex RGBCCT LED strips, this extension cable provides the flexibility you need for a clean, professional installation.
Key Features
Universal Compatibility
Available in 2, 3, 4, 5, and 6-pin JST SM configurations to match virtually any low-voltage LED strip type.
Four Convenient Lengths
Select from 0.5m, 1m, 2m, and 5m options to get the exact length needed for your project, minimizing excess wire.
Premium Copper Wiring
Constructed with 22 AWG pure copper wire for excellent conductivity, ensuring stable power and signal transmission.
Plug-and-Play Installation
Features pre-terminated male and female JST SM connectors for a secure, solder-free connection in seconds.
Durable & Flexible
The soft silicone jacket is easy to route around corners and through tight spaces without damage.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | ACCESSORIE-LED 4PIN |
| Connector Type | JST SM Plug |
| Gender | Male to Female |
| Pin Options | 2-Pin, 3-Pin, 4-Pin, 5-Pin, 6-Pin |
| Length Options | 0.5m (1.64ft), 1m (3.28ft), 2m (6.56ft), 5m (16.4ft) |
| Wire Gauge | 22 AWG |
| Conductor Material | Pure Copper |
| Jacket Material | Silicone/Plastic |
| Use Case | Indoor, dry locations |
Application Scenarios
How to Use This Extension Cable
- Step 1: Verify Compatibility. Ensure the pin count of the extension cable (2, 3, 4, 5, or 6-pin) matches the number of pins on your LED strips and controller.
- Step 2: Disconnect Power. Always turn off the power supply to your LED lighting system before making any connections.

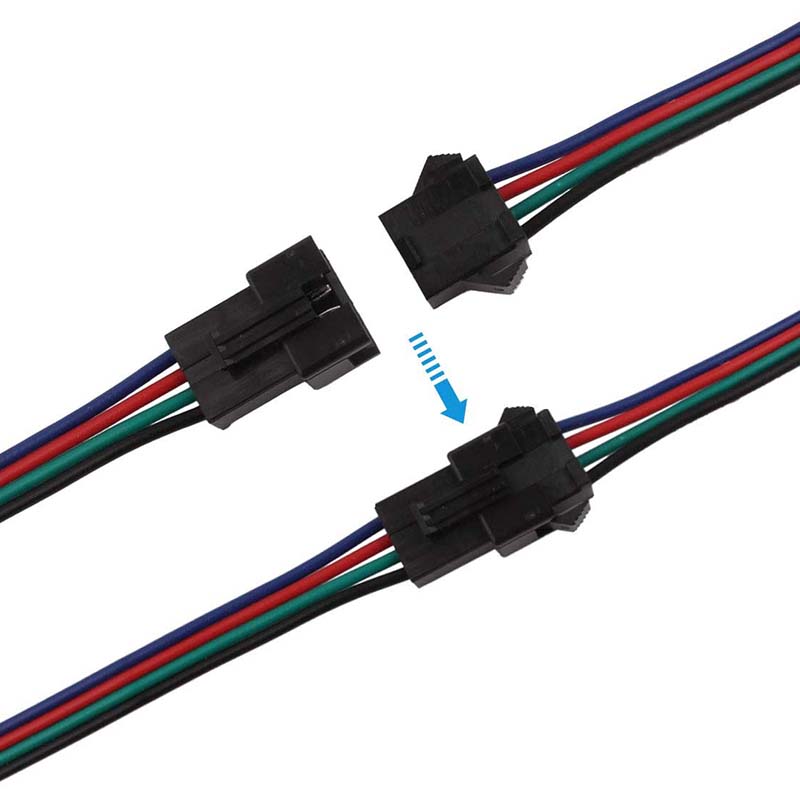

- Step 3: Connect the Cable. Plug the male end of the extension cable into the female connector of your source (e.g., LED controller or another LED strip).
- Step 4: Connect the Strip. Plug the female end of the extension cable into the male connector of the LED strip you wish to extend.
- Step 5: Check Polarity. Before restoring power, double-check that the wire colors and any polarity indicators (like arrows or + symbols) are aligned correctly across the connection.
- Step 6: Power On. Restore power to your system and test the lights to ensure a proper connection.
- This product is intended for indoor use in dry locations only.
- Ensure the total power draw of your LED strip does not exceed the current capacity of the 22 AWG wire (typically up to 3A).
- While you can chain multiple extension cables, be aware of how voltage drop works, as it can cause dimming and color shifts over very long total distances.
What's in the Box
- ✓1 x JST SM Male to Female Extension Cable (Selected Pin Count and Length)
Frequently Asked Questions
Q: What are the different pin counts used for?
A:Generally, 2-pin is for single color strips, 3-pin for CCT or some addressable strips, 4-pin for RGB LED Strips, 5-pin for RGBW LED strip lights, and 6-pin for RGBCCT LED strips. Always check your specific strip's requirements.
Q: Can I connect multiple extension cables together for a longer run?
A:Yes, you can connect them in series. However, for very long distances (over 10m/33ft), you may experience voltage drop, which can lead to reduced brightness or inaccurate colors at the far end of the strip.
Q: What is the maximum current this cable can handle?
A:The 22 AWG copper wire can safely handle up to 3 Amps of current, which is sufficient for most standard density LED strip light applications.
