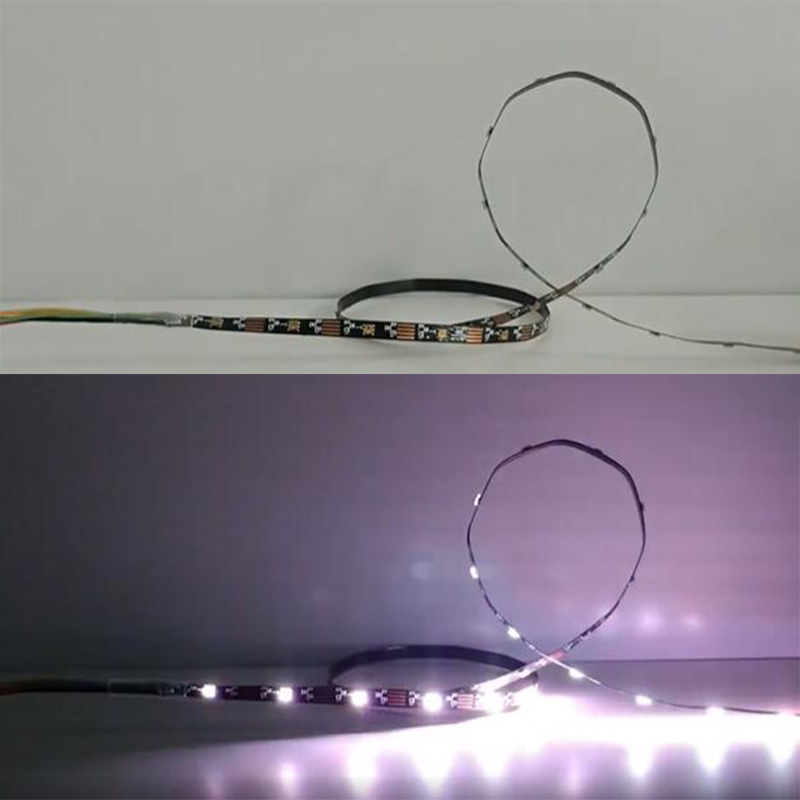

4mm APA102 Digital RGB LED Strip 5V - Individually Addressable
DC5V 4mm/0.16in Wide APA102 Digital Individually Addressable RGB LED Light Strip, 60LEDs/m Flexible 2020SMD LED Lighting.
1. With 2020SMD smallest size LED chips, adopts APA102 Built-in addressable IC, making the Super narrowest 4mm digital Dream color RGB LED strips light.
2. Low voltage DC5V, safe and less power consumption, friendly to the environment. If one LED damages, it won't burn out the whole LED strips.

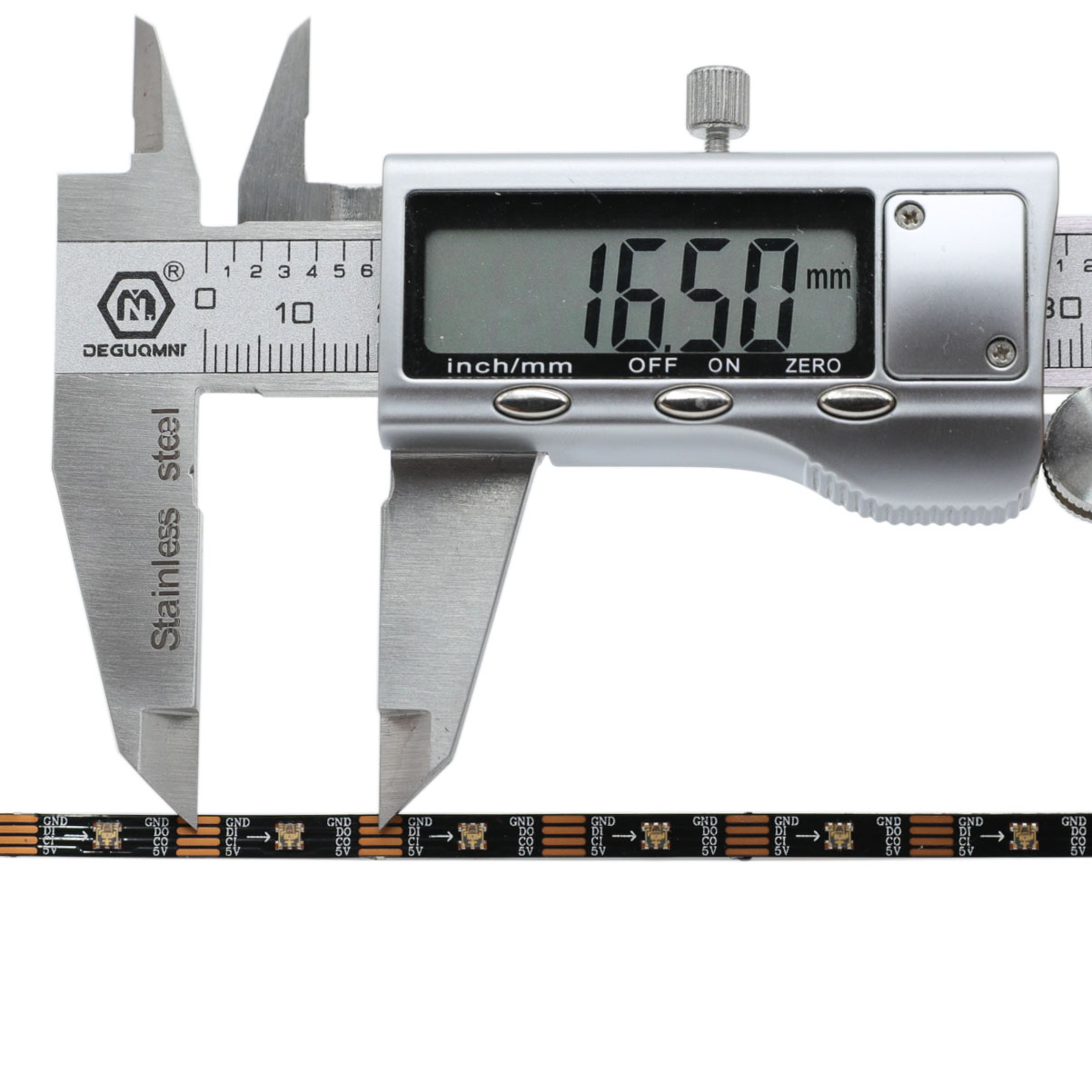

3. 60LEDs per meter, flexible and soft, every LED be cuttable, cutting length is about 16.6mm/0.65in, single pixel single control, easy to get the length you want for your LED lighting projects.
4. Popular applies for cove lighting, under cabinet LED lighting, under counter led lights,TV backing lighting.
APA102-2020-256-8-V2 LED Chip Description:
1) APA102-2020 SMD LED is a new type of APA102 integrated led for three channels RGB color emitting.
2) It has very little size with 2.0mm*2.0*0.75mm, which has much more advantage for the smaller than 5050 led with 5.0*5.0mm. many new applications will be available for the tiny size.
3) APA102 2020 also uses the APA102 as the driver IC to control color dimming, Also high brightness too.
4) It can be widely used in apa102 2020 digital RGB led strips, apa102 2020 dotstar, apa102 led pixels, and full color led display.
5) Good thermal dissipation & optical uniformity
6) RoHS2.0 Compliant
7) Preconditioning: accelerate to JEDEC level 3
8) Serial data transmission signal by (DATA CLK) two-line
9) ESD level 2kV(HBM)
Standards and Certifications
Input voltage: DC5V
LED Chip Model: SMD2020
LED resource: APA102 LED
IC Type: APA102 IC (1 IC drives 1 led chip)
Q'ty of LED: 60 leds/Meter Available
Q'ty of IC: 60 pixel /Meter

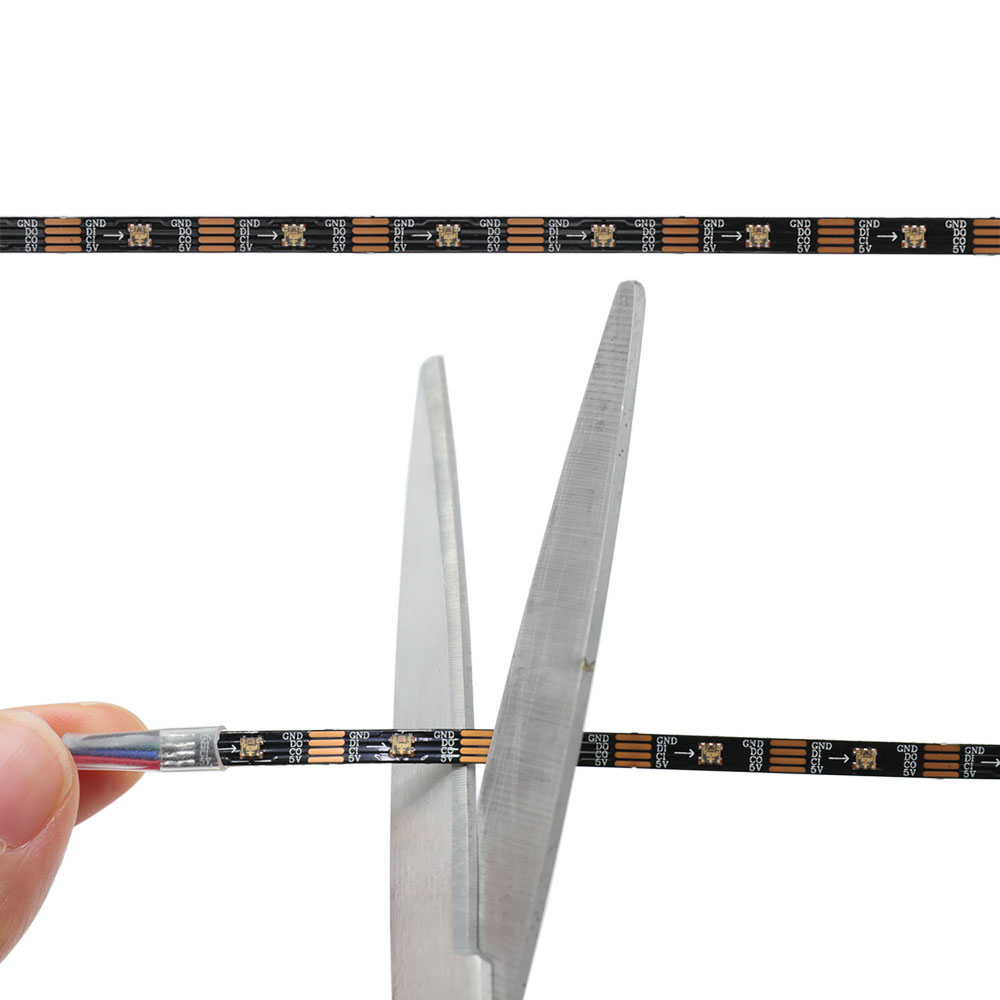

Cuttable: every LED is cuttable

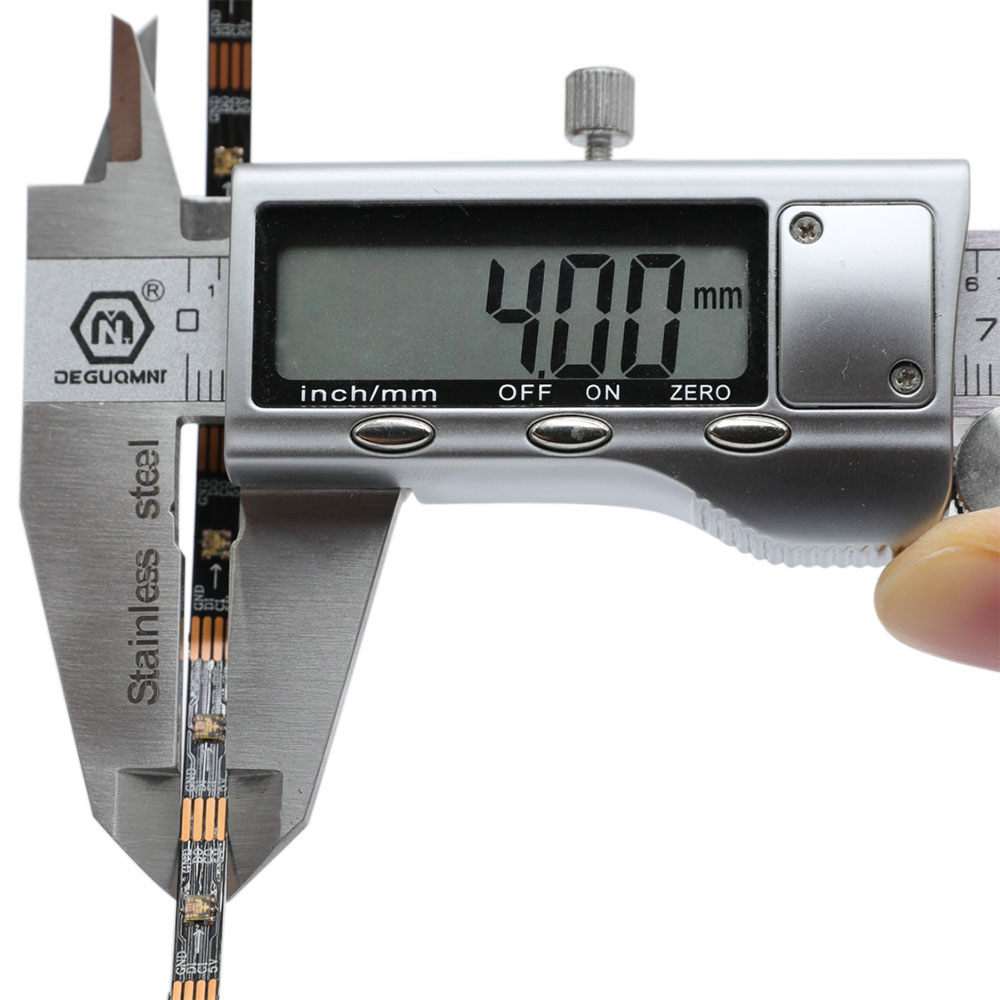

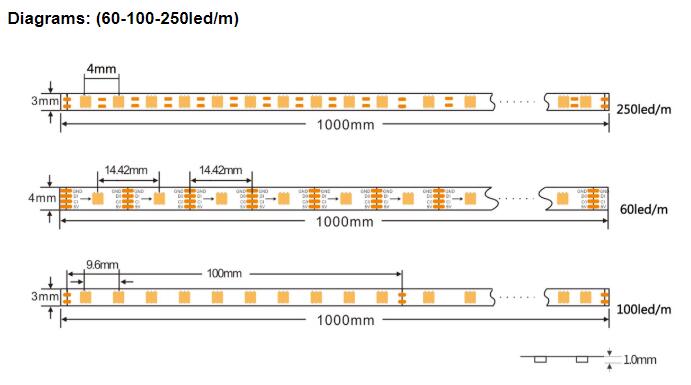

Dimensions: L100cm(39.37 in ) x W0.4cm(0.16 in ) x H0.1cm(0.04 in )
PCB color: BLACK Available
Protection rate: Non-waterproof IP20 or waterproof IP67

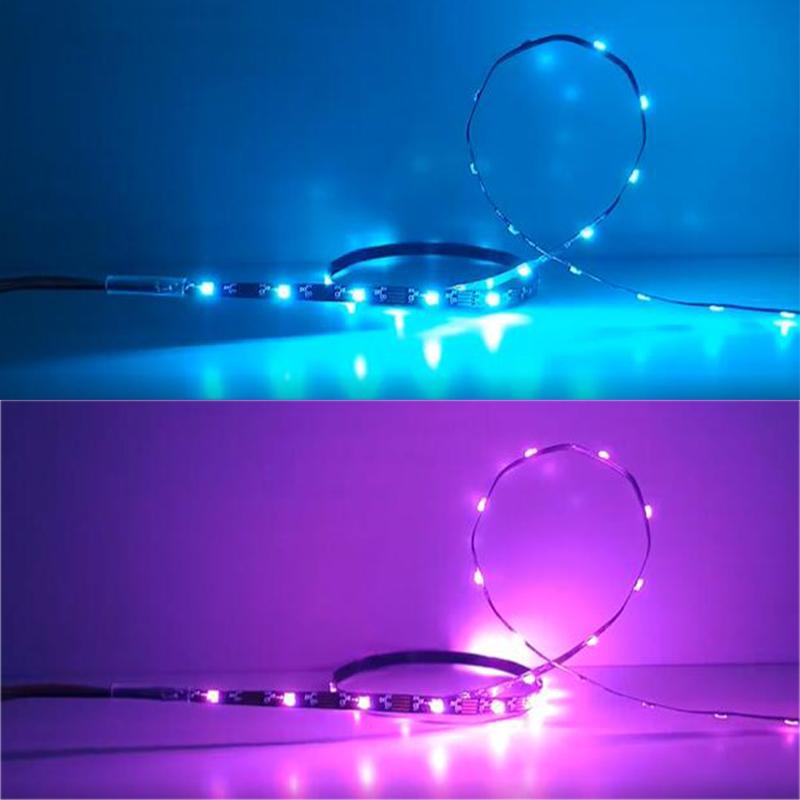

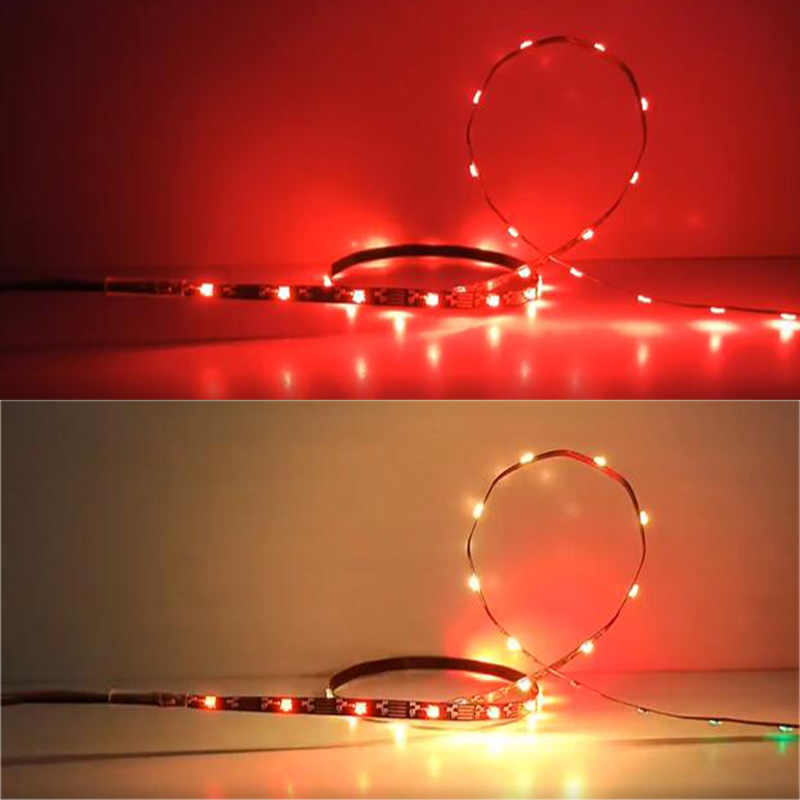

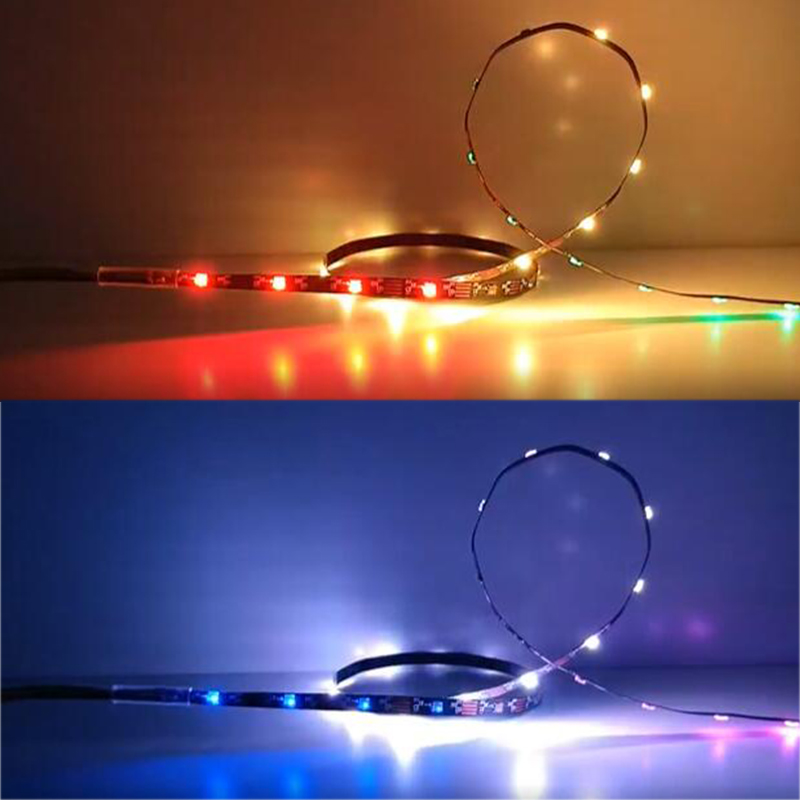

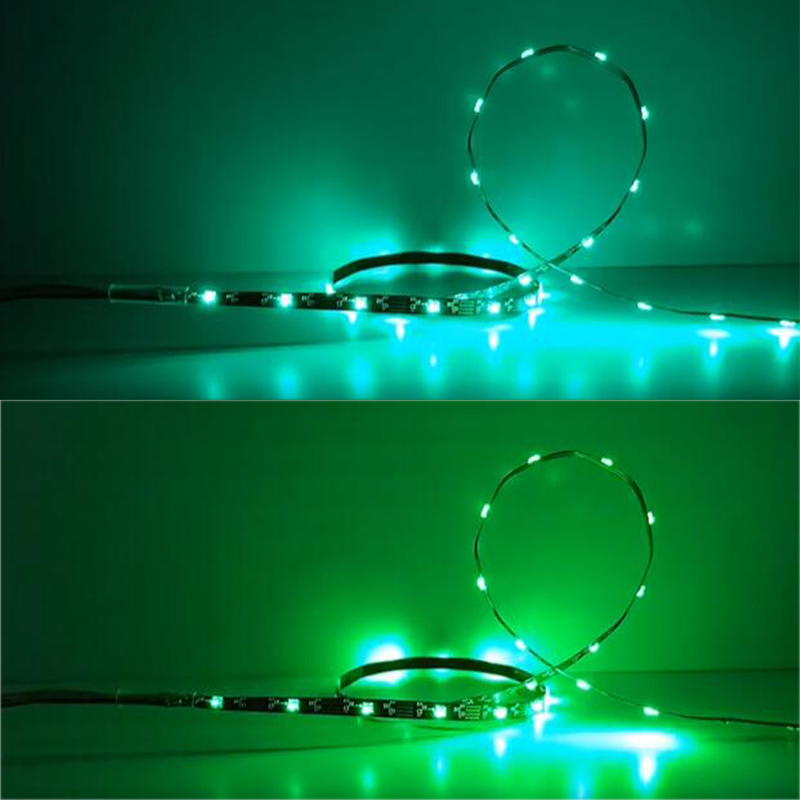

Colors: Full color RGB, dream color changing;
Grey scale: 256
Bits/color: 8-bits/color;total 24bit for RGB color
LED wavelengths: 630nm/530nm/475nm
Average Life (hrs): 50000Hours+

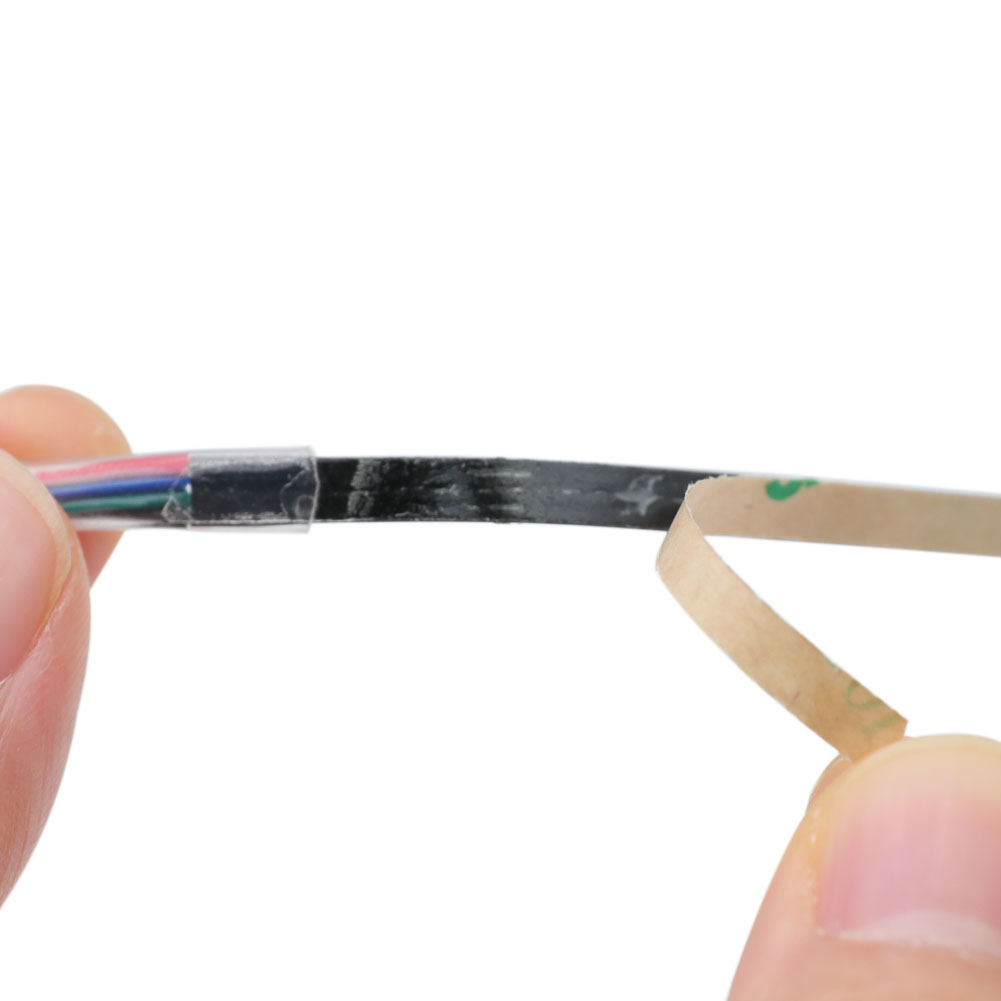

You can cut the strip every few inches, The back of the strip is fitted with a strong IP67/IP68 type which needs the
allowing you to freely design your project 3M tape, allowing you to peel and stick lights mounting brackets
without worrying about space requirements
to many different surfaces.
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Villa model lighting
