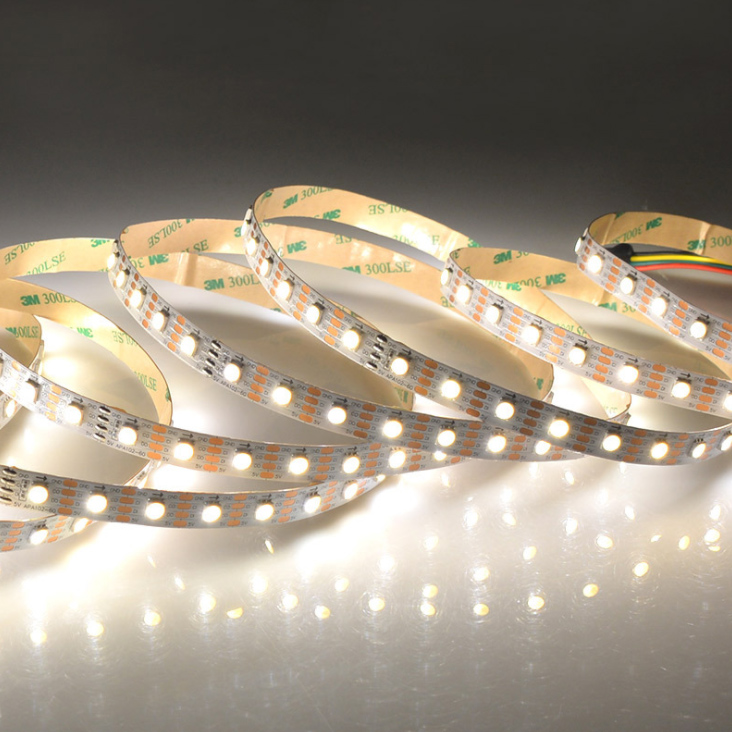

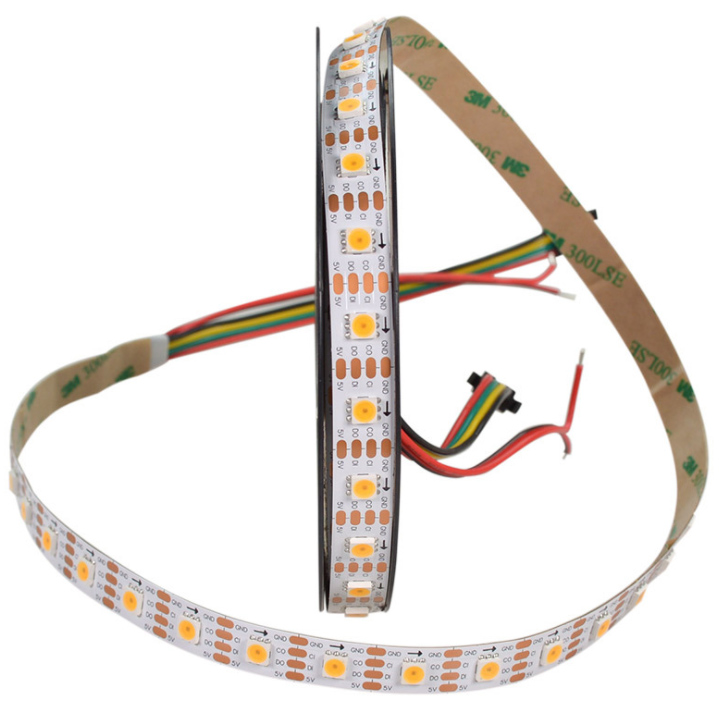

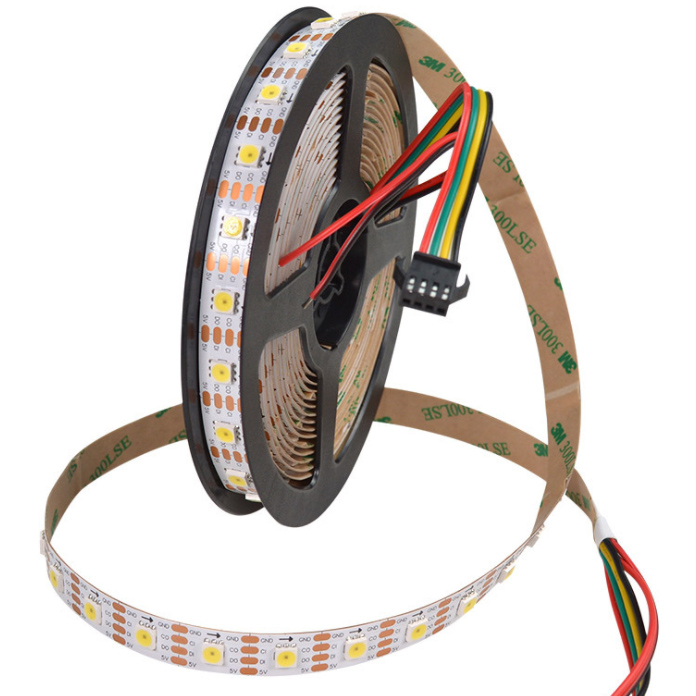

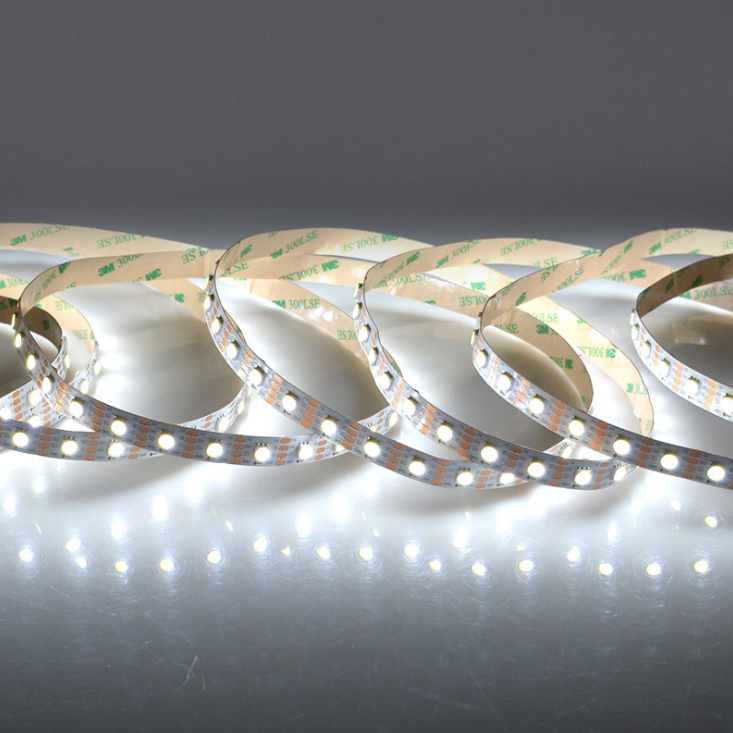

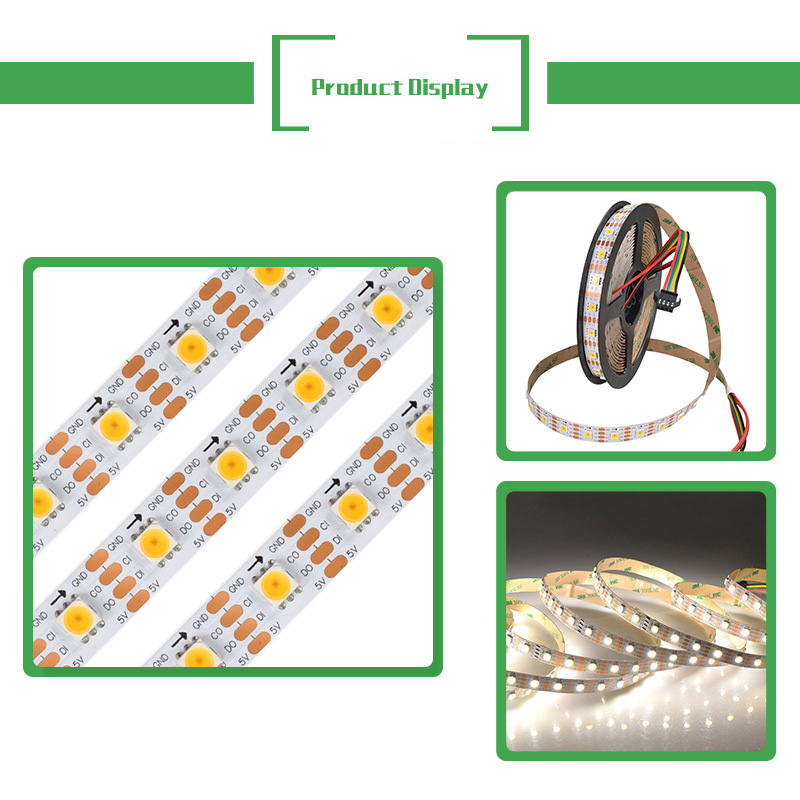

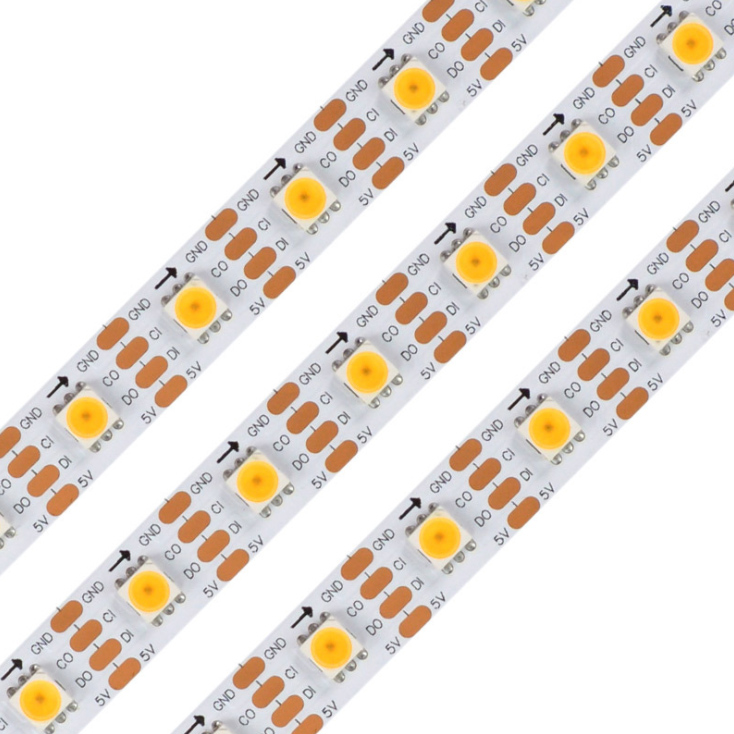

DC 5V HD107S SMD5050 built-in IC 60LEDS/M 3000k/6000k Optional Single point single control individually addressable White LED Strip Light,5M/Roll

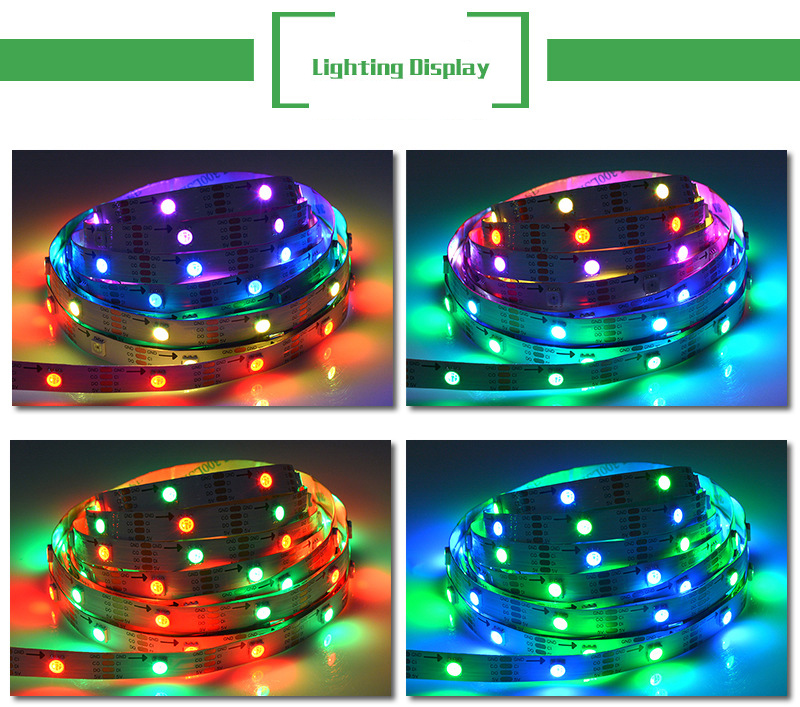

1. Control principle: One IC controls one LED to form a loop (a group), and the controller controls the circuit in the FPCB through the control IC to control the different effects of the LED light bar changes; such as flicker, chase, jump, Clockwise horse racing, counterclockwise horse racing, monochrome horse racing, color-changing horse racing, single chase from beginning to end, running water, simulated lightning, etc.; the change effect of this light bar is not limited to the multiple effects built in the current controller, and can be based on customer needs, Write by yourself; it can be displayed in the form of a screen, text, letters, pictures, animation, etc.
2. Environmental protection and safety: Use high-quality high-brightness SMD 5050 LED. It has the characteristics of low power consumption, low heat generation, no glare, and impact resistance. Low voltage DC 5V, high safety, and reliability.
3. Rich and diverse colors can be adjusted arbitrarily through the controller according to customer needs.
4. Long life span: the average life span is up to 50,000 hours.

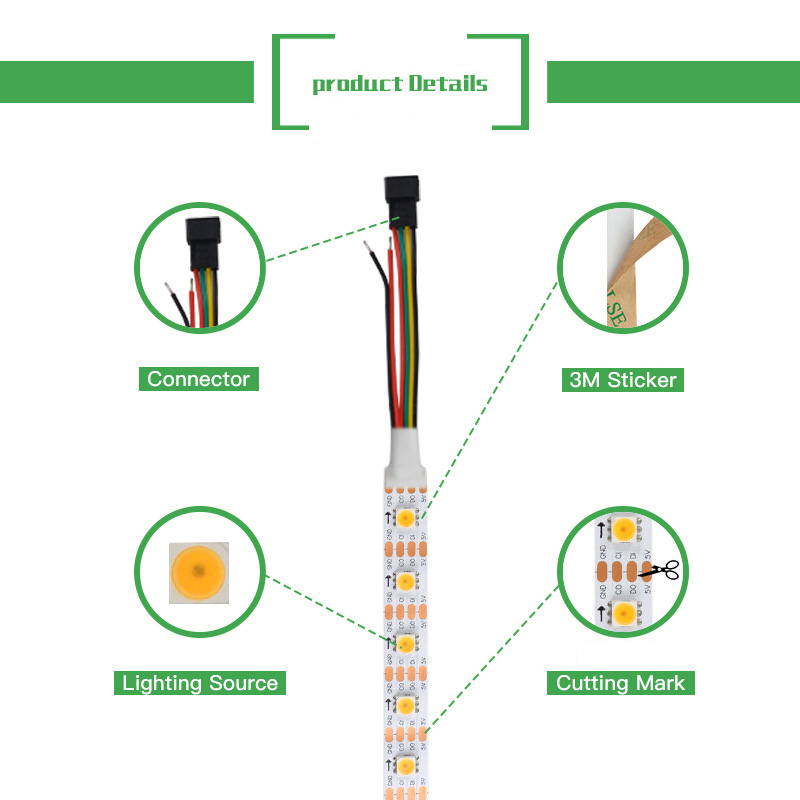

5. Cutting and welding are convenient and free: each group of LEDs can form a loop, which can be arbitrarily cut along the upper tangent and welded to meet the needs of various light strip lengths required by customers.
6. Soft: The soft FPCB board is used as the base plate, which can be docked, bent, cut, and fixed on the uneven surface at will.
7. Light and thin: suitable for installation in narrow spaces.
Standards and Certifications
Input voltage: DC5V (V)
LED quantity: 60 LEDs/m
Beam angle: 120 degrees
Power: 18W/M, 90W/Roll
Lifespan: 50000 (H)
Board Width: 12mm/0.47in
IP Rating: IP20
Certification: CE, ROHS
Color temperature: 3000/6000K (K)
board material: FPCB

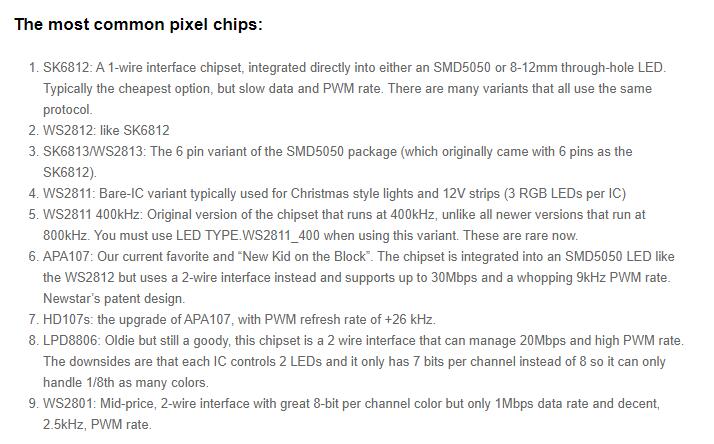

The difference between APA102, APA107, HD107s, and SK9822?
APA102: 20+ kHz PWM, transmission rate 20MHZ
APA107: 9 kHz PWM, transmission rate 30MHZ
HD107s: 26+ kHz PWM (the upgrade of APA107), transmission rate 40MHZ
SK9822: 4.7 kHz PWM, transmission rate 15MHZ
In conclusion, APA107/HD107s is one real product that can replace APA102.

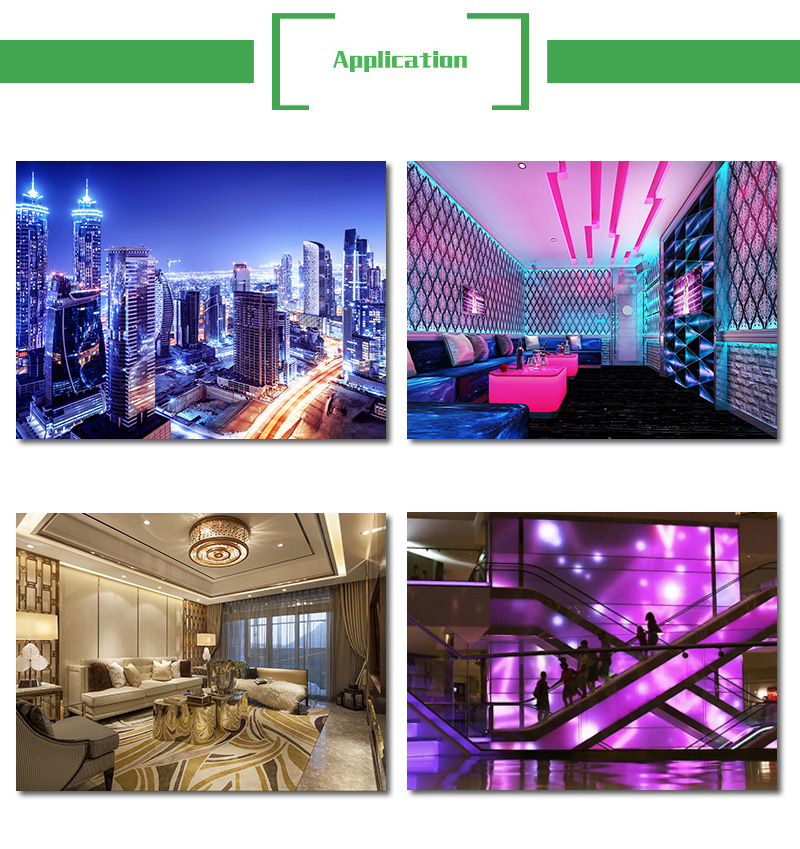

These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
