Product Information

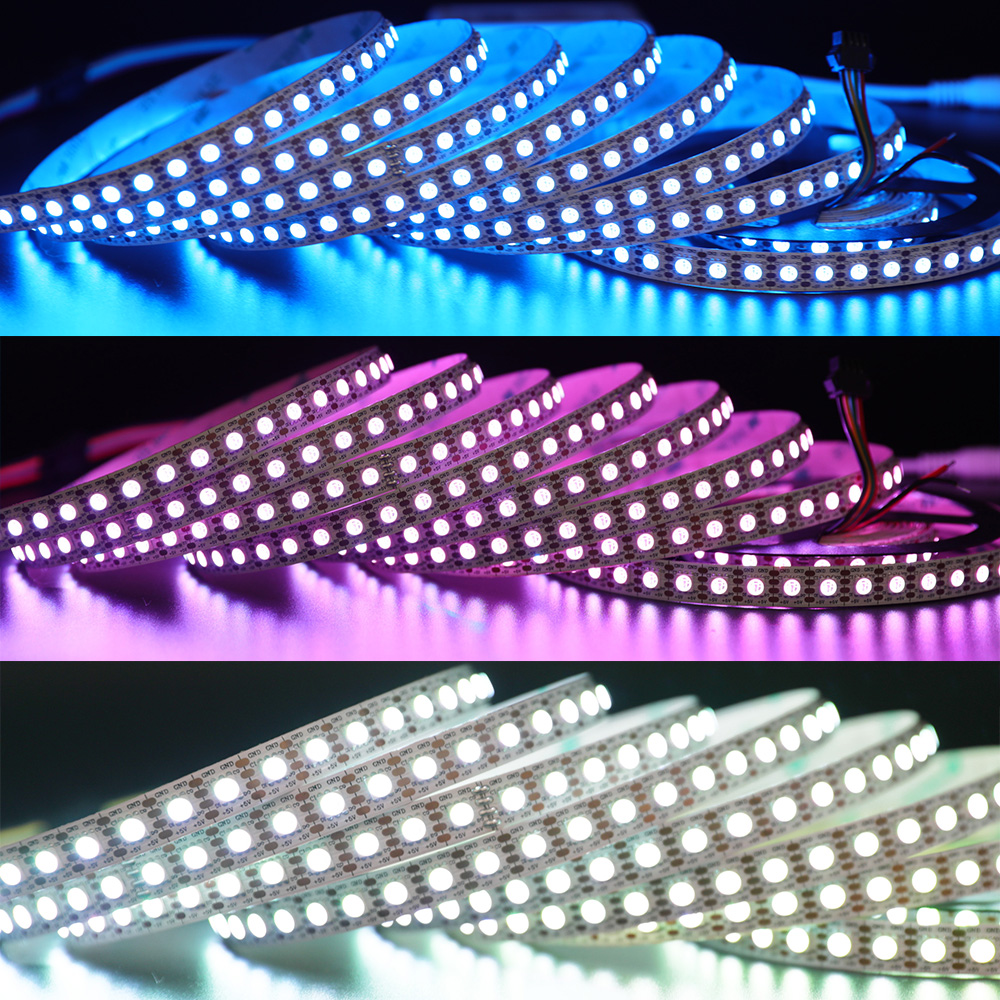

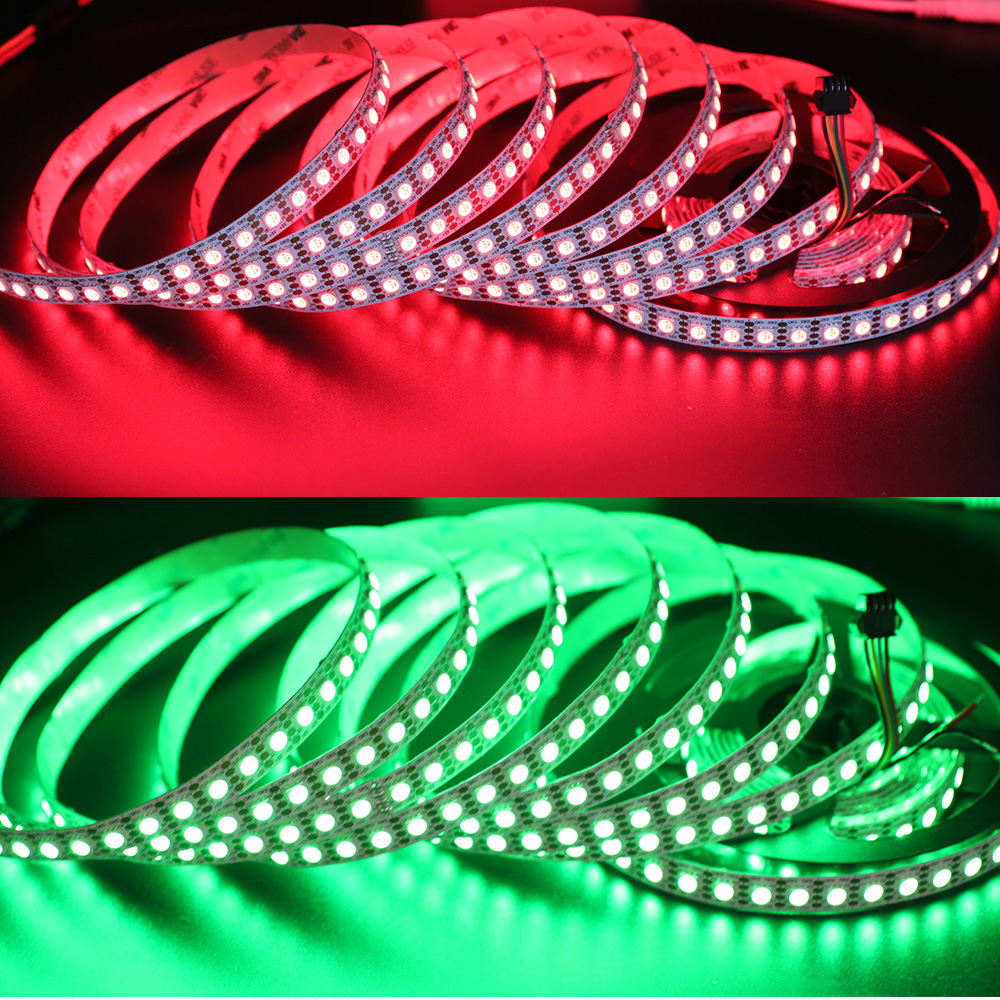

The control integrated circuit supports multiple color chasing effects, 8 bit(256 levels) color set,5bit(32 levels) brightness adjustment.
Absolutely individually addressable, each LED controlled by one IC and has its own RGB LED circuit.

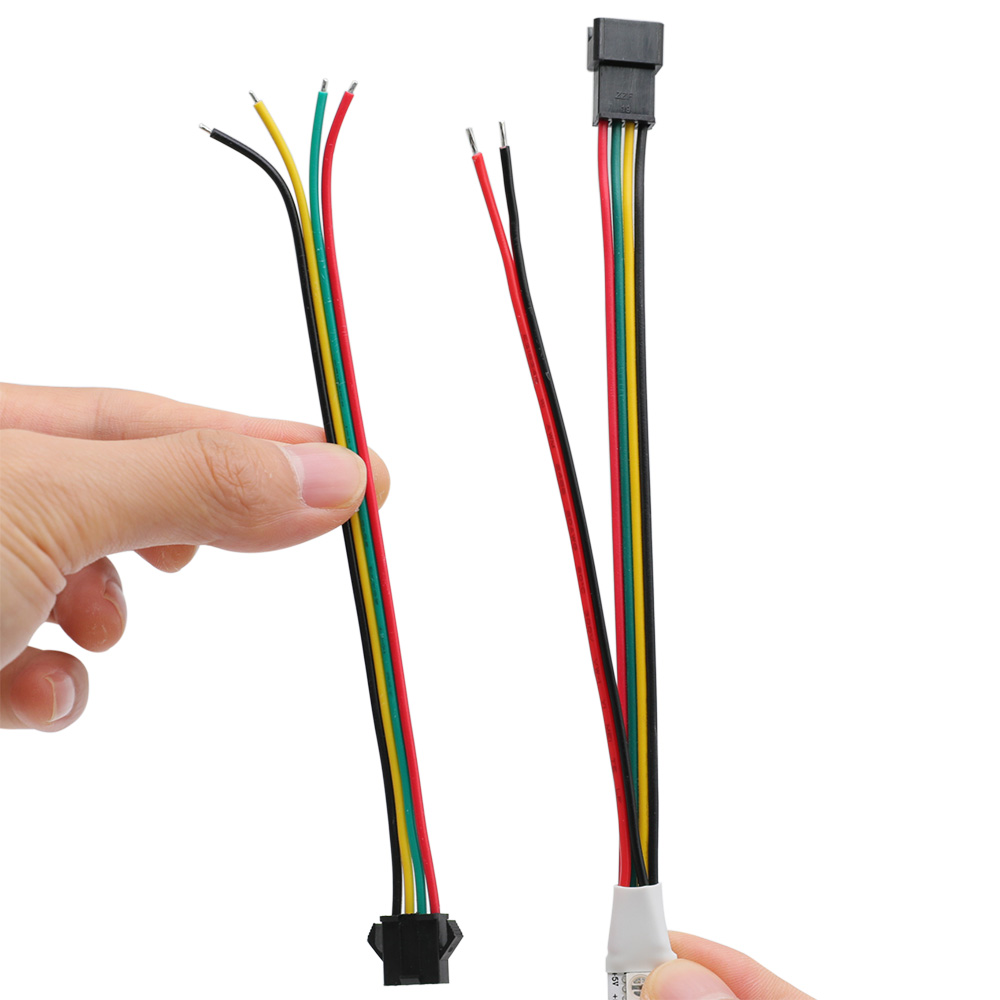

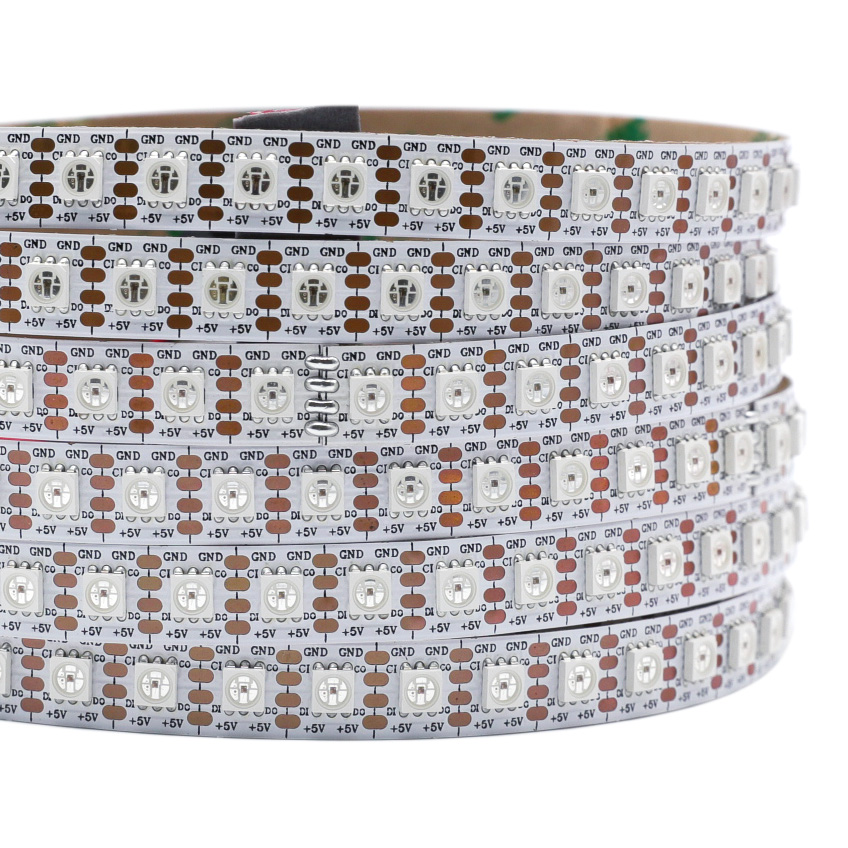

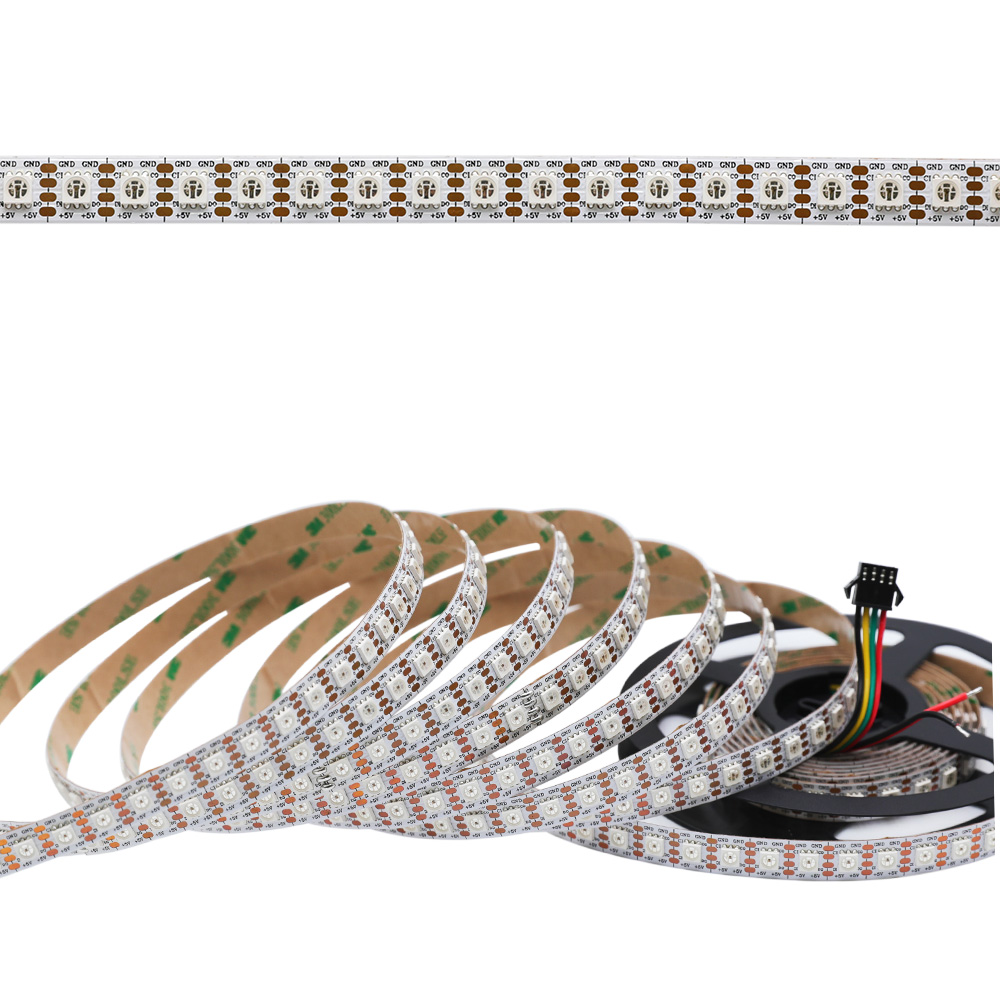

APA107/HD107S LED strips have 4 pins, Data, Clock, GND, V+, and they make the LED strips transmit faster. The transmit rate can be 30KHz, the refresh rate can be 26KHz.
CMOS process, DC5V low voltage, low consumption, safe and green, Synchronization of two-lane.
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
APA107 Datasheet Download
HD107S Datasheet Download
Standards and Certifications
Specifications
Input voltage: DC5V

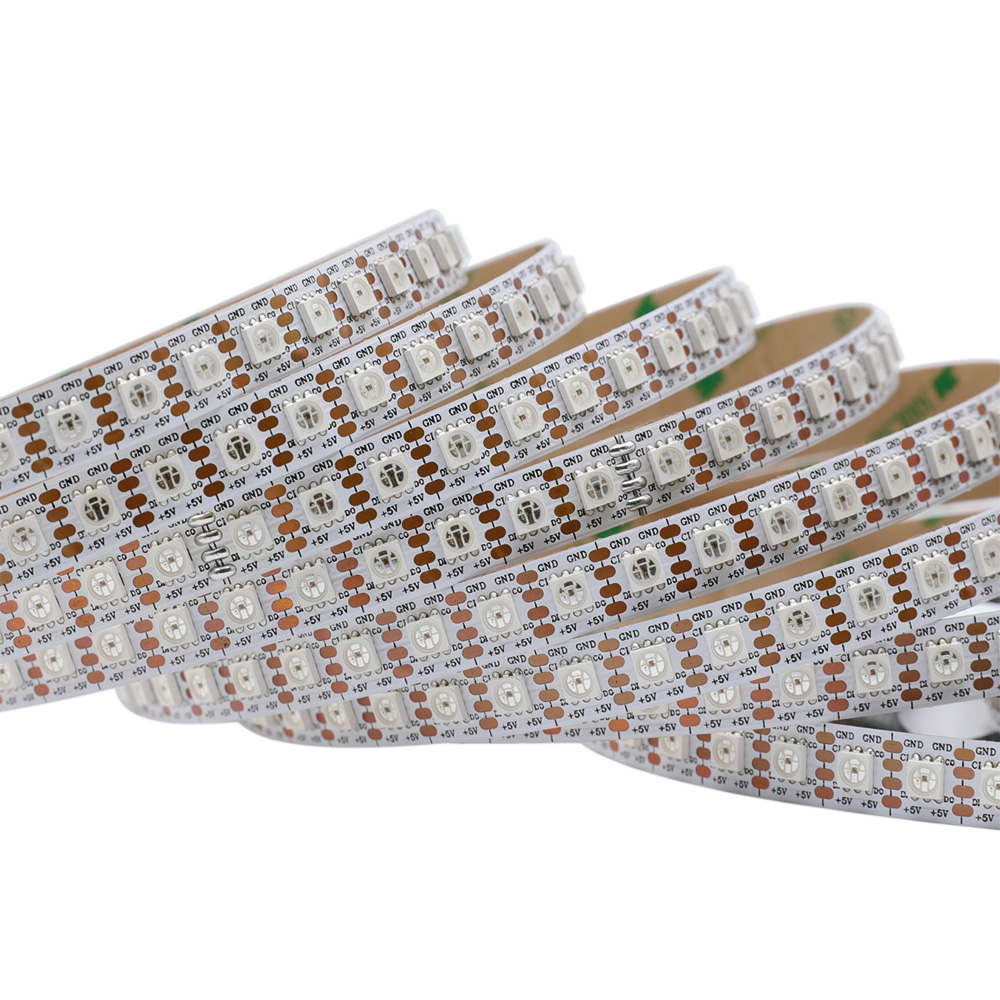

LED Chip Model: SMD5050
Power: 28.8watt/meter, 144watt/roll
IC Type: APA107/HD107S
Q'ty of LED: 96leds/meter, 480leds/roll, each LED is separately controlled
Q'ty of IC: 96IC/meter (1 IC drives 1 led chip)
Bits/color: 8-bits/color; 24bit for RGB

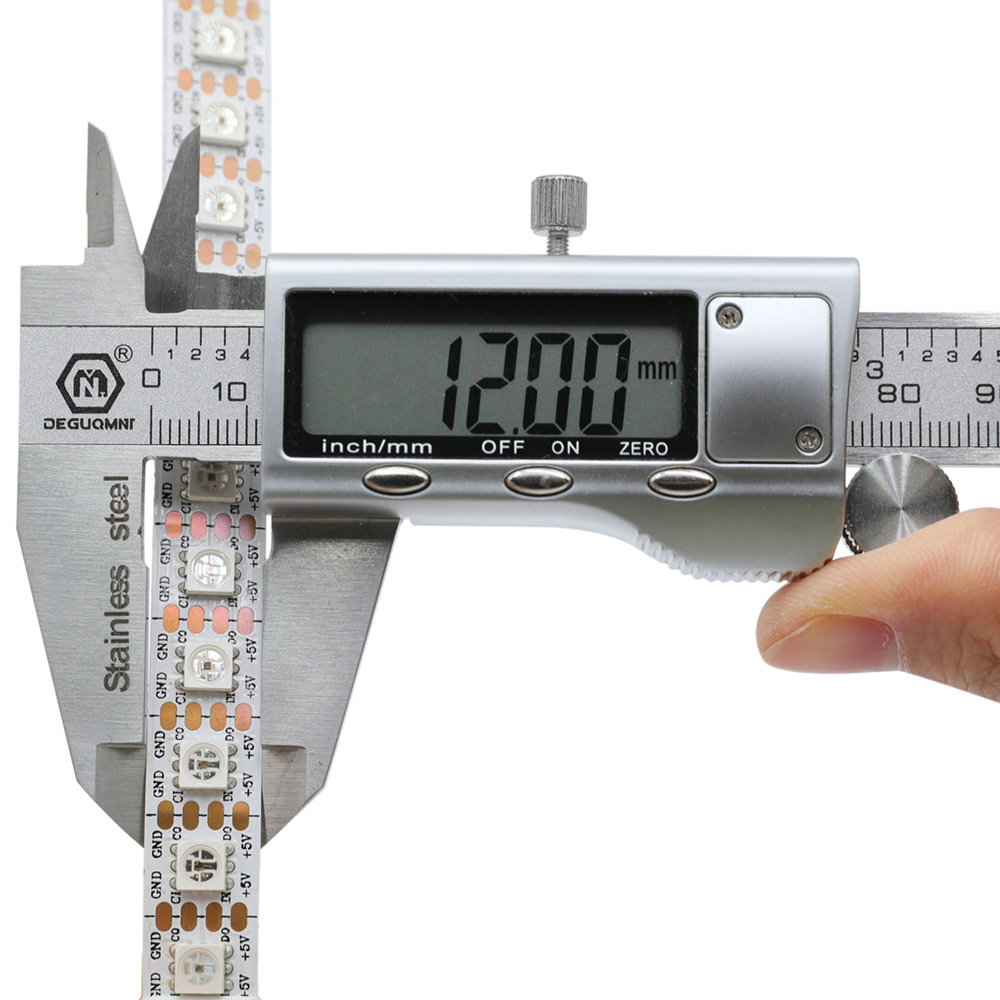

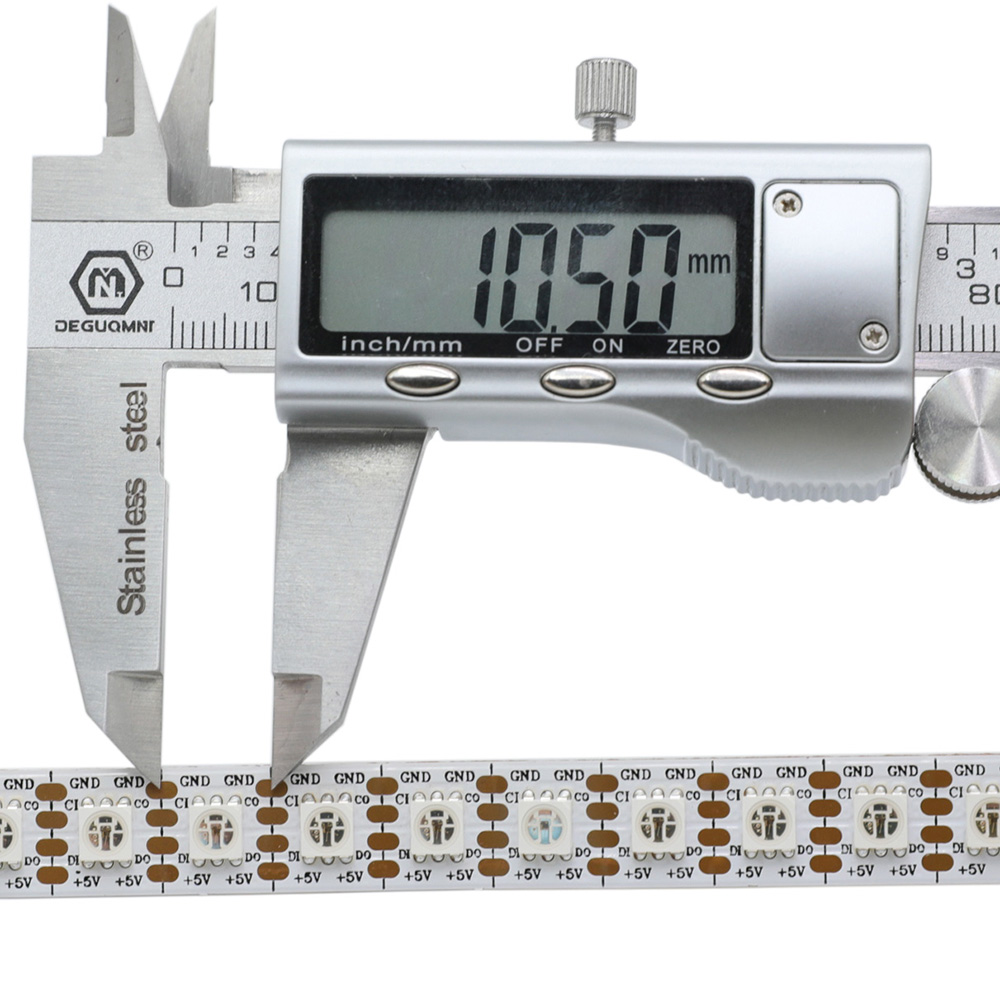

FPC size: Width: 12mm/0.47, High: 2mm/0.08in, Length: 5000mm/196.9in
Certification: CE,FCC,GS,SAA,RoHS,CCC
Transmit Rate: 30KHz
Refresh Rate: 26KHz
Color Temp(K): RGB
Grey scale: 256
FPC color: WHITE
Protection rate: NON-waterproof IP20; Waterproof IP65/ IP67

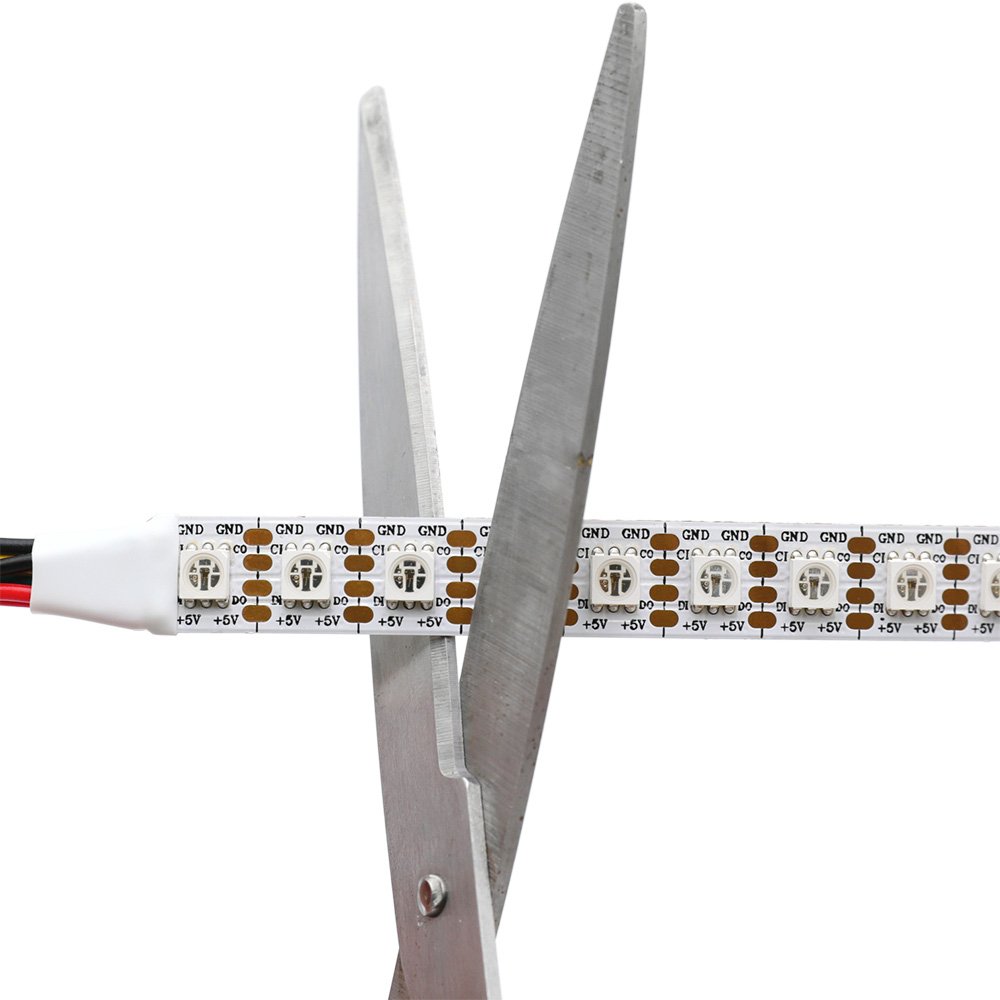

Cuttable: every LED is cuttable;

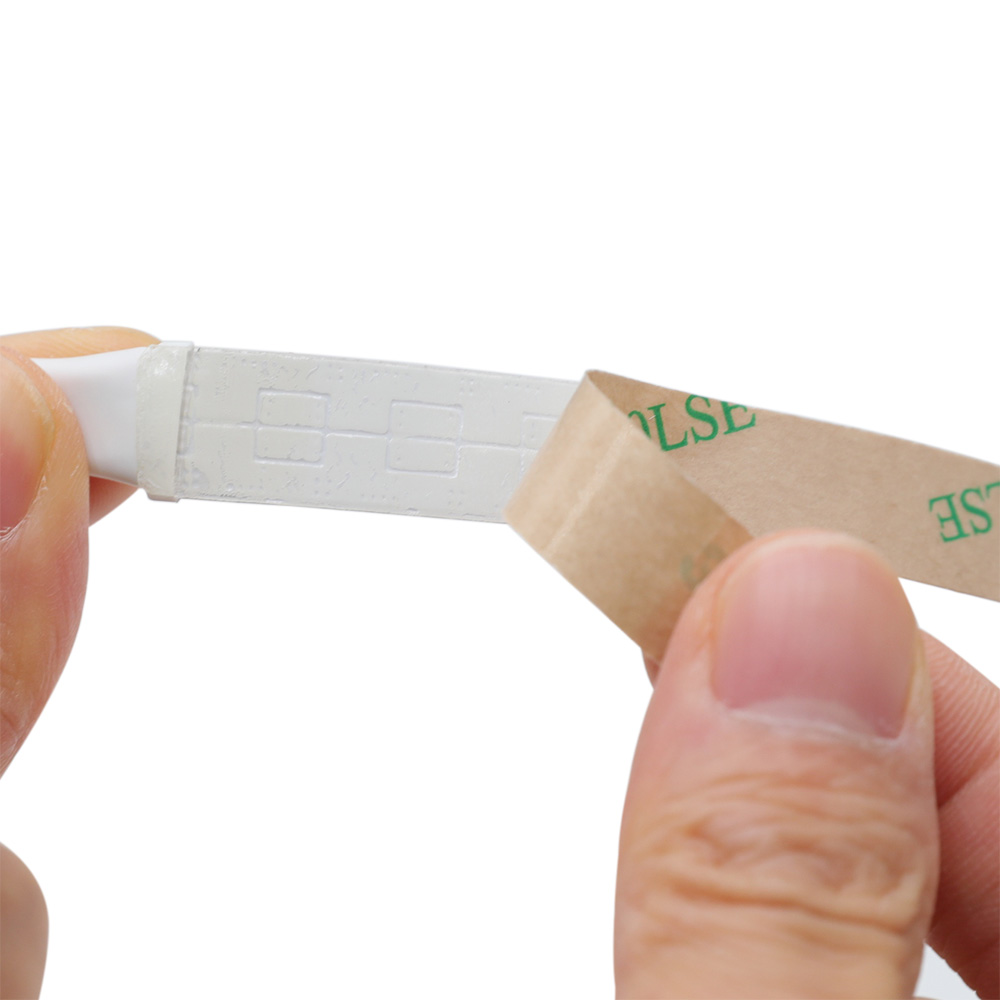

Package: 5meters/reel in anti-static bag;with adhensive tape on the back (only for IP20/IP65)
Average Life (hrs): 50000Hours+
The difference between APA102, APA107, HD107s, and SK9822?
APA102: 20+ kHz PWM, transmission rate 20MHZ
APA107: 9 kHz PWM, transmission rate 30MHZ
HD107s: 26+ kHz PWM (the upgrade of APA107), transmission rate 40MHZ
SK9822: 4.7 kHz PWM, transmission rate 15MHZ
In conclusion, APA107/HD107s is one real product that can replace APA102.
Applications
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Backlighting decoration
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with the plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with the plastic fastener, the top level of waterproof, For Outdoor);
