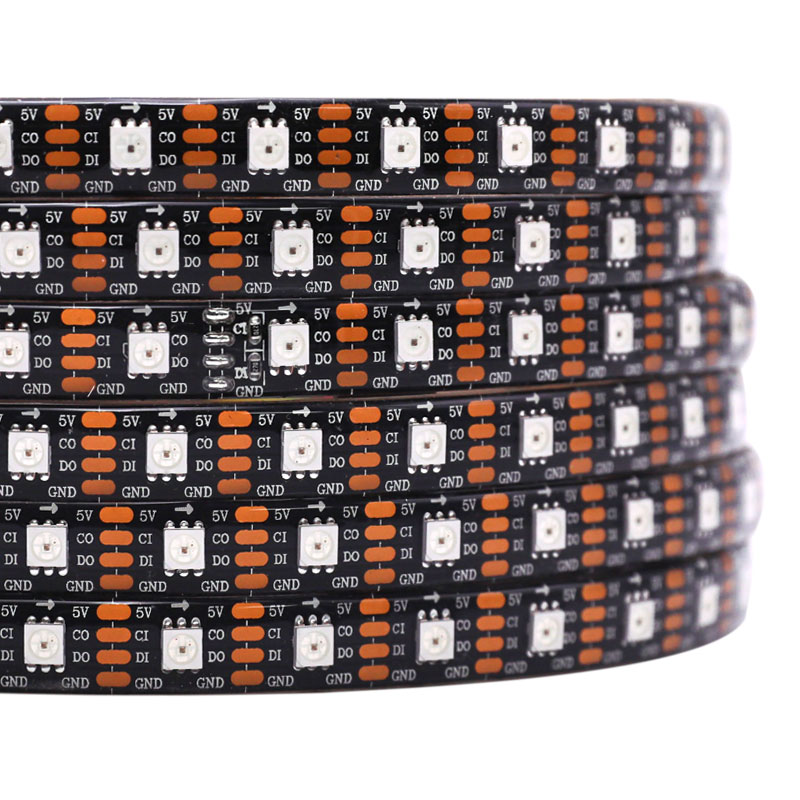

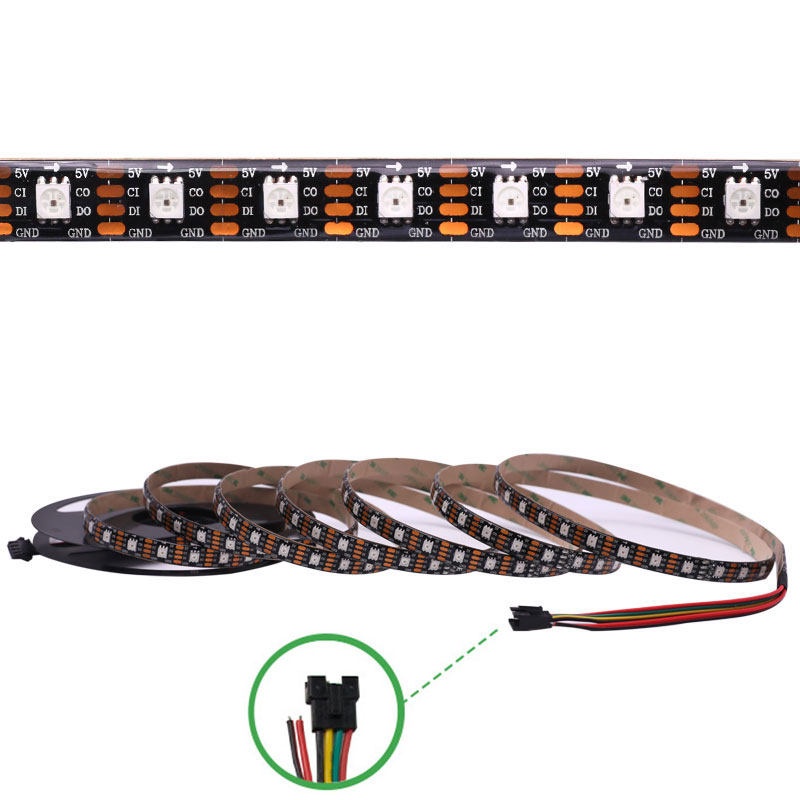

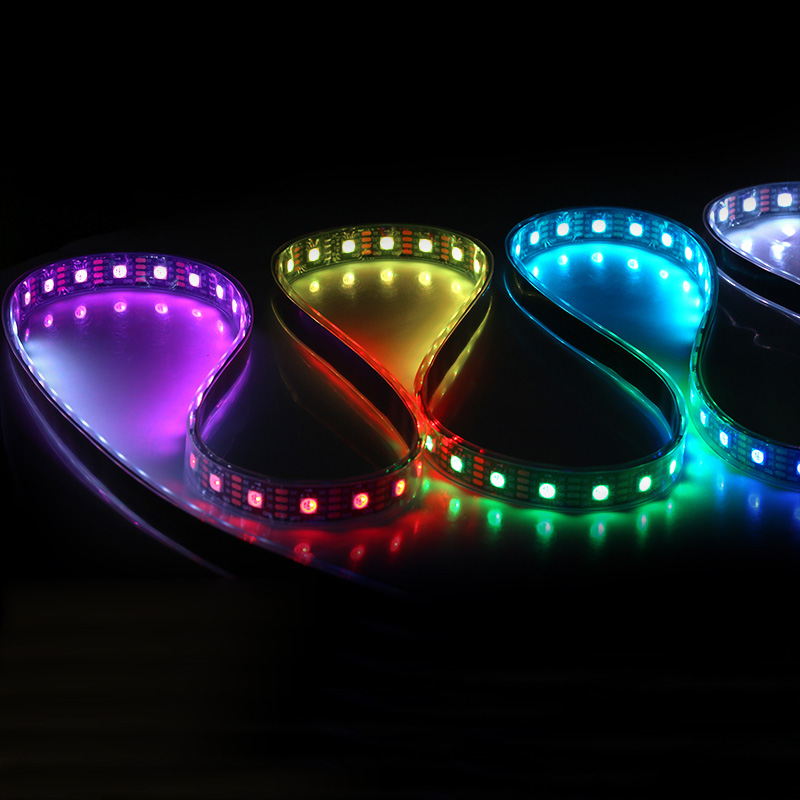

DC5V APA107/HD107S 60LEDs/m Individually Addressable Dream Color RGB LED Strip - The Fastest IC with High Bright LED Chips - 16.4Ft/Roll
Adopt high quality LED chips, high brightness, bigger beam angle, good at the color consistency, stable performance.
The APA107/HD107S IC is the fastest IC on the market now, the upgraded version of the APA102 IC, the LED strips can be the fastest to transmit and refresh the signal.
Individually addressable, every IC controls one LED, so every LED can be cut, you can get the length you need by cut the strips at the cutting place, and this won't damage other LEDs.
DC5V safe voltage, save energy, super bright, low consumption, low working temperature, environment friendly, and so on.
Small size, multi-color, no radiation, high shock resistance, is a new generation of green environmental protection high-tech products.
Light strips advantages
With plasticity, can be free to bend the shape — fixed in the uneven surface, easy to install (using the 3M self-adhesive) and other advantages;
With waterproof, in case of high temperature and low temperature does not change color, low voltage long life, and other advantages;
With bright colors and soft light (1LED lights can be composed of a loop — every 1 light can be cut to use), energy saving and environmental protection and other advantages are the ideal replacement of neon products (than the neon energy saving 70%), It is decorative contours. Making a variety of modeling the ideal lighting.
Standards and Certifications
Input voltage: DC5V
LED Chip Model: SMD5050
Power: 18watt/meter, 90watt/roll
IC Type: APA107/HD107S

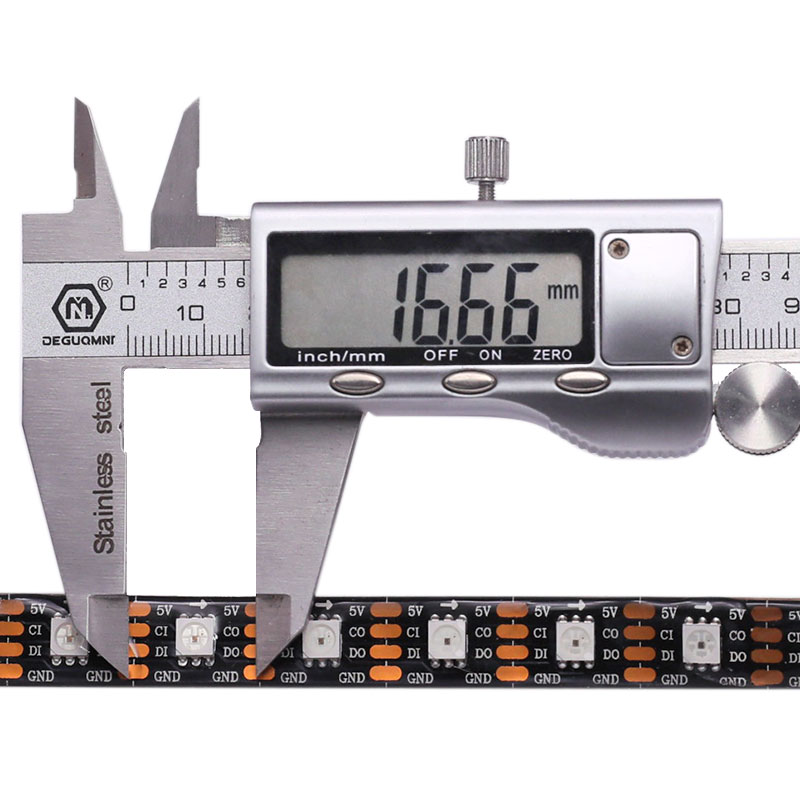

Q'ty of LED: 60leds/meter, 300leds/roll, each LED is separately controlled
Q'ty of IC: 60IC/meter (1 IC drives 1 led chip)
Bits/color: 8-bits/color; 24bit for RGB

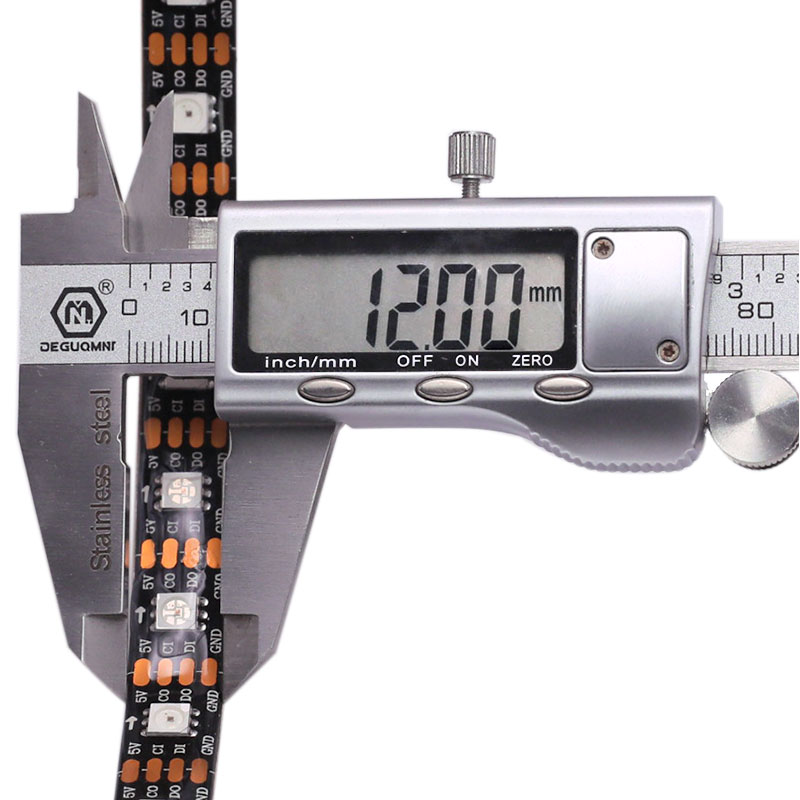

FPC size: Width: 10mm, High: 3mm;
Transmit Rate: 27KHz
Refresh Rate: 30KHz
Color Temp(K): RGB
Grey scale: 256

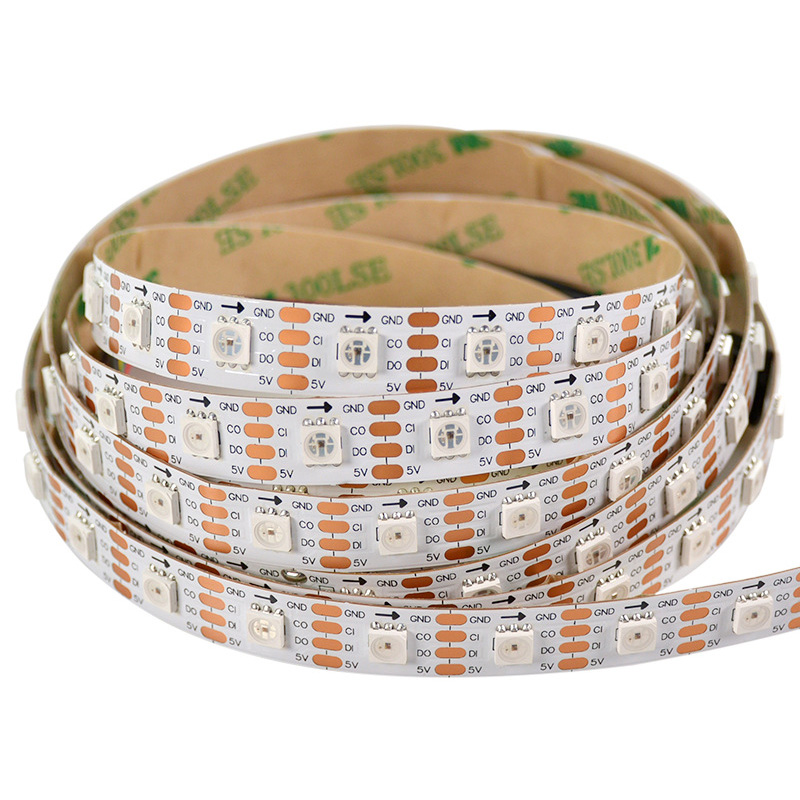

FPC color: WHITE /BLACK PCB
Protection rate: IP20 non-waterproof; IP65 Waterproof in silicon coating; IP67 Waterproof in silicon tube;

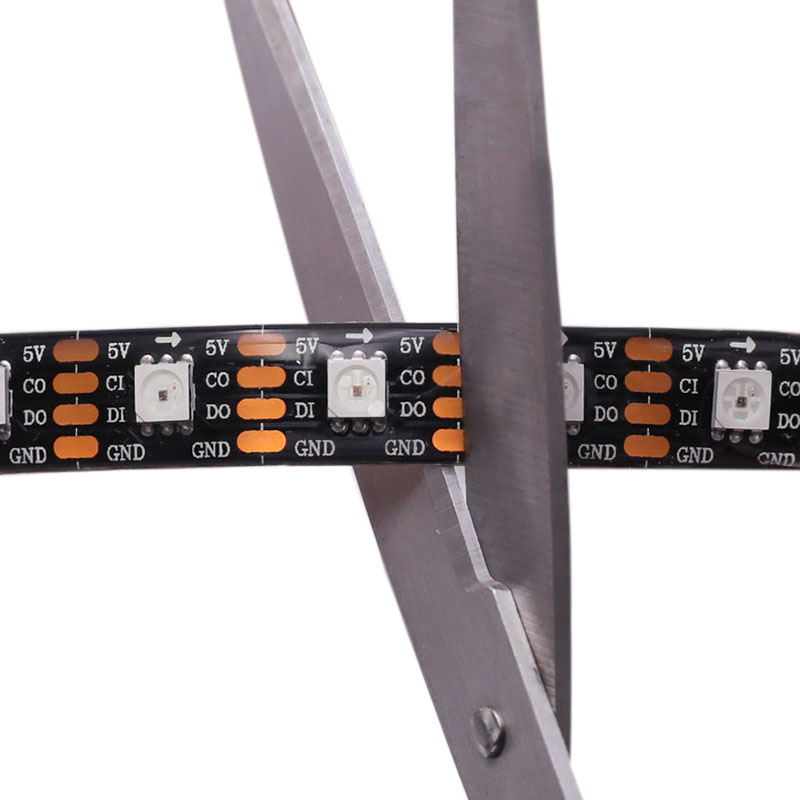

Cuttable: every LED is cuttable;

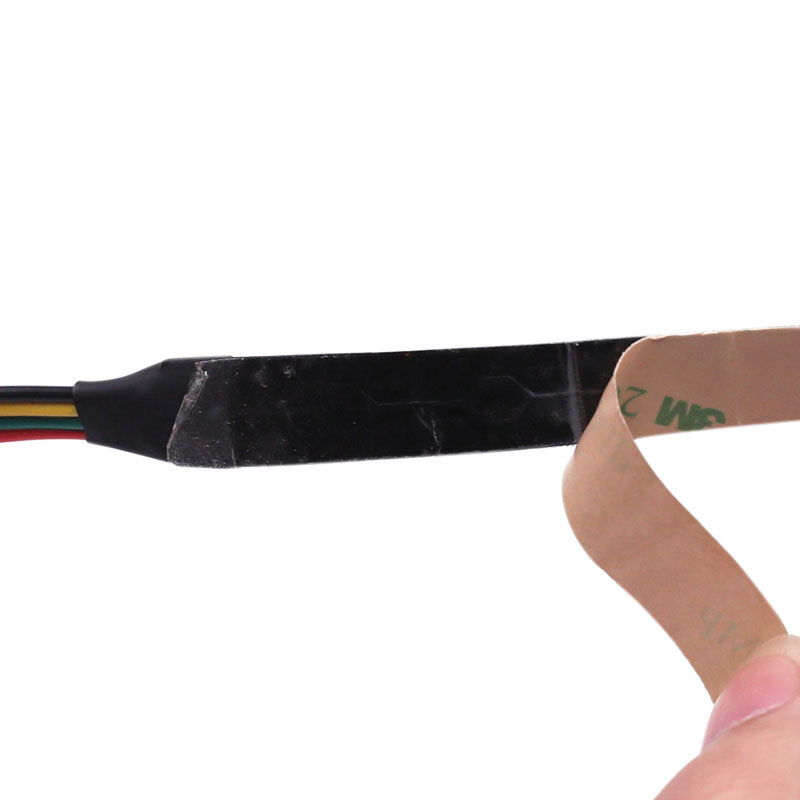

Package: 5meters/reel in anti-static bag;with adhensive tape on the back (only for IP20/IP65)
Average Life (hrs): 50000Hours+
The difference between APA102, APA107, HD107s, and SK9822?
APA102: 20+ kHz PWM, transmission rate 20MHZ
APA107: 9 kHz PWM, transmission rate 30MHZ
HD107s: 26+ kHz PWM (the upgrade of APA107), transmission rate 40MHZ
SK9822: 4.7 kHz PWM, transmission rate 15MHZ
In conclusion, APA107/HD107s is one real product that can replace APA102.
These digital Addressable LED Strips are Applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
LED programmable digital screen
Hotels decoration lighting
Concealed lighting, Cove decoration
led wall, advertising board
Outdoor advertising signs,
Hotel, KTV, bars,
Wedding party lighting,
These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!
