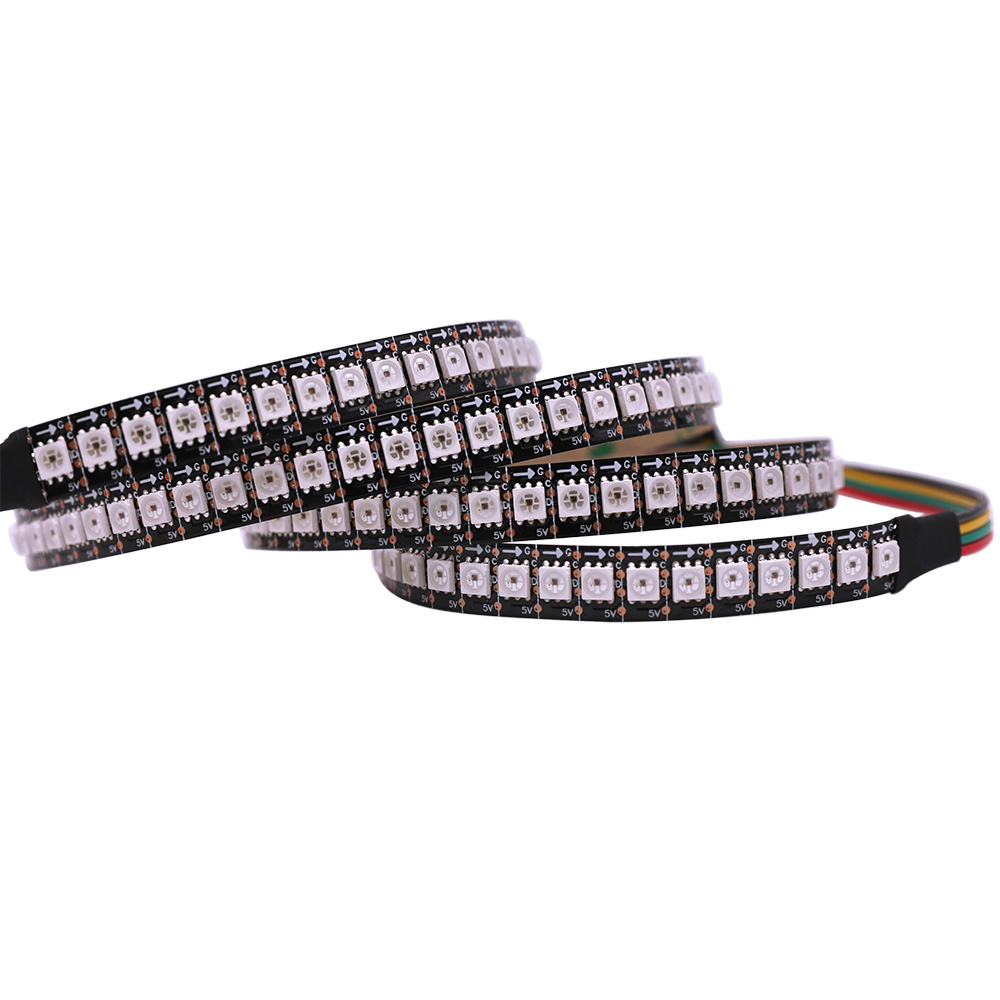

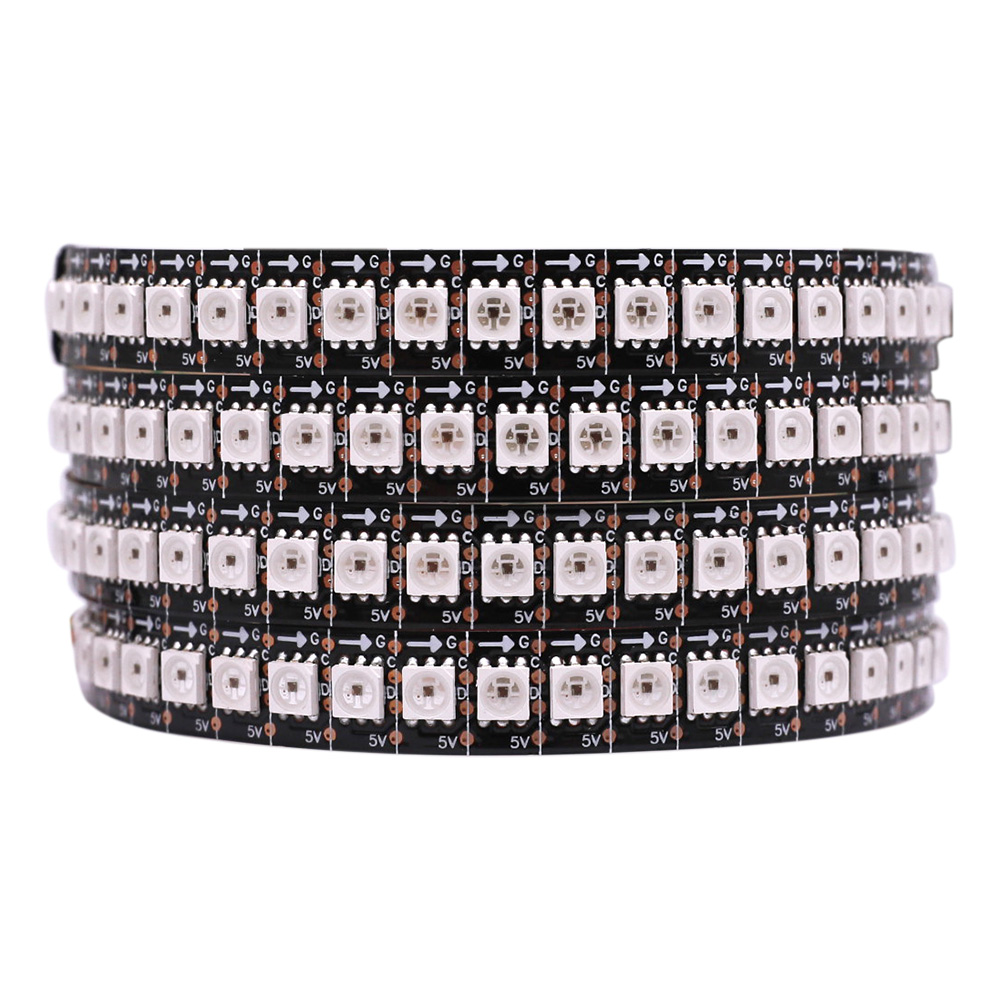

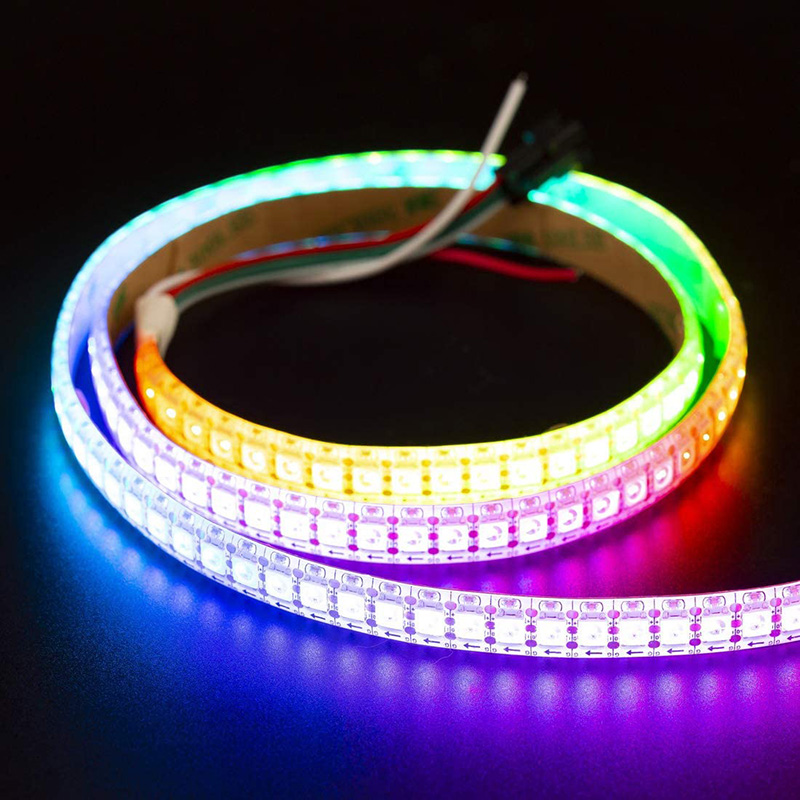

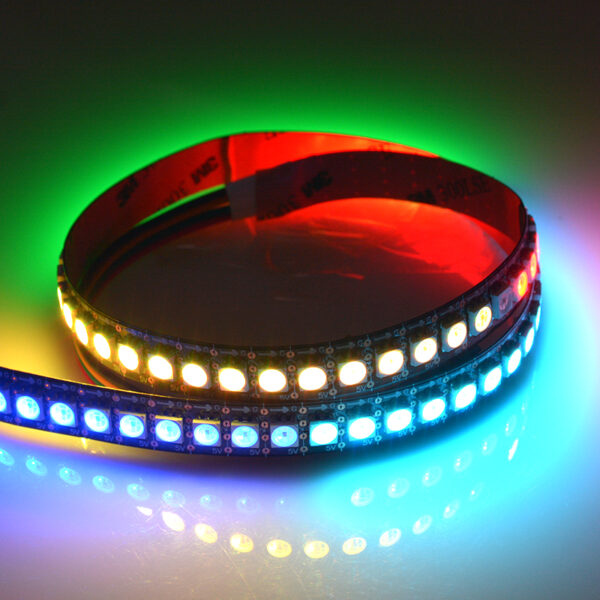

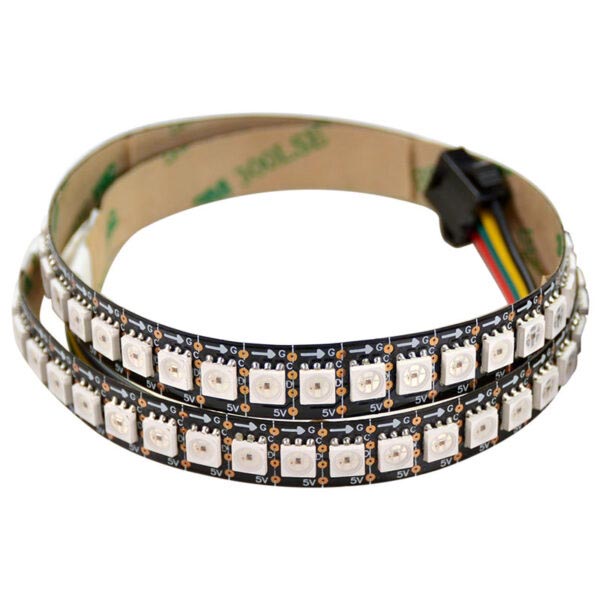

Individually Addressable DC5V HD108 Pixel LED RGB Color Changing LED Strip Lights
►What is HD108 digital addressable LED strip light?
HD108 digital RGB full color changing LED strip is the upgraded version of HD107s LED light strip, which integrates R/G/B IC, output 8 bit(256 level) lighting color set, 5bit(32 levels) brightness adjustment, 256 greyscale adjustments.
HD108 LED adopts CMOS process, positive or negative output 16 million color chasing lighting effect, DC5V low voltage input, low consumption, built-in constant current circuit, and RC oscillator; internal integrated current gain control module can also be REXT external resistor to adjust the required current, each output channel can output 16 (65536 level) gray adjustable linear current; using two-wire output, DATA data and synchronous CLK signal, suitable for LED bar lighting, KTV lighting.
Compared with APA102/SK9822 LED strip lights, with bigger beam angle, lower voltage drop, and higher bright output. The protocol of the HD108 digital LED strip is the same as the APA102 LED strip light.
Output two types of signals, data signal and clock signal; PWM refresh rate up to 27kH; max transmission speed up to 40M bps, HD108 pixel LED strip lights have the fastest transmission speed and refresh speed in all of the addressable LED strip lights.
►The difference between APA102, APA107, HD107s, HD108, and SK9822?
APA102: 20+ kHz PWM, transmission rate 20MHZ
APA107: 9 kHz PWM, transmission rate 30MHZ
HD107s: 26+ kHz PWM (the upgrade of APA107), transmission rate 40MHZ
HD108: 27+ kHz PWM, transmission rate 40MHZ (fastest IC), lower voltage drop
SK9822: 4.7 kHz PWM, transmission rate 15MHZ
These digital addressable LED strip lights are applicable to people who would like to pursue fashion and romance, for individual creativity and the new apartment decoration, as its soft, light and thin features very suitable for DIY personal space.
• DC5V safety voltage input
• Top serial cascade constant current HD108 IC
• Individually addressable LED
• Addressable RGB dream color SMD5050 LED
• Output 16 million color chasing lighting effect
• 4 channels drive control circuit and light-emitting circuit
• High brightness 144 LEDs per meter
• Compatiable with the APA102 IC protocol
• IP65, IP67, IP68 waterporof available

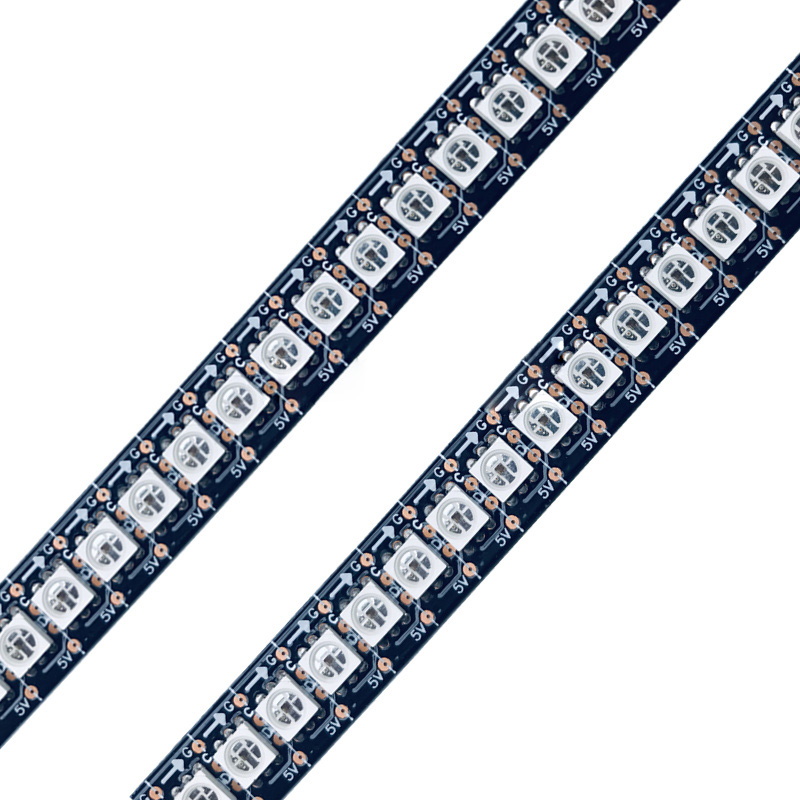

• White / Black PCB
• Lenght customizable
►LED programmable digital screen
►Hotels, KTVs, bars decoration lighting
►Everything you need to know before you buying led strip lights
Standards and Certifications
|LED Chip||HD108 IC|
|LED Color||Addressable Full Color RGB|

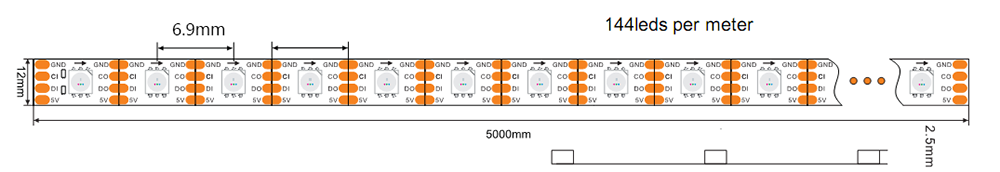

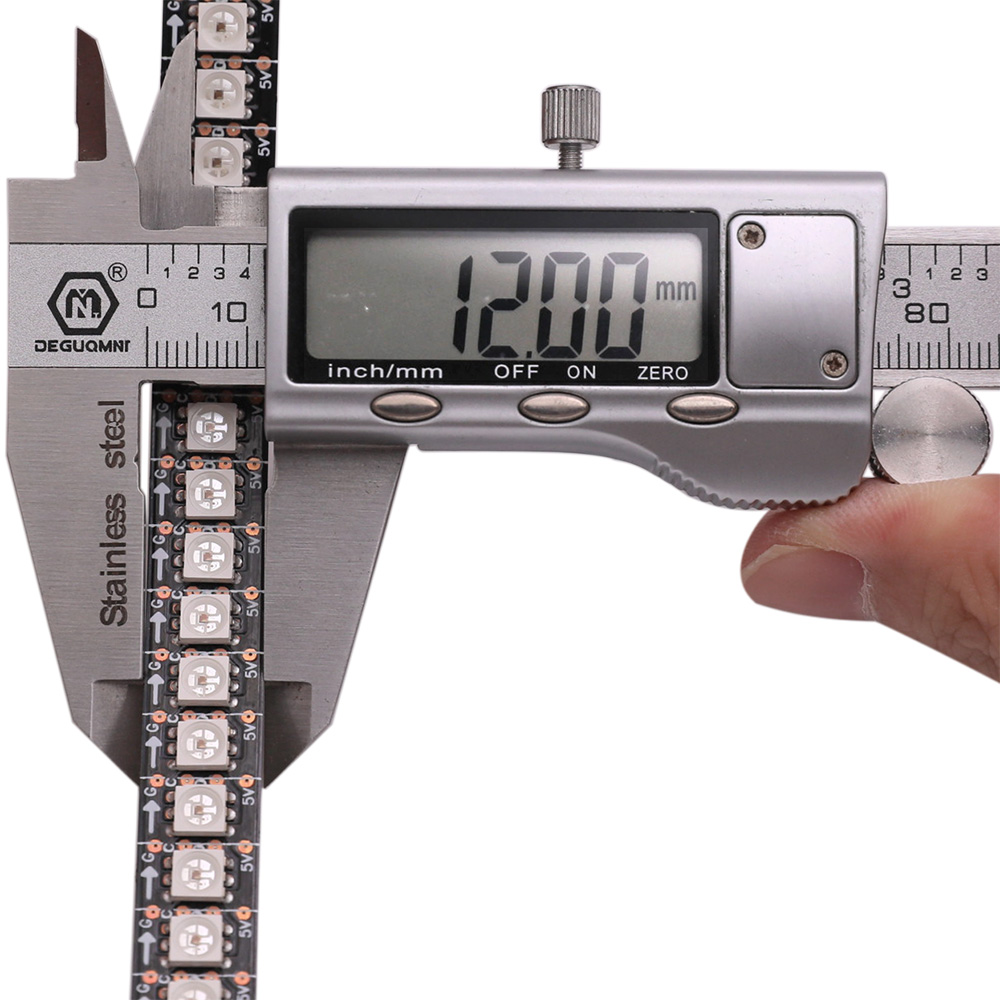

|PCB Width||12mm / 0.47in|
|LED Quantity||144 LEDs/m|
|Waterproof Rating||IP20 non-waterproof; IP65/IP67/IP68 waterproof|

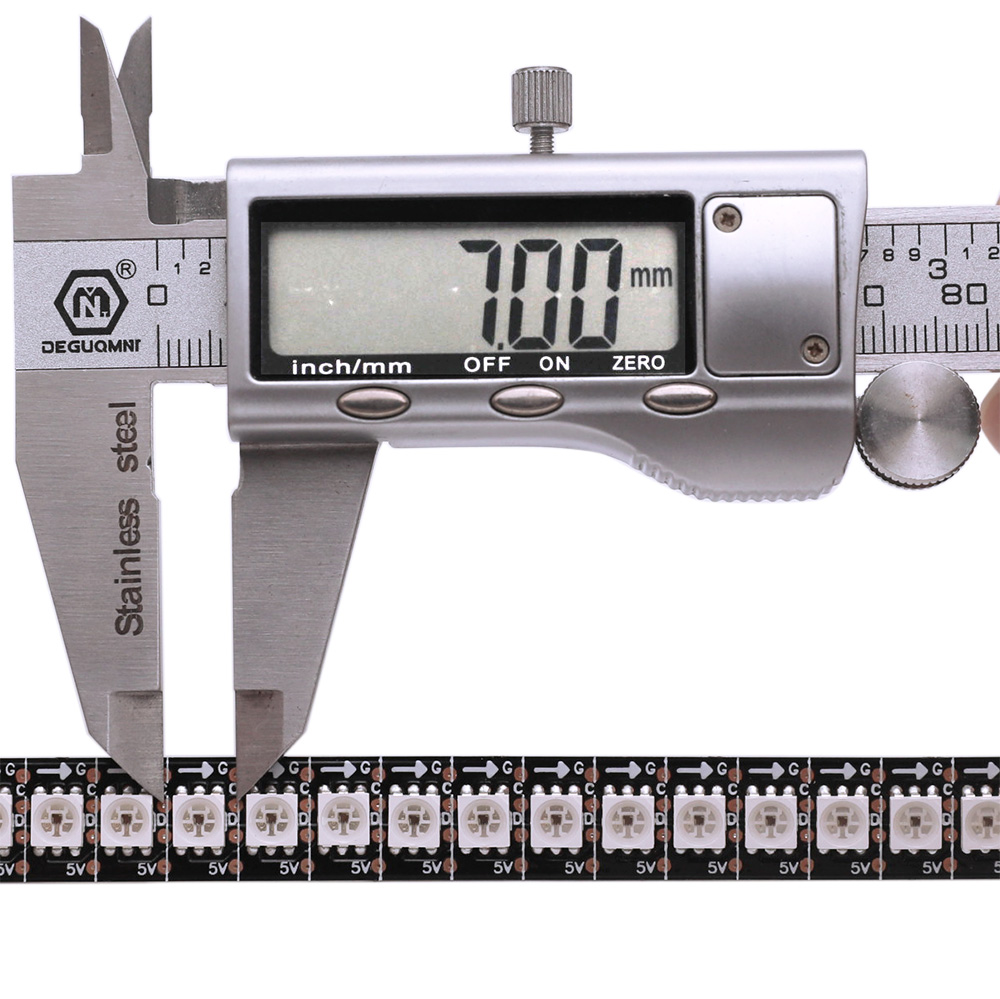

|Cut Length||6.9mm (Individually addressable pixel LED)|
|PCB color||White / Black|
|Color Rendering Index||Ra＞80|
|Length||1m / 3.28ft|
|PWM Refresh Rate||27KHz|
|Transmission Speed||40M bps|
* The blue font can be clicked to jump to related content articles.
If you choose the LED strip light kit, you will get the following addressable LED light controller and LED power supply, we will send you an extra AC Plug:
LED power supply
For outdoor use, please choose the IP67 waterpoof LED fast connectors option.
Please note: We will send you 5m addressable LED tape light by default, over 5m, we recommend that you need to power at two sides, you can learn the following how to wire addressable LED strip light.
And if you don't want this LED controller, you can browse our addressable dream color controller products to choose the one you preferred.

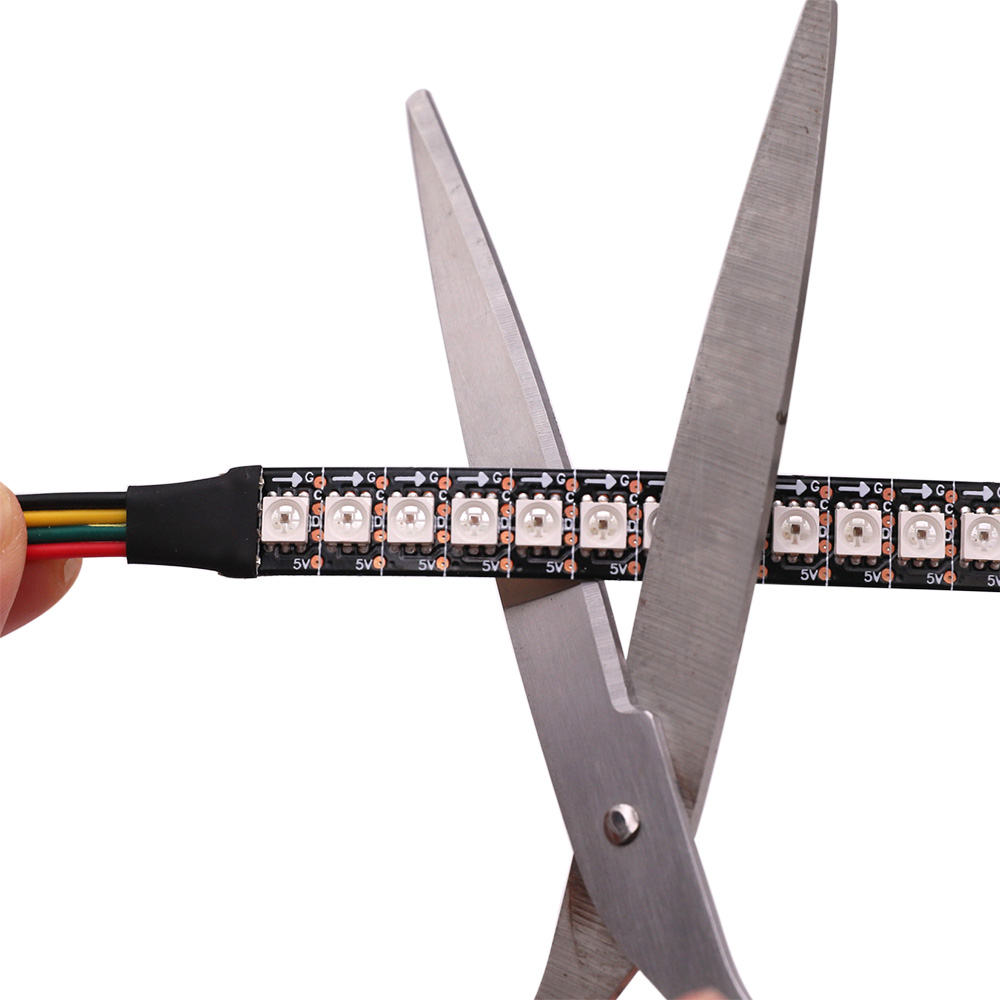

You can cut the HD108 addressable pixel LED light strip every few inches(individually LED), allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.

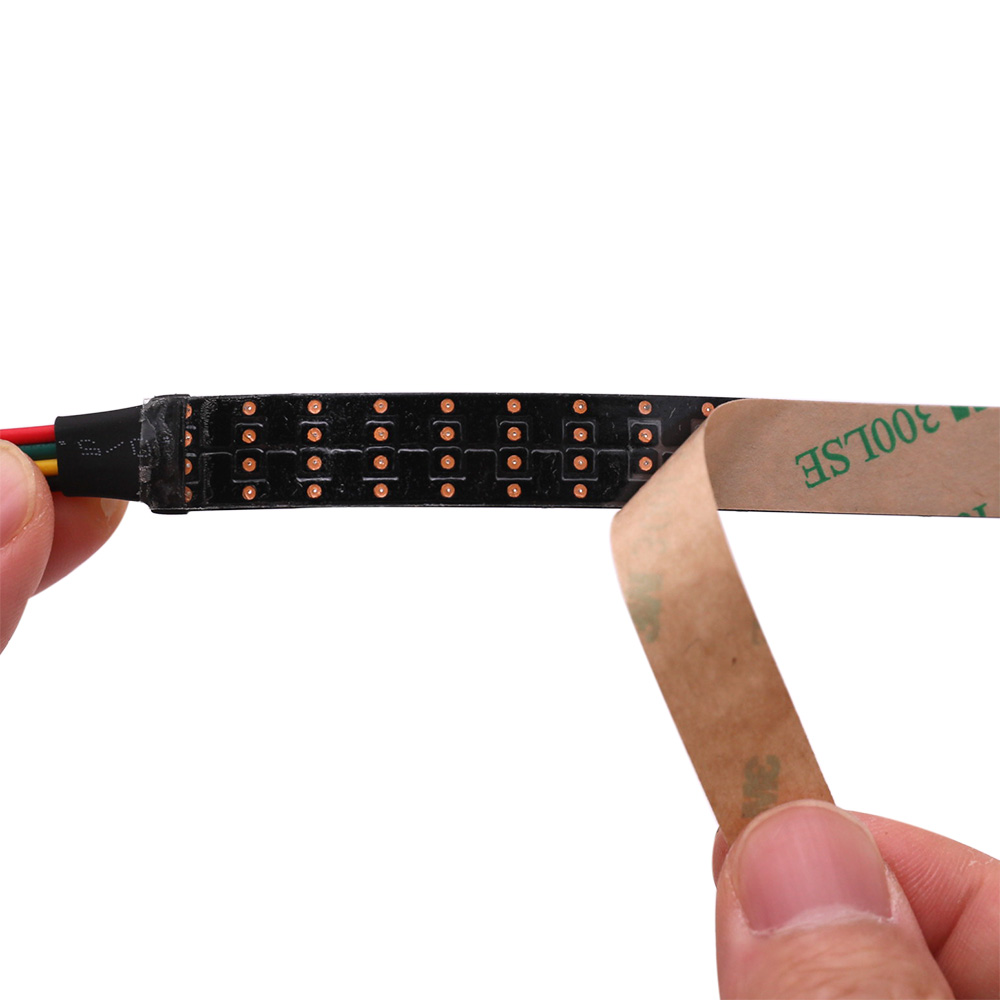

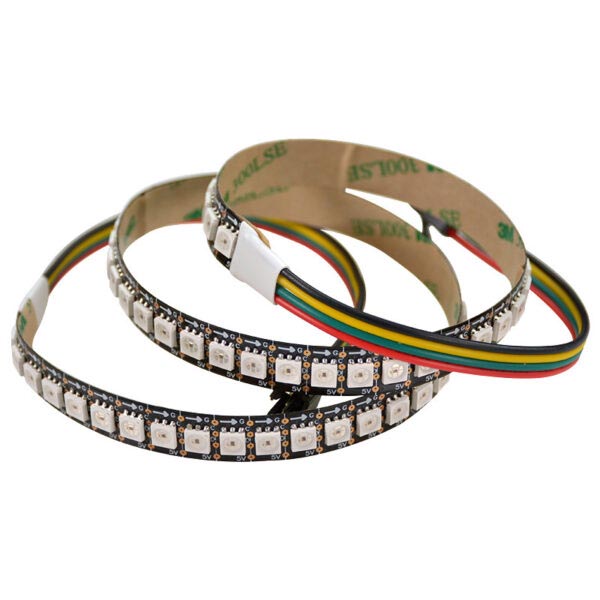

The back of the addressable pixel LED strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights to anywhere.
IP67 waterproof LED type which will come with mounting brackets. And all the addressable LED strip lights can be installed with LED aluminum channel and LED neon tube to get an uniform, soft, and no light spot LED lighting effect.
|• How to install led strip lights? What accessories will be needed?|
Addressable LED Strip Lights Wiring Diagram
|►Connection method one:|
*SPI LED Strip lights wiring diagram with 5m*
|►Connection method two:|
*SPI LED Strip lights wiring diagram with 10m*
|►How to connect the 3-pin JST connector to the Breakpoint Resume LED strips?|
|►How to power addressable LED strip and SPI controller using different voltage power supply?|
|►How to wire a ultra long addressable led strip lighting?|
*SPI LED Strip lights wiring diagram with 20m+*
