Fastest IC APA107/HD107S Individually Addressable RGB LED Strip Light - DC5V 30LEDs/m 5050SMD Flexible Lights - 16.4Ft/Roll

Name: Fastest IC APA107/HD107S Individually Addressable RGB LED Strip Light - DC5V 30LEDs/m 5050SMD Flexible Lights
Brand: SuperLightingLED
SKU: APA107-5050X30-RGB
Price: 33.98 USD
Availability: InStock

Model: APA107-5050X30-RGB Review stars

0.0 (0 Reviews) Various options in stock

Starting at: $50.00 $33.9832% off

Qty Discounts Off Price
1-9 $33.98	10-29 $33.30	30-49 $32.28	50+ $30.92
* Discounts may vary based on options below

Select Specifications:

Select PCB Width:

10mm (0.39in)

Select IC Type:

Select PCB Color :

Select Length:

16.4ft (5 meters)

Select Waterproof Rating:

Qty: -+

Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

Product Information

1. Adopt high quality LED chips, high brightness, bigger beam angle, good at the color consistency, stable performance.

2. The APA107/HD107S IC is the fastest IC on the market now, the upgraded version of the APA102 IC, the LED strips can be the fastest to transmit and refresh the signal.

3. Individually addressable, every IC controls one LED, so every LED can be cut, you can get the length you need by cut the strips at the cutting place, and this won't damage other LEDs.

4. DC5V safe voltage, save energy, super bright, low consumption, low working temperature, environment friendly, and so on.

5. Small size, multi-color, no radiation, high shock resistance, is a new generation of green environmental protection high-tech products.

APA107 Datasheet Download

HD107S Datasheet Download

Specifications

Input voltage: DC5V

LED Chip Model: SMD5050

Power: 9watt/meter, 45watt/roll

IC Type: APA107/HD107S

Q'ty of LED: 30leds/meter,150leds/roll, each LED is separately controlled

Q'ty of IC: 30IC/meter (1 IC drives 1 led chip)

Bits/color: 8-bits/color; 24bit for RGB

FPC size: Width: 10mm/0.39in, High: 2mm/0.08in, Length: 5000mm/16.4ft

Certification: CE,FCC,GS,SAA,RoHS,CCC

Transmit Rate: 27KHz

Refresh Rate: 30KHz

Color Temp(K): RGB

Grey scale: 256

FPC color: WHITE /BLACK PCB

Protection rate: IP20 non-waterproof; IP65 Waterproof in silicon coating; IP67 Waterproof in silicon tube;

Cuttable: every LED is cuttable;

Package: 5meters/reel in anti-static bag;with adhensive tape on the back (only for IP20/IP65)

Average Life (hrs): 50000Hours+

The difference between APA102, APA107, HD107s, and SK9822?

APA102: 20+ kHz PWM, transmission rate 20MHZ

APA107: 9 kHz PWM, transmission rate 30MHZ

HD107s: 26+ kHz PWM (the upgrade of APA107), transmission rate 40MHZ

SK9822: 4.7 kHz PWM, transmission rate 15MHZ

In conclusion, APA107/HD107s is one real product that can replace APA102.

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Write a Review & Upload Photos

Downloads

Files for APA107-5050X30-RGB

PDFAPA107-5050X30-RGB product data sheetFull specifications, dimensions, cut points, wiring and IP options — the same details shown on this page, laid out for printing and engineering review.PDF · generated from the current product page · opens in a new tabOpen PDF

Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

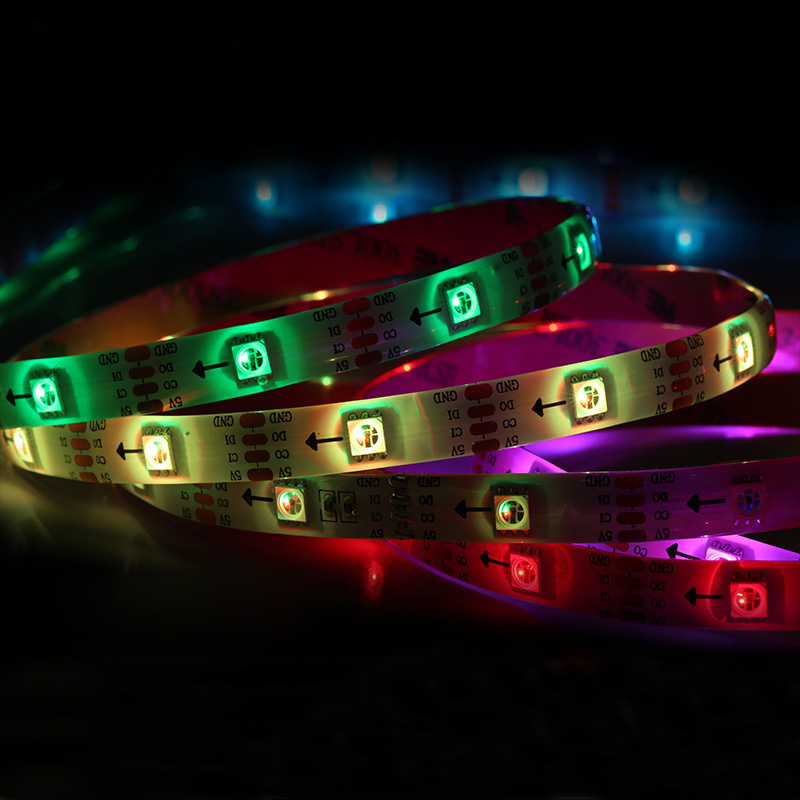

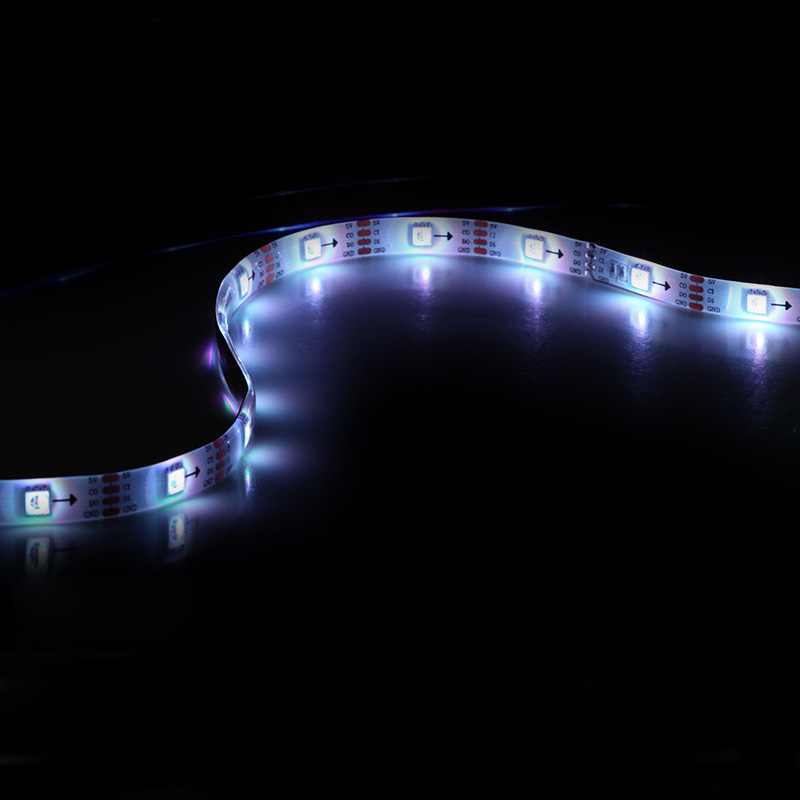

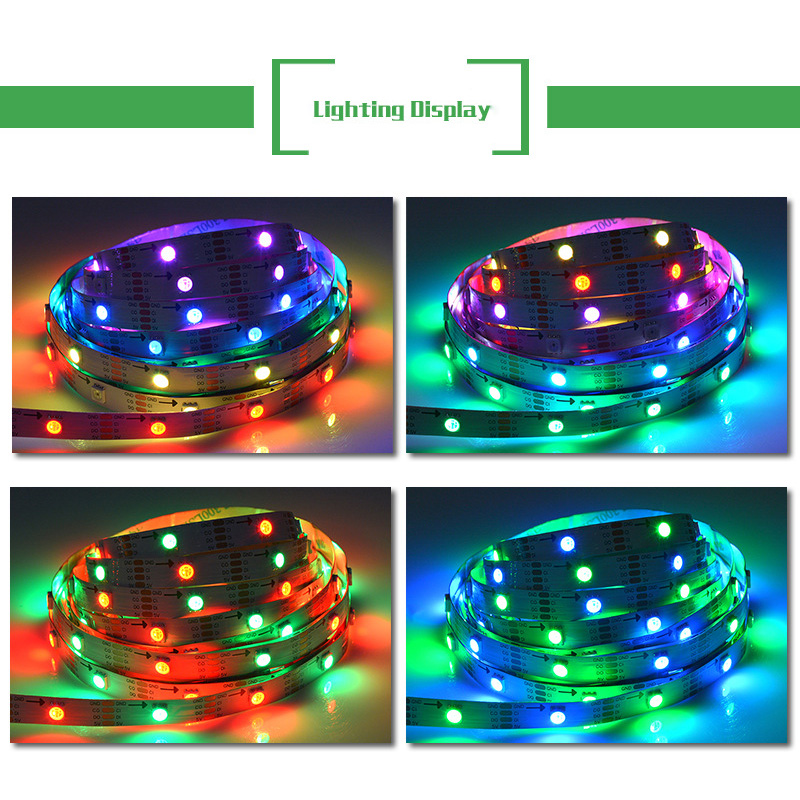

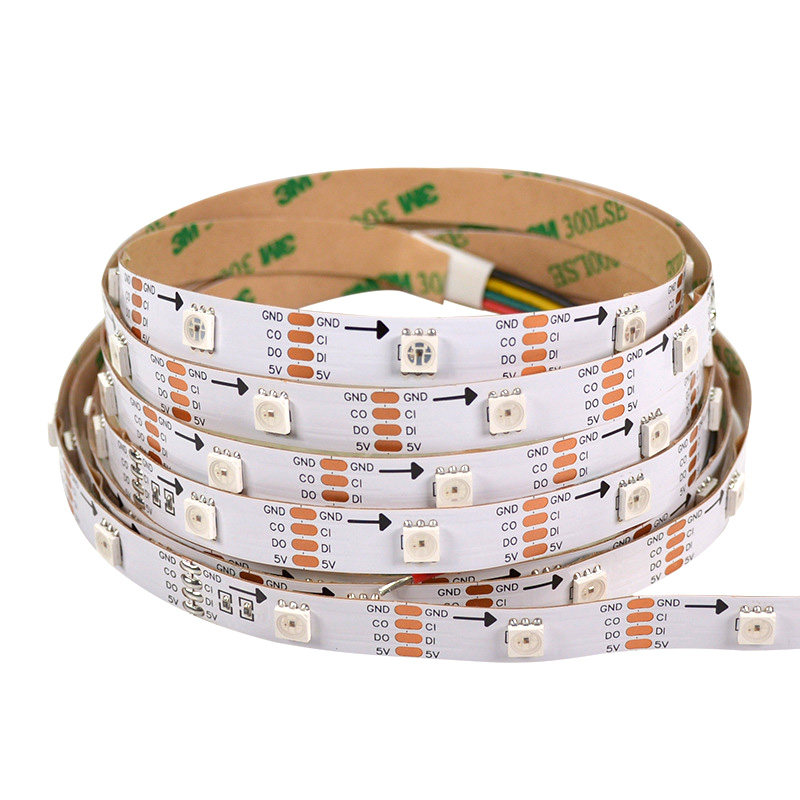

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?

IC on this model: HD107S · APA107. Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights

Do I need power injection?

5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light

Which waterproof rating should I choose?

Available on this model: Underwater IP68 - Adhesive Back · Outdoor Silicone Tube IP67 - With Brackets · Surface Glued IP65 - Adhesive Back · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating

Can I cut it to length?

Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.

What size power supply do I need?

Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply

Will it fit an aluminium profile, and how dense are the LEDs?

PCB width 10mm (0.39in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
