DC12/24V 3528SMD 395-405nm UV Black Light 1200LEDs Double Rows Flex LED Strips, Apply for Christmas lighting

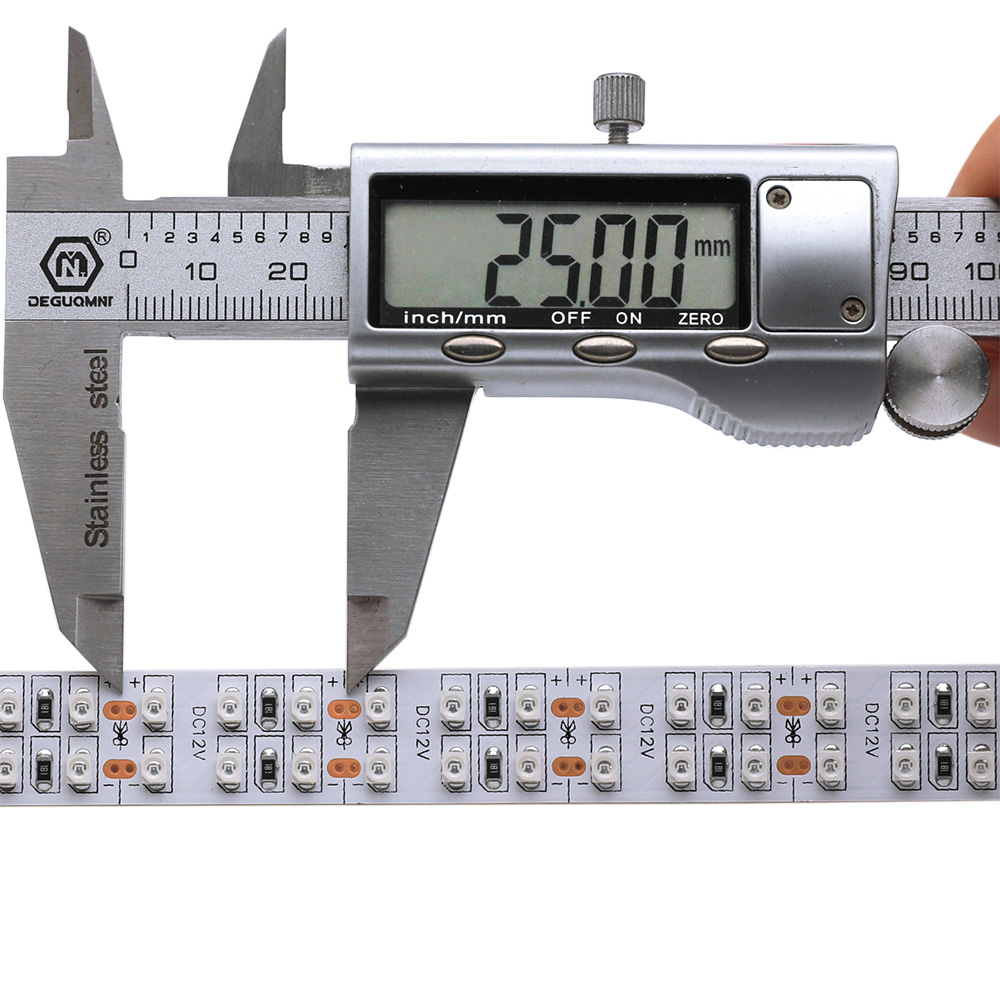

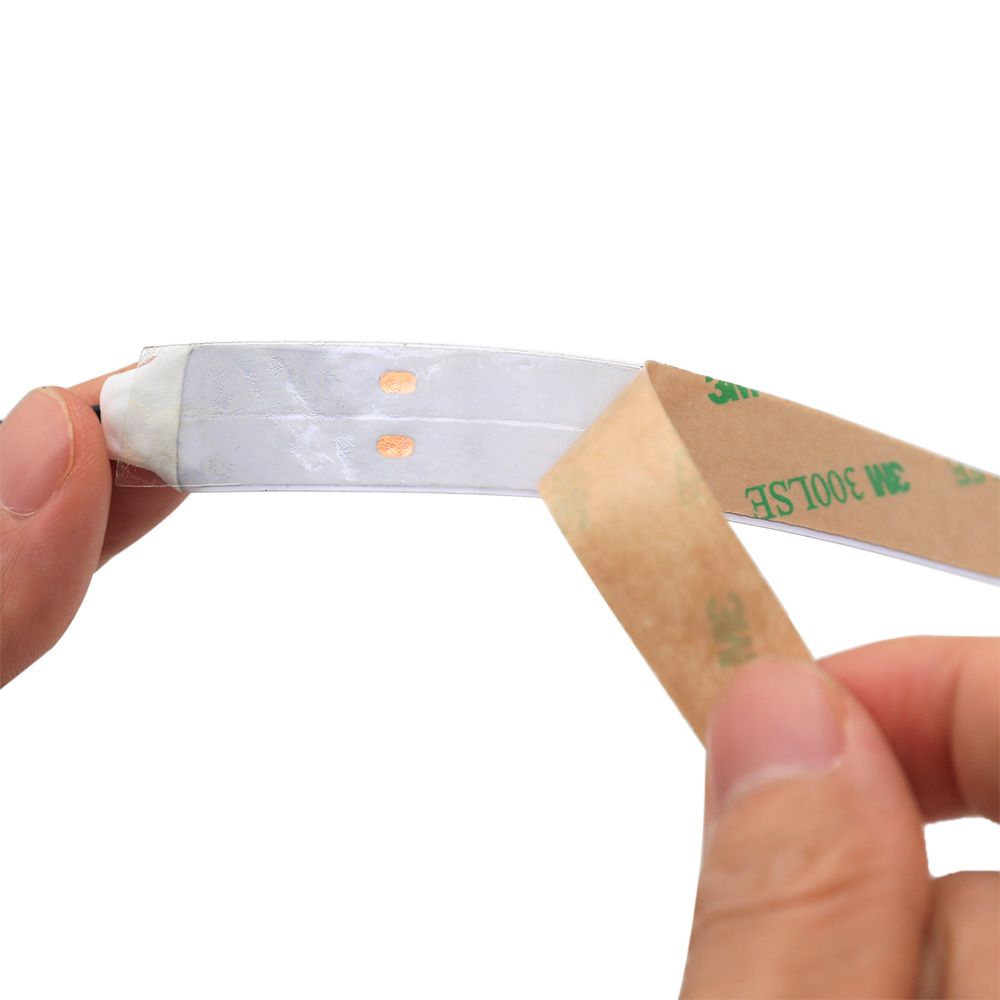

Check this double-row led UV light strip, uses SMD3528 LED chip, UV light spectrum is between 395nm-405nm, belongs to UV A light, commonly used in industrial curing, banknote detection, bloodstain recognition, imaging, and sensing applications. UV led light strips are a good light fixture for black light art, suitable for black light UV body art, UV black light parties, etc. Compared to UV B light and UV C light, it is the least harmful. This led UV lights flexible strip supports cutting, every 25mm/6 UV led lights (DC12V UV led light strip) or 50mm/12 UV led lights (DC24V UV light led stirp) can be cut, works well with your installation length. 3M adhesive backing, easy to install.
1. This multi-row UV LED light strip is made with 1200pcs high efficiency 3528SMD LED chips, supplied for different LED lighting projects.
2. Low voltage DC12V or DC24V to use, every 6 or 12 UV LEDs can be cut. You are able to get the length you need.
3. Flexible black UV lights led strip, you can bend the strip to the angle you need, convenient to install.
For IP65 waterproof versions, would need about 4-5 days to customize, if you have any questions, please contact us.
Standards and Certifications
LED Strip Type: SMD 3528 1200PCS/16.4ft
Input Voltage(V): 12/24V DC
Power: 4A 48W /16.4ft Max
Light Color: Ultraviolet /Purple
Wavelength NM(RGBY): UV(395-405nm)
Dimension: 16.4ft/roll, every 6/12 PCS LED can be cut
LED Quantity: 240 LEDs per 1meter (3.28 ft)
Dimensions: L500cm(196.8 in ) x W1.5cm(0.59 in ) x H0.25cm(0.10 in )
Lamp Luminous Flux(lm): 7-8 lm/LEDs 9600lm/16.4ft
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20, Waterproof IP65, IP67 optional
Package include: 1 x DC12/24V UV LED strips ( 5m/16.4ft )
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
Application - Guide To Know LED UV Light Strip And UV Light Fixtures
UV Curing UV Exposure
UV Printing UV Mosquito killer lamp
Currency Validation Stage decoration lighting
Air Purification Dental Curing and Teeth Whitening
Sterilization and Medical Industrial Curing
Halloween lighting Christmas lighting
