Product Information

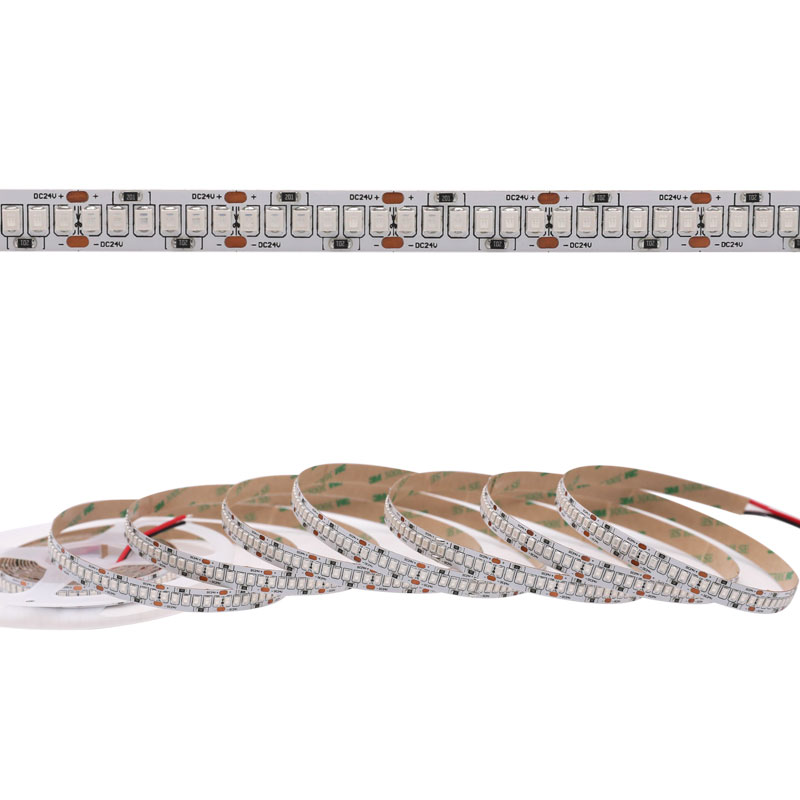

This is an ultra high density UV lightstrip with 240LEDs per meter, producing uniform ultraviolet radiation. The UV wavelength range is 395nm-405nm and 365nm (here to purchase 240 365nm), making it suitable for a wide range of professional and personal applications.
How to choose 395nm-405nm and 365nm UV light?
UV light in the 395-405nm range has a higher visible light component and therefore may appear slightly brighter. It is mainly used for skin examination and cosmetology, anti-counterfeiting and anti-forgery, blacklight parties and other interior decoration.
Compared to 395-405nm, the 365nm UV light has less visible light content and therefore may appear darker in use. It is widely used in a number of specific applications, including fluorescent detection, UV curing, laboratory and industrial applications.
Please note that the "+" mark on the PCB of 365nm strip refers to the negative port, "-" on the PCB is positive port.
Features of the flexible UV light strip:
-
Powered by low voltage DC 24 volts, choose a 24V meanwell power supply here
-
10mm width, ideal for compact installation spaces
-
Excellent flexibility to cut and join as needed
-
The actual power due to voltage drop along the strip is not the same as the theoretical power
|
0.2W/LED vs 0.5W/LED: Although this ultra UV light strip uses 0.2W and 0.5W UV LED beads, the total power of the 5-meter UV strip is not simply 0.2W / 0.5W multiplied by the number of LEDs. Due to resistance limitations and the inevitable voltage drop in LED series connections, the actual power of the entire light strip is between 60W and 120W (single-sided power input). |
Product Specifications
| LED Strip Type: | UV Lightstrip |
| Input Voltage: | DC24V, DC12V |
| Working Power: | 60W 16.4ft for 0.2W type; 120W 16.4ft for 0.5W type |
| Light Color: | Blacklight / Purple UV Light |
| Wavelength: | 395-405nm, 365nm |
| Strip Length: | 16.4ft (5m) |
| LED Quantity: | 240 LEDs per meter, 73 LEDs per foot |
| Lifespan: | 50,000+ hours |
| Dimensions: | L500cm*W1.0cm*H0.25cm |

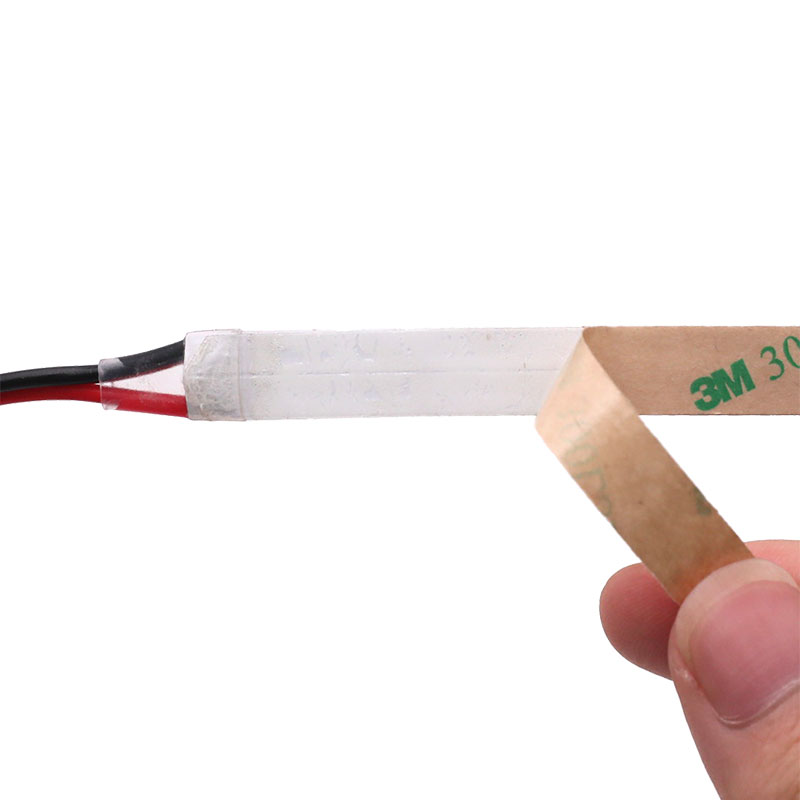

| Waterproof Rating: | Non-Waterproof IP20, Waterproof Resistant IP65, Outdoor IP67 IP68 |
| Beam Pattern: | 120 degree |
How to power 24V UV led strip?
