Dual Row DC12V 3528SMD 96W LED Light Strips - 1200LEDs 850/940nm Infrared IR LED Strips
Dual Row DC12V 3528SMD... $99.98
RF Remote Control LED... $7.99
Mean Well LRS-100-12... $30.00 $25.9813% off
MINI 2.4GHz WIFI RF... $36.99
Mean Well LRS-100-24 ... $30.00 $26.9810% off
Dual Row DC12V 3528SMD...
RF Remote Control LED...
Mean Well LRS-100-12...
MINI 2.4GHz WIFI RF...
Mean Well LRS-100-24 ...

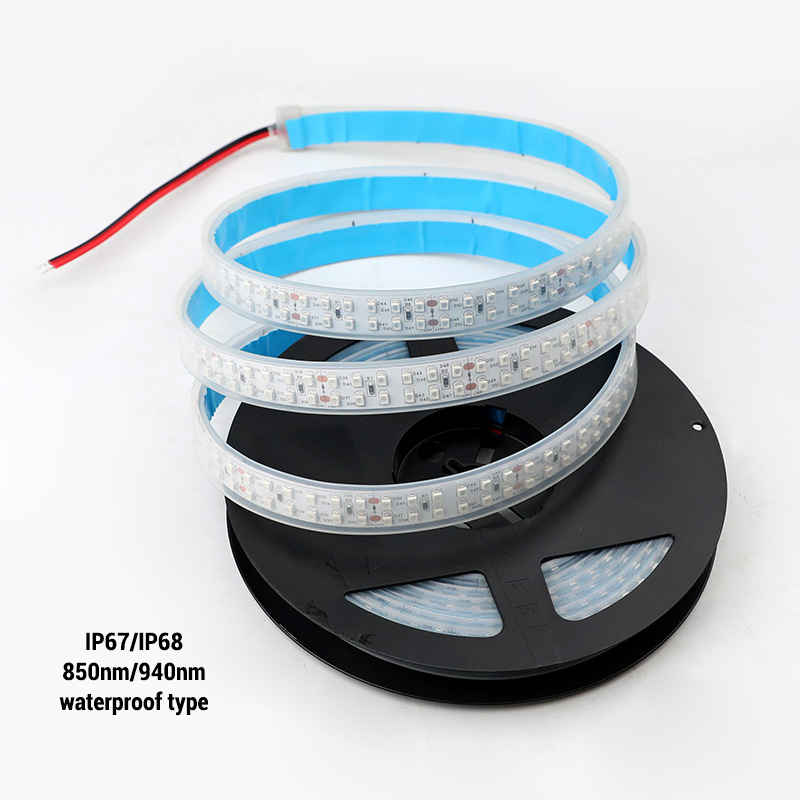

1. The 850/940nm infrared IR LED strip light using 1200 pcs 3528SMD LED chips, 15mm wide PCB board, high density strips offer wide lighting area for you.
2. DC12V every 6 LEDs be cuttable, easy to cut the length of the LED strips you need and it won't damage the LED strips. With peel-and-stick 3M adhesive backing tape, able to install the lights anywhere according to your ideas.

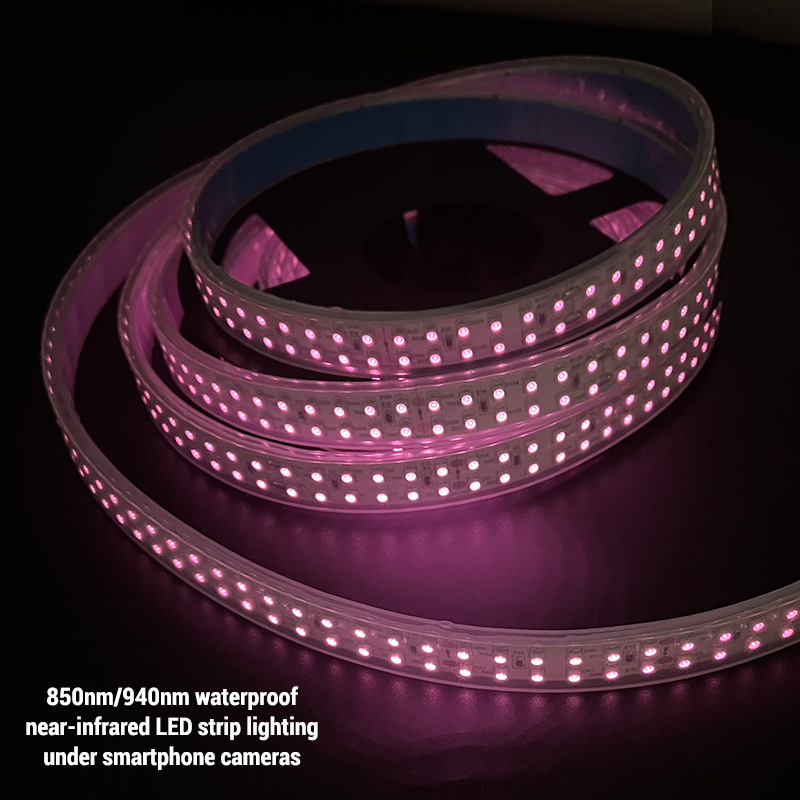

3. The 850/940nm IR LED strips emit the light that is virtually invisible to the naked eye, can dimmer the brightness via using the LED controller.
4. Widely used for many commercial applications, such as security and surveillance, night vision lights, indoor/outdoor infrared light, multi-touch display, and so on.
Standards and Certifications
LED Strip Type: SMD 3528
Light Color: Pink
Dimension: every 6 PCS LED can be cut
LED Quantity: 240 LEDs per meter (3.28ft)
Warantty: 1 years
Dimensions: L500cm(196.8 in ) x W0.15cm(0.59 in ) x H0.25cm(0.10 in )
Input Voltage(V): 12 VDC
Working Power: 96W Max
Lamp Luminous Flux(lm): 7-8lm/LEDs 9600lm/16.4ft 585lm/ft
Wavelength NM(RGBY): 850/940NM Infrared
Beam Pattern: 120 degree
Water Proof: Non-Waterproof IP20, Waterproof IP65, IP67
*For surveillance or security
*For Night Version Light
*For the multitouch display
*For infrared automatic inspection and detection light.
