Product Information
If you are looking for the perfect balance of high pixel density and DIY versatility, our DC12V WS2811 Addressable RGB+IC Strip Light (72LEDs/m) is engineered just for you. With a slim 10mm PCB width, this strip is highly adaptable, making it an incredibly user-friendly choice for custom gaming setups, under-cabinet accents, and creative DIY lighting crafts.

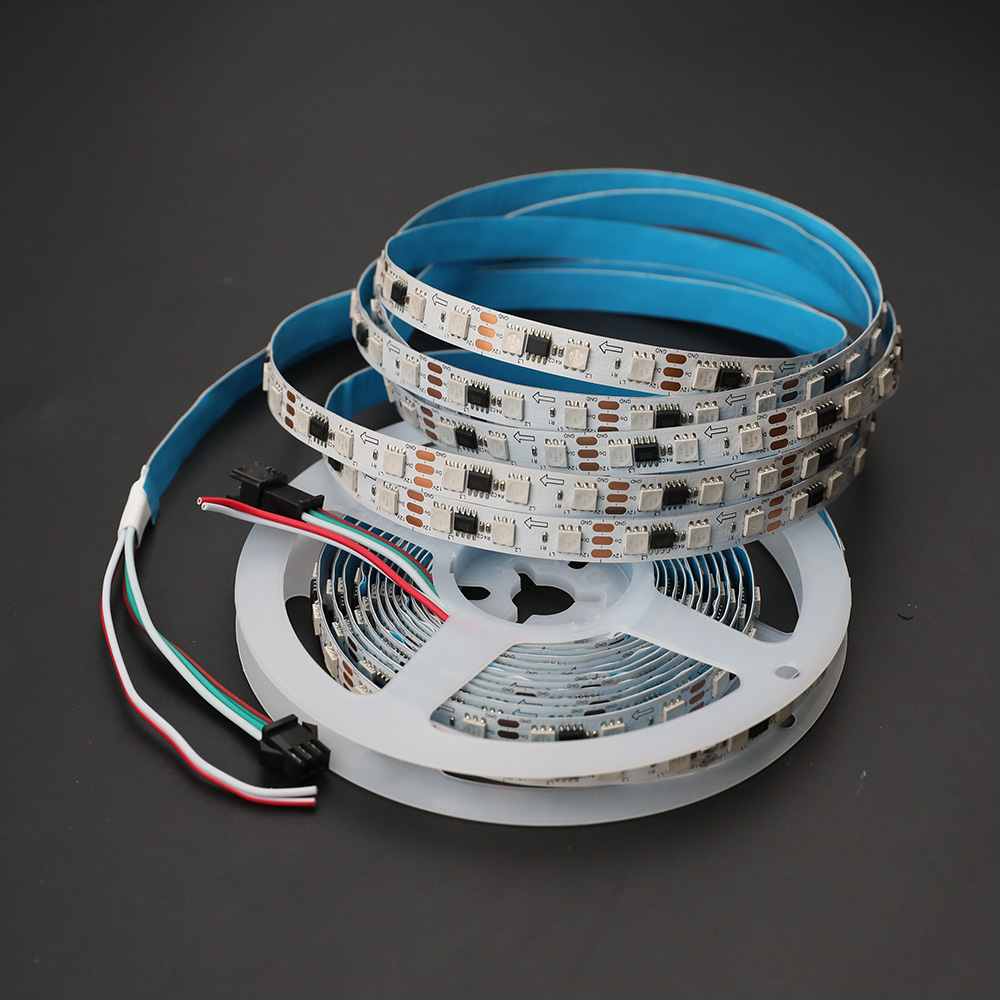

One of the greatest advantages of this WS2811 strip is its high adaptability for multi-zone layouts. You can easily cut a standard 5-meter reel into multiple shorter lengths according to your project needs. The best part? These customized shorter segments can all share a single DC12V controller and power supply, keeping your wiring clean, centralized, and hassle-free.

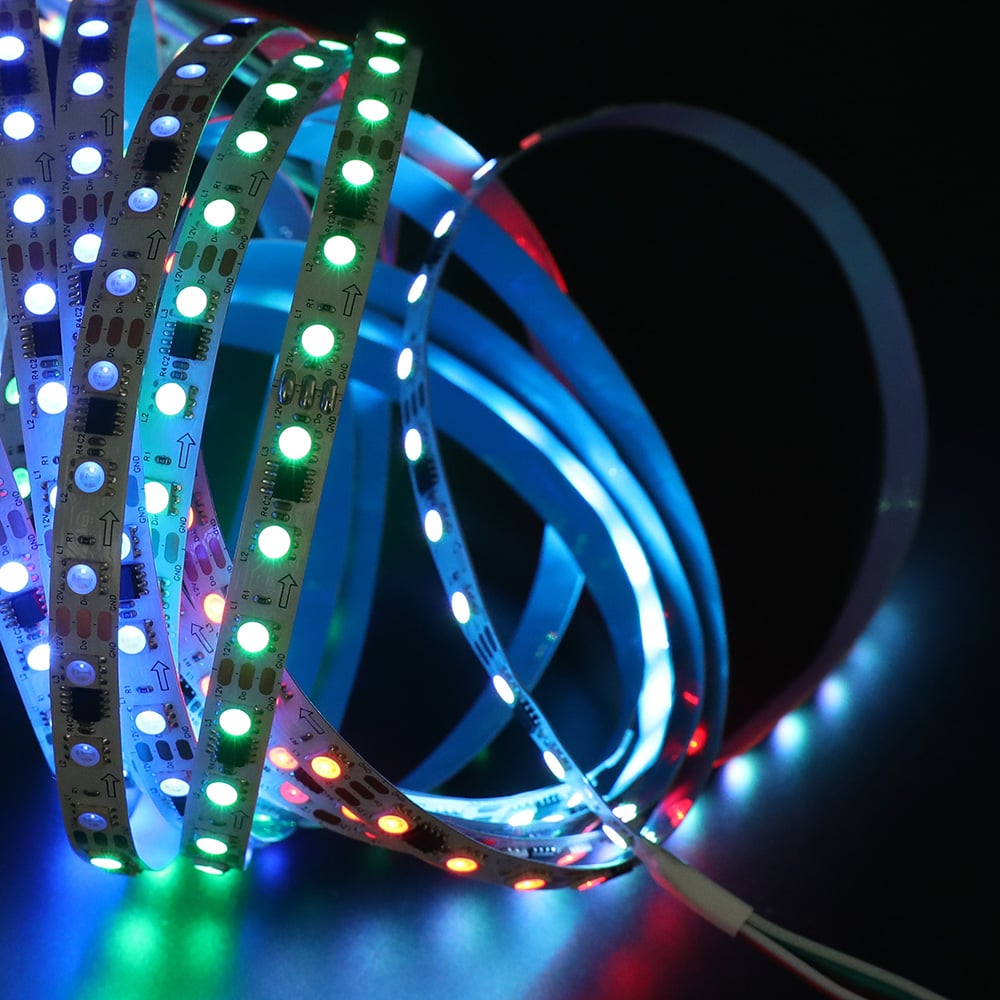

Packing 72 premium SMD5050 RGB LEDs per meter, this WS2811 IC led strip offers a high density of 24 pixels per meter (totaling 120 pixels over a 5-meter reel). With every 3 LEDs grouped as one individually controllable IC segment, it delivers fluid, dynamic color-chasing effects. Fully compatible with popular programming libraries such as Adafruit NeoPixel and FastLED for Arduino.
The standard 10mm PCB width makes it highly versatile. It fits perfectly into many common aluminum profiles and channels, allowing for diffused lighting. It's also compatible with a wide size of neon tubings for dot-free lighting.
This high-density 72LEDs/m 12V WS2811 RGB strip packs a punch with a maximum power consumption of 17W per meter. While shorter cut segments run flawlessly on single-ended power, we highly recommend injecting power at both ends of a full 5-meter continuous run. Dual-ended power feeding ensures uniform voltage distribution, keeping your colors perfectly consistent and your brightness brilliant from the first pixel to the last.
Product Specifications
| Parameter | Details |
|---|---|
| Product Model | WS2811-RGB-5050X360-12V |
| Input Voltage | DC 12V |
| IC Type | WS2811 (External IC) |
| LED Type | SMD 5050 RGB |
| LED Quantity | 72 LEDs/meter (360 LEDs/reel) |
| Pixel Quantity | 24 pixels/meter (120 pixels/reel) |
| Power Consumption (Max) | 17 Watts/meter (85 Watts/reel) |
| PCB Width | 10mm |
| PCB Color | White |
| IP Rating | IP20, IP65, IP67, IP68 |

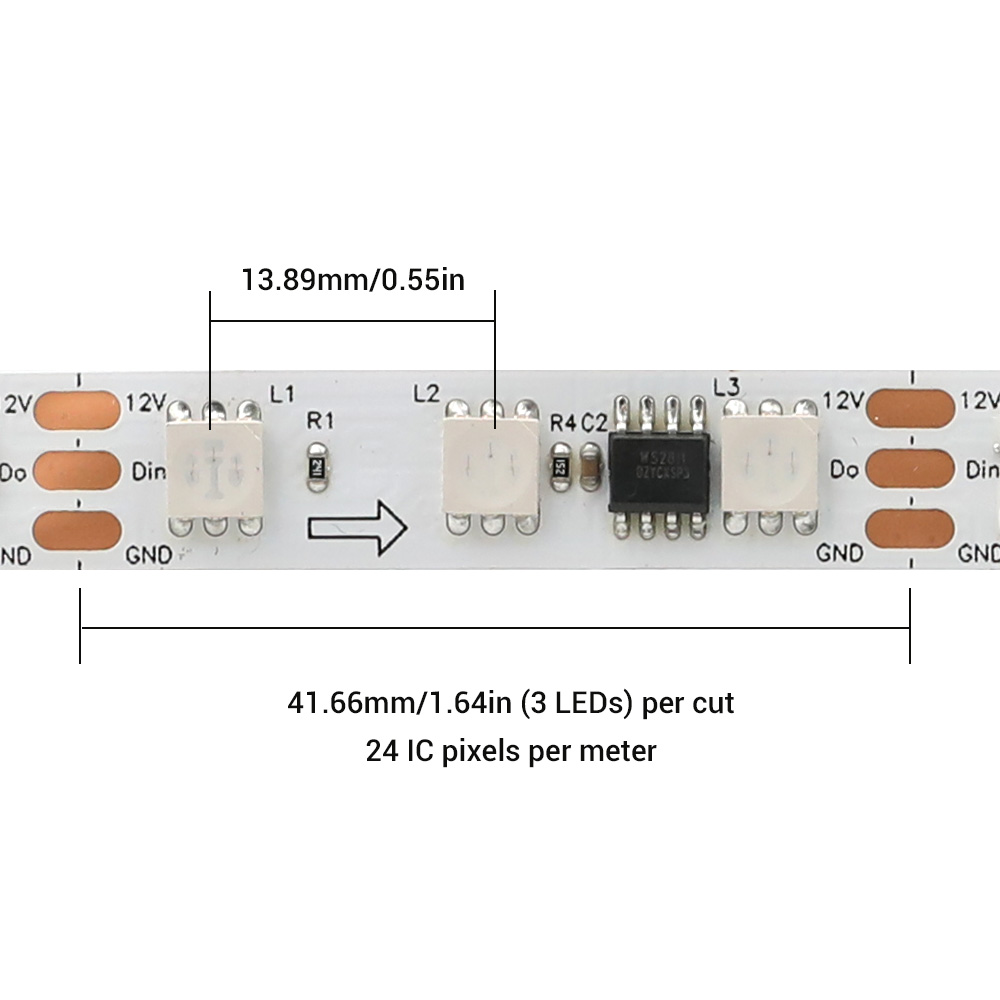

| Cutting Interval | Every 3 LEDs (approx. every 41.7mm) |
| Reel Length | 5 meters (16.4 feet) |
| Grayscale Levels | 256 |
| Colors | Full Color RGB (24-bit) |
| Beam Angle | 120° |
| Operating Temperature | -20°C to +50°C |
