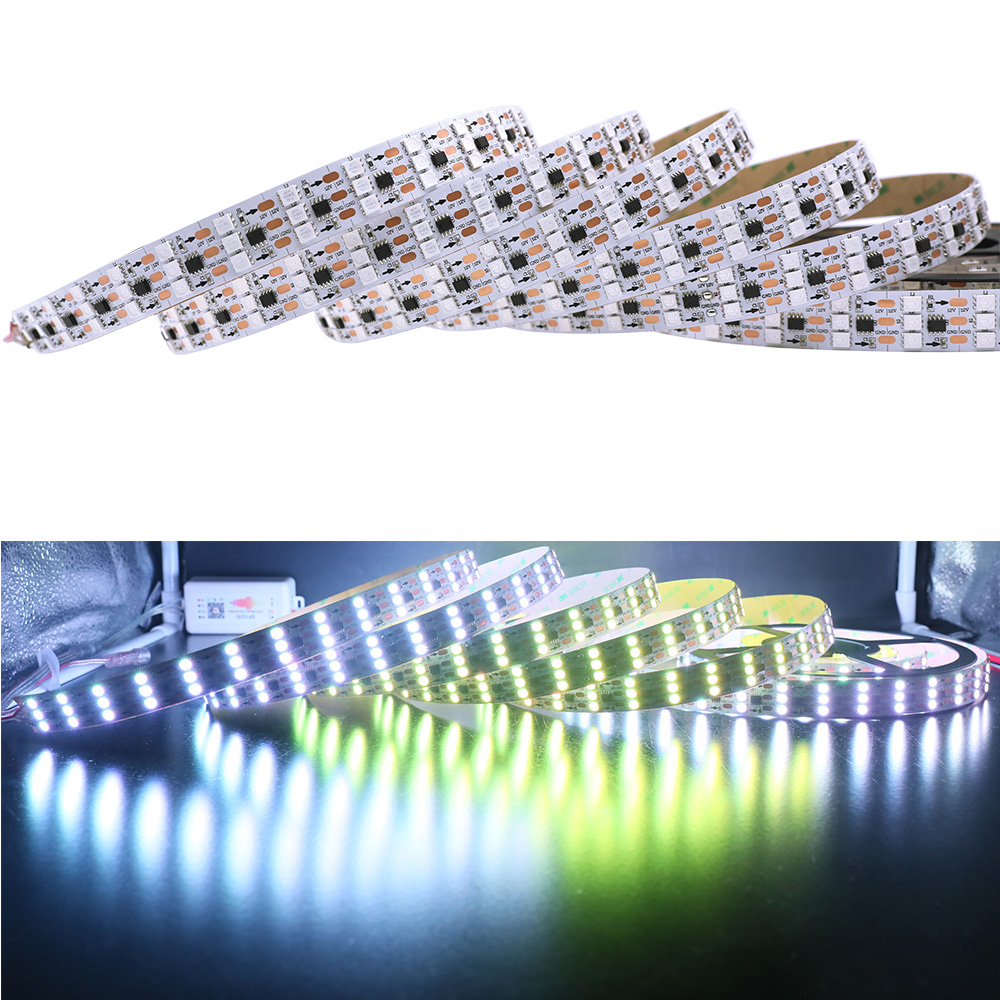

DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED Strips

Model: WS2811-12V-5050X720 Review stars 0.0 (0 Reviews) Various options in stock
Starting at: $79.98 $70.9811% off
Qty Discounts Off Price
1-4
$70.98
5-9
$67.43
10-19
$63.88
20+
$60.33
* Discounts may vary based on options below
Select Specifications:
Select PCB Width:
Select Length:
Qty: -+
Free shipping over $299Ships via DHL / UPSWarranty covered

Accept the project customization, please contact us for commercial offers and technical support.

  • Product Information
  • Reviews
  • Downloads
  • Images
  • LED Strip Light Guide

Product Information

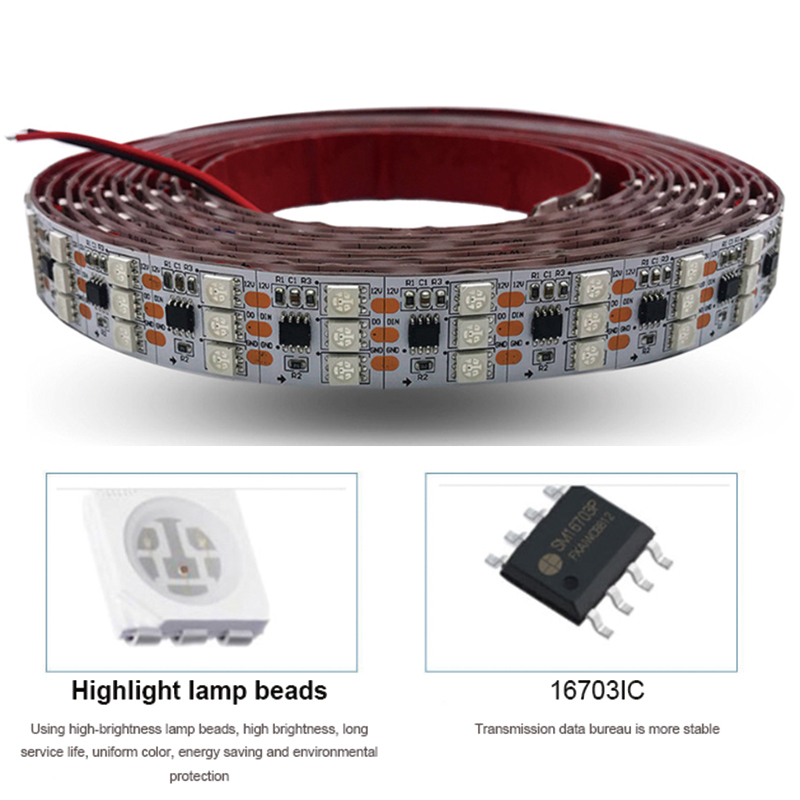

The external WS2811 smart driver IC works well with most controllers on the market. You can use it with the controller to DIY any visual effects you want. The LEDs and ICs of the WS2811 light bar are divided into groups of 3 LEDs and 1 IC. 1 IC controls 3 LEDs. Each group can be individually controlled, cutting and welding on the cutting line to meet your length requirements.

The dream colour led strip light uses a low-voltage DC 12V power supply voltage, so it is very safe to use. Both the elderly and children can be used safely without causing safety hazards. The high density addressable led strip adopts high-brightness SMD LED as the light-emitting element, so it has the advantages of LED light-emitting element, the light colour is pure, soft, and no glare. It can be used for decoration and lighting. The light-emitting element of the programmable led strip is LED. Because the power of a single LED lamp is very low, the heat generation of the light bar is low and the radiation is small. The use of high-quality SMD LEDs reduces power consumption by nearly 100% and saves more than 80% energy than traditional light sources. The installation of the addressable RGB led strips is very simple. It can be installed on a variety of supporting surfaces with fixing clips, wire ducts, iron wires, iron nets, etc. In addition, because the LED flexible light strip is light and thin, the use of strong double-sided tape can also achieve the fixed function. It can be installed without professionals, and you can really enjoy the fun of DIY decoration.

Because of its softness, thinness, and pure color, programmable led strips are widely used in building contours, steps, booths, bridges, hotels, KTV decorative lighting, as well as the production of advertising signs, various large-scale animations, and advertising design of calligraphy and painting place.

WS2811 Chips Specifications Download   PDF



Standards and Certifications

12VDC CE FCC UL RoHS ISA SGS ISO LIFETIME warranty waterproof


Product Specification

Length: 16.4ft/5m

LED Quantity: 144leds/m

IC Quantity: 48pcs/m

IC Chip: WS2811

LED Model: 5050

LED Color: RGB

Work Voltage: DC12V

Power: 39.38W/M

Waterproof Rating: IP20/IP65/IP67

Circuit Board Material: Calendered copper

Lifetime: 5000+hours



Applications

  1. LED programmable digital screen

  2. Hotels decoration lighting

  3. Backlighting decoration

  4. Concealed lighting, Cove decoration

  5. led wall, advertising board

  6. Outdoor advertising signs,

  7. Hotel, KTV, bars,

  8. Wedding party lightin

How to use







DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 5DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 1DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 2DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 3DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 4DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 5 - photo 5DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 6DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 7DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 8DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 9DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 10DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 11DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 12DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 1 - photo 1DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB - photo 2 - photo 2

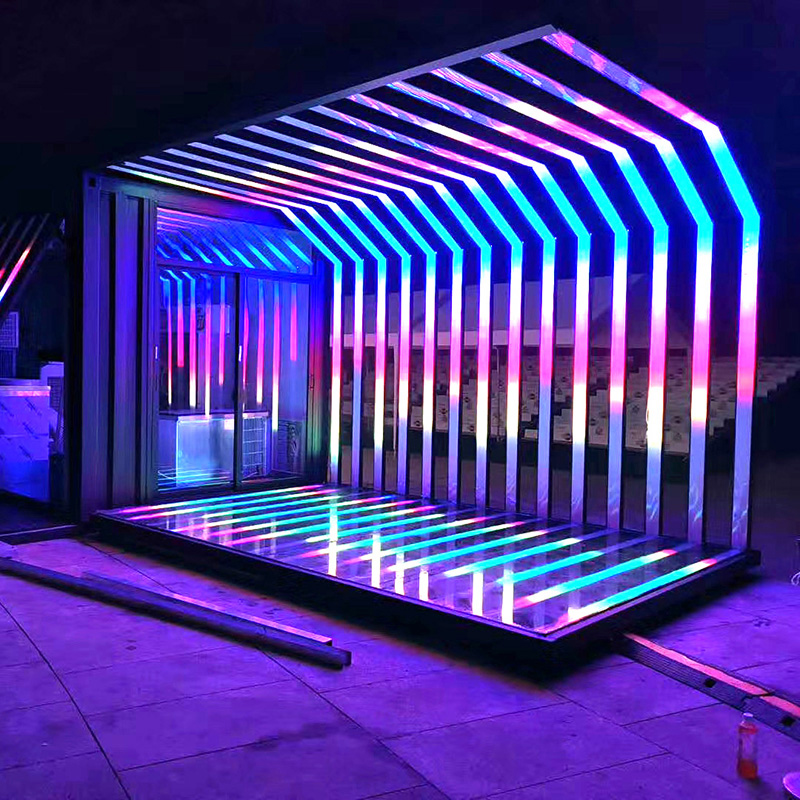

digital rgb addressable led strip applications



Waterproof Level Description

IP20 IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);

IP65 IP65 Waterproof (Epoxy cover waterproof, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor);

IP67 IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);

IP68 IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);

led strip waterproof level

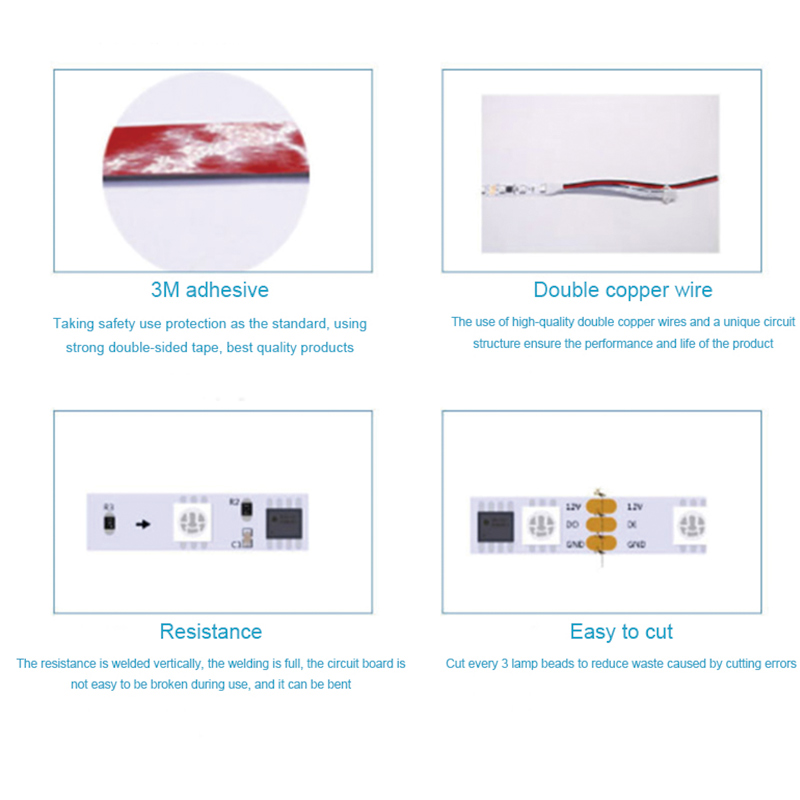

Installation Instruction

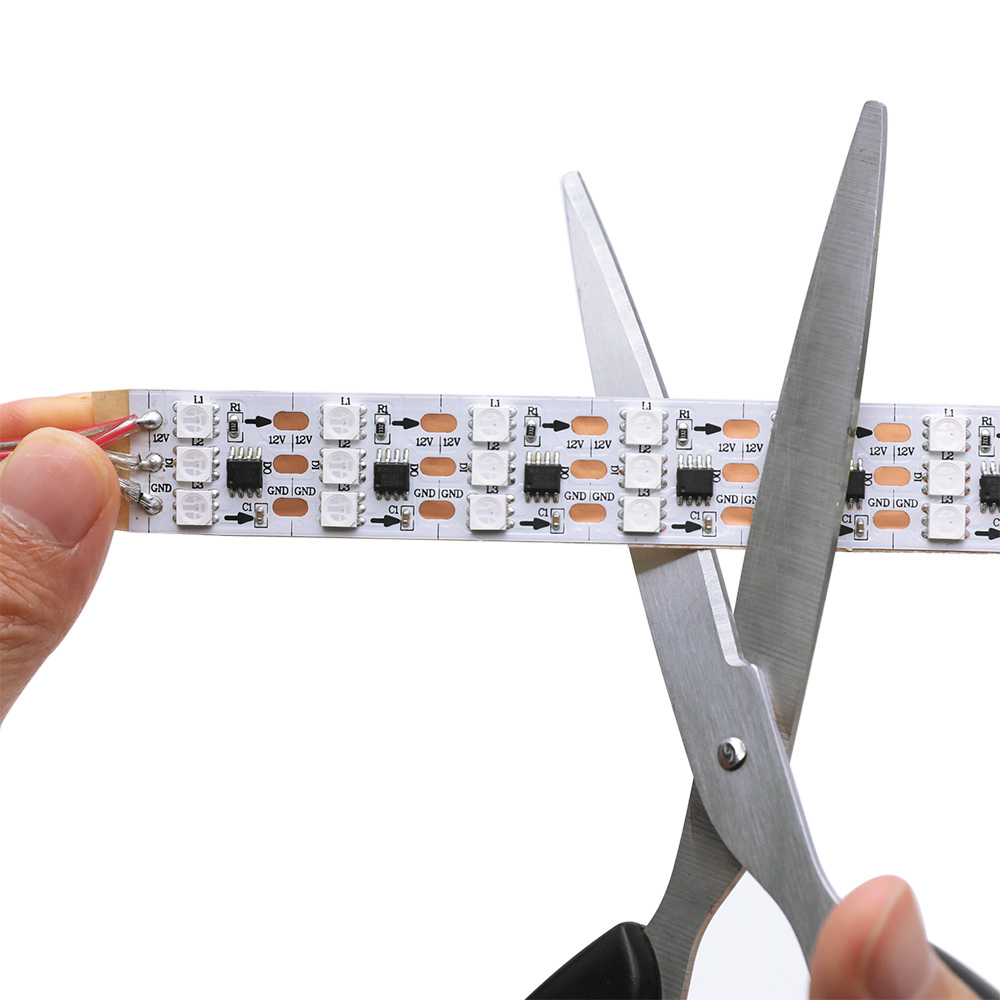

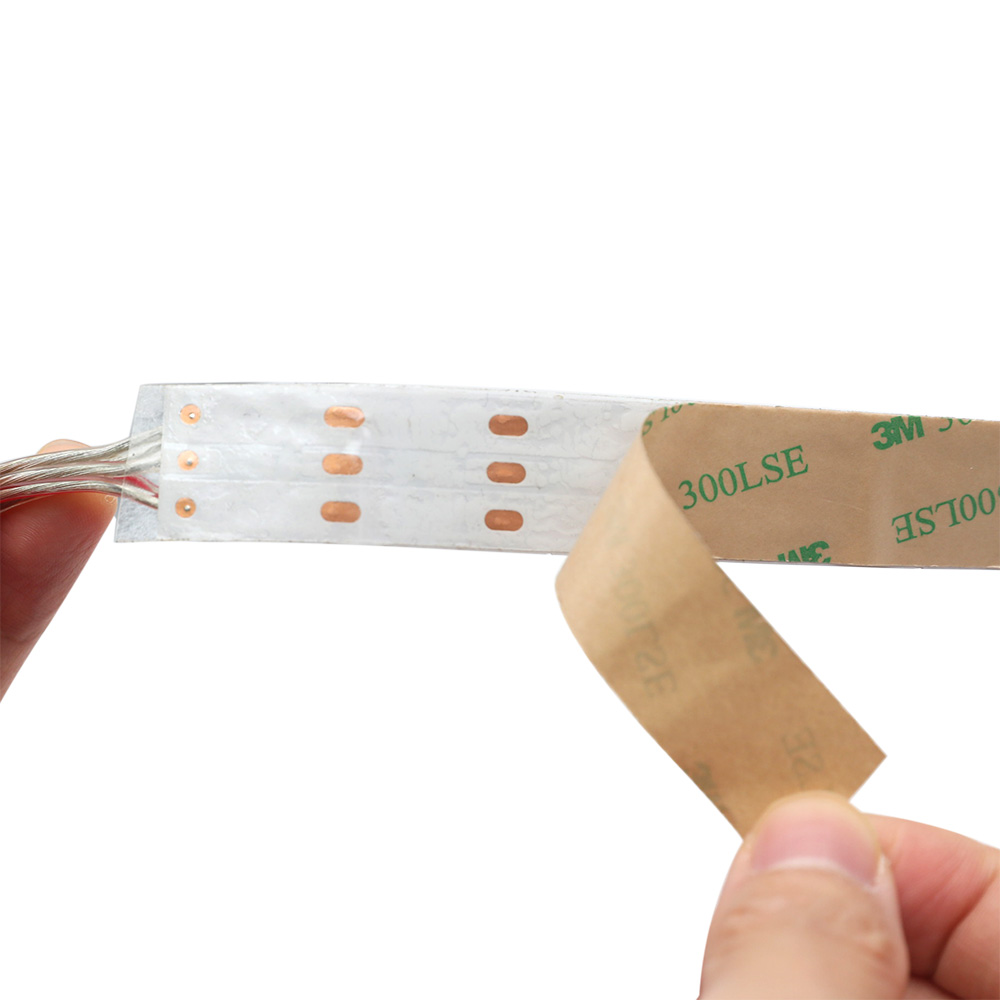

how to cut led strip                       led strip adhesive tape                       led strip light mounting brackets

arrow You can cut the strip every few inches,                     arrow The back of the strip is fitted with a strong                   arrow IP67/IP68 type which will come with

allowing you to freely design your project                    3M tape, allowing you to peel and stick lights                 mounting brackets

without worrying about space requirements

to many different surfaces.

Reviews

Customer Experience

Your feedback is important to us! Share your thoughts and photos with other customers.

Downloads

Files for WS2811-12V-5050X720
Need this page for a project file or an engineering check? Click Open PDF, then save or print it from your browser. For CAD drawings, IES files or a signed test report, contact our engineers and quote the model number.

Images

These images were taken with Canon EOS 5D Mark IV and the studio light source is provided by Ra 98's full spectrum LED strip to realistically reproduce the colors of the item itself. All copyrights are created by the superlightingled team, please feel free to browse and download if you are a registered user!

DC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED StripsDC12V WS2811 High Brightness Addressable LED Strip Light, 144 LEDs/M, 16.4ft/5M Triple Row 5050 RGB Flexible LED Strips

LED Strip Light Guide

Common questions about this type of product, answered against this model’s own options. For full figures see the specification above or the spec sheet for this model.

Which controller does this LED strip light need?
Addressable LED strip lights take a data signal, so they need an SPI (pixel) controller that supports this IC — an ordinary RGB controller will not drive them. Data flows one way: connect the controller to the input end marked with the arrow. Wiring addressable LED strip lights
Do I need power injection?
5 V addressable LED strip lights lose voltage fastest, so longer runs need power fed in at both ends and at intervals along the run; 12 V and 24 V versions carry further. Keep the data line short between controller and first pixel. Choosing an addressable LED strip light
Which waterproof rating should I choose?
Available on this model: Underwater IP68 - With Brackets · Outdoor Silicone Tube IP67 - With Brackets · Non-Waterproof IP20 - Adhesive Back. IP20 is for dry indoor use, IP65 handles splashes, IP67 suits outdoor and wet areas, IP68 is for continuous submersion. Choosing a waterproof rating
Can I cut it to length?
Yes. Cut only on the marked cut lines between the copper pads — the cut interval for this model is on its spec sheet. Rejoin with solder or a solderless connector. Cutting LED strip lights · we can also cut to length and fit your connector before shipping: custom LED strip light assembly.
What size power supply do I need?
Take the watts per metre from the specification above, multiply by the length you are running, then add about 25% headroom. Power calculation guide · Choosing a power supply
Will it fit an aluminium profile, and how dense are the LEDs?

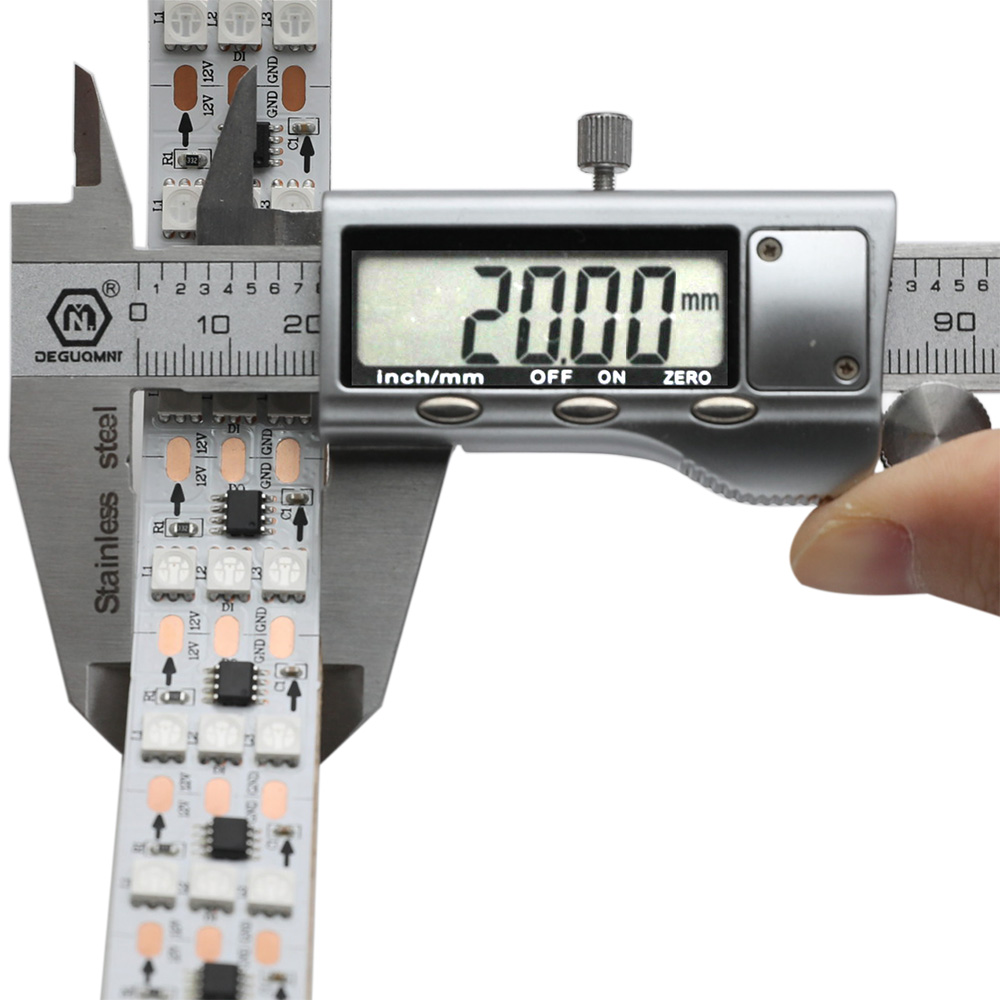

PCB width 20mm (0.79in). Choose a profile whose inner width is at least the PCB width; denser LEDs give a smoother line close to a diffuser. LED aluminium profiles
