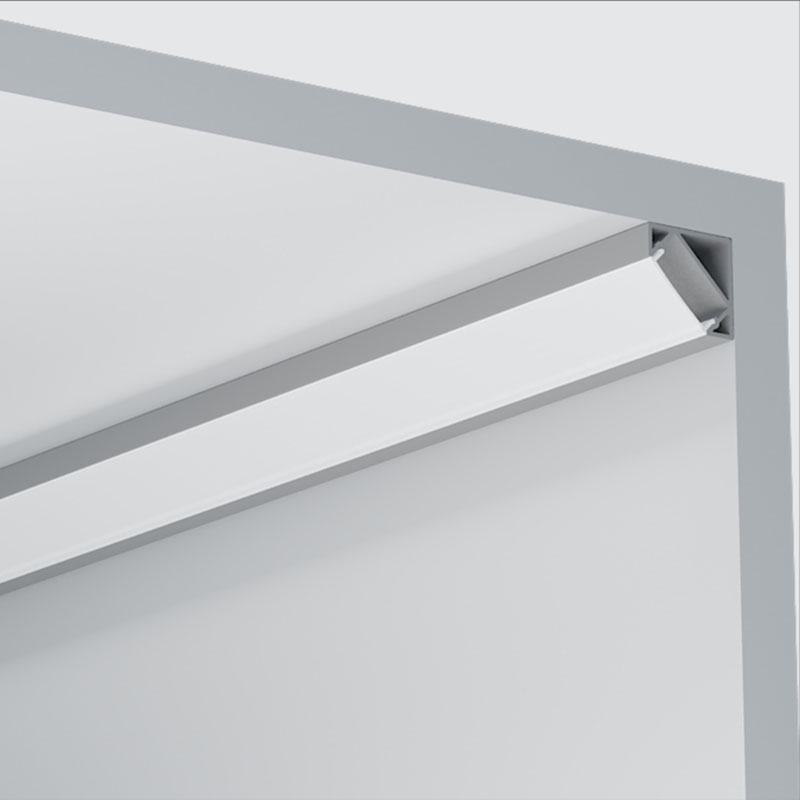

Corner Series LED Aluminum Profile For 20mm Double Row LED Strip Lighting

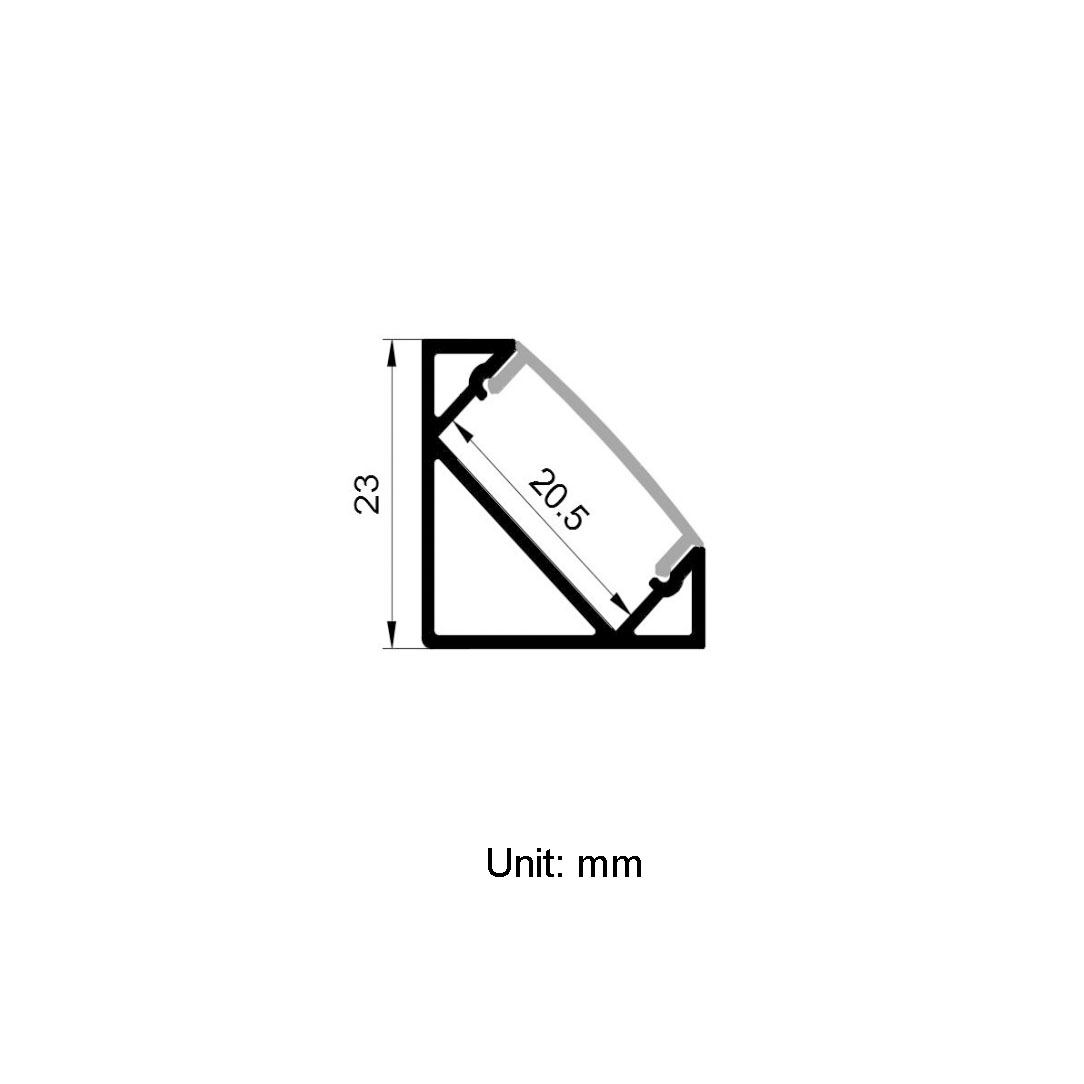

This corner shape aluminum led profile made of 6063-T5 high-quality aluminum alloy, is an 20.5mm/0.81in inner width LED aluminum channel with a PC/PMMA diffuser cover which has better diffusion LED lighting effects, suitable for triple row led strip lights or double row led lighting strips. 3528/2835 multi-row white led strip lights with aluminum profiles have better heat dissipation and physical protection, and so longer led strip's lifetime. To meet your fashion needs, you can choose the white or black aluminum channel profile. The led strip light channels support cut to any length you want, If you have requirements for the length, feel free to contact us to customize. The aluminum led strip channel comes with mounting clips and end caps, easy installation, you can also suspend the led channel as a pendant light, which is a perfect choice for your LED residential and commercial linear lighting projects such as furniture, cabinets, ceilings, etc.
As the 2m and 3m led aluminum profiles are too light and long, the package size will exceed the DHL/UPS/TNT requirement(4feet), so extra long transportation costs ($170) will be required. The aluminum led strip lighting channel product itself is soft and easily damaged, so under normal circumstances, 2m and 3m extruded aluminum channels' MOQ is 10 pieces.
If you need a full 20-meter aluminum light diffuser channel, we recommend that you use 20 1-meter long led light strip channel splicing with some channel connectors, both sides of the product using industrial right angle cutting. After installation it does not affect the appearance.
Standards and Certifications
|Material||6063-T5 Aluminum Alloy|
|Aluminum Color||Silver /White /Black|
|LED Diffuser||PMMA opal matte diffuser /PMMA semi-clear matte diffuser /PMMA clear diffuser /PC opal microprism diffuser /PC semi-clear diffuser /PC clear microprism diffuser|

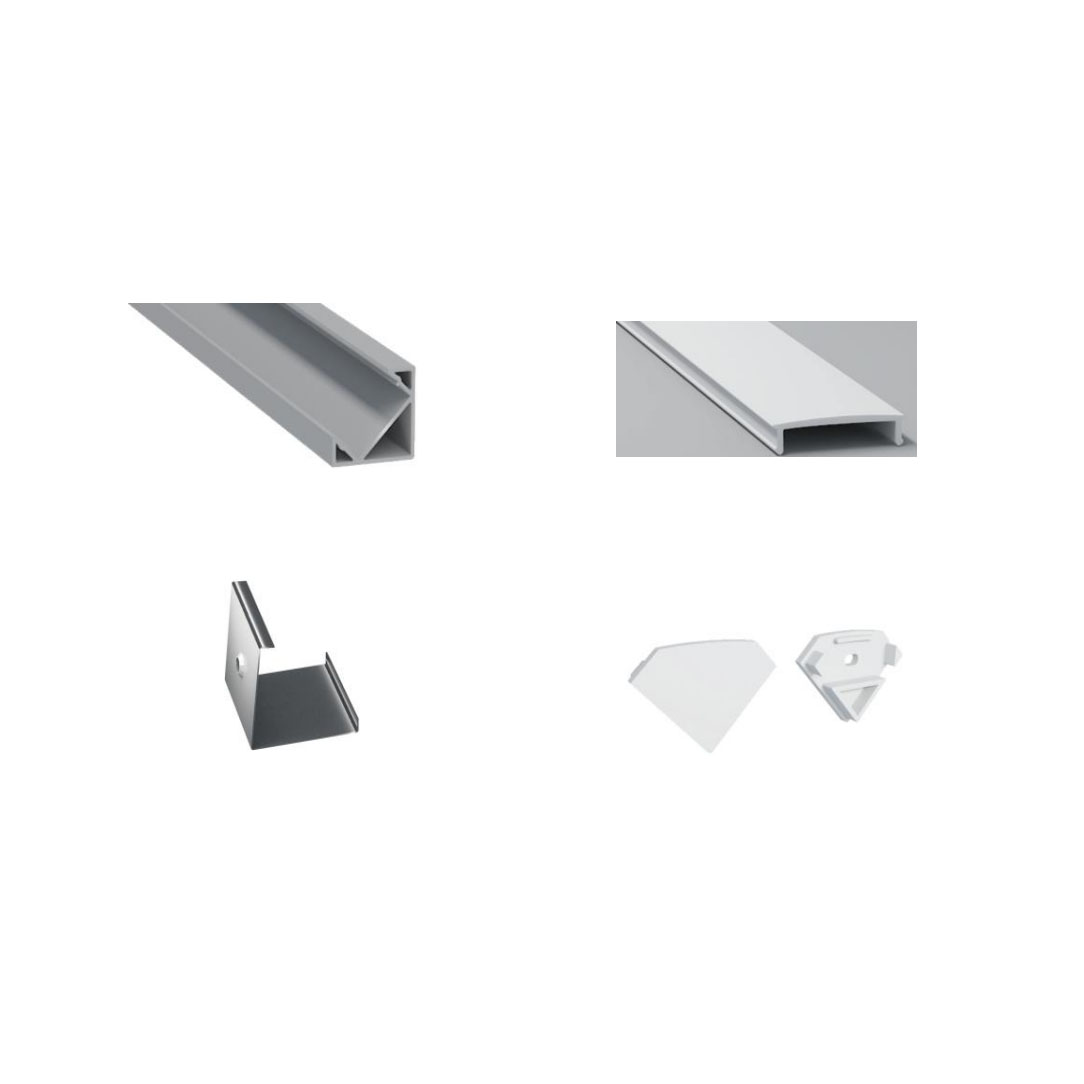

|Accessory||End cap without hole, end cap with wire hole, mounting clips, a stainless steel sling|
|Apply to||2835/3528 high brightness multi-row flexible led strip lights|
Applications - Ultimate Guide to LED Aluminum Channel
1. Furniture production (kitchen/office)
2. Stores shelf LED lighting
3. Heat sink and physical protection to the LEDs
4. Independent LED lamp
5. Interior light design (stairs / storage / floor)
6. Exhibition boot LED lighting
