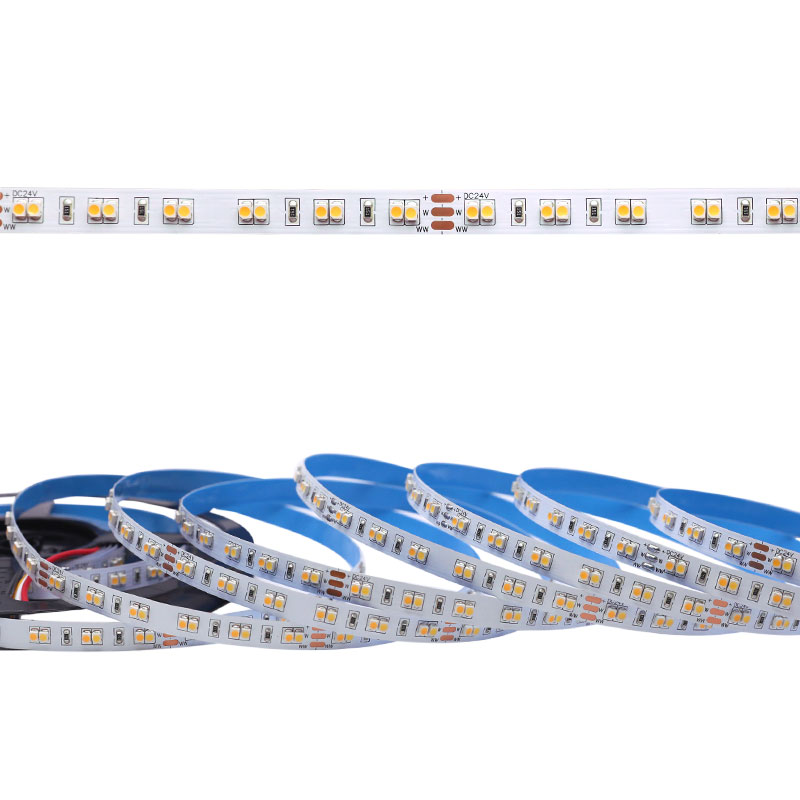

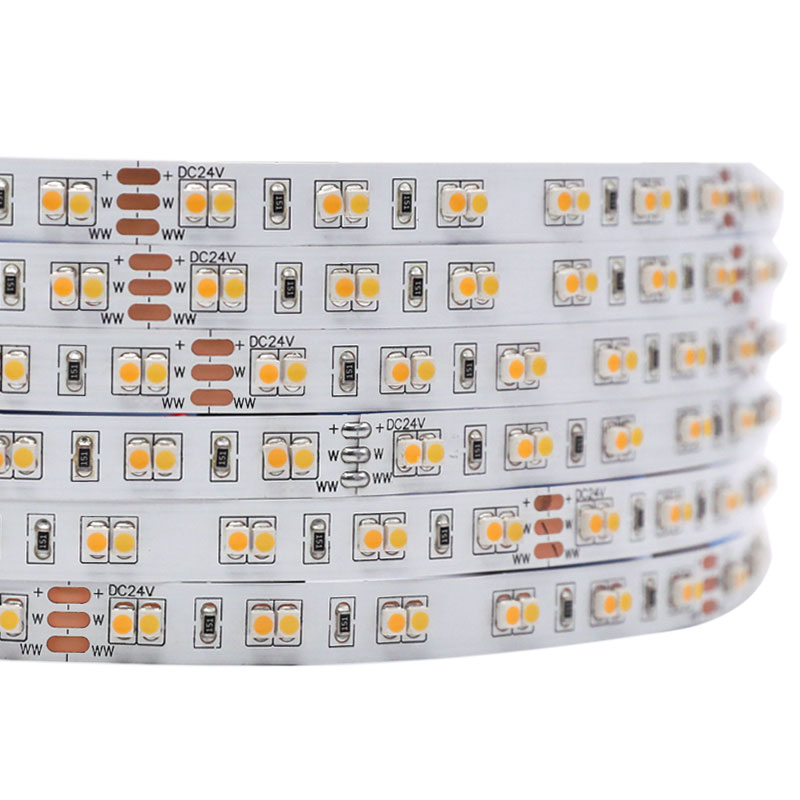

DC24V 3000K+4500K CCT Color Temperature Tunable White LED Strip SMD3528
Tunable white led strip is a great soluition for home lighting and commercial lighting. Typically, we choose to light up our cabinet and ceiling areas in kitchens or bedrooms.
Dimmable led strip avoids us to buy the unsuitable color temperature light. It allows you to adjust the LED color teperature to suit your application. Bright light for task and warm white light for relax.

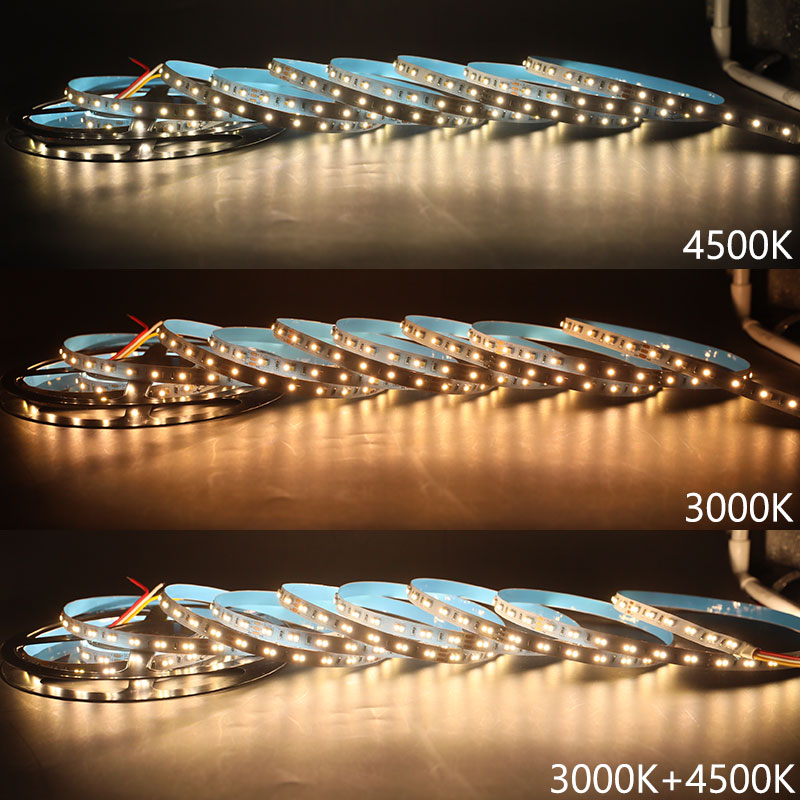

This color temperature adjustable led stirp light is available in three options, 3000K+4500K (warm white+natural white), 3000K+6000K (warm white+daylight), 4500K+6000K (natural white+daylight). Choose the right one for your place.

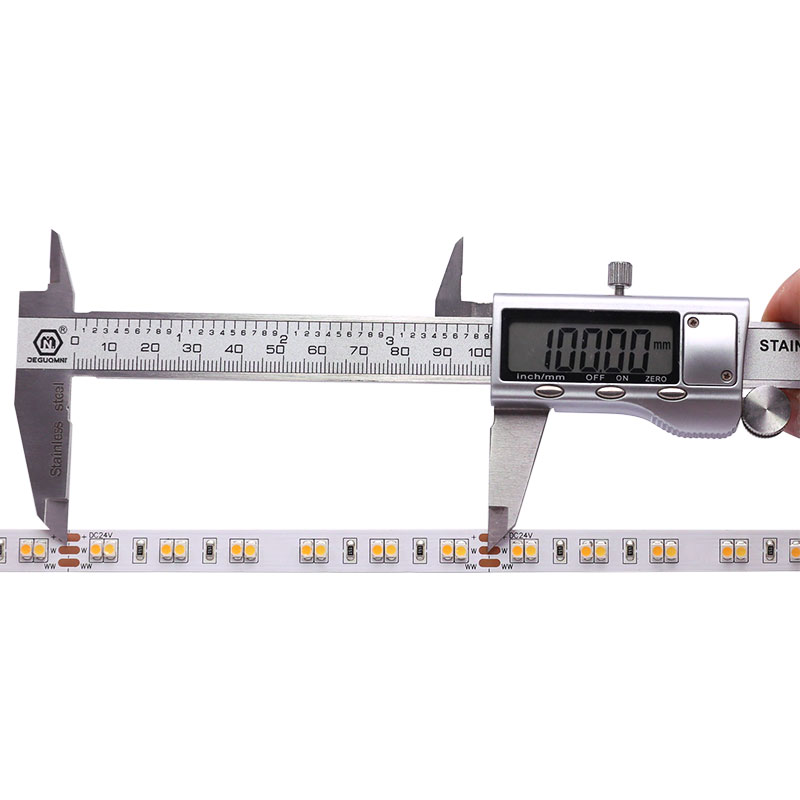

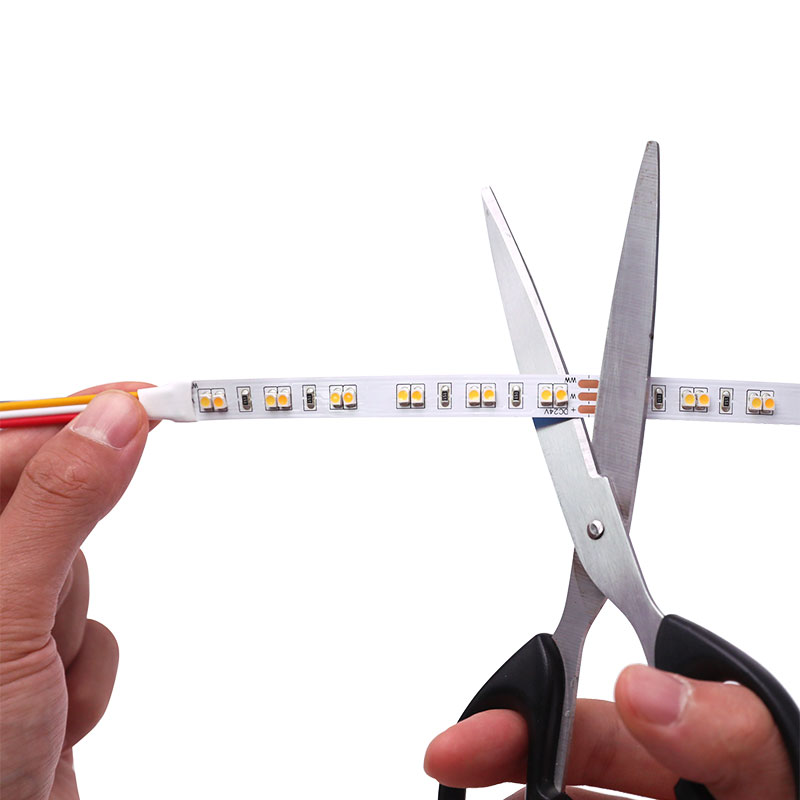

There are 120 lights per meter, 60pcs warm white lights and 60pcs natural white lights, total 600 lights per roll. Every 12-LED can be cut (100mm cut unit).
Standards and Certifications
|LED Strip Type:||Tunable White LED Strip|
|LED Chip:||SMD 3528 Epistar Chip|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||CCT color temperature adjustable|
|Dimension:||16.4ft/roll, every 12 PCS LED can be cut|
|LED Quantity:||120 LEDs per meter|
|Input Voltage(V):||24V DC|

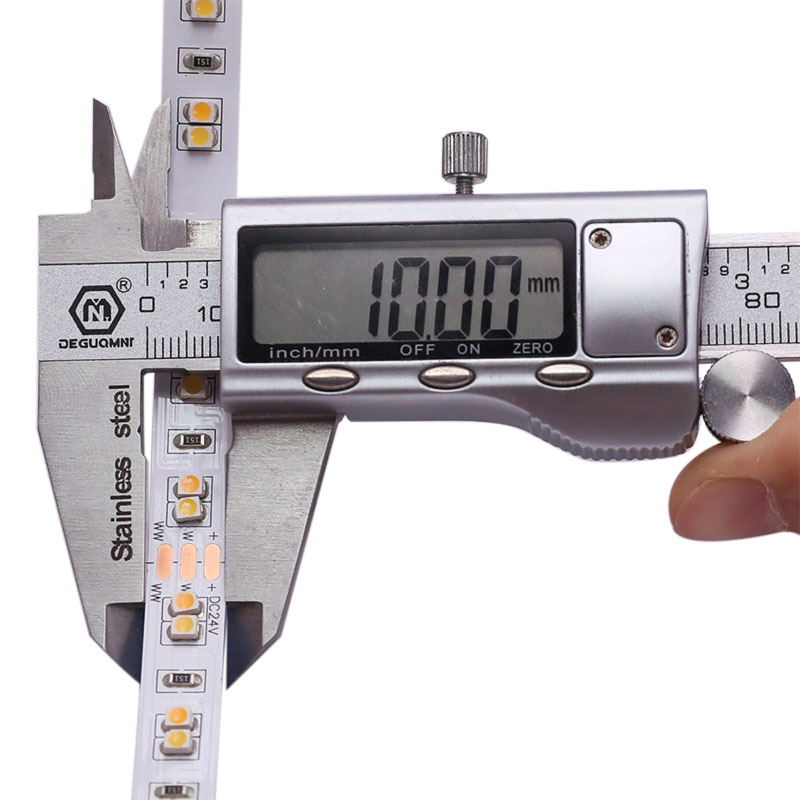

|PCB Width:||10mm (0.4in)|
|Working Power:||9.6w/m, 48W/16.4Ft|
|Beam Pattern:||120 degrees|
|Waterproof:||Non-waterproof IP20 / outdoor waterproof IP67|
How to wire CCT tunable white led strip?
Please refer to the wiring diagram below to connect your light strip.
