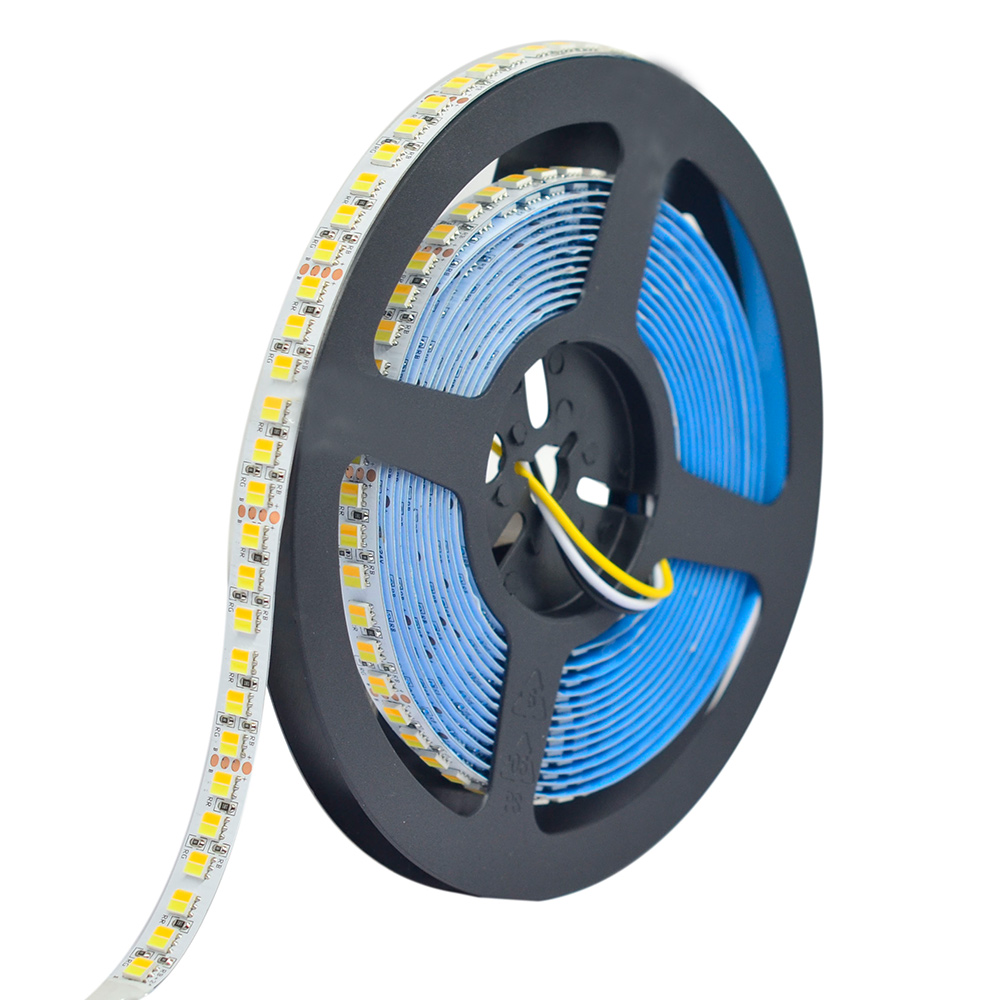

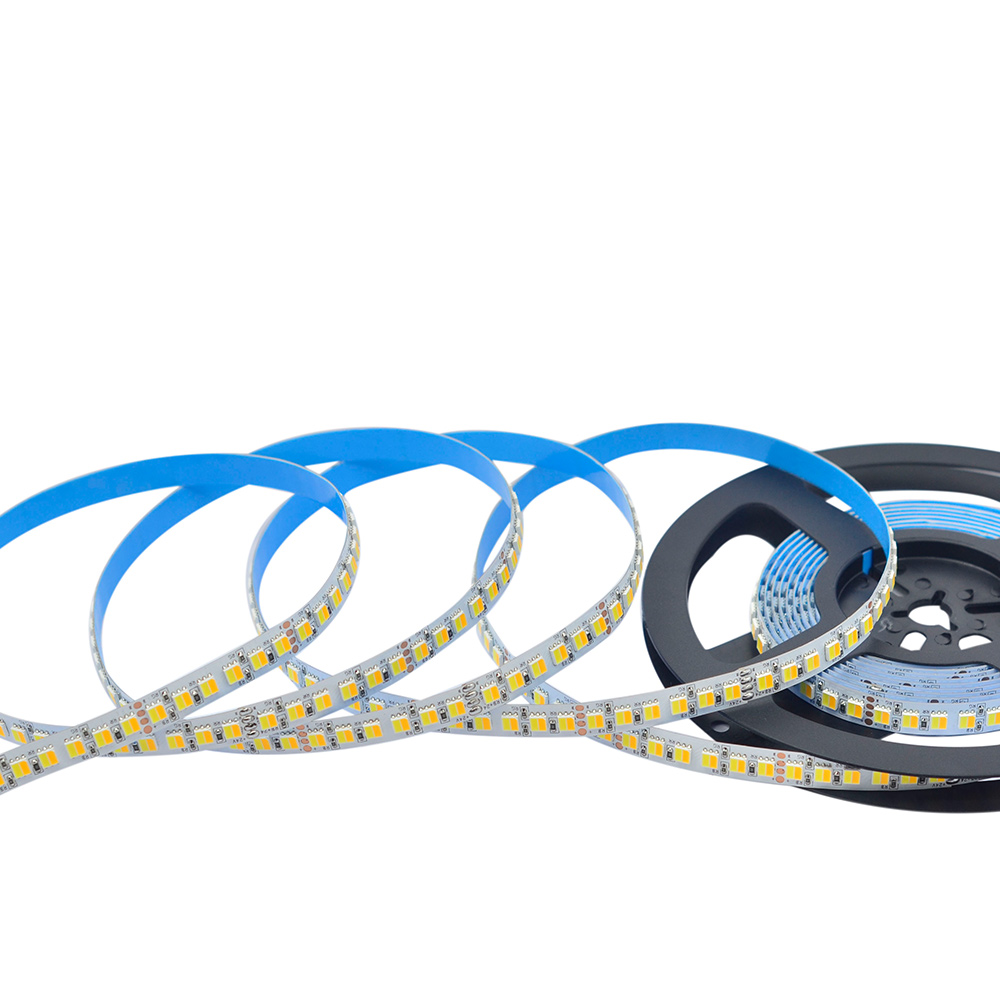

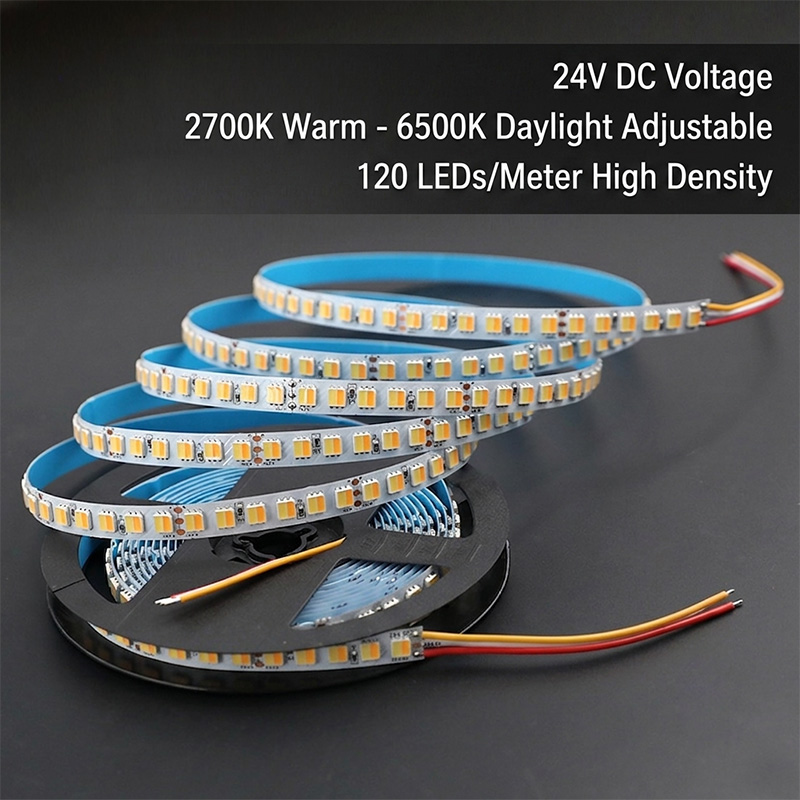

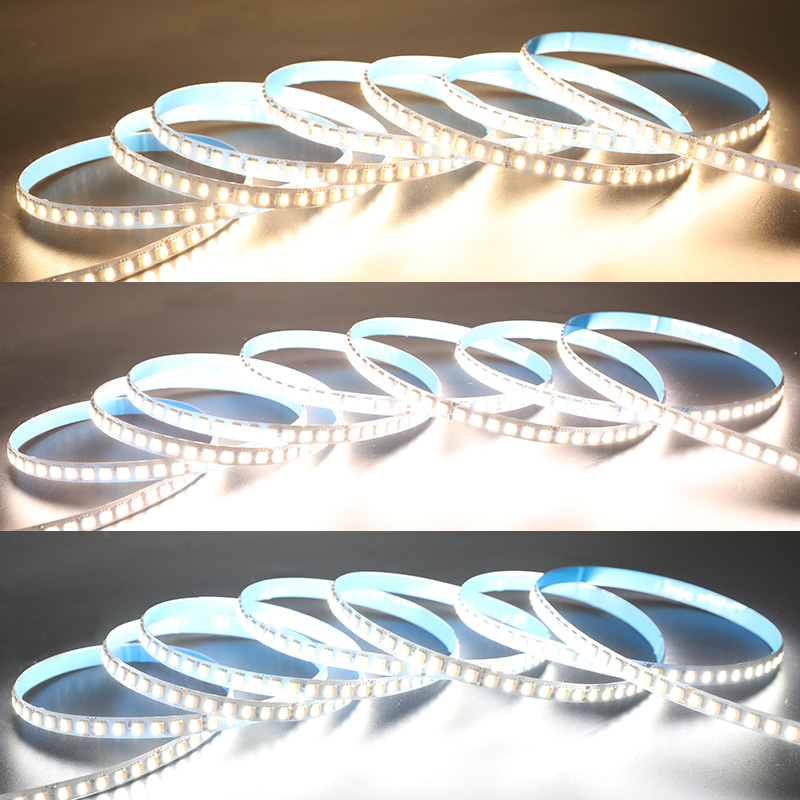

Single Row DC24V 5050SMD 600LEDs 2in1 Flexible LED Strip Light - Color Temperature Pure White+Warm White

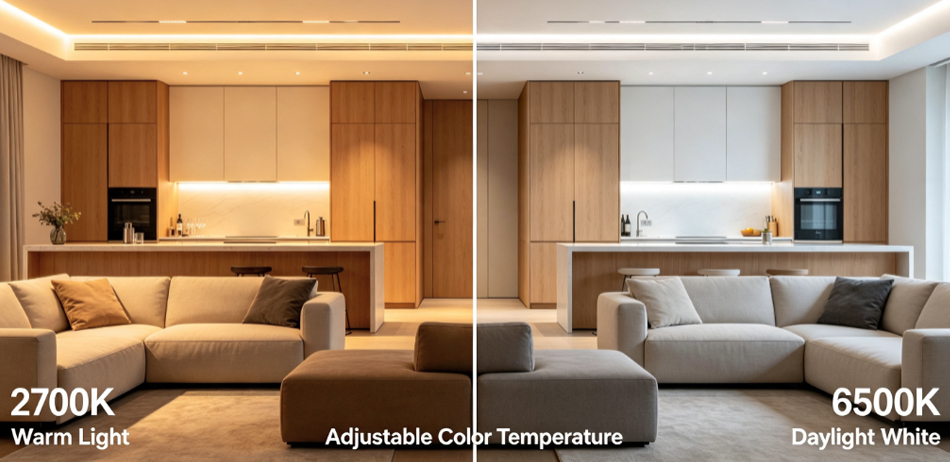

What is tunable white light?
Different color temperatures in one white light LED strip, usually are warm white LED lights and daylight/pure white LED lights. With tunable white led strip lights(CCT led strips), you can adjust the LED white light from 2700K warm white to 6000K cool white with a tunable white led controller (sold separately), enjoying the whole white light.

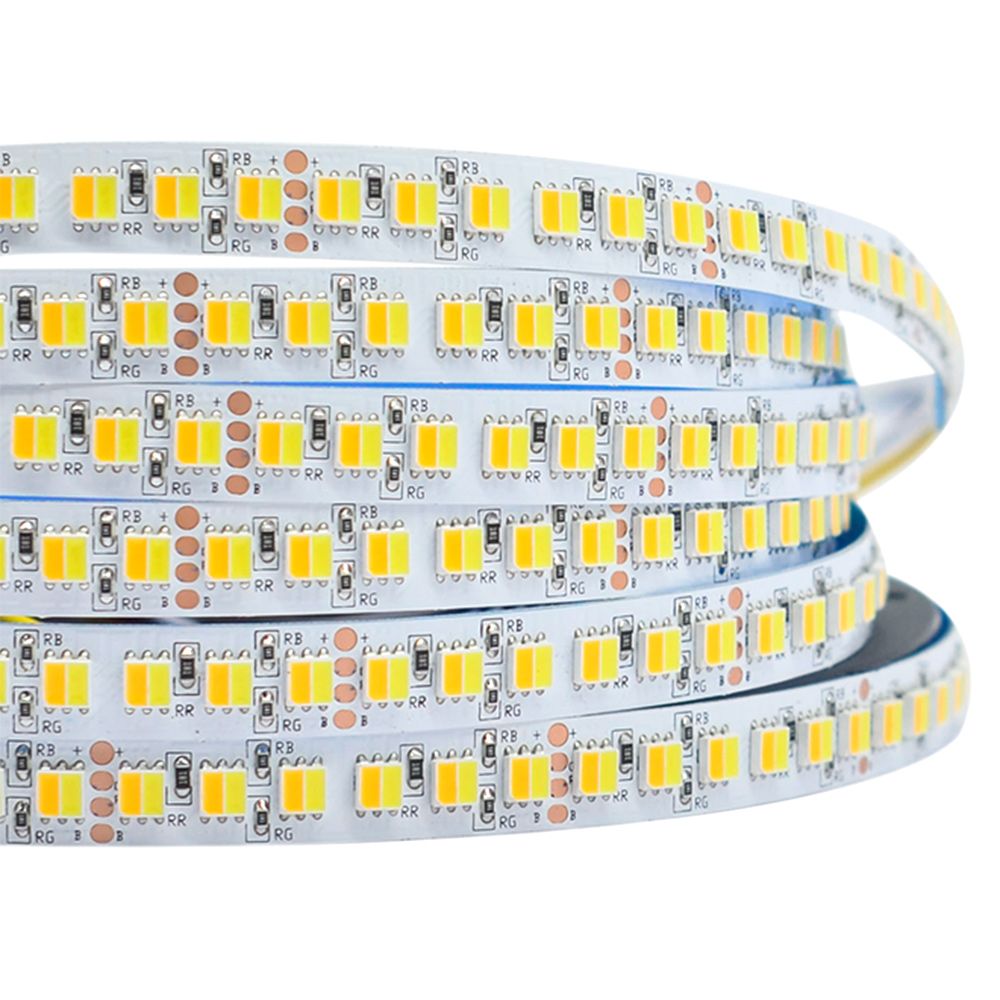

►This bright white led strip uses SMD 5050 2 in 1 white LED, warm white light and pure white light are in one LED, high brightness. Using 1,200 LEDs (600 Daylight white 6000K LEDs and 600 warm white 3000K LEDs), the white light led strip emits up to 804 lumens of powerful illumination per foot. The 5m (16.4') LED light strip is available with a white finish and can be easily cut into 12-LED segments and installed with its peel-and-stick adhesive backing. The light strip must be used with a class DC24V 200W led strip light power supply.
►The running length of 24V white led strip lights is longer than 12V white led strips and 5V white led lighting strips, suitable for ultra long led lighting project.
►This tunable white led lighting is waterproof optional, available in indoor and outdoor installation - IP20 vs IP65 vs IP67 vs IP68 waterproof LED strip. IP65, IP67, and IP68 waterproof led strip will affect the white light color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strip lights and have requirements on the kelvin color temperature, please note when placing the order.
►This flexible CCT tunable white LED light strip is great for retail shops, jewelry cases, supermarkets, food and meat cases, museums, galleries, videography, under-cabinet lighting, or for home indoor applications where space is limited.
►Before buying CCT tunable LED strip lights, the following LED strip knowledge you need to know:
Standards and Certifications

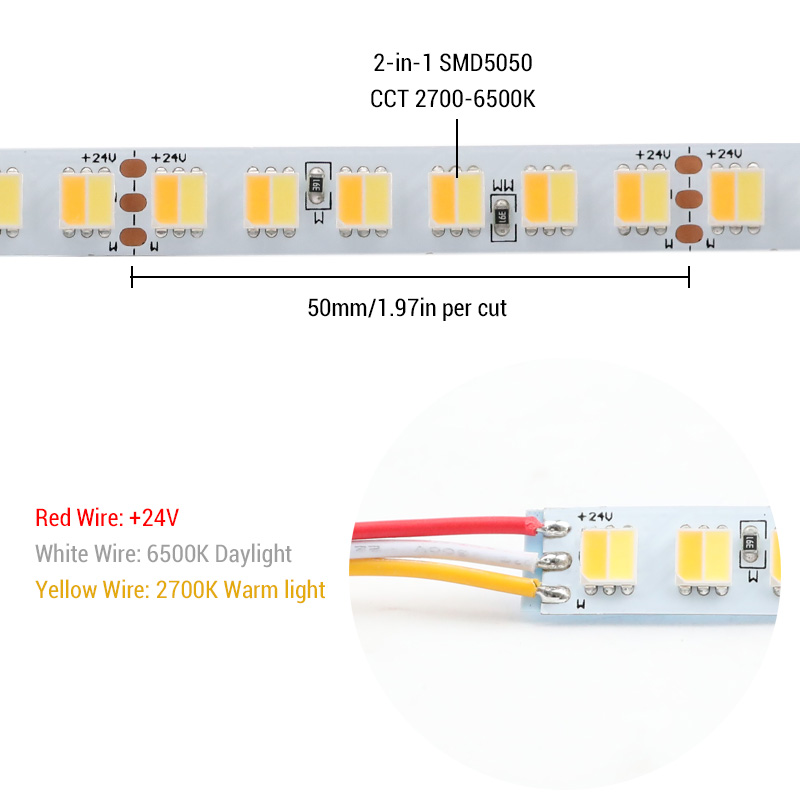

LED Strip Type: SMD 5050 2in1
LED Chip: Super bright Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)

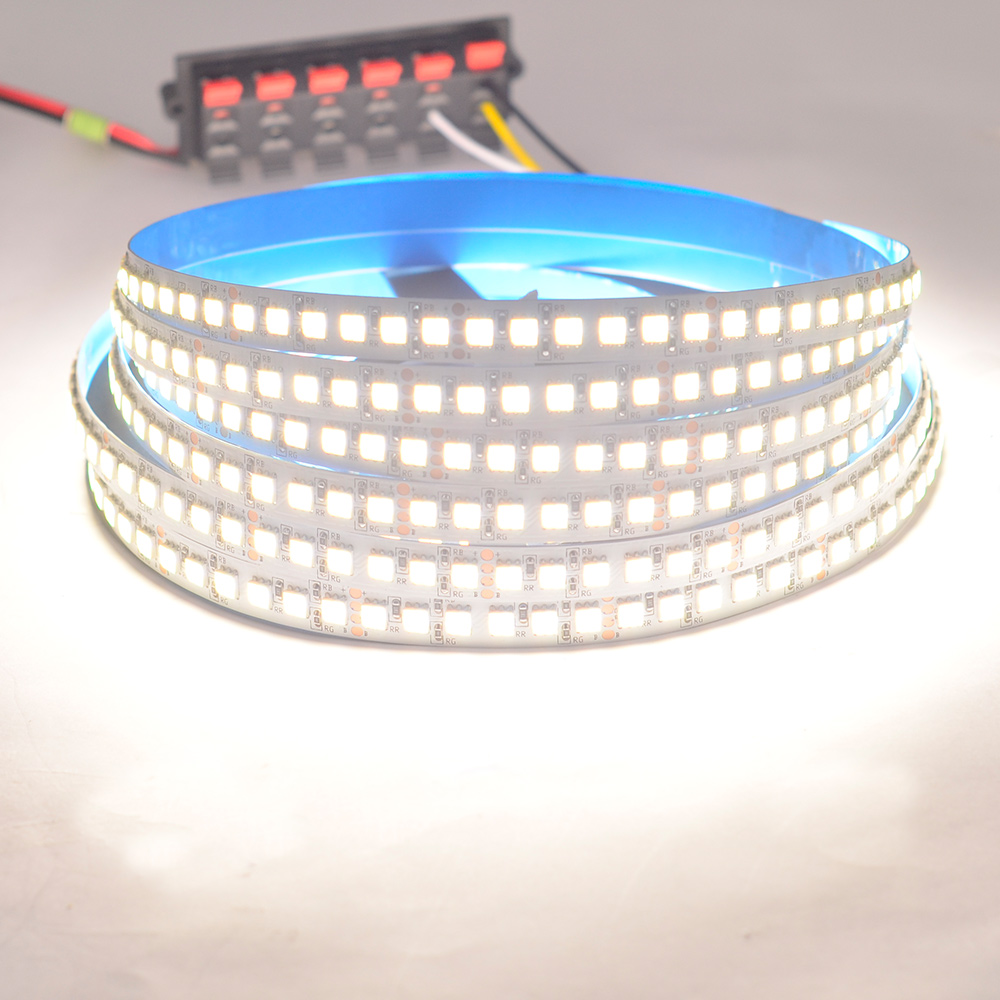

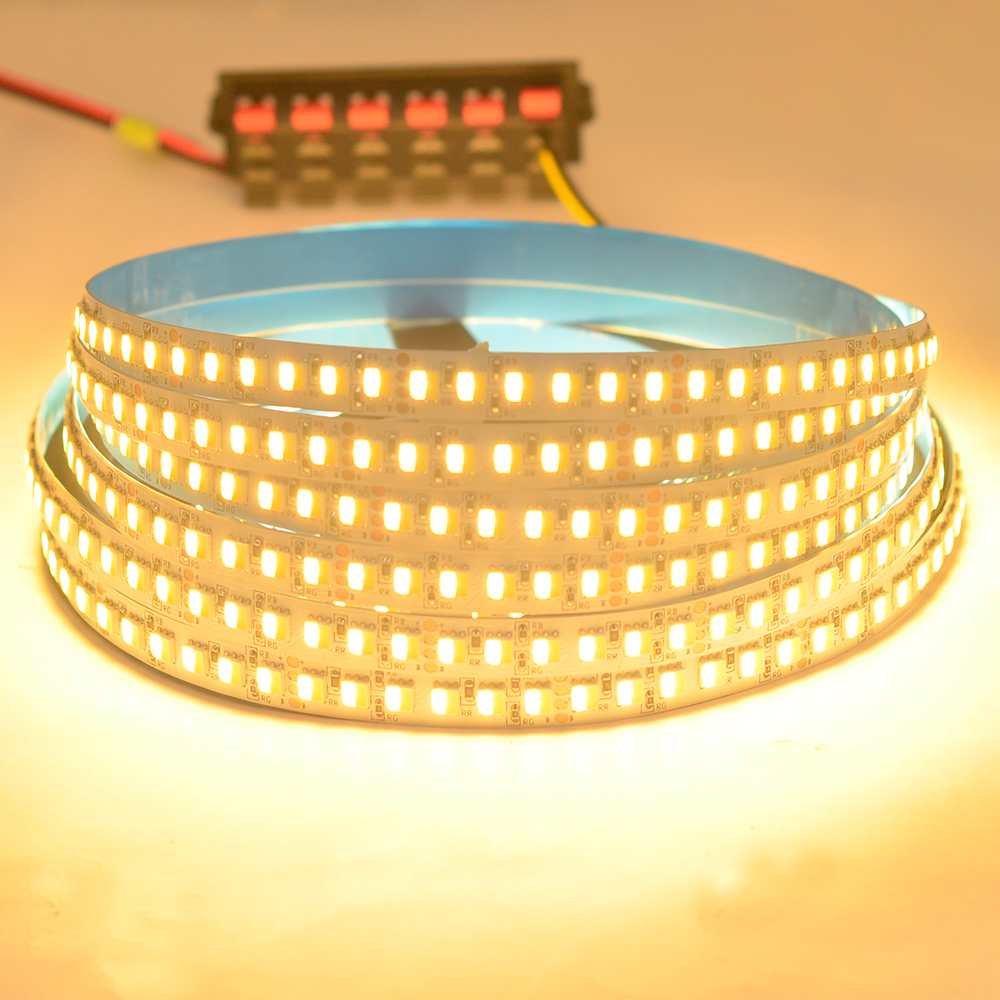

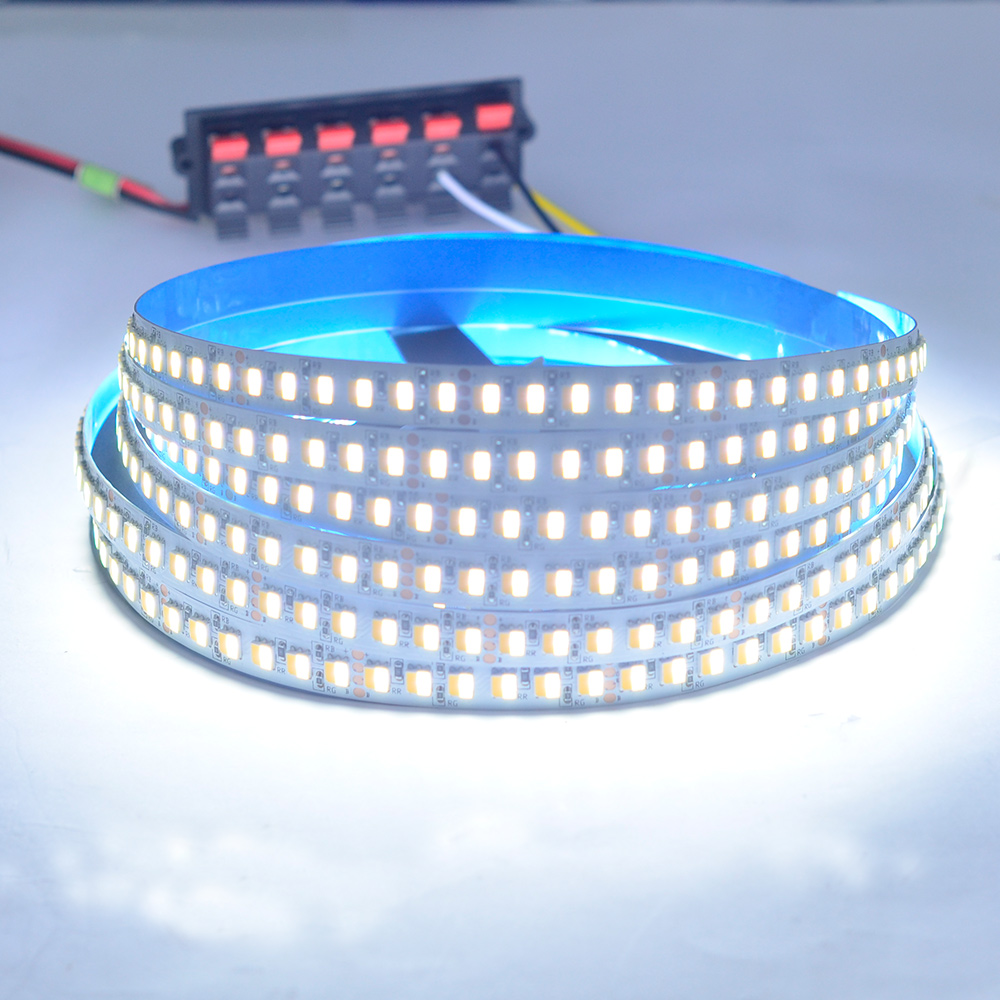

Light Color: Warm White+Daylight White

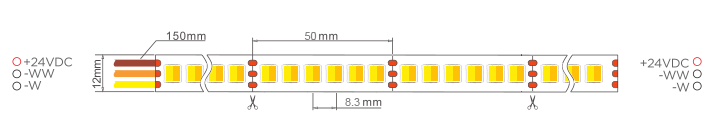

Dimension: 16.4ft/roll, every 12 PCS LED can be cut
LED Quantity: 600 LEDs per 5meter (16.4 ft) [600 daylight white leds + 600 warm white leds]
Warantty: 3 years
Dimensions: L500cm(196.8 in ) x W1.0cm(0.39 in ) x H0.25cm(0.10 in )
Input Voltage(V): 24V DC
Working Power: 144W /16.4ft Max
Lamp Luminous Flux(lm): 20-2lm/LEDs 13186lm/16.4ft 804lm/ft 91.5lm/w
Color Temperature CCT(White): Warm White(2800-3500k), Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
CRI (Ra>): 95
Waterproof Level Description
IP20 Non-waterproof (The PCB [Printed Circuit Board] surface of the bare, with a self-adhesive back, For Indoor);
IP65 Waterproof (Epoxy cover waterproof, Epoxy Resin, PCB surface is encapsulated with plastic Gel, with self-adhesive 3M back, For Outdoor & Indoor) ;
IP67 Waterproof (Silicon sleeve waterproof, PCB is encapsulated with silicon tube, with a plastic fastener, better waterproof, For Outdoor);
IP68 Waterproof (Fully waterproof plastic irrigation, PCB both surface and back are encapsulated with plastic Gel, with a plastic fastener, the top level of waterproof, For Outdoor);
The basics are all the similar. You will need a led strip light, a power supply(Please use a DC24V 200Watt power supply), and a way to attach the two to make your lights turn on. The size and type of power supply unit will depend on the type of LED strip light, the length required, and dimming option required. We are always here to assist in your selection. You can also purchase a complete kit here. If you have any question, please let me know: firstname.lastname@example.org
This is only the CCT tunable white light led strip product, you need a CCT led strip light controller and an led strip power supply to operate the CCT led strip. Choose a correct led strip lighting controller and an led strip light power supply for this tunable white led strip:
►16.4/32.8 feet (5/10meter) Connection diagram
►65 feet (50meter) Connection diagram
|You can cut the white strip every few inches, allowing you to freely design your lighting project without worrying about space requirements to many different surfaces.||The back of the CCT led strip is fitted with a strong 3M tape, allowing you to peel and stick LED lights.||IP67/IP68 waterproof type which will come with mounting brackets.|
►Can you cut LED strip lights and how to reconnect:
Aluminum profiles and LED flex neon tubes can be used as CCT tunable white light strip accessories. Dual color temperature LED lights with LED aliuminum channel and flex LED neon tube can get an uniform, soft, and no LED lighting sopt effect.
►Knowledge about LED aluminum profile and LED neon lights:
How to choose led strip lights
Step1: Get a clear vision! Because each project is unique, there is no all-in-one solution.
Different projects require different types of LED strips. When place order, please clear the following answers :
This tape light can replace normal T8 tube or blub.
Where will it be installed (Indoor or outdoor)?
Indoor or outdoor? This may be related to waterproof grade choose.
Do you want to dim your lights or control them with a remote or wall switch?
If you have dimmer, then you can use a remote controller or mobile APP to control and adjust your lighting.
What overall look do you want to achieve?
What color do I need?
This led tape light has warm white, daylight white, and nature white 3 colors, each color temperature is different, please choose the color you need.
What materials am I looking?
The material of this lighting is using recycled material, friendly to the environment, our product has a certificate of CE, RoHS, ETL, and TUV.
Are there other lights in the area and if so, what color are they?
