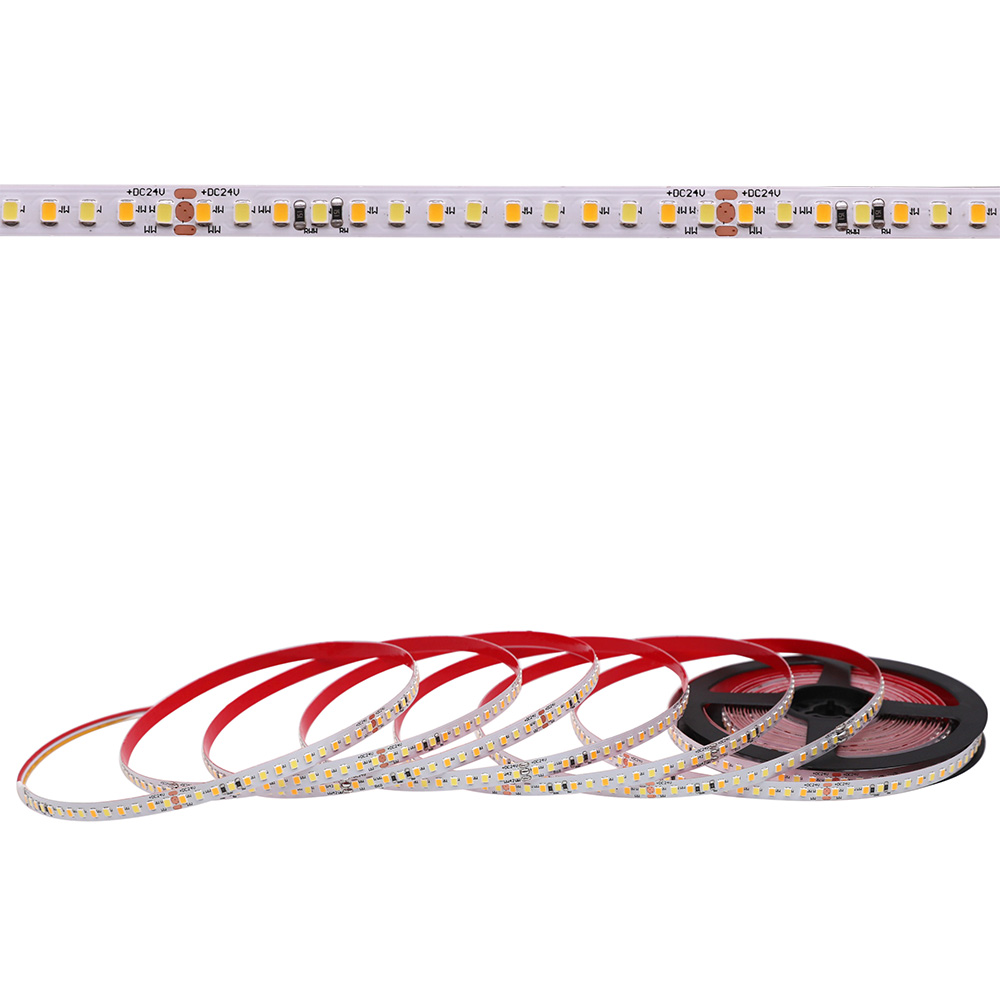

24V 8mm CCT Tunable White LED Strip, Warm White + Pure White 2835 LEDs

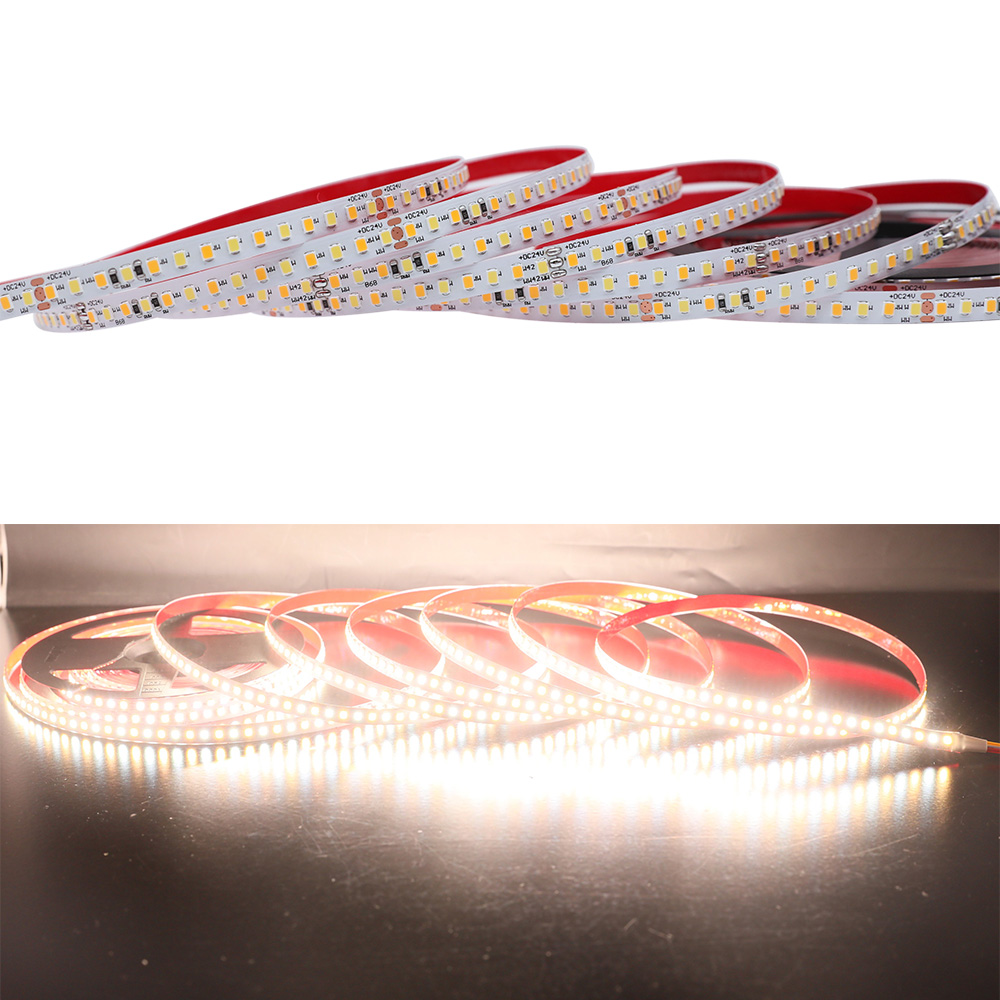

This CCT 8mm wide led strip uses 2835 SMD LEDs, high efficiency, it is perfect to make led neon lights with silicone led strip diffuser, no light spot and soft linear light. No voltage drop, high color consistency, suitable for long running length led projects. 5m and 10m CCT led strip lights can be selected.

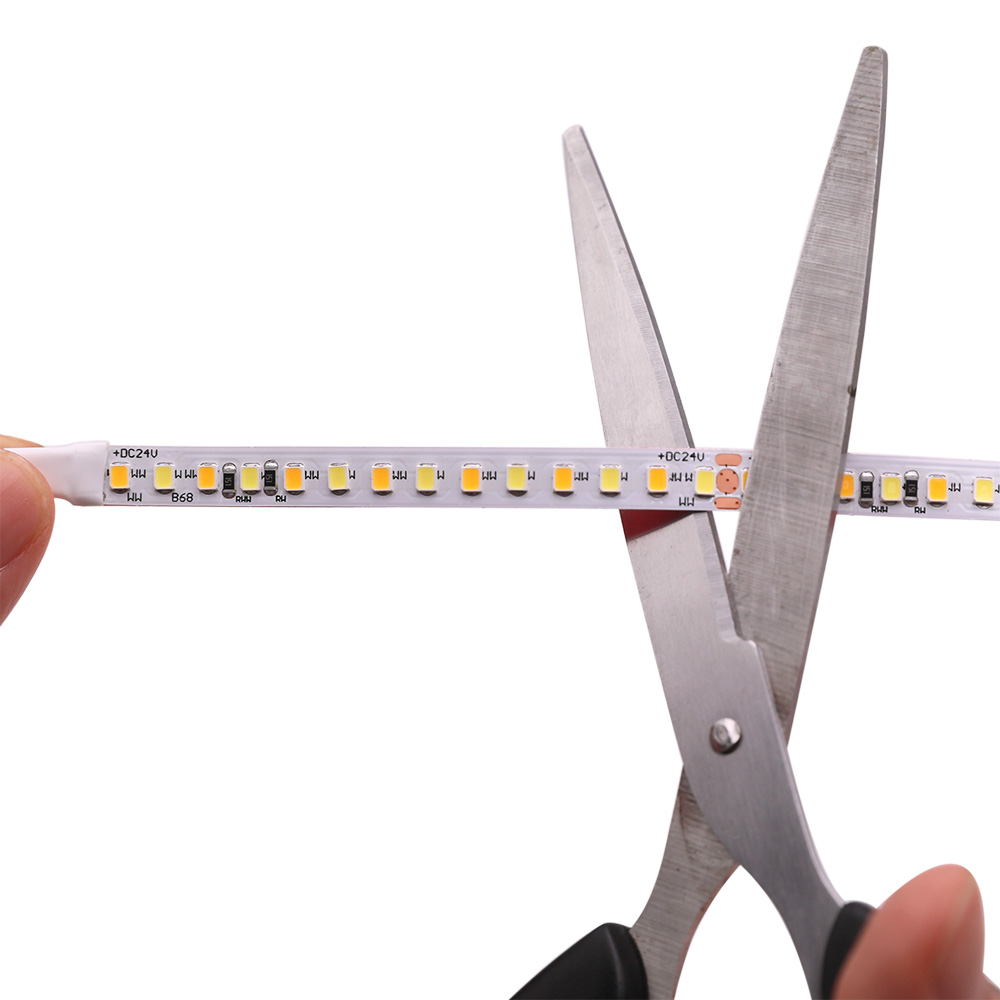

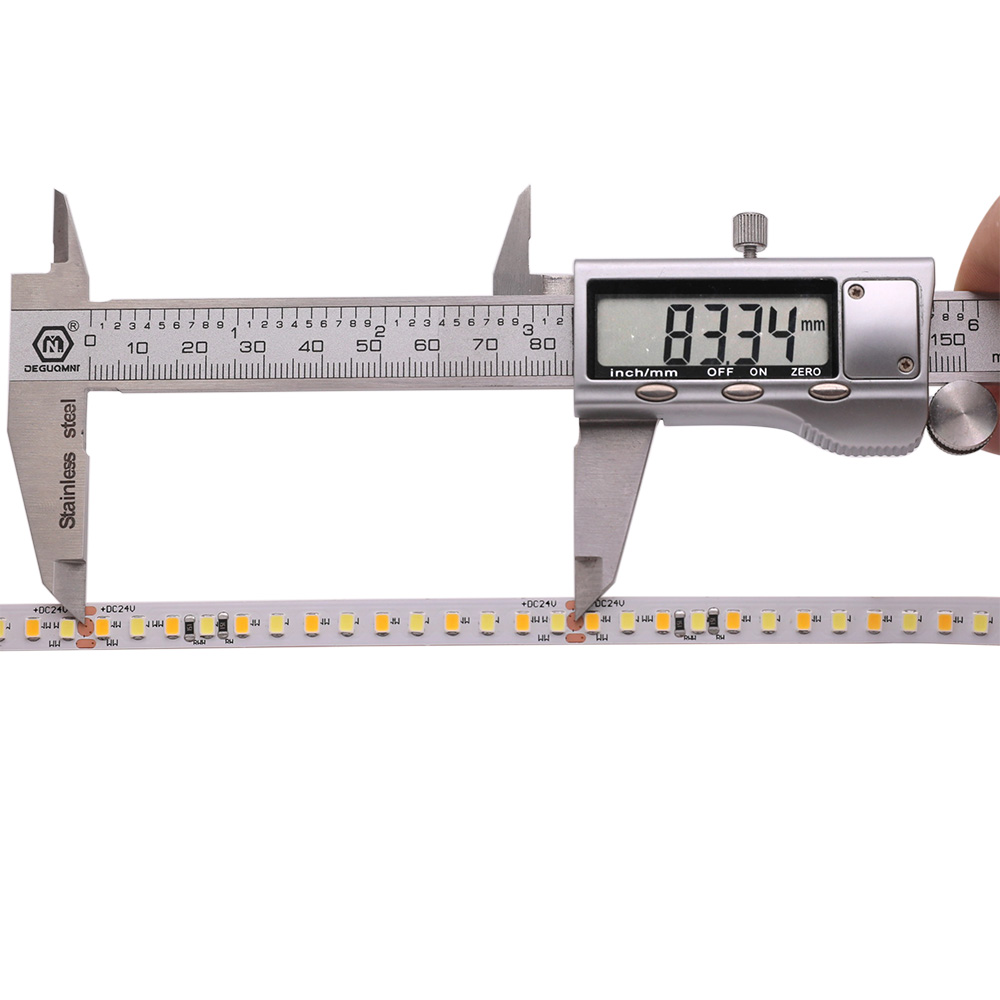

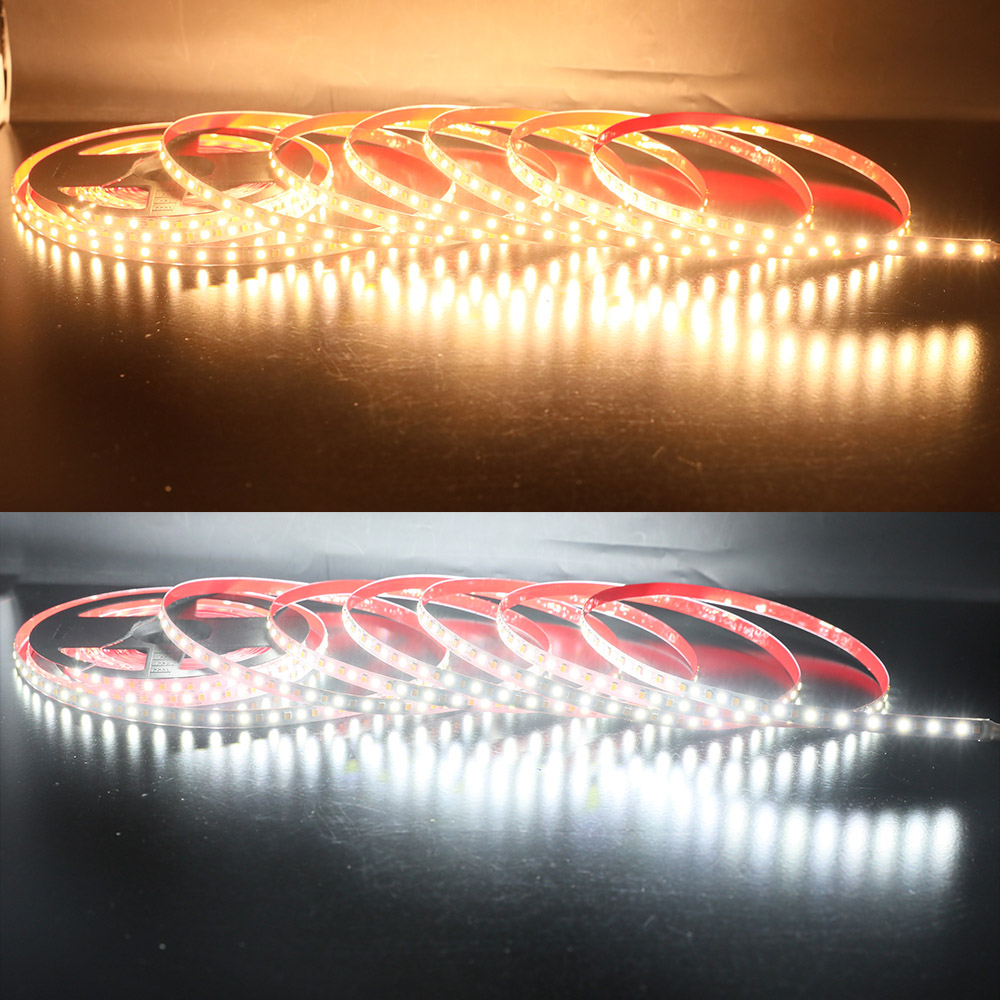

There are 168 white lights per meter (84 white light LEDs + 84 daylight white LEDs), high density, each 83.34mm(14 led lights - 7 warm white LEDs + 7 pure white LEDs) can be cut. Warm white LEDs and pure white LEDs are arranged individually on the flexible PCB board, you can turn on the warm white led lights or the daylight white led lights individually, or adjust the color temperature from 3000K to 6500K to suit your different activities, warm white for rest and relaxation, and pure white for tasks.
This CCT dimmable led strip light is powered by DC24V low voltage, matched with 24V led dimmer and 24V DC led power supply to use, adapt to various applications like ceilings, under cabinets, under bed, background wall, etc.
What does CCT mean in lighting?
CCT means correlated color temperature. Usually, the warm white light and pure white light are specifically expressed by Kelvin color temperature. The white light color temperature of CCT tunable white LED strip can be adjusted with white CCT dimmers from 3000K to 6500K(warm white/soft white to natural white to daylight white to cool white).
What is IP rating?
IP20 and IP65 for indoor use, and IP67 and IP68 for outdoor use. The waterproof grade of IP65, IP67, and IP68 will affect the color temperature due to the material problem, resulting in an increase of about 1000K. If you want to purchase the waterproof LED strips and have requirements on the color temperature, please note when placing the order.
Standards and Certifications
LED Strip Type: SMD 2835
LED Chip: San'an Chip
Working Temperature: -4°F (-20°C) ~ 122°F (50°C)
Storage Temperature: -40°F (-40°C) ~ 176°F (80°C)
Light Color: Warm White+Daylight White
Dimension: 5m/16.4ft, 10m/32.8ft
LED Quantity: 168 LEDs/m, 840LEDs/16.4ft, 1680LEDs/32.8ft
Warantty: 3 years

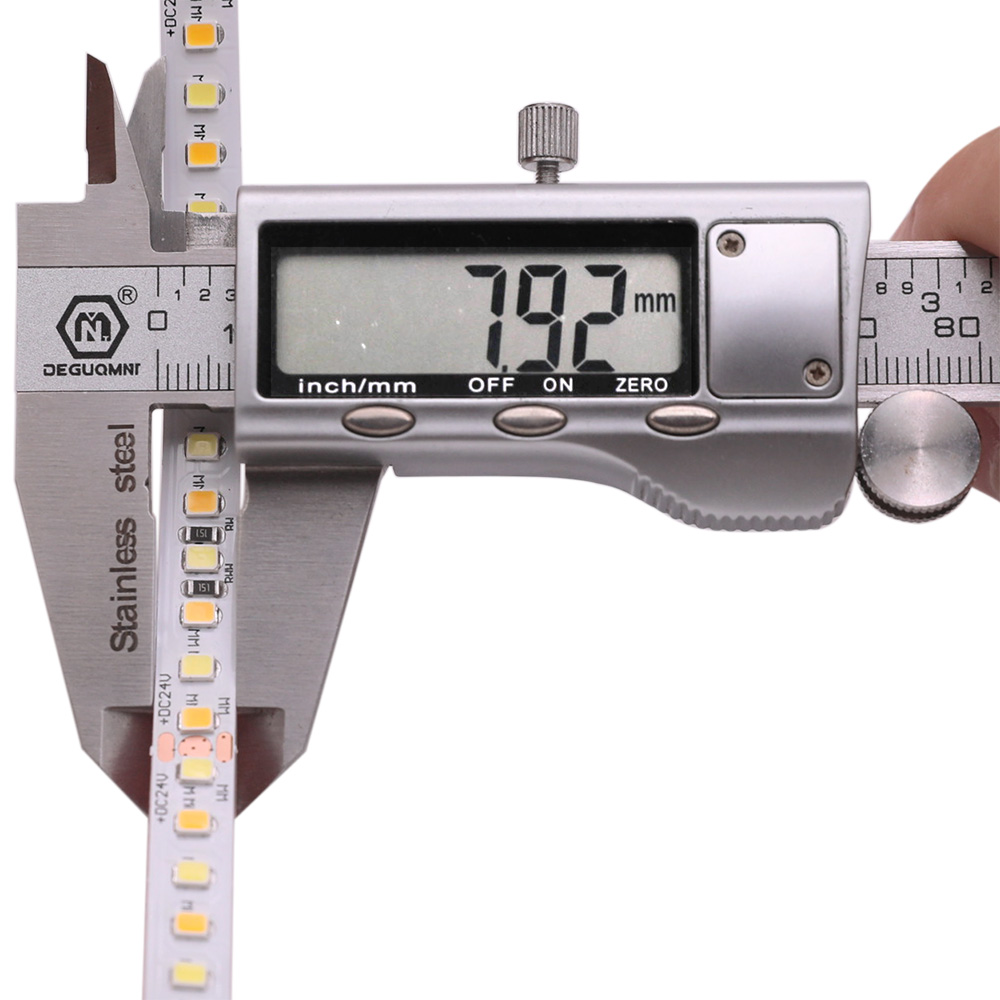

Dimensions: L500cm(196.8 in ) x W0.8cm(0.31in ) x H0.25cm(0.10 in )
Input Voltage(V): 24V DC
Working Power: 14W/m, 70W/16.4ft, 170W/32.8ft Max
Lamp Luminous Flux(lm): 7~8lm/LEDs 1525lm/16.4ft 93lm/ft 31.8lm/w
Color Temperature CCT(White): Warm White(2800-3500k), Natural white(4000-4500k) Daylight White(5000-6500k)
Beam Pattern: 120 degree
Water Proof: Non-waterproof; Waterproof IP65; Waterproof IP67; Waterproof IP68 Optional
