WS2811 Addressable RGB+CCT Color Chasing LED Strip Lights - 12V/5V 12mm 120LEDs/m
- $49.98 $40.9818% off
- $35.00 $28.9817% off
- $29.00 $25.9810% off
$49.98 $40.9818% off
WS2811 RGBCCT is a 5-channel (12V+; DO; CW; WW, GND) addressable RGB+CCT dimmable LED strip, is one of the latest generation products on the market. It has a serial single-wire cascade interface, integrated addressable LEDs and ordinary LEDs are evenly arranged on the PCB, the LED density is 120LEDs/m.
DC12V WS2811 addressable 5050SMD LED is an external driver IC, accepts SPI controller to read data, generates pulse width modulation signal to control 256-level grayscale adjustment, and outputs 16 million lighting colors; SMD3838 2in1 CCT LED accepts dimmable CCT LED Controller to achieve 2700-6500K white gradient.

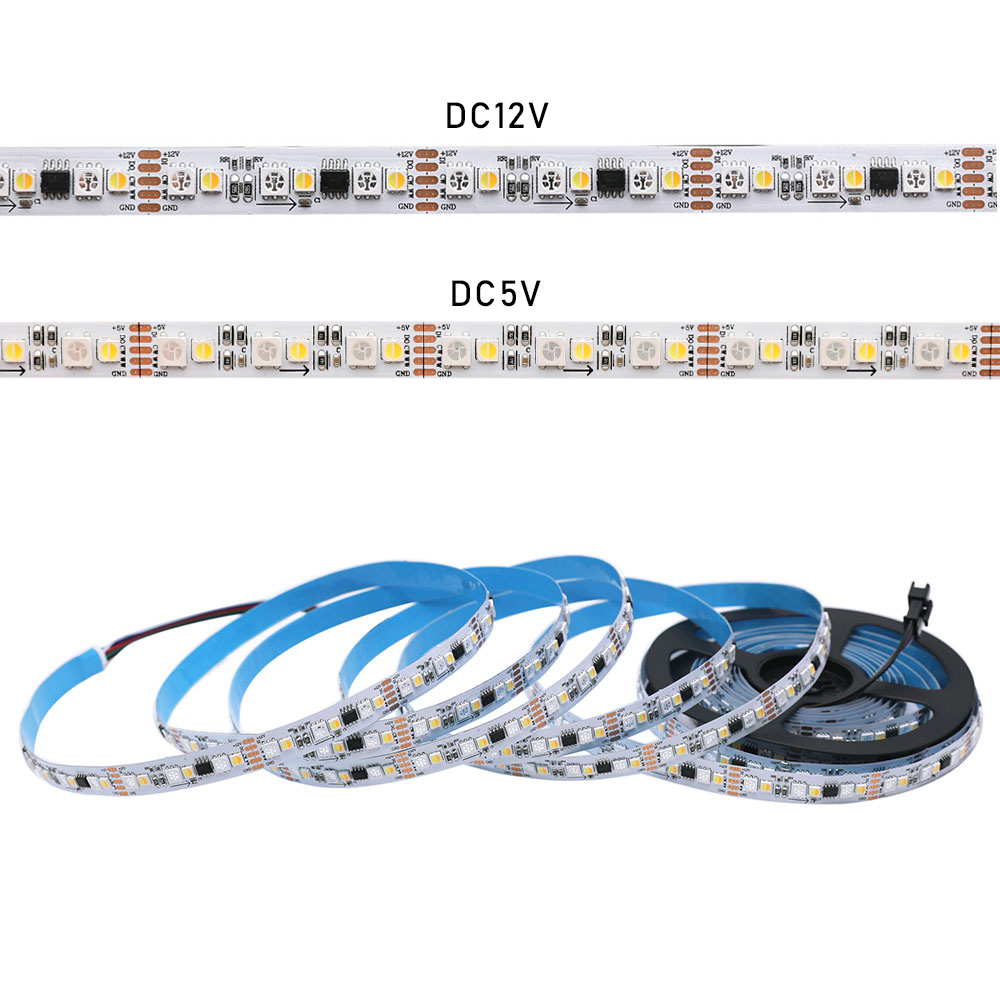

DC5V WS2811 addressable 5050SMD LED is a built-in driver IC, each 5050SMD LED is individually addressable, while DC12V 5050SMD LED is an external IC to control three 5050SMD LEDs, they are all 6 LEDs can be cut, and the length of the LED strip can be customized .
The back of the LED light strip is made of high-quality 3M tape, which can be installed in complex environments. The tape has good adhesion and is easy to install. For outdoor lighting work, you can choose IP67 and above waterproof LED strip light.
5-channel WS2811 RGBCCT
Addressable RGB+CCT dimmable
37LEDs/Ft, 120LEDs/m high density

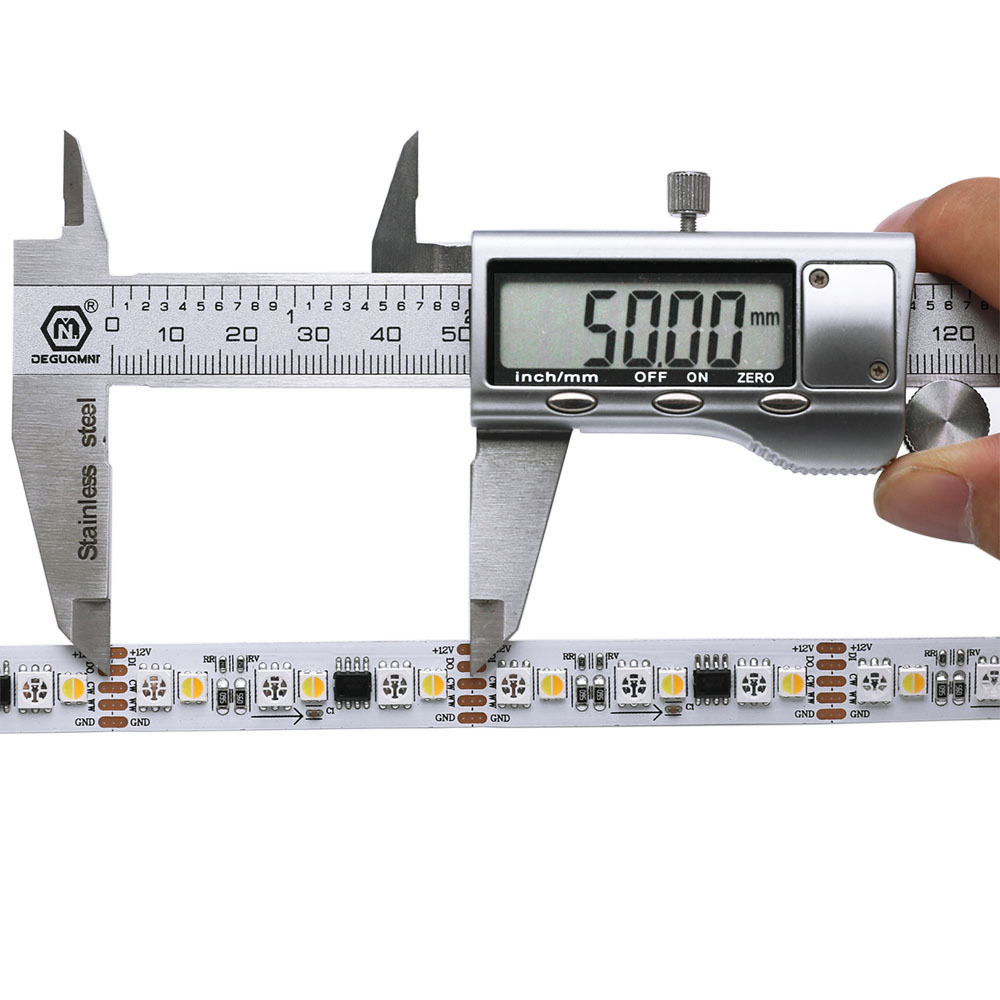

DC12V external drive IC, 6 lights cut unit, 50mm cut length

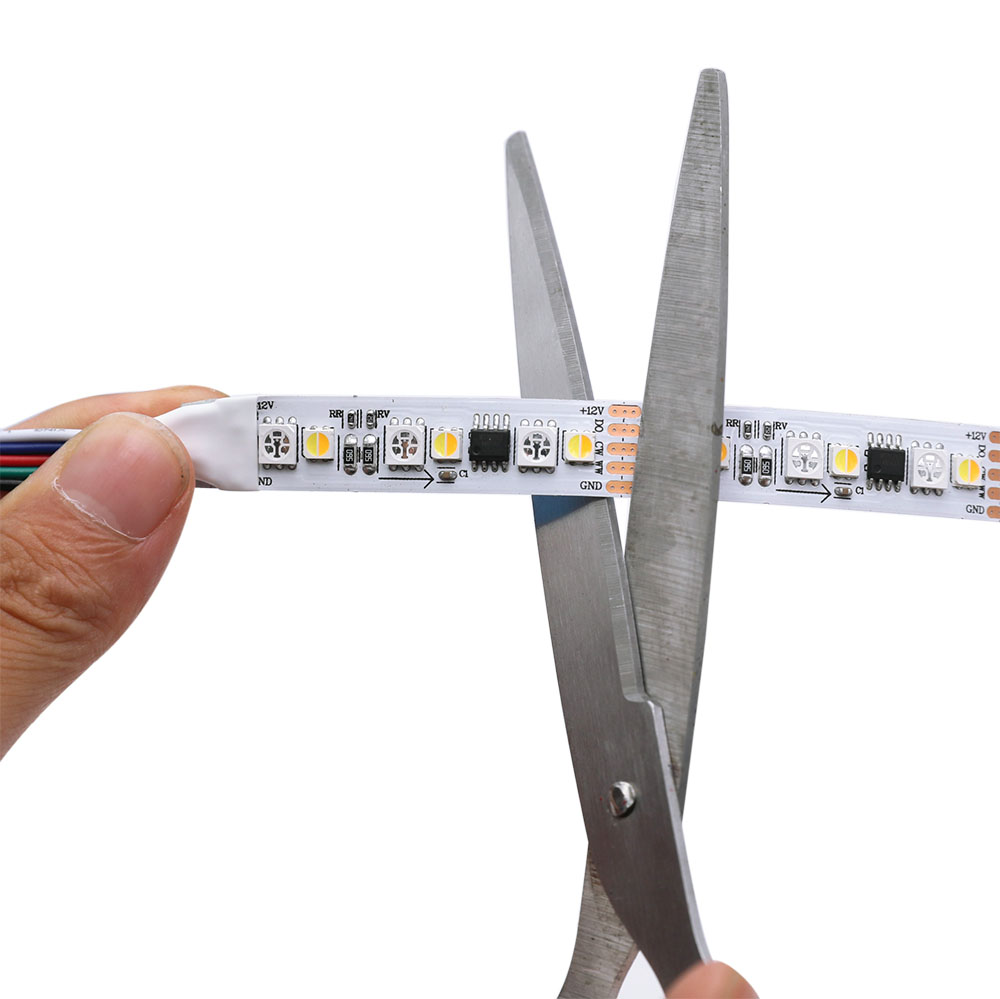

DC5V built-in driver IC (5050SMD LED individually addressable), 2 lights cut unit, 16.6mm cut length

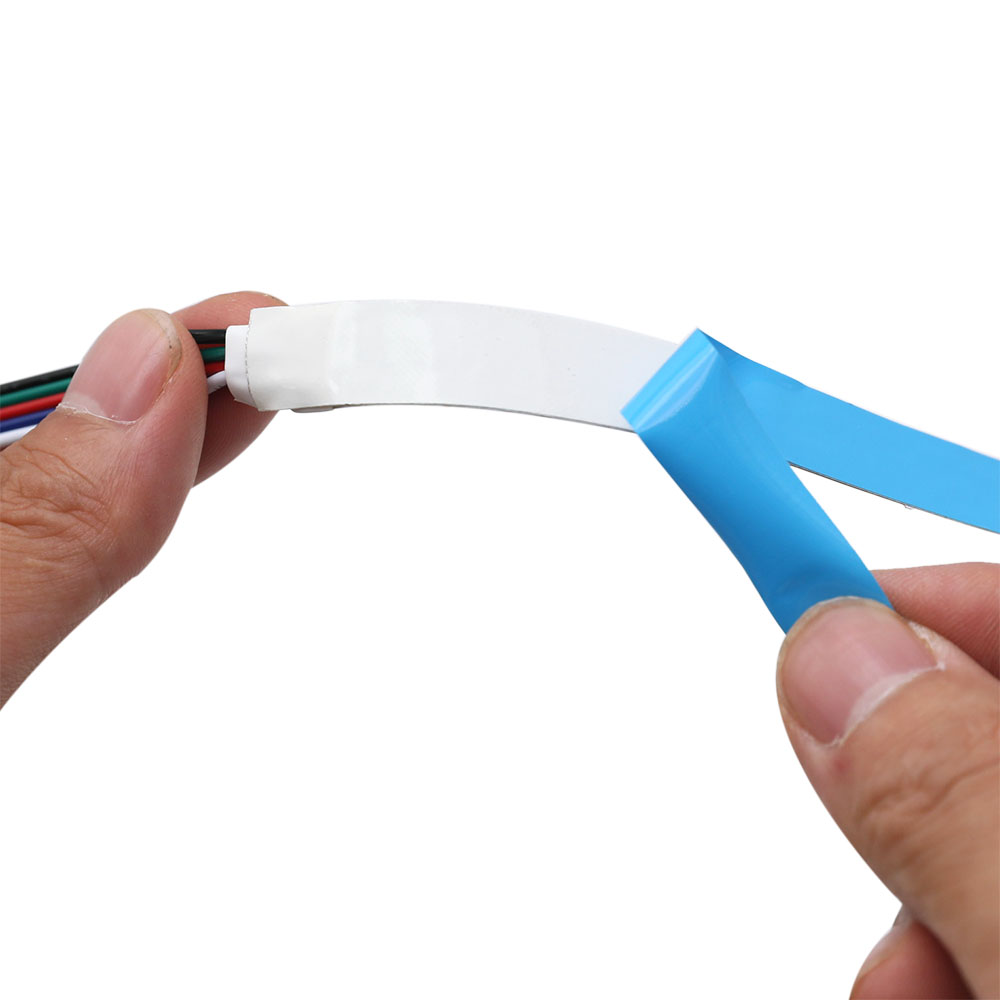

3M tape, easy to install
Multiple waterproof ratings available, IP20 for indoor lighting, IP67 for outdoor lighting

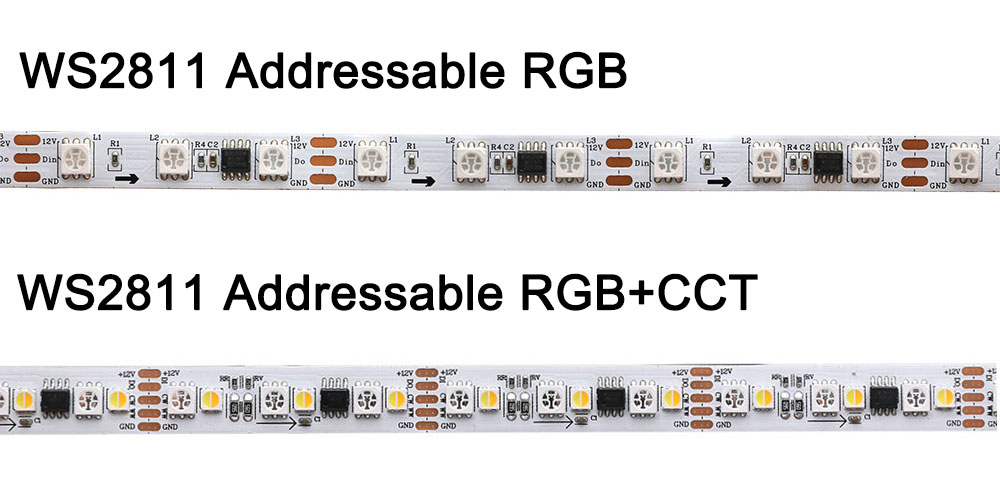

What is the difference between WS2811 addressable RGB and WS2811 RGBCCT LED strip light?
WS2811 RGBCCT is a 5-channel addressable RGB+CCT dimmable LED strip, which can produce 16 million dynamic effects, while achieving 2700-6500K white gradation; and the white color temperature can be adjusted, it is produced by ordinary SMD3838LED and generates less heat and the color saturation is higher.
The WS2811 addressable RGB LED strip is a 3-channel addressable LED strip. It is controlled by the SPI LED controller and can generate separate white light, but the white color is not adjustable, and the white light has a high color temperature and high heat generation.
If you are looking for perfect dynamic effects and want to achieve static white light adjustment, then this RGBCCT LED strip must be the best choice.
For DC5/12V LED strip light, you can purchase the LED power supply, which we recommend in the kit. If you use the LED strip light in the outdoor environment, you can consider our DC5V waterproof LED power supply and DC12V waterproof LED power supply
Standards and Certifications
|LED Strip Type:||5050 addressable RGB LED + 3838 CCT 2in1 LED|
|LED Chip:||Epistar Chip|
|IC Type:||WS2811 DC5V(built-in IC; 5050LED individually addressable); DC12V(external IC)|
|Pixel Quantity:||20 pixels/m|
|Working Temperature:||-4°F (-20°C) ~ 122°F (50°C)|
|Storage Temperature:||-40°F (-40°C) ~ 176°F (80°C)|
|Light Color:||Dream Color RGB+CCT (2700K-6500K color temperature)|
|Dimension:||16.4ft/roll, every 2/6 PCS LED can be cut|
|LED Quantity:||120 LEDs per 1meter (3.28 ft)|
|Input Voltage(V):||12/5 VDC|
|Working Power:||84W/16.4ft → Informations About LED Power Supply|
|Beam Pattern:||120 degree|
|Waterproof Rating:||Non-waterproof IP20, waterproof IP67|
1. Addressable RGBCCT led strip wiring diagram:
3. Installing led strip lights: - How To Install LED Strip Lights?
LED programmable digital display
Hotels decoration use
Concealed lighting, Cove decoration
Theaters, clubs, shopping malls lighting
Architectural decorative lighting
Boutique atmosphere lighting
Auditorium walk stairway lighting
Hidden groove, Wine cabinet decoration
Show exhibition decoration
